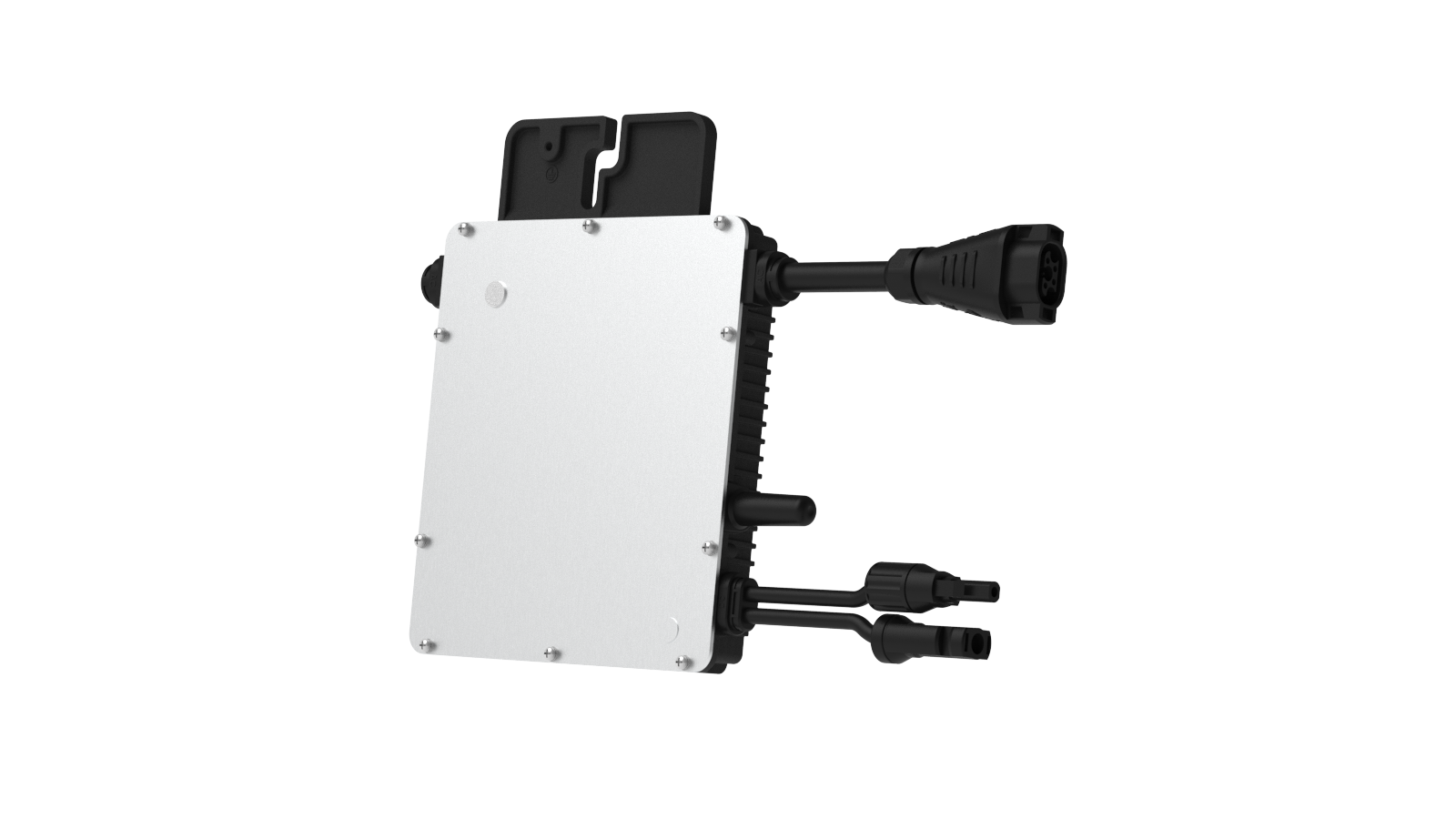

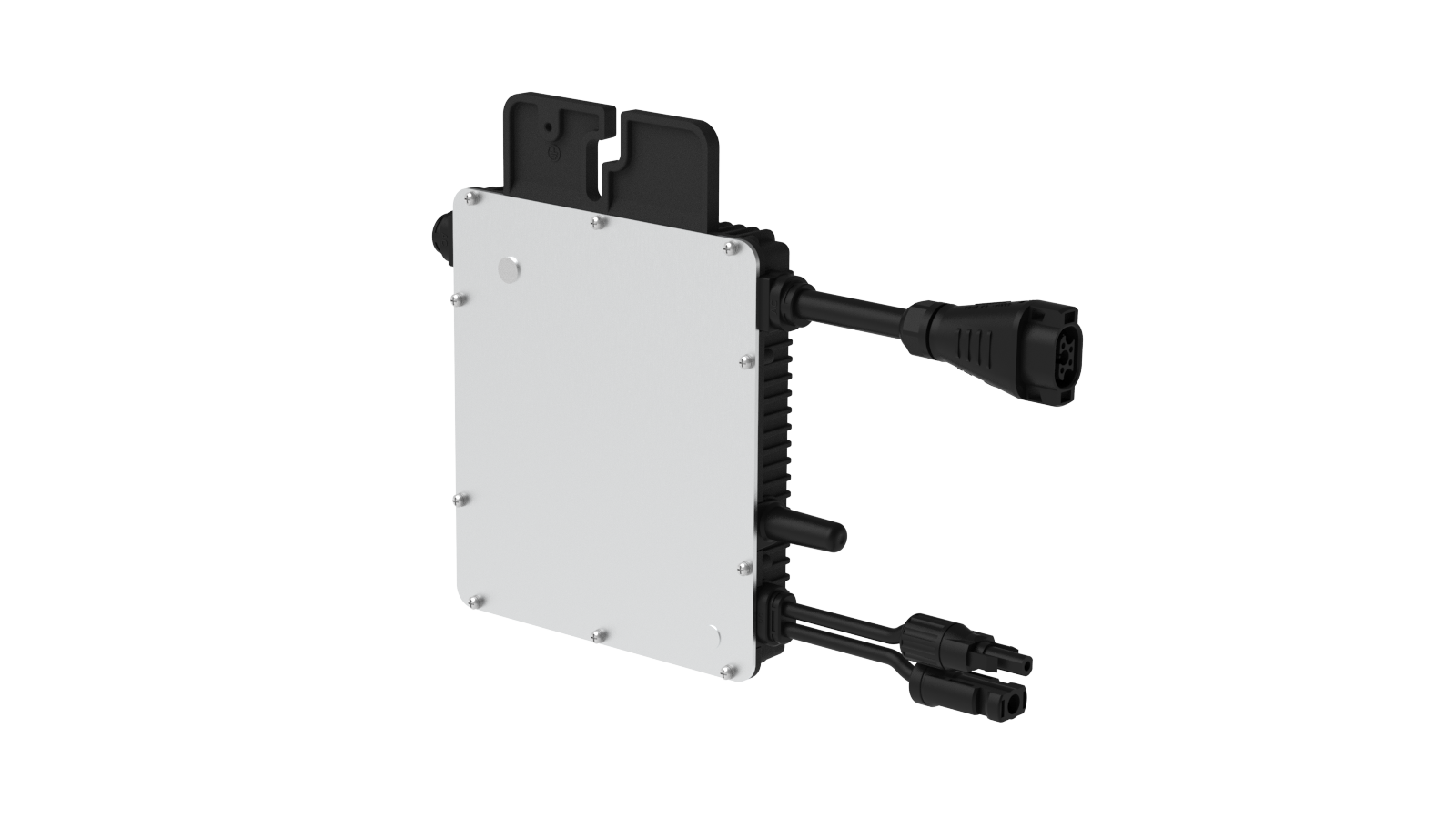

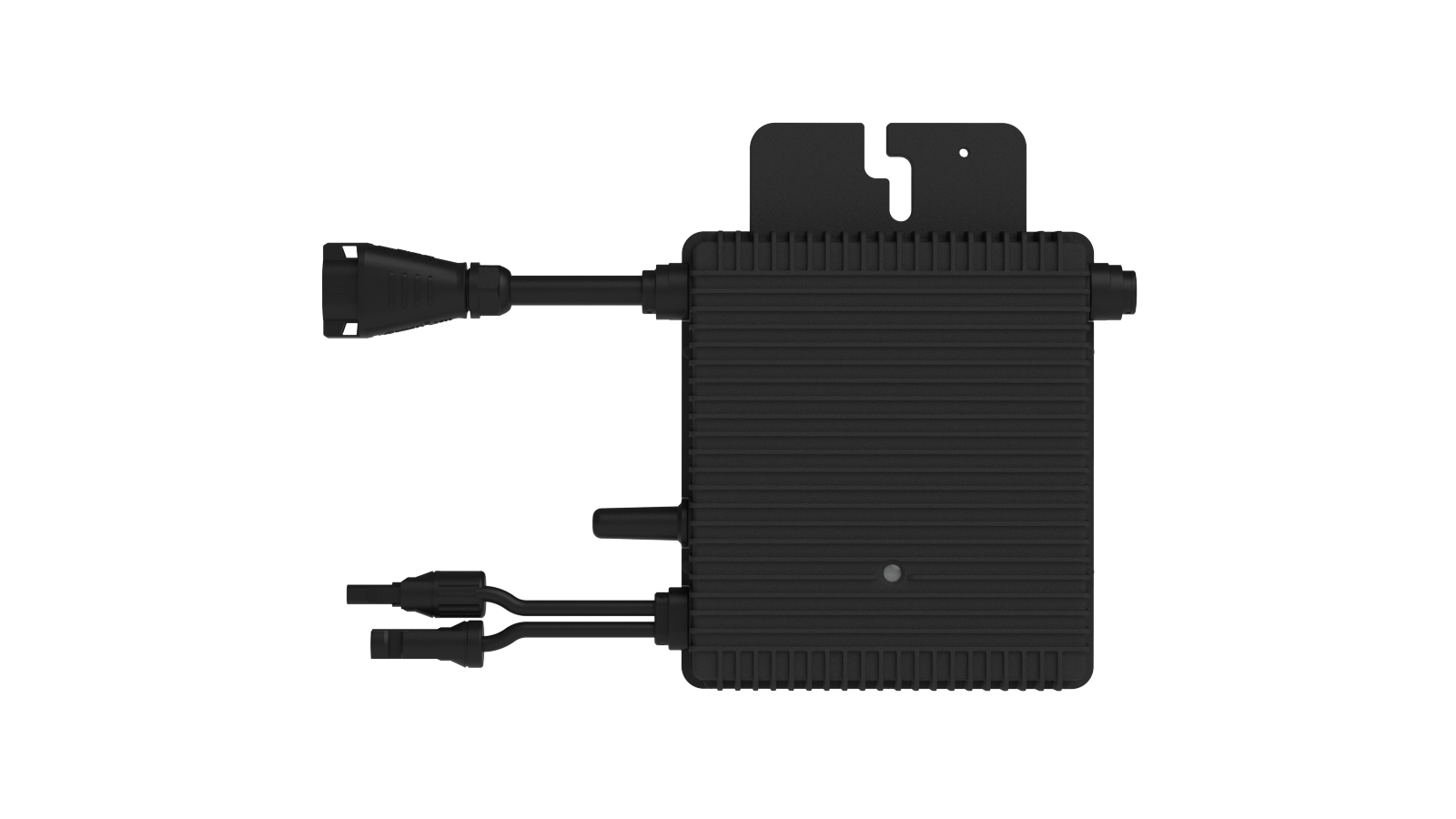

With the output power up to 500 VA, Hoymiles new microinverter HMS-500 series rank among the highest for 1-in-1 microinverters.
All of these models listed are equipped with reactive power control and can meet the requirements of EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc.
The new Sub-1G wireless solution enables more stable communication under various environmental conditions.
With the output power up to 500 VA, Hoymiles new microinverter HMS-500 series rank among the highest for 1-in-1 microinverters.
All of these models listed are equipped with reactive power control and can meet the requirements of EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc.
The new Sub-1G wireless solution enables more stable communication under various environmental conditions.
| Dimensions：182 × 164 × 30mm | Max. input voltage: 65V |
| Rated output power: 400VA | Number of modules connected: 1 |
| Commonly used module power: 320W to 540W+ | MPPT voltage range: 16V–60V |
| Max. input current: 14A | Independent MPPT: Yes |
● High-powered microinverter for 1-in-1 with output power up to 500 VA
● With Reactive Power Control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc.
● Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
● Connected to one panel, flexible for various applications
● Sub-1G wireless solution allows stable communication with Hoymiles gateway DTU
● AC Trunk Connector
● AC Trunk Port Cap
● AC Trunk End Cap
● 12 Years Standard
● 25 Years Extendable
● VDE-AR-N 4105: 2018
● UL 1741
● IEC/EN 62109-1/-2
● IEC/EN 61000-6-1/-2/-3/-4
● IEC/EN 61000-3-2/-3
DTU-Lite-S, DTU-Pro-S
