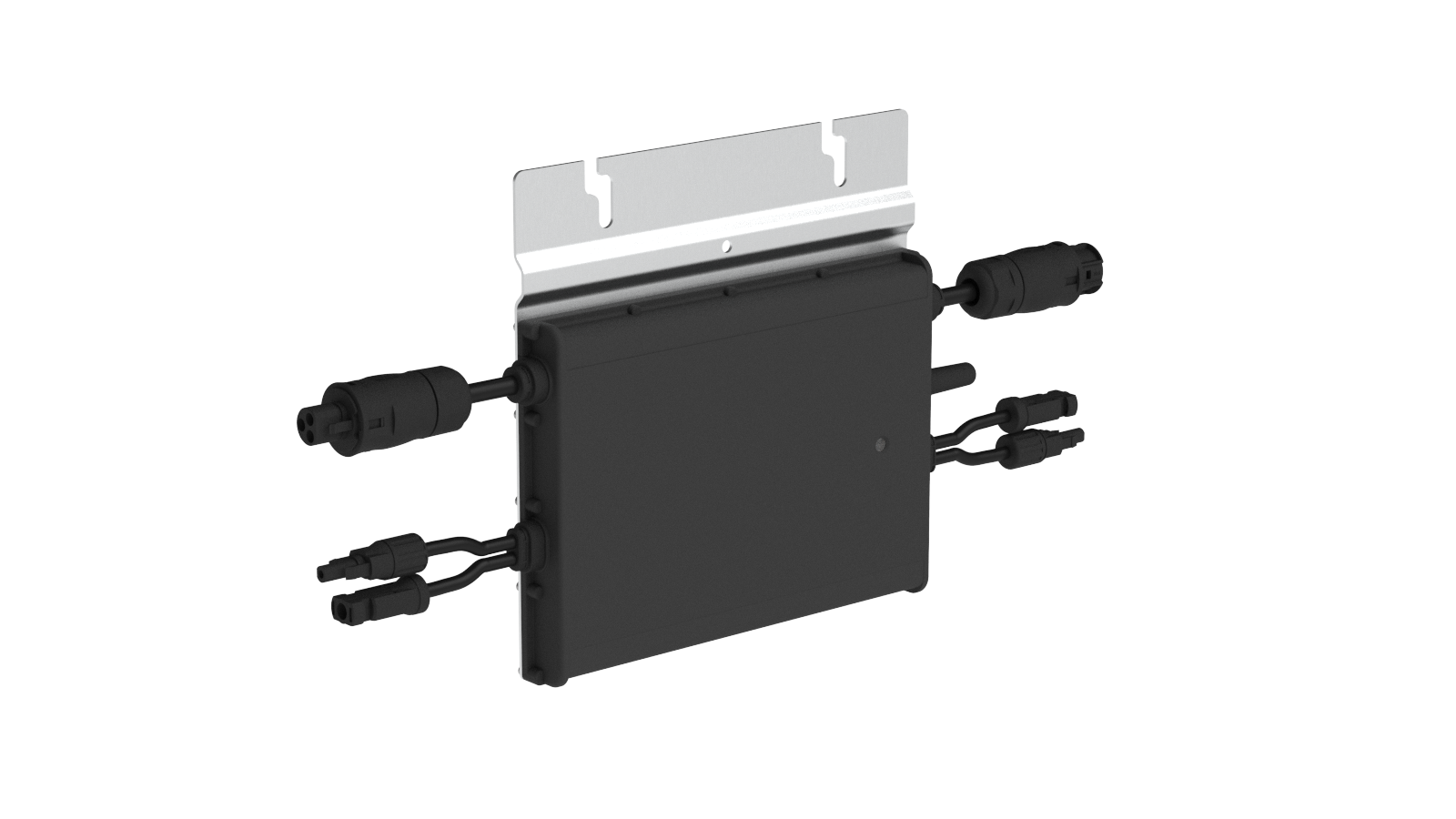

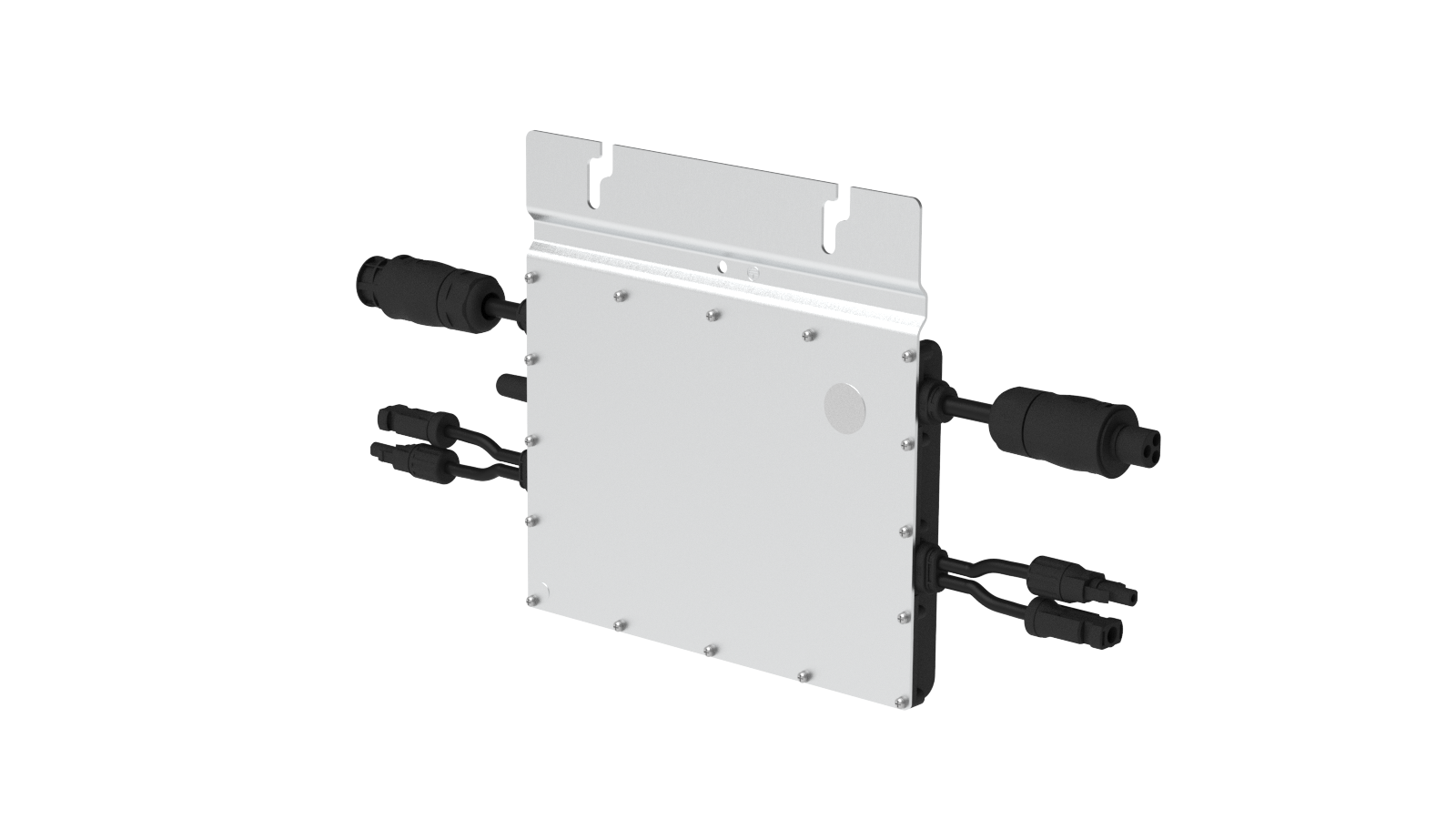

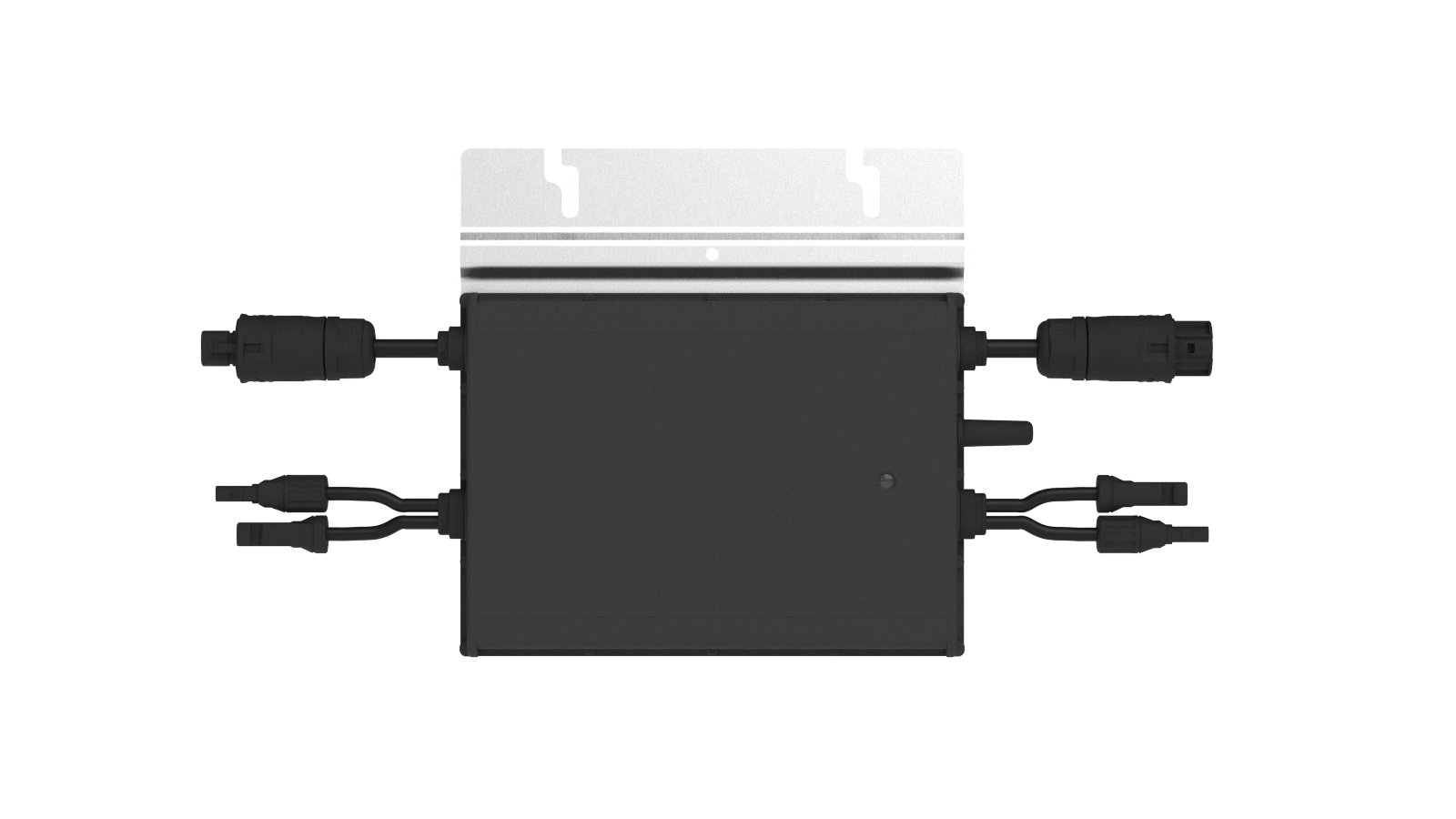

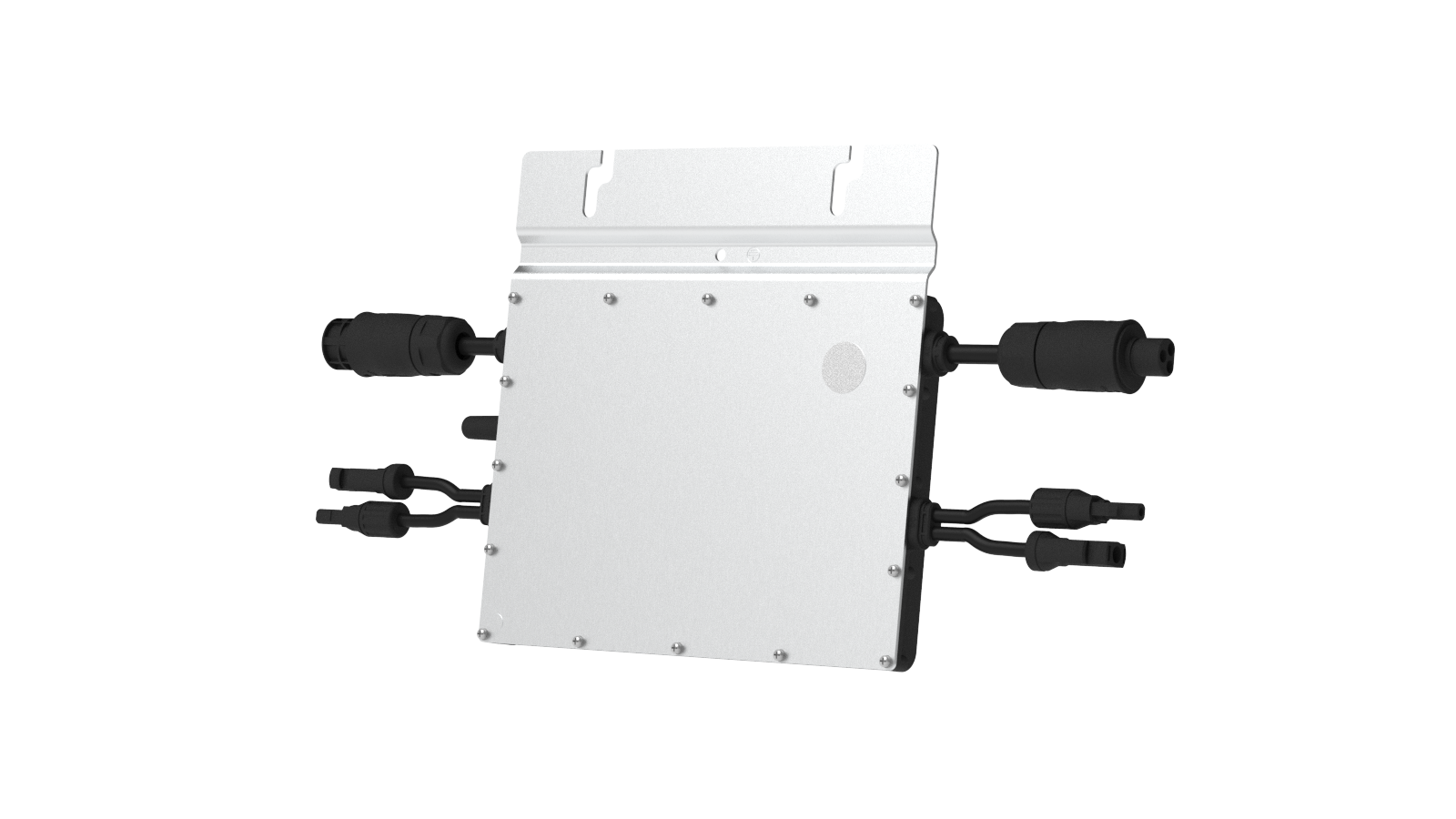

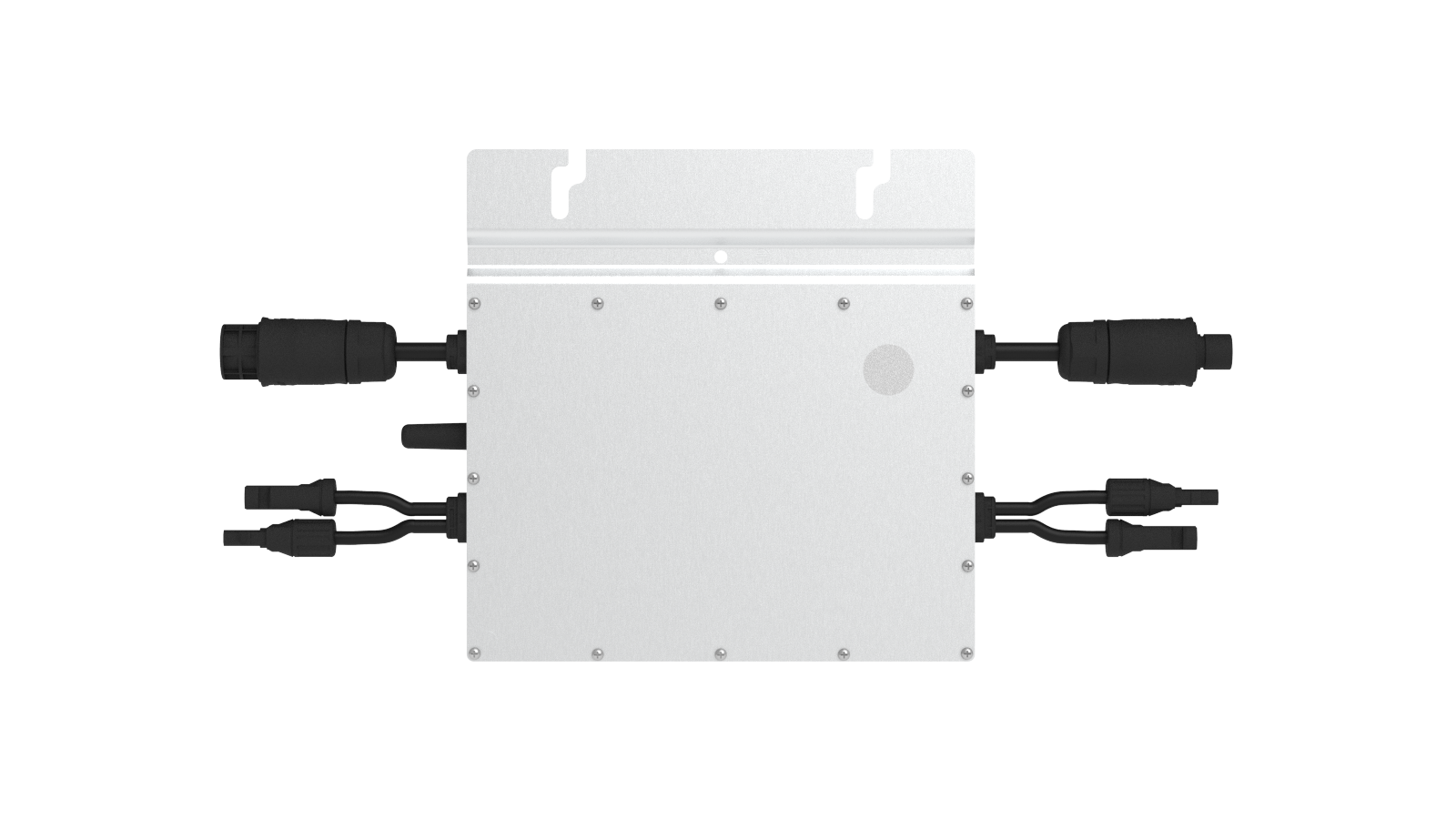

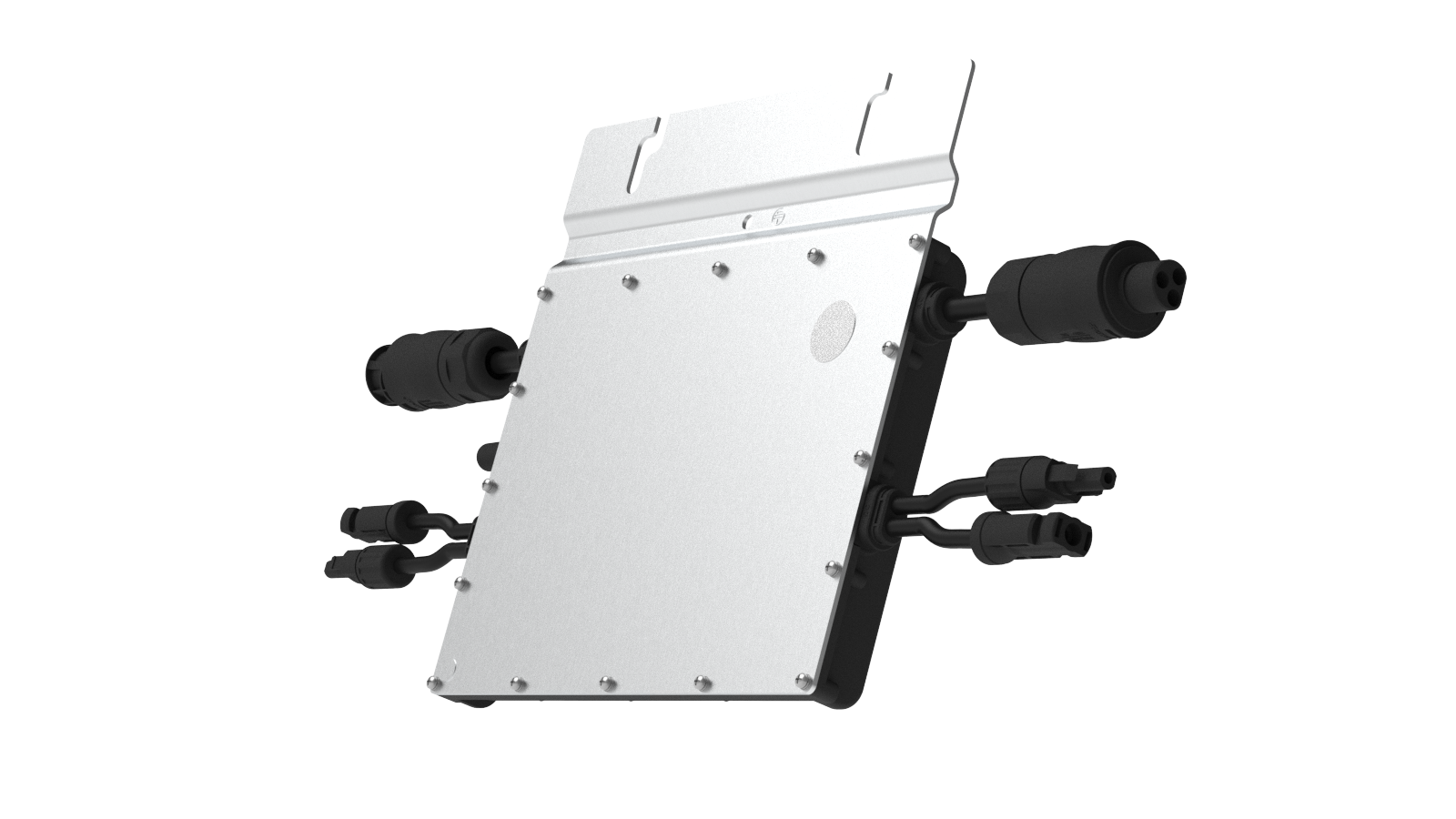

Hoymiles 2-in-1 microinverter can connect up to 2 PV modules and maximize the PV production of your installation, offering a flexible and cost-effective solution.
All of these models are equipped with reactive power control and can meet the requirements of AS/NZS 4777.2:2020. They’re also designed with the external antenna for stronger
communication with Hoymiles gateway DTU.
Hoymiles 2-in-1 microinverter can connect up to 2 PV modules and maximize the PV production of your installation, offering a flexible and cost-effective solution.
All of these models are equipped with reactive power control and can meet the requirements of AS/NZS 4777.2:2020. They’re also designed with the external antenna for stronger
communication with Hoymiles gateway DTU.
| Dimensions: 250 × 170 × 28mm | Max. input voltage: 60V |
| Rated output power: 600VA | Number of modules connected: 2 |
| Commonly used module power: 240W to 405W+ | MPPT voltage range: 16V–60V |
| Max. input current: 2 × 11.5A |
● Easy installation, just plug and play
● High reliability: IP67 (NEMA 6) enclosure, 6000 V surge protection
● Grid protection relay integrated
● Compliant with the US NEC2017/NEC2020 rapid shutdown
● CEC listed
● AC Connector – M
● AC Connector Cap – F
● AC Connector Cap – M
● AC End Cable-M/F
● AC Extension Cable
● DC Extension Cable
● 12 Years Standard
● 25 Years Extendable
● IEC/EN 62109-1/-2
● IEC/EN 61000-6-1/-2/-3/-4
● IEC/EN 61000-3-2/-3
DTU-Pro, DTU-W100/G100
