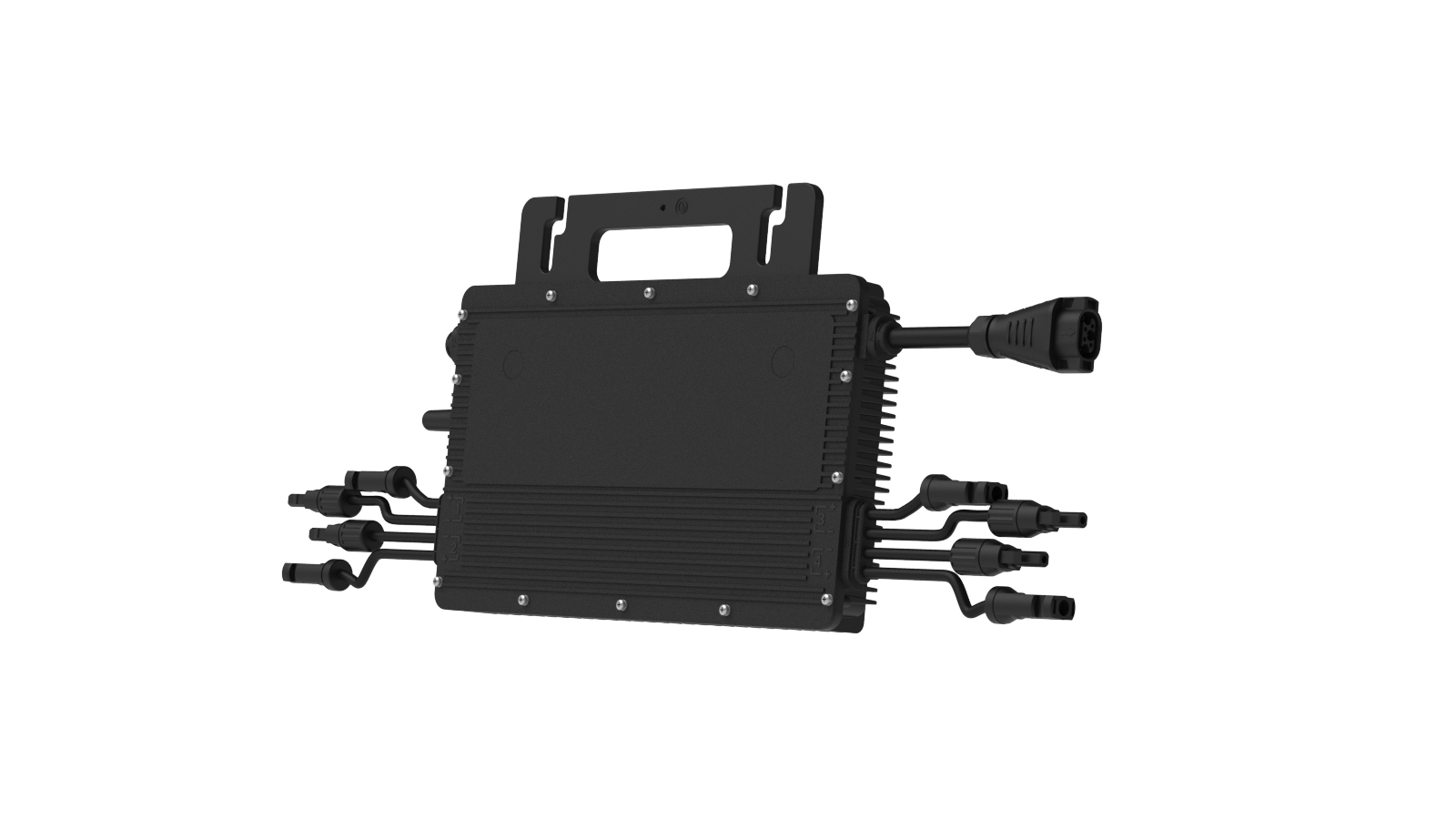

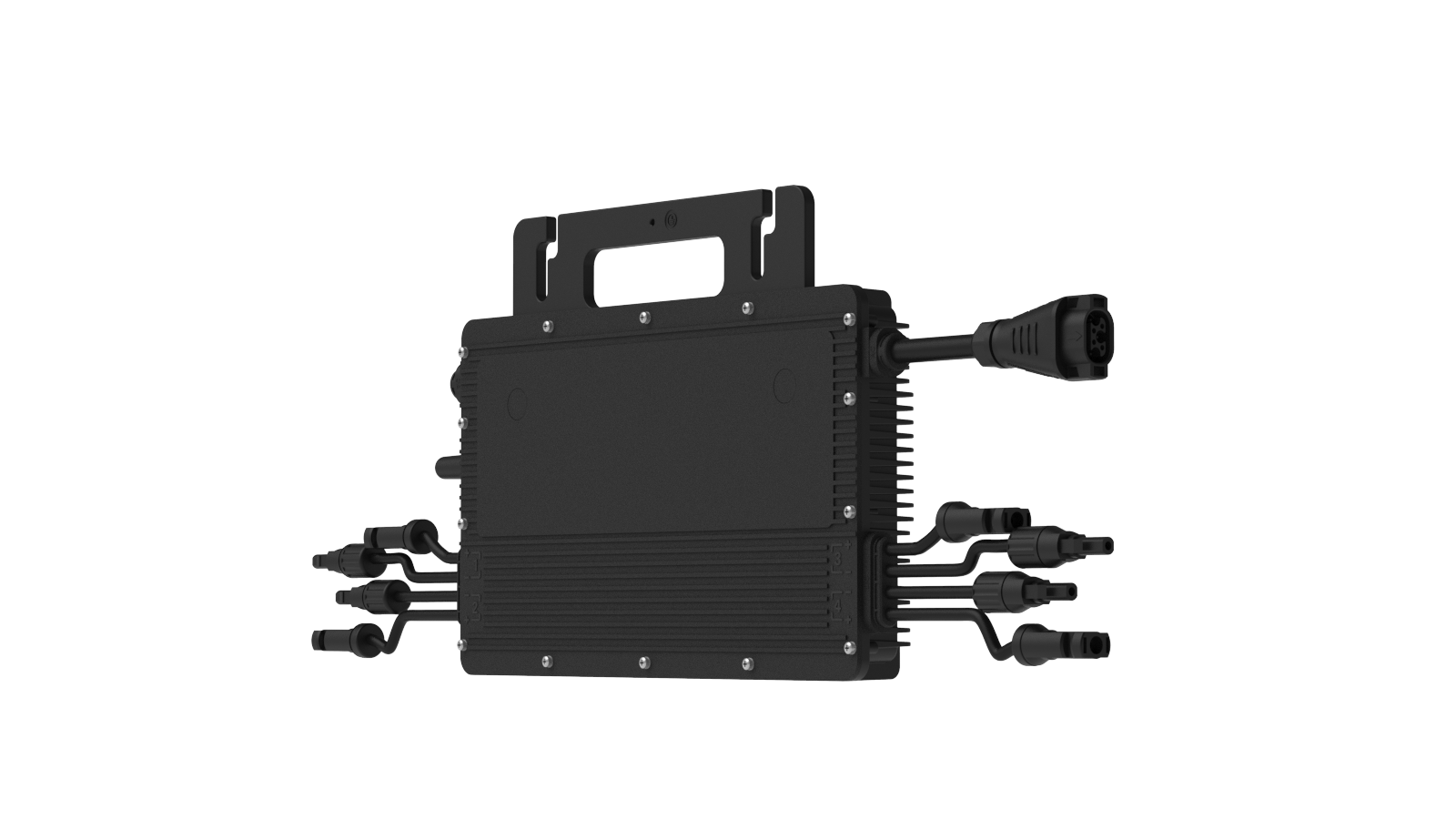

Hoymiles 4-in-1 microinverter HM-2000T-S features 4 input channels, significantly lowering installation costs.
All of these models listed are connected to an intelligent monitoring system to track individual modules’ performance over time and offer superior energy production.
The new Sub-1G wireless solution enables more stable communication under various environmental conditions.
Hoymiles 4-in-1 microinverter HM-2000T-S features 4 input channels, significantly lowering installation costs.
All of these models listed are connected to an intelligent monitoring system to track individual modules’ performance over time and offer superior energy production.
The new Sub-1G wireless solution enables more stable communication under various environmental conditions.
| Dimensions: 310 × 185 × 40.6mm | Max. input voltage: 65V |
| Rated output power: 1600VA | Number of modules connected: 4 |
| Commonly used module power: 320W to 540W+ | MPPT voltage range: 16V–60V |
| Max. input current: 14A | Number of MPPTs: 2 |
● High-powered microinverter with output power up to 2000 VA.
● 99.8% MPPT efficiency and module-level monitoring ensure greater energy harvest and easier maintenance.
● Comply with UL 1741, IEC 61727, IEC 62116, IEC 61683, ect.
● 4-in-1 design maximizes efficiency and reduces costs.
● Sub-1G wireless solution allows stable communication in commercial and industrial settings.
● IP67 (NEMA 6) protection degree, adapt to outdoor use.
● AC Trunk Cable, 12/10 AWG Cable
● AC Trunk Connector
● AC Trunk Port Cap
● AC Trunk End Cap
● 25 Years Extendable
● IEC 61727
● IEC 62116
● IEC 61683
● IEC60068-2-1/-2/-14/-30
● IEC/EN 62109-1/-2
● IEC/EN 61000-6-1/-2/-3/-4
● IEC/EN 61000-3-2/-3
● UL 1741
● ABNT NBR 16150:2013
● ABNT NBR 16149:2013
DTU-Lite-S, DTU-Pro-S
