Hoymiles Microinverter Accessory

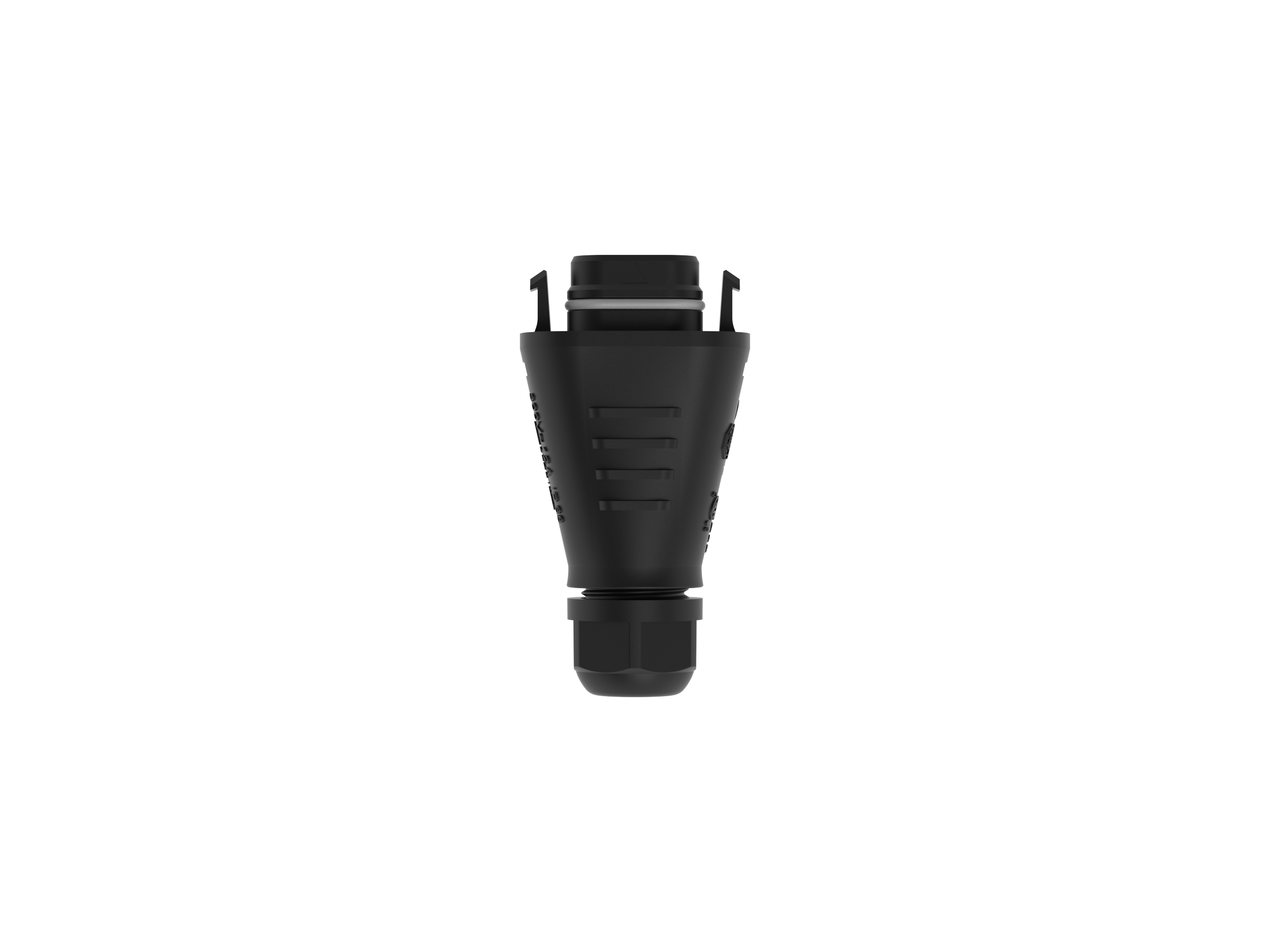

HMS Field Connector
HMS Field Connector is designed for the situation where a PV system only has one microinverter. It provides a quick and simple electrical connection between the microinverter and the grid by serving as a joining component
BC05-BR3M-02
| Rated voltage | 300V | Max. Current | 12A （ Use 1.5mm² copper cable） |
| Applicable cable specification | 1.0/1.5mm² | Cable connection type | Screws pressing |
| Ambient temperature range | -40℃～+85℃ | Protection rating | IP68 |
Compliance
● RoHS
● PPP 59015A:2013
