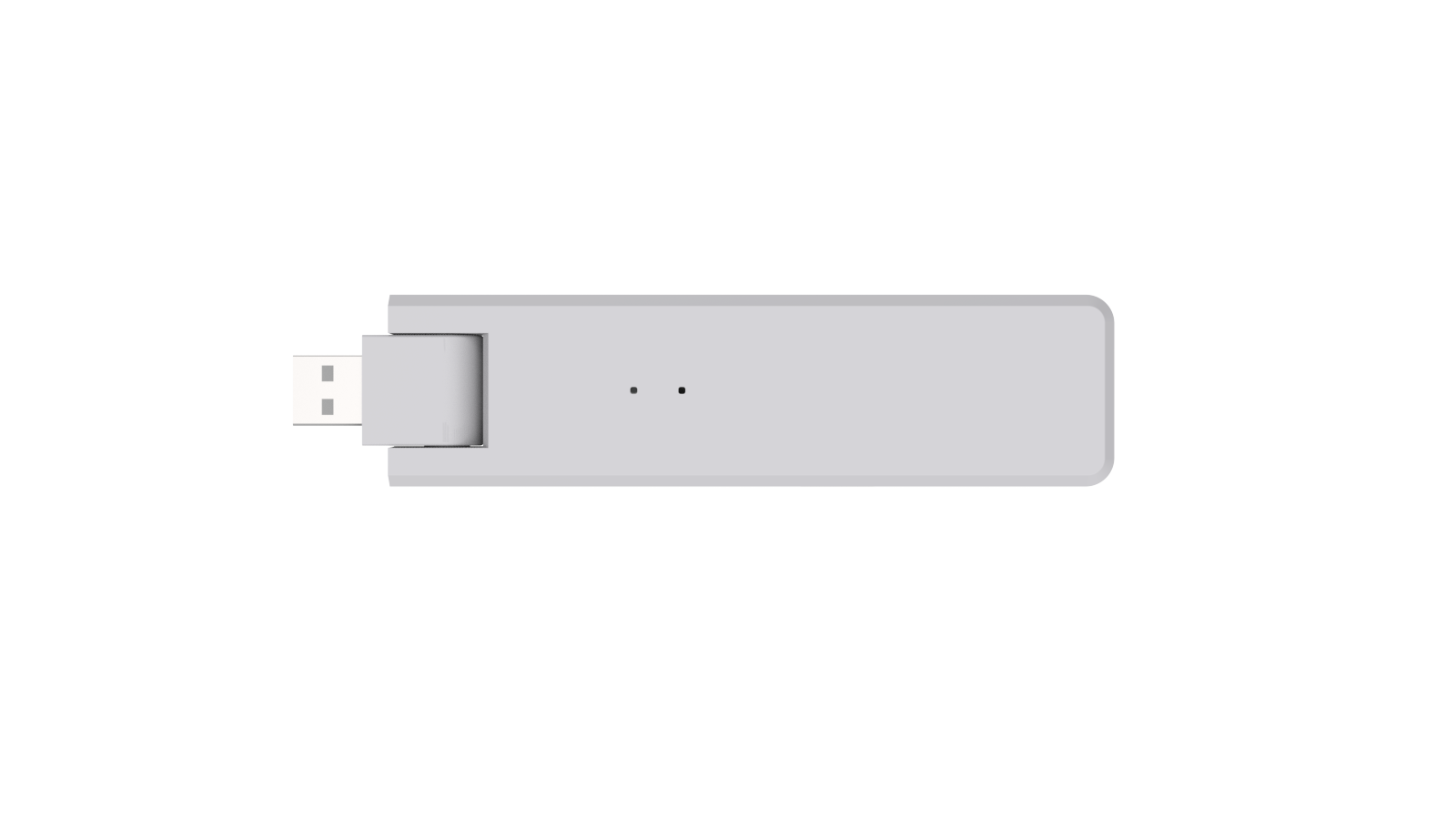

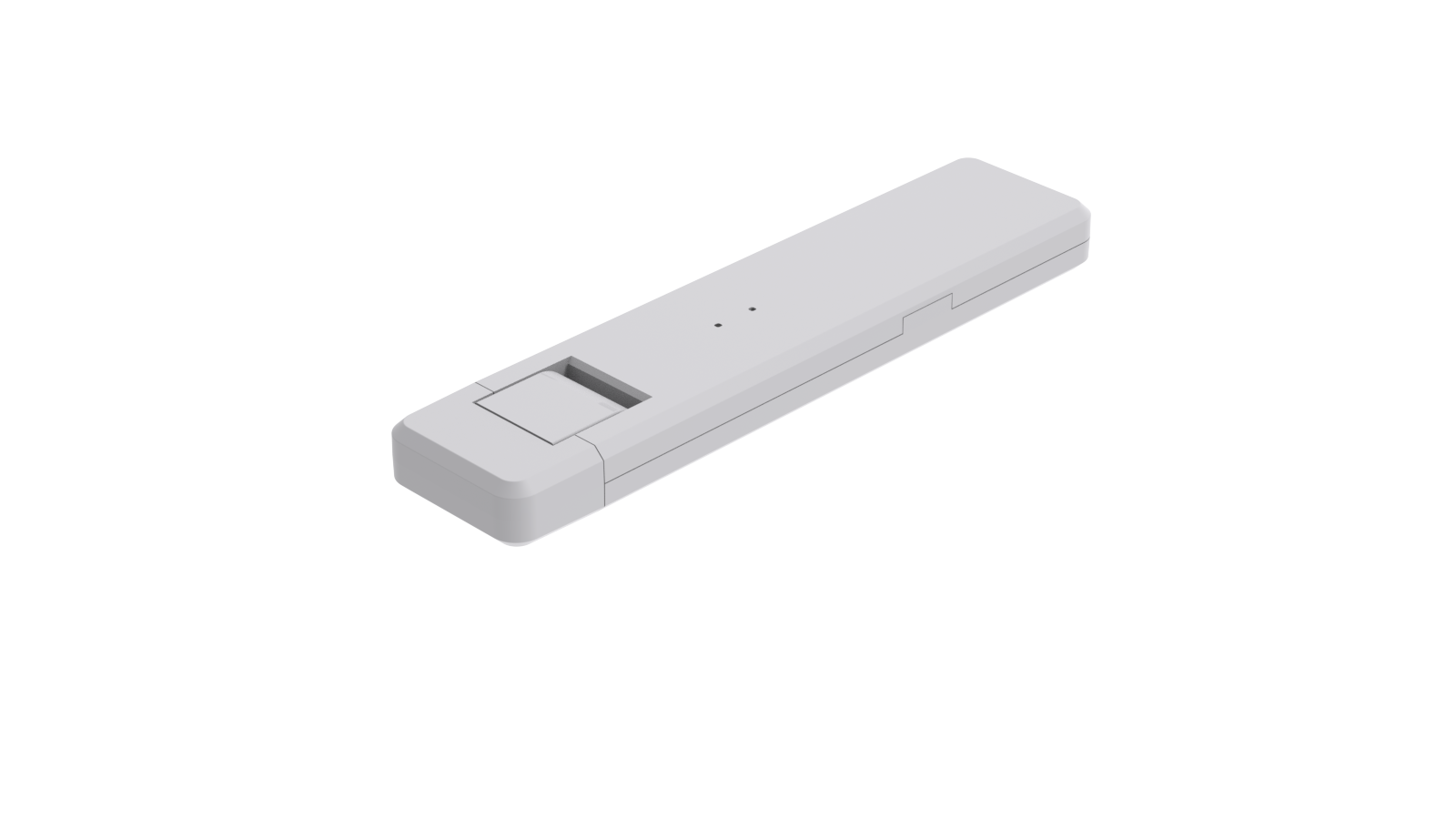

Hoymiles gateway DTU-WLite is a data transfer unit which collects the information and data of microinverter using the 2.4G wireless communication and send them to Hoymiles Monitoring System, S-Miles Cloud, using Wi-Fi technology.
With monitoring capacity up to 4 solar panels, DTU-WLite is specifically designed for small PV system. Users can easily read module-level data and alarm, realize remote operation and
maintenance of PV system at any time, from anywhere on S-Miles Cloud.
Hoymiles gateway DTU-WLite is a data transfer unit which collects the information and data of microinverter using the 2.4G wireless communication and send them to Hoymiles Monitoring System, S-Miles Cloud, using Wi-Fi technology.
With monitoring capacity up to 4 solar panels, DTU-WLite is specifically designed for small PV system. Users can easily read module-level data and alarm, realize remote operation and
maintenance of PV system at any time, from anywhere on S-Miles Cloud.
● Module-level monitoring, with up to 4 solar panels
● Plug and play, easy installation
● Real-time microinverter data and alarm on S-Miles Toolkit
● Remote system management on S-Miles Cloud
CE
● 3 Years for DTUs shipped from January 1st 2022
● 2 Years for DTUs shipped before January 1st 2022
● Communication with microinverter: 2.4GHz Proprietary RF (Nordic)
● Internet connection: Wi-Fi (802.11b/g/n)
● Power consumption: Typ. 1.0 W / Max. 5.0 W
● Monitoring capacity: 4 PV modules
● Maximum distance (open space): 150m
● Installation: Direct plug-in (USB port)
HM series, MI series
