VAS-7-G2/VAT-11-G2/VAT-22-G2
Hoymiles AC EV Charger can be connected to the Hoymiles energy storage inverter to form a PV, ESS, and EV Charger integrated solution, providing users with a whole home green electricity solution.
It is characterized by green electricity priority, scheduled charging, RFID, free charger, and dynamic load management, meeting charging demands.
S-Miles monitoring platform allows users to remotely check, diagnose, and track the power consumption of the PV, ESS, and EV Charger integrated system, maximizing green electricity utilization.
-
Features
-
Tech Specs
Features
-
-
Intelligent control and data tracking available on the S-Miles App.
-
Support multiple charging modes, including green electricity mode.
-
Intelligent start-stop through RFID, free charger, or App.
-
PV-ESS-EV solution supports dynamic load management to avoid overload and meet electricity demand.
-
Excellent industrial design brings a pleasant user experience.
-
IP65 and IK10 protection degree suitable for both indoor and outdoor installation.
-


Tech Specs
-
VAT-22-G2
-
VAT-11-G2
-
VAS-7-G2
-
-
Charging mode:Mode 3 (IEC 61851-1)
-
Input/output power rating (kW):22
-
Max. input/output current (A):32
-
Rated frequency (Hz):45-65
-
Input/output voltage rating (V):400±10%
-
Grid form:3L/N/PE
-
Charging cable length (m):5
-
-
-
Charging mode:Mode 3 (IEC 61851-1)
-
Input/output power rating (kW):11
-
Max. input/output current (A):16
-
Rated frequency (Hz):45-65
-
Input/output voltage rating (V):400±10%
-
Grid form:3L/N/PE
-
Charging cable length (m):5
-
-
-
Charging mode:Mode 3 (IEC 61851-1)
-
Input/output power rating (kW):7
-
Max. input/output current (A):32
-
Rated frequency (Hz):45-65
-
Input/output voltage rating (V):230±10%
-
Grid form:L/N/PE
-
Charging cable length (m):5
-
Related Products
-

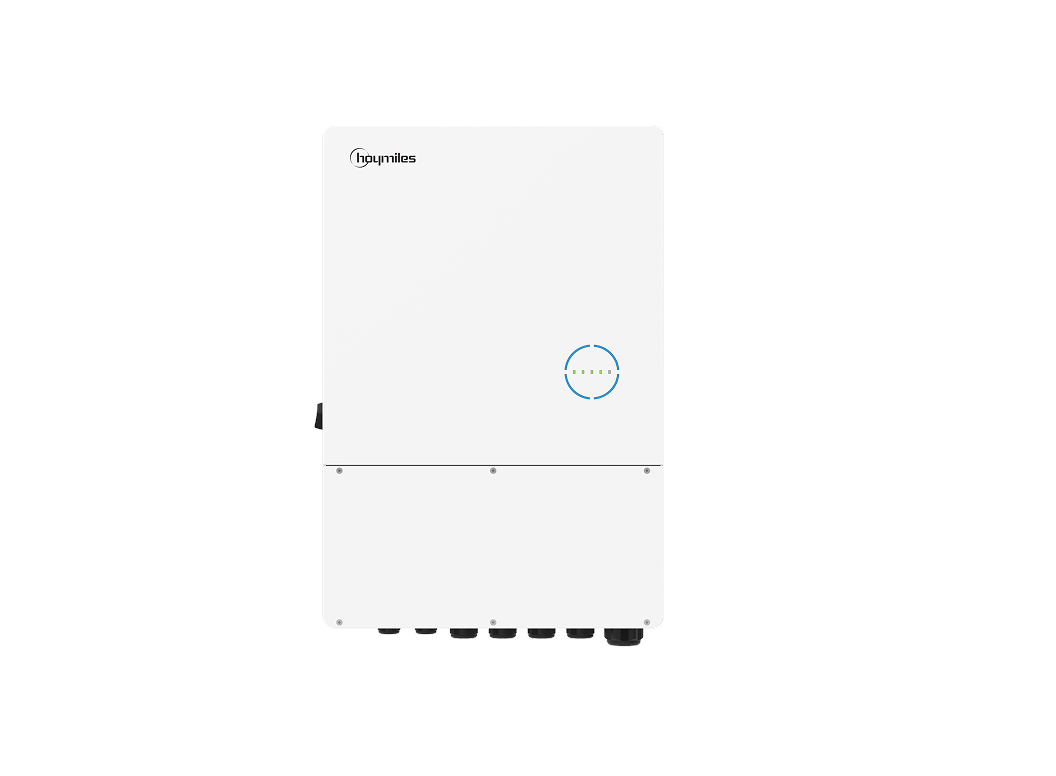

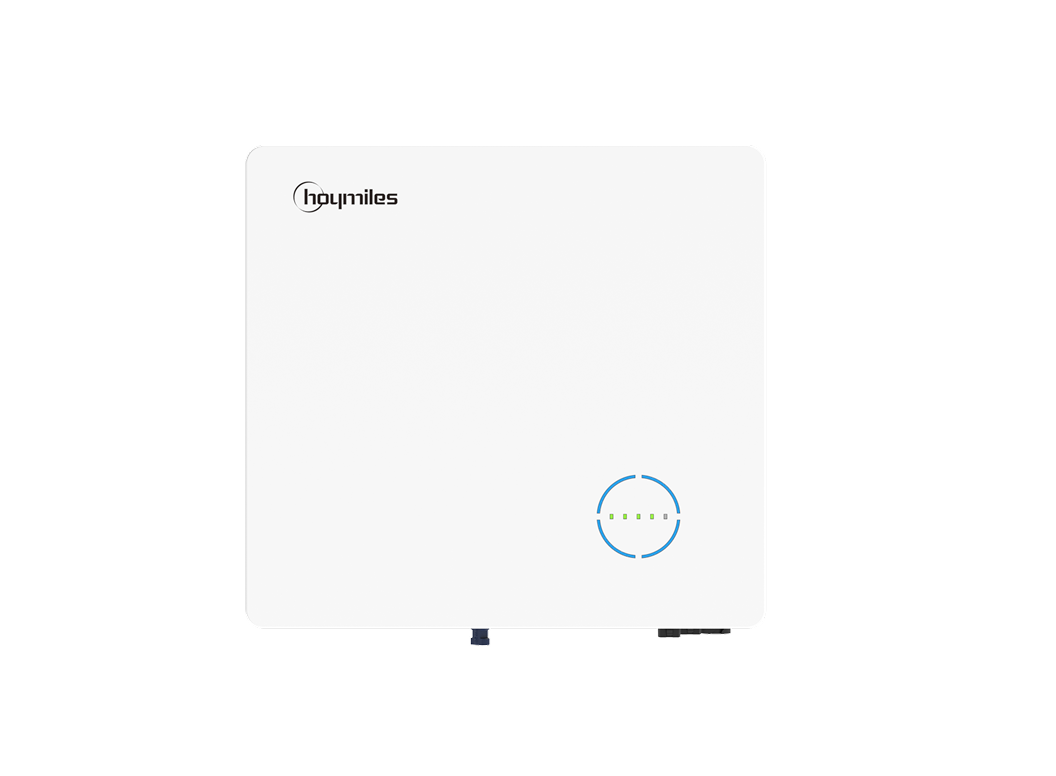

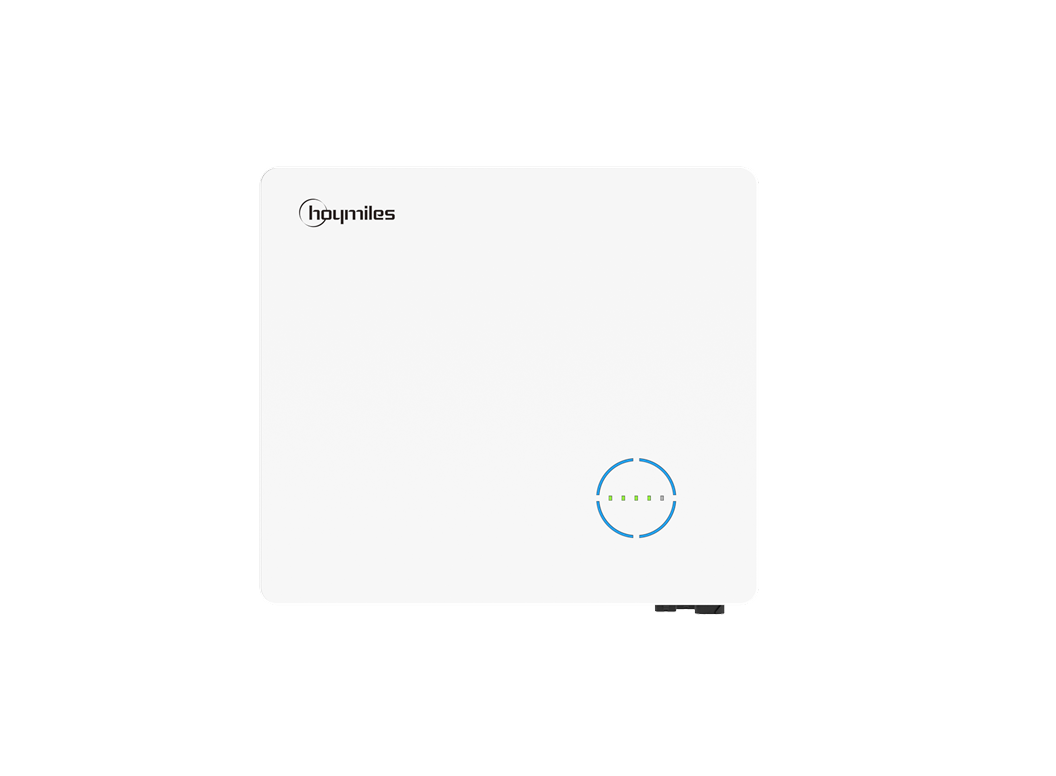

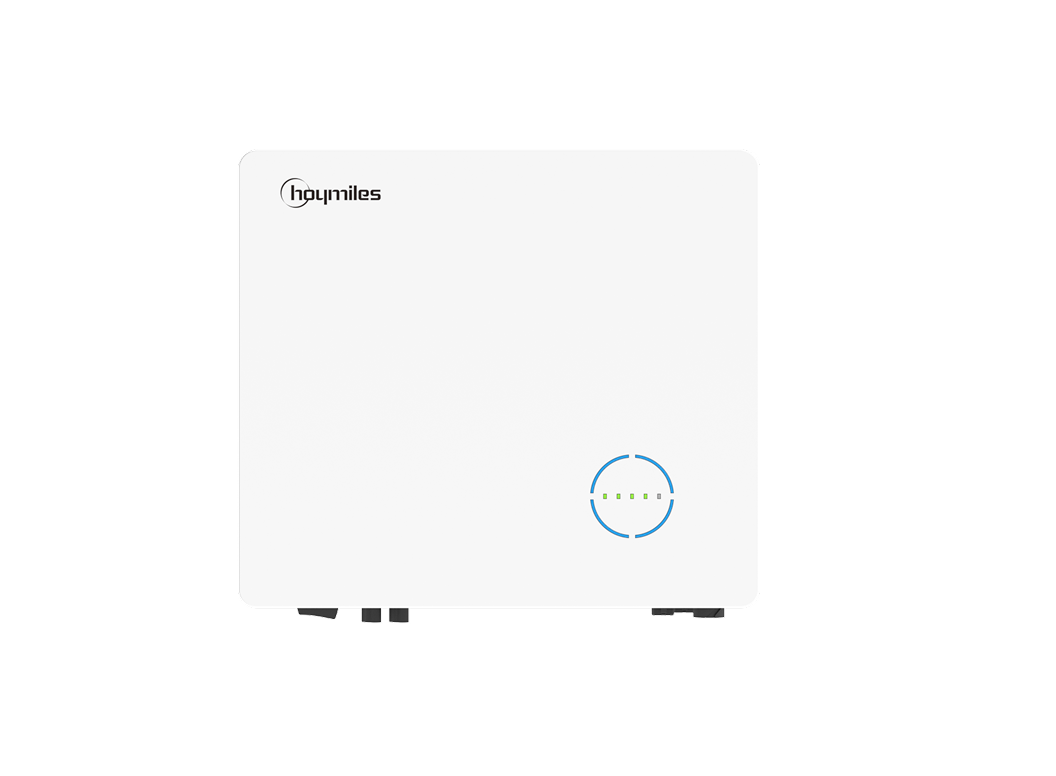

HIT Series
