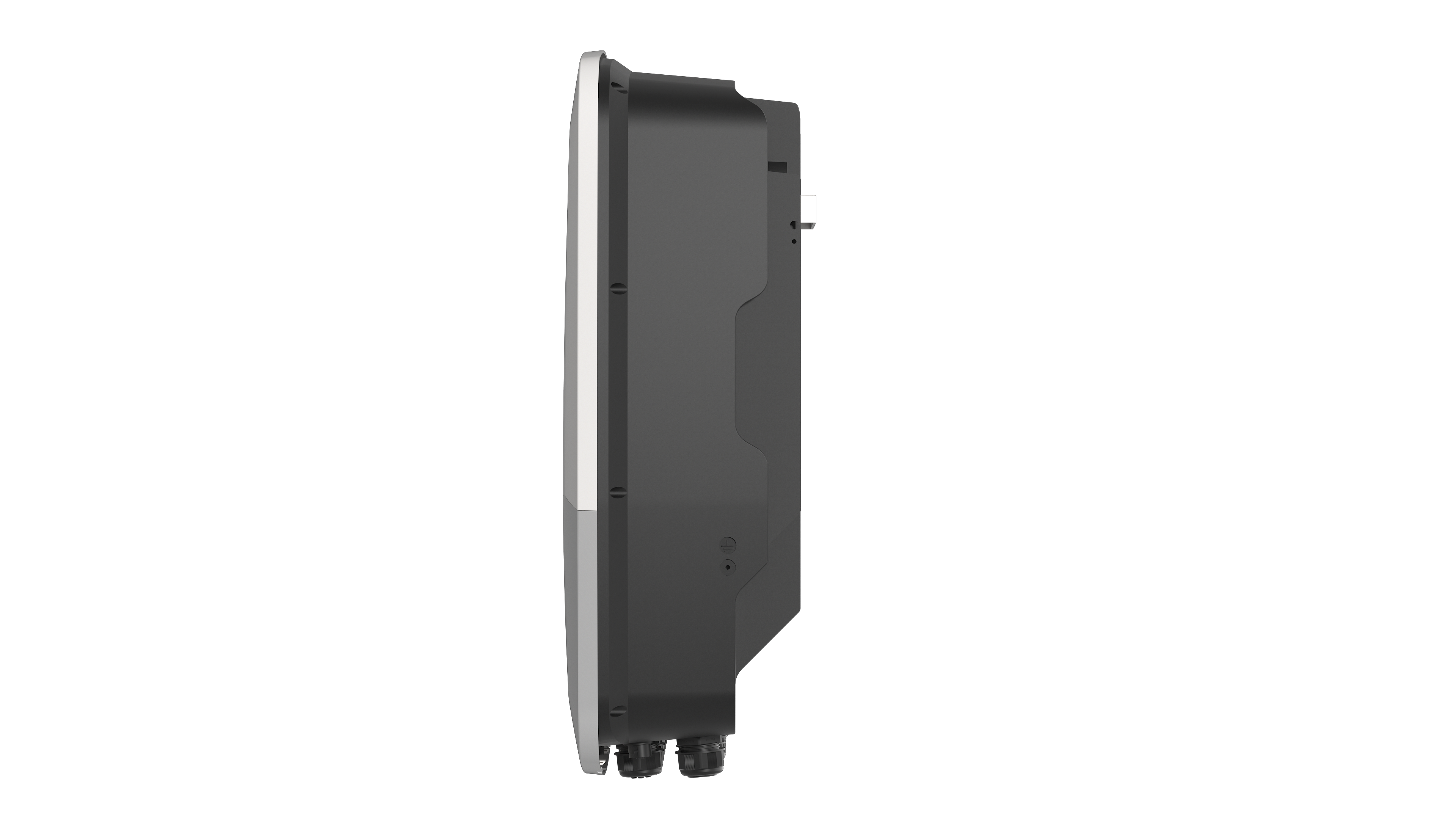

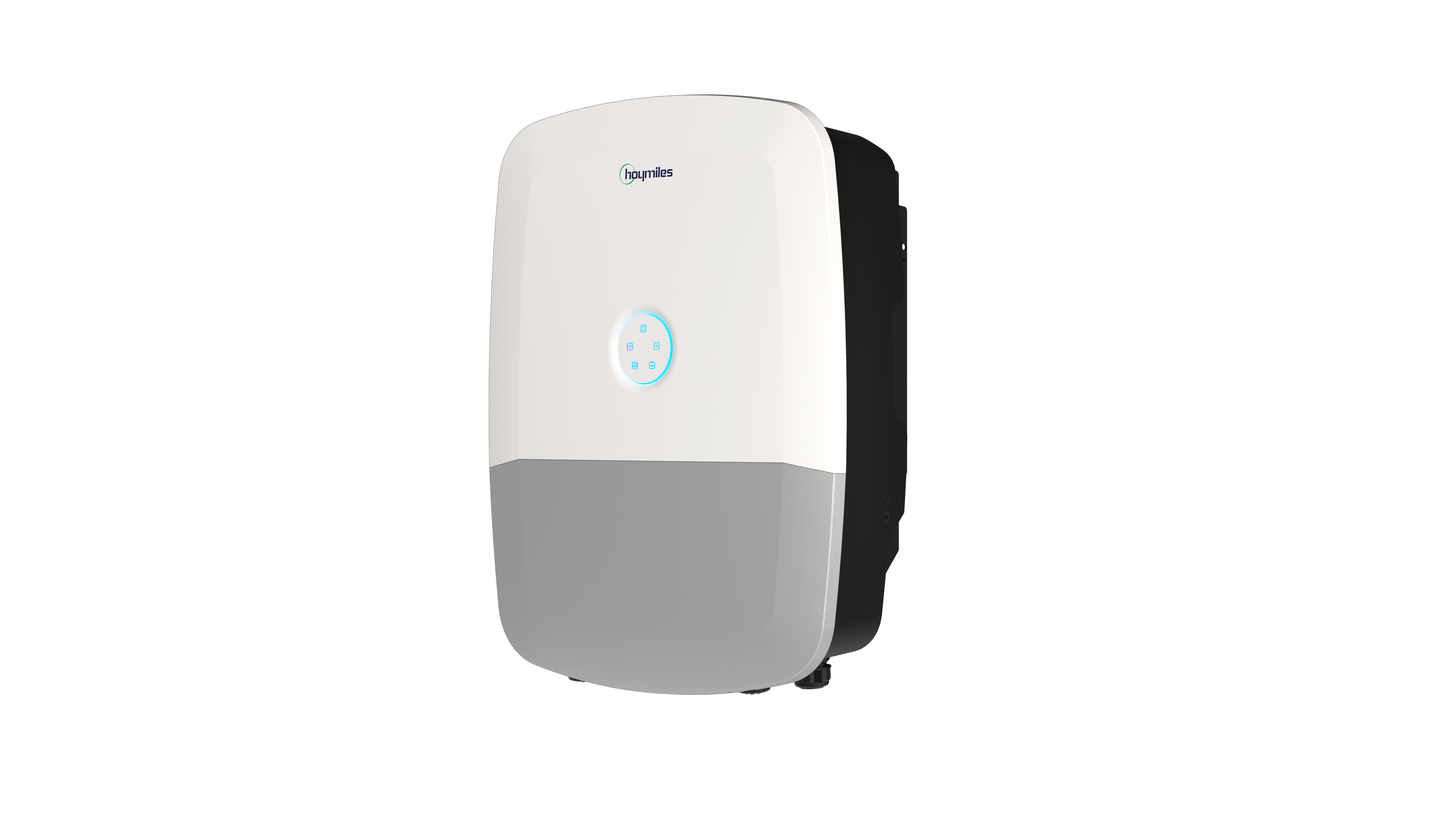

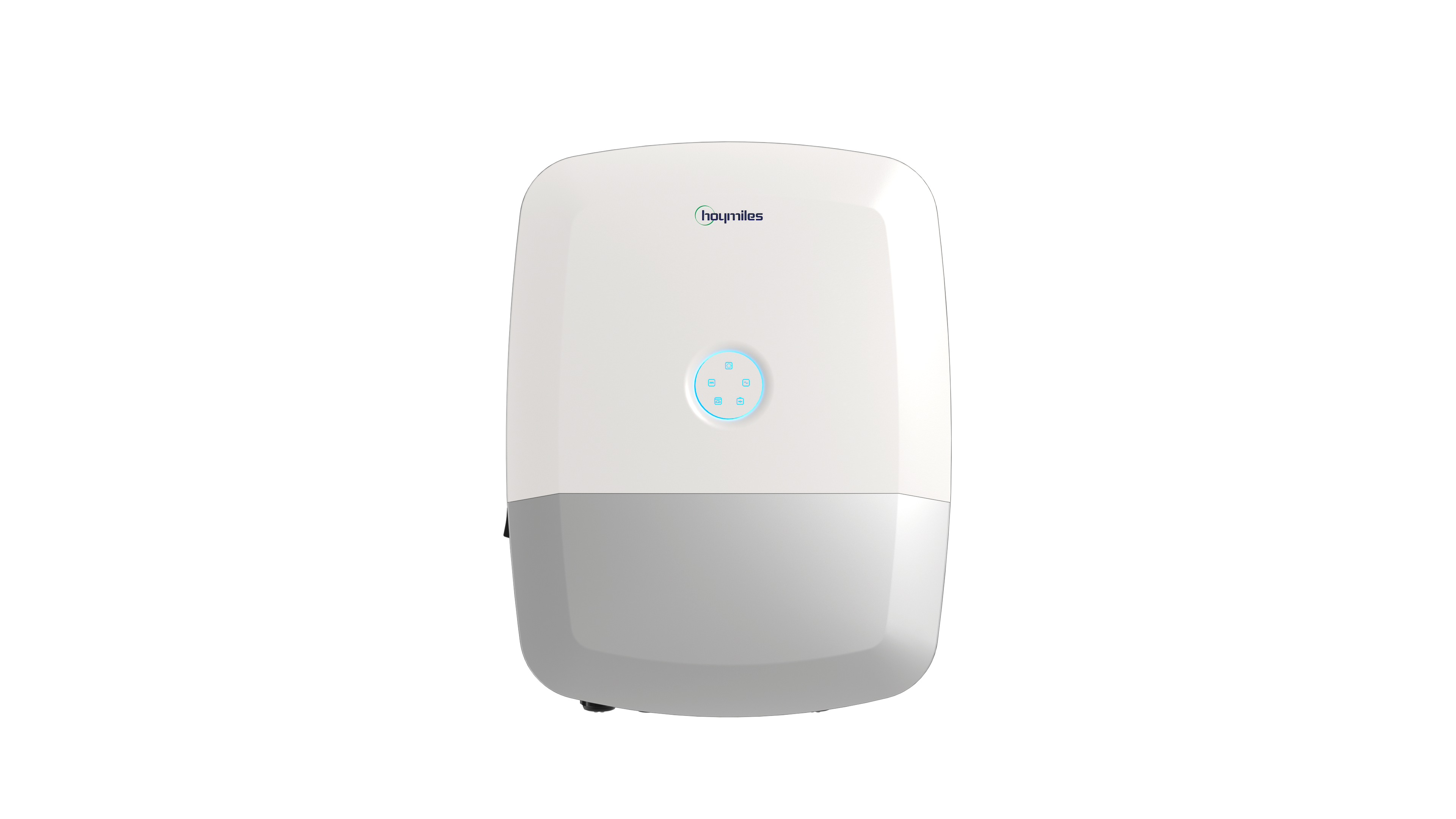

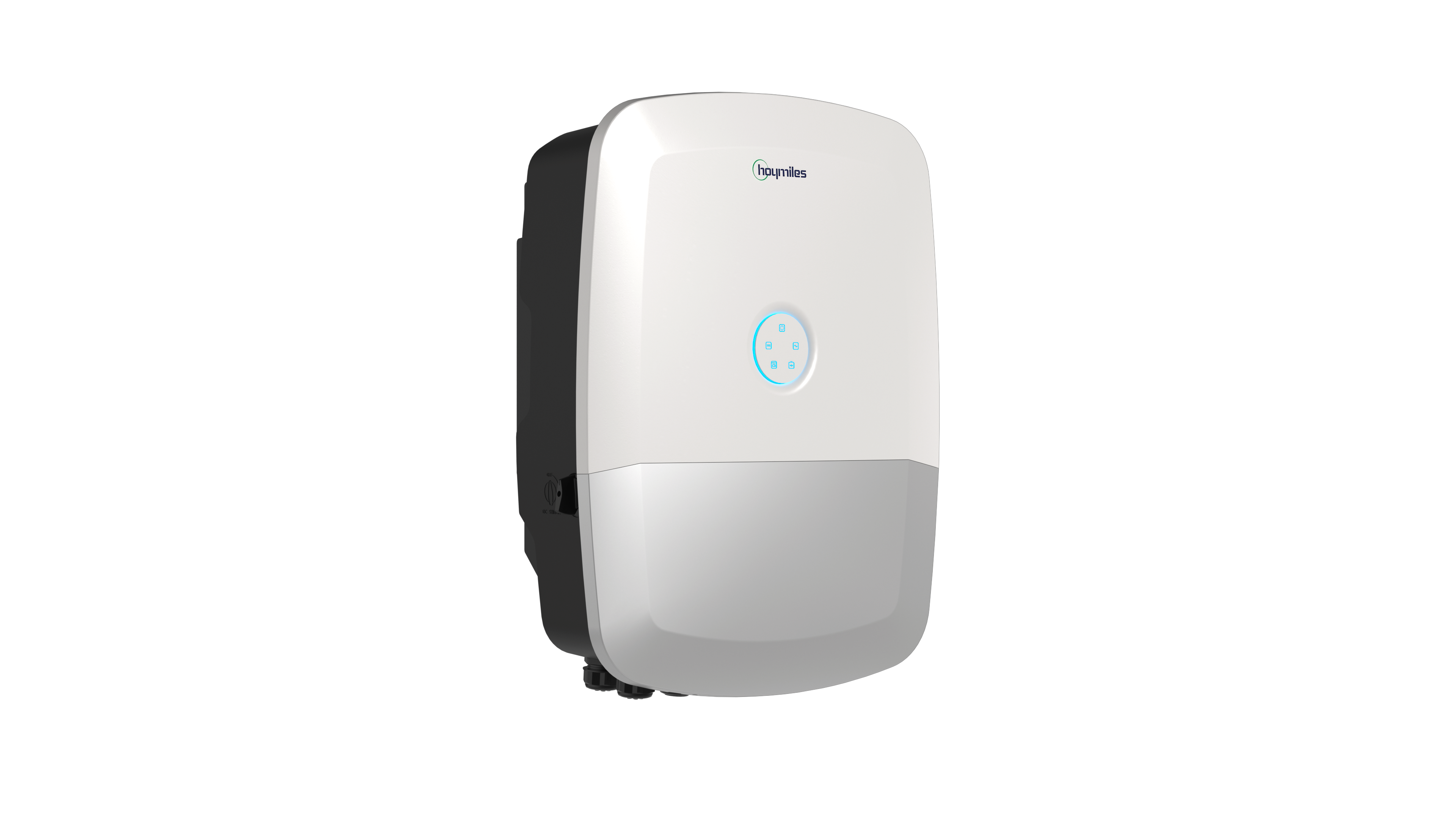

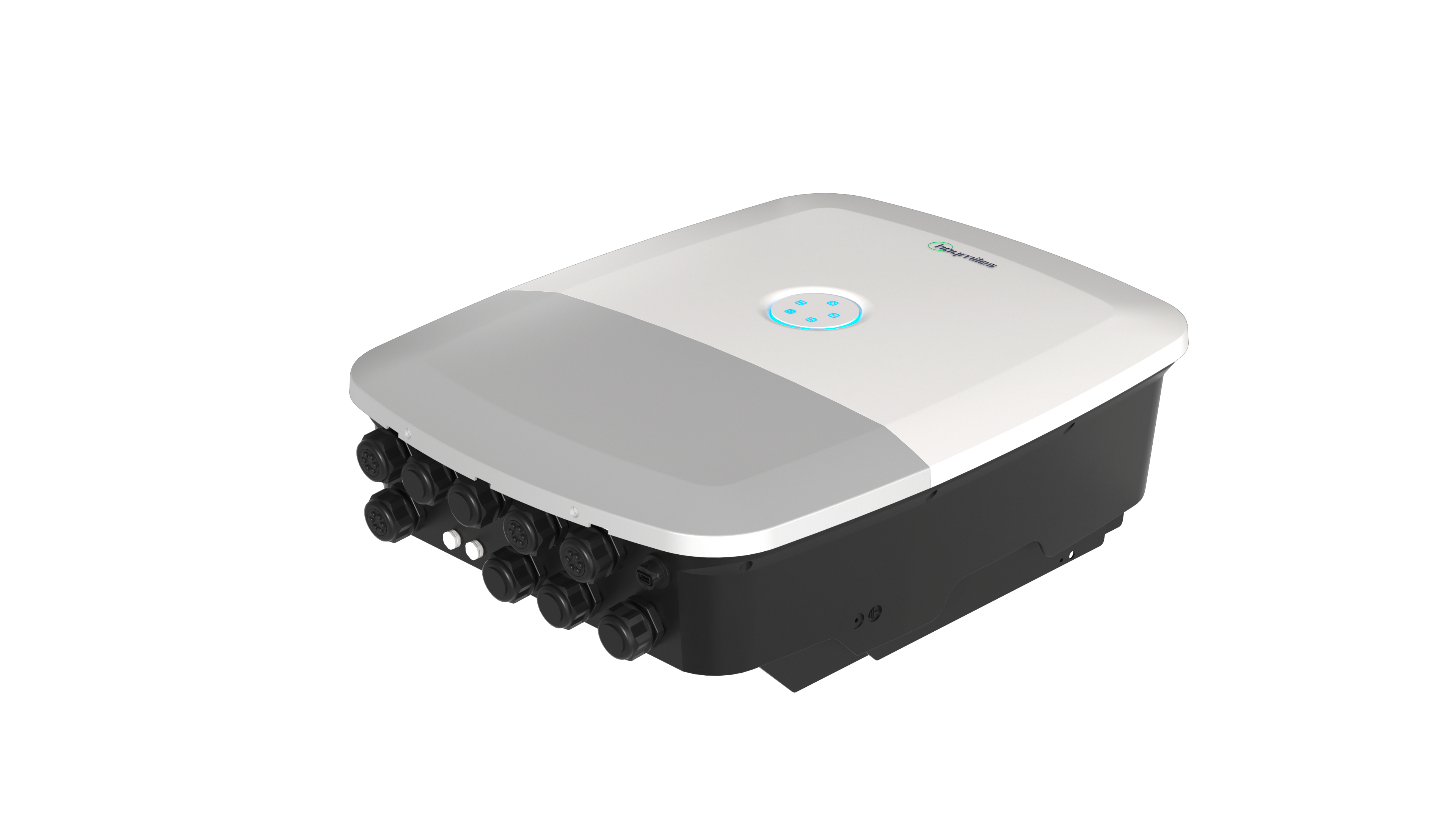

HIT-(5-20)L-G3
The HIT-(5-20)L-G3 series is a high-performance three-phase hybrid inverter with excellent reliability, including power classes ranging from 5 kW to 20 kW.
The intelligent EMS function supports self-consumption mode, economy mode, backup mode, peak shaving mode, and time of use mode for multi-scenario applications.
Monitoring management through S-Miles Cloud allows users to remotely diagnose and track the individual system performance over time, offering superior energy production.
-
Features
-
Tech Specs
Features
-
-
4 MPPTs with 20 A input; DC/AC oversizing up to 200%.
-
100% unbalanced output; max. output of each phase up to 50% rated power.
-
Support multiple intelligent working modes including Peak Shaving and 8×24h Time of Use.
-
Integrated AI energy management with generator, heat pump and smart load.
-
Max. 10 inverters in parallel for on-grid and off-grid system extension.
-
Ultralight for easy installation and space-saving; unique built-in meter solution with up to 50 A bypass.
-
Tech Specs
-
5.0kW
-
6.0kW
-
8.0kW
-
10.0kW
-
12.0kW
-
15.0kW
-
17.0kW
-
20.0kW
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):120/120
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20
-
MPPT number/Max. input strings number：:2/2
-
（On-grid）Max. output apparent power (VA):5500
-
（Off-grid）Max. output apparent power (VA):10000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):150/150
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20
-
MPPT number/Max. input strings number：:2/2
-
（On-grid）Max. output apparent power (VA):6600
-
（Off-grid）Max. output apparent power (VA):12000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):190/190
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20/20
-
MPPT number/Max. input strings number：:3/3
-
（On-grid）Max. output apparent power (VA):8800
-
（Off-grid）Max. output apparent power (VA):16000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):210/210
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20/20/20
-
MPPT number/Max. input strings number：:4/4
-
（On-grid）Max. output apparent power (VA):11000
-
（Off-grid）Max. output apparent power (VA):20000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):250/250
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20/20/20
-
MPPT number/Max. input strings number：:4/4
-
（On-grid）Max. output apparent power (VA):13200
-
（Off-grid）Max. output apparent power (VA):24000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):300/300
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20/20/20
-
MPPT number/Max. input strings number：:4/4
-
（On-grid）Max. output apparent power (VA):16500
-
（Off-grid）Max. output apparent power (VA):30000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):350/350
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20/20/20
-
MPPT number/Max. input strings number：:4/4
-
（On-grid）Max. output apparent power (VA):18700
-
（Off-grid）Max. output apparent power (VA):34000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):350/350
-
MPPT voltage range (V): :150-900
-
Max. input current (A): :20/20/20/20
-
MPPT number/Max. input strings number：:4/4
-
（On-grid）Max. output apparent power (VA):22000
-
（Off-grid）Max. output apparent power (VA):40000, 10s
-
