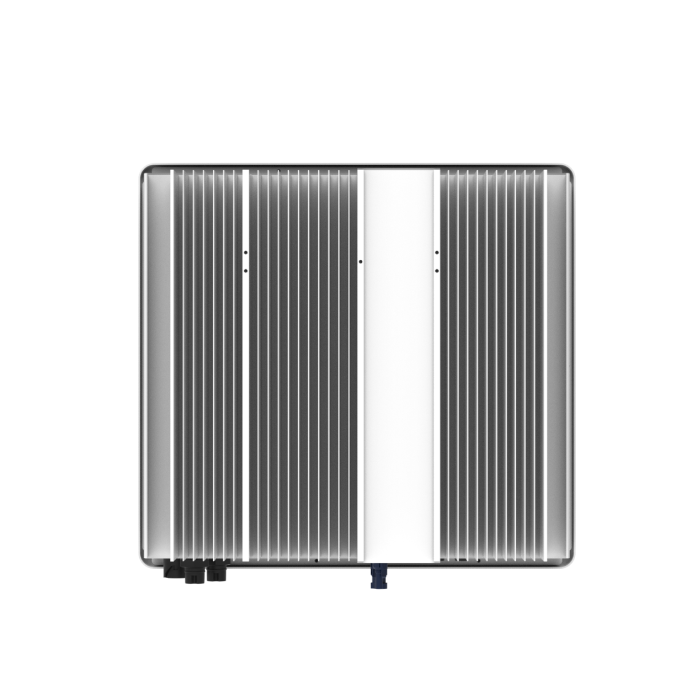

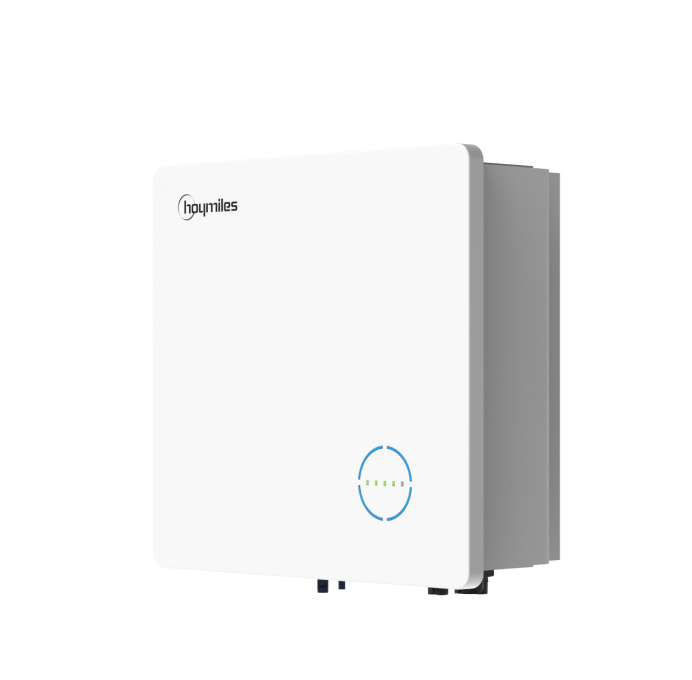

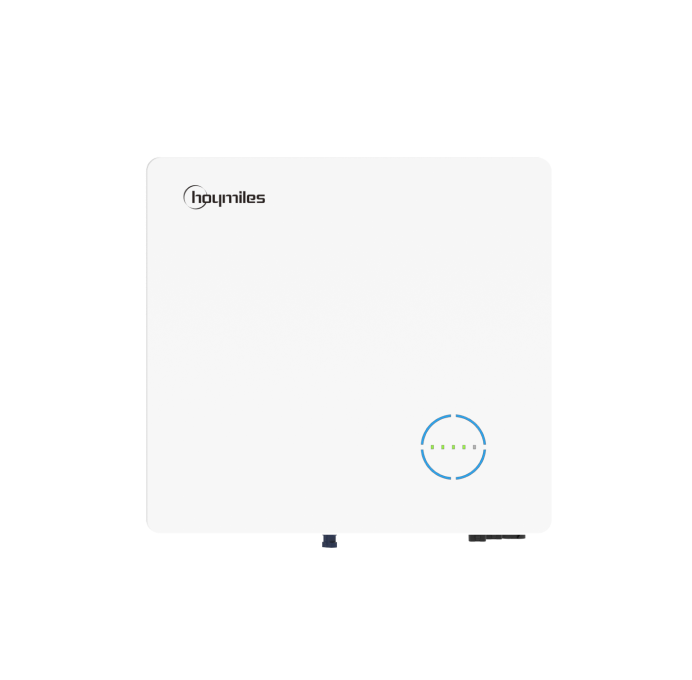

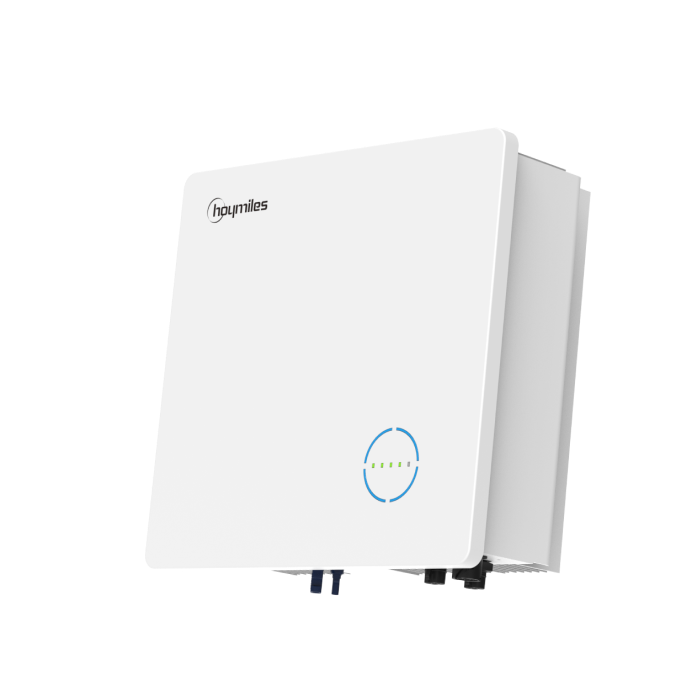

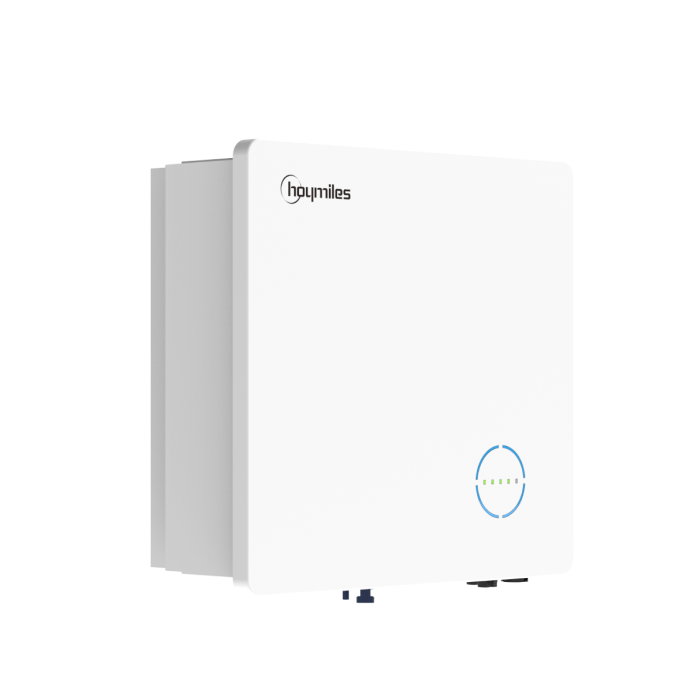

HAT-(5-12)HV-EUG1
The HAT-HV-EUG1 Series is designed for retrofitting PV systems, including power classes ranging from 5.0 kW to 10.0 kW. It can be installed with existing PV inverters, forming an AC coupling system.
The intelligent EMS function supports self-consumption mode, economical mode, and backup mode for multi-scenario applications.
Moreover, the remote monitoring management through S-Miles Cloud allows users to track the full status of the system operation over time, maximizing power and energy utilization.
-
Features
-
Tech Specs
Features
-
-
ntelligent export limitation and 100% three-phase imbalanced output
-
Compatible with multiple batteries, providing users with more choices
-
UPS level switching time <10 ms
-
Ultralight for easy installation and space-saving
-
Built-in dry contact flexibly set to earth fault alarm, load control, or generator control
-
Max. 10 parallel inverters
-
Tech Specs
-
5.0kW
-
6.0kW
-
8.0kW
-
10.0kW
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):20/20
-
（On-grid）Max. output apparent power (VA):5500
-
（On-grid）Rated AC output voltage/Range (V):380/400, 266-480
-
（Off-grid）Max. output apparent power (VA):10000, 10s
-
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):20/20
-
（On-grid）Max. output apparent power (VA):6600
-
（On-grid）Rated AC output voltage/Range (V):380/400, 266-480
-
（Off-grid）Max. output apparent power (VA):12000, 10s
-
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):30/30
-
（On-grid）Max. output apparent power (VA):8800
-
（On-grid）Rated AC output voltage/Range (V):380/400, 266-480
-
（Off-grid）Max. output apparent power (VA):16000, 10s
-
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):30/30
-
（On-grid）Max. output apparent power (VA):11000
-
（On-grid）Rated AC output voltage/Range (V):380/400, 266-480
-
（Off-grid）Max. output apparent power (VA):16000, 10s
-
