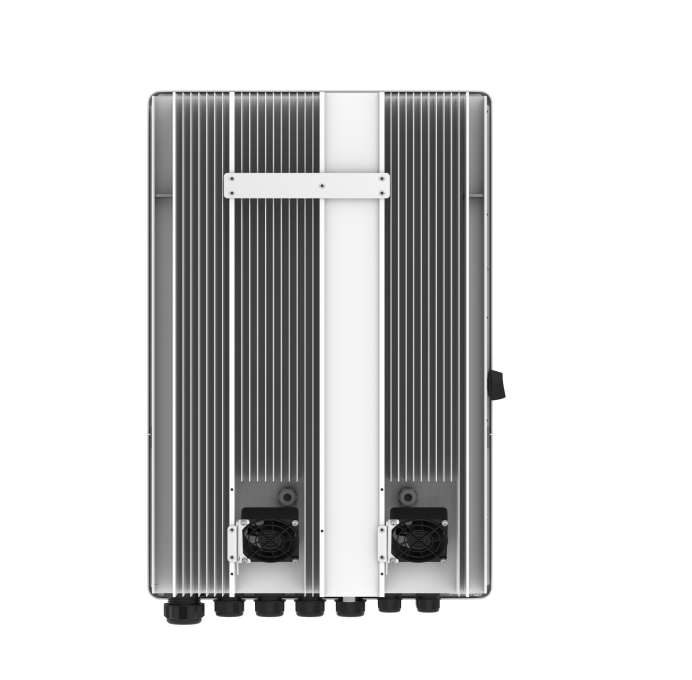

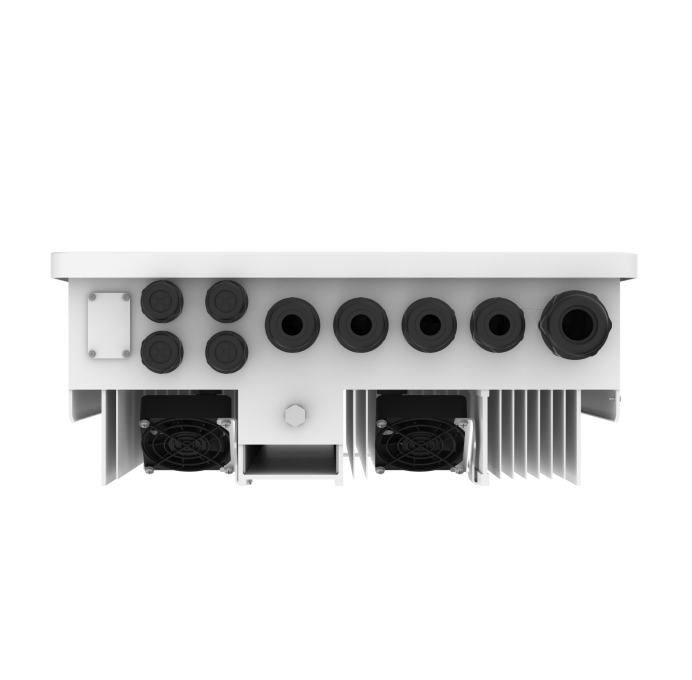

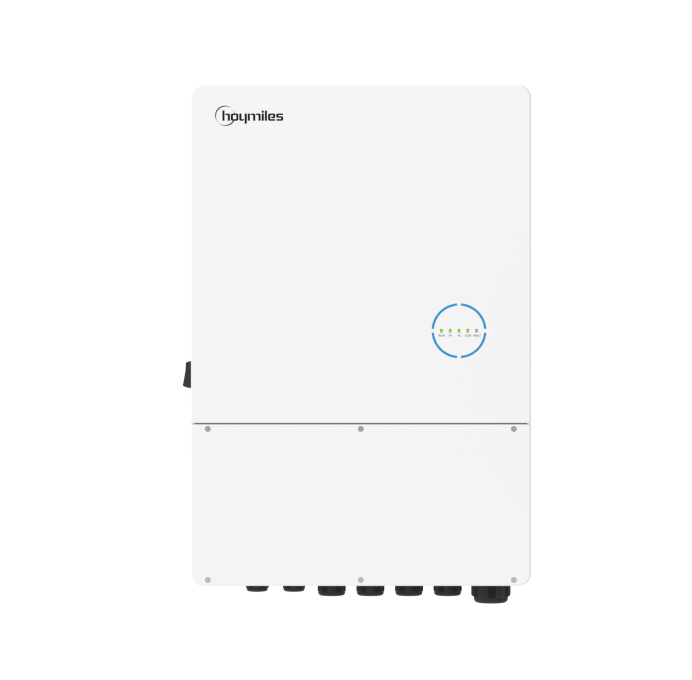

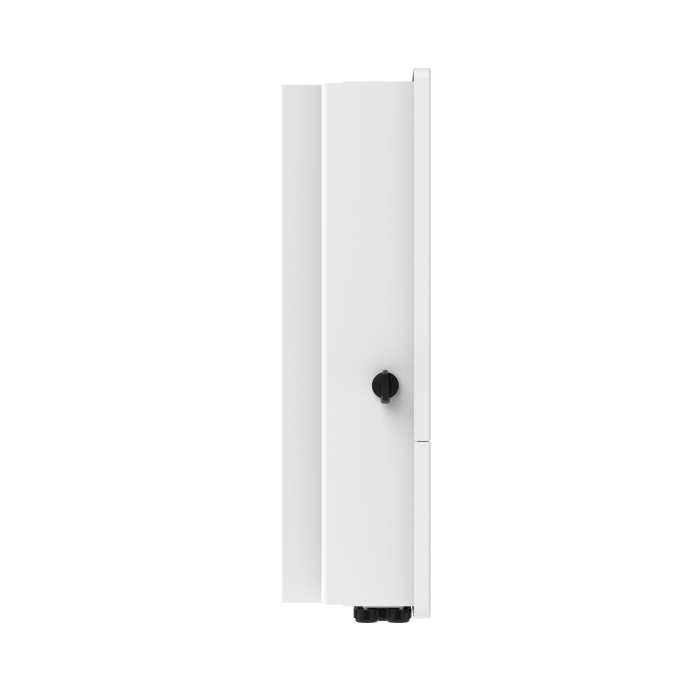

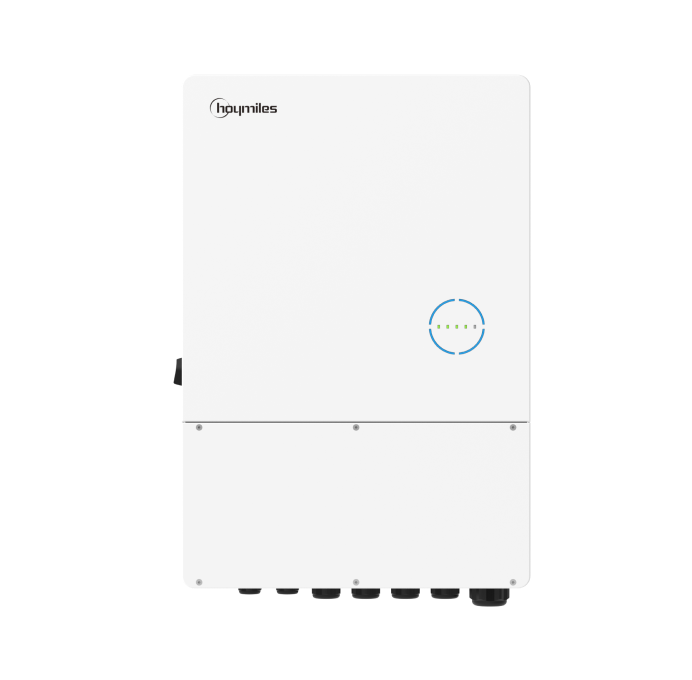

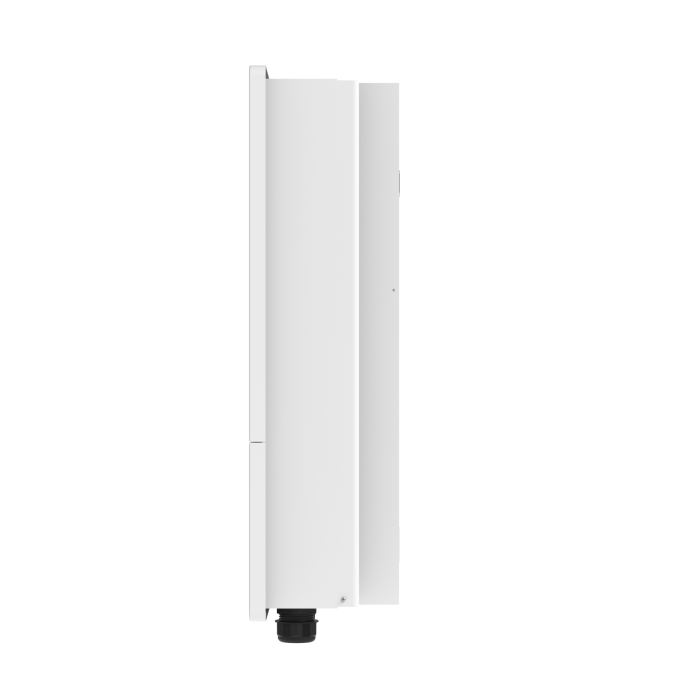

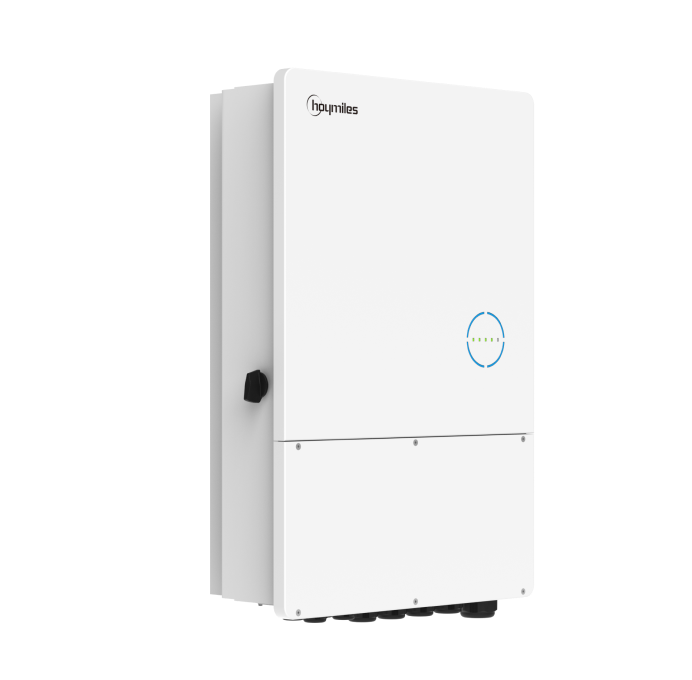

HYS-(8-12)LV-EUG2
The HAT-HV-EUG1 Series is designed for retrofitting PV systems, including power classes ranging from 5.0 kW to 10.0 kW. It can be installed with existing PV inverters, forming an AC coupling system.
The intelligent EMS function supports self-consumption mode, economical mode, and backup mode for multi-scenario applications.
Moreover, the remote monitoring management through S-Miles Cloud allows users to track the full status of the system operation over time, maximizing power and energy utilization.
-
Features
-
Tech Specs
Features
-
-
Intelligent export limitation.
-
Double MPPT tracker, up to 32A MPPT current.
-
DC/AC ratio up to 130%.
-
Ultralight for easy installation and space-saving.
-
Compatible with multiple batteries, providing users with more choices.
-
Seamless backup power for whole home or critical loads.
-
-
-
Built-in dry contact flexibly set to earth fault alarm, load control or generator control.
-
Max. 10 parallel inverters.
-
Tech Specs
-
8.0kW
-
10.0kW
-
12.0kW
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):160/160
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:2/4
-
（On-grid）Max. output apparent power (VA):8800
-
（Off-grid）Max. output apparent power (VA):16000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):200/200
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:2/4
-
（On-grid）Max. output apparent power (VA):11000
-
（Off-grid）Max. output apparent power (VA):20000, 10s
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):240/240
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:2/4
-
（On-grid）Max. output apparent power (VA):13200
-
（Off-grid）Max. output apparent power (VA):23000, 10s
-
