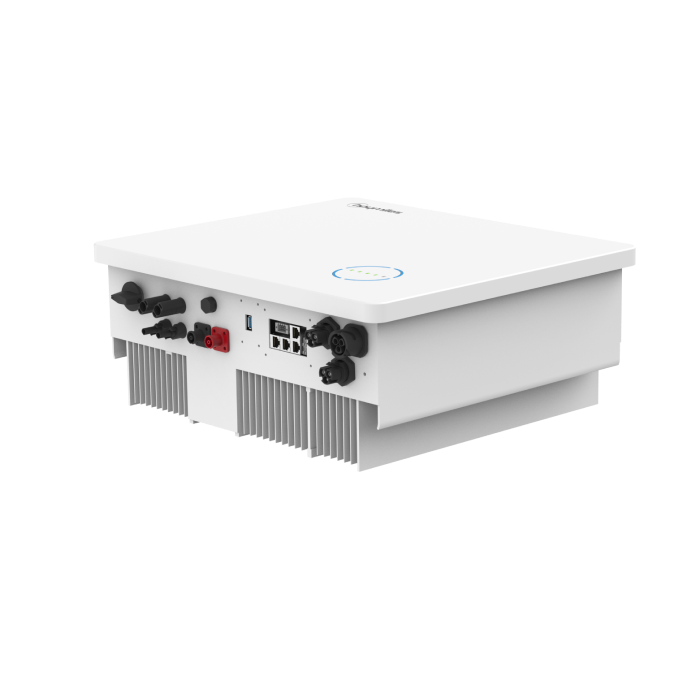

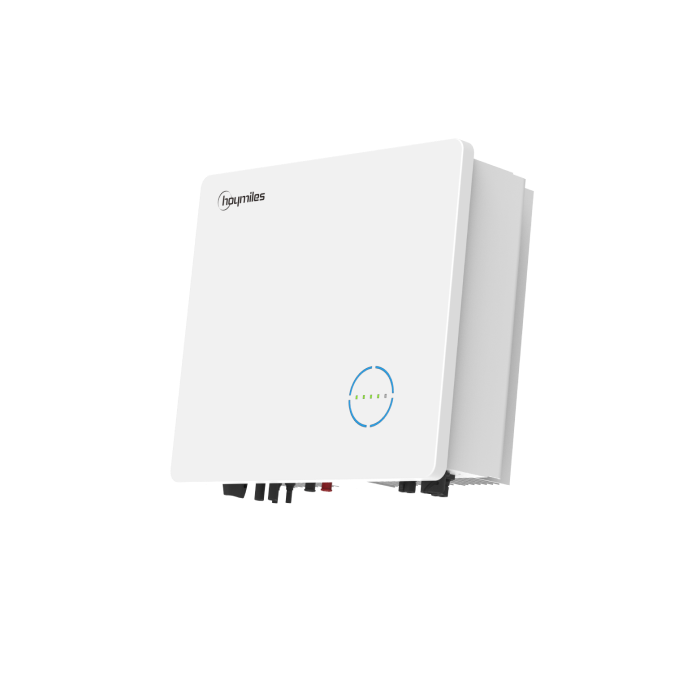

HYS-(3-6)LV-EUG1

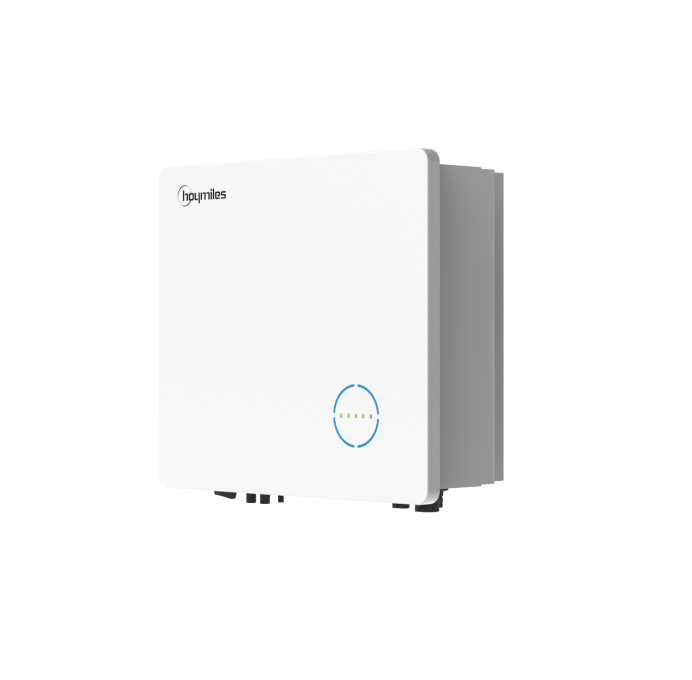

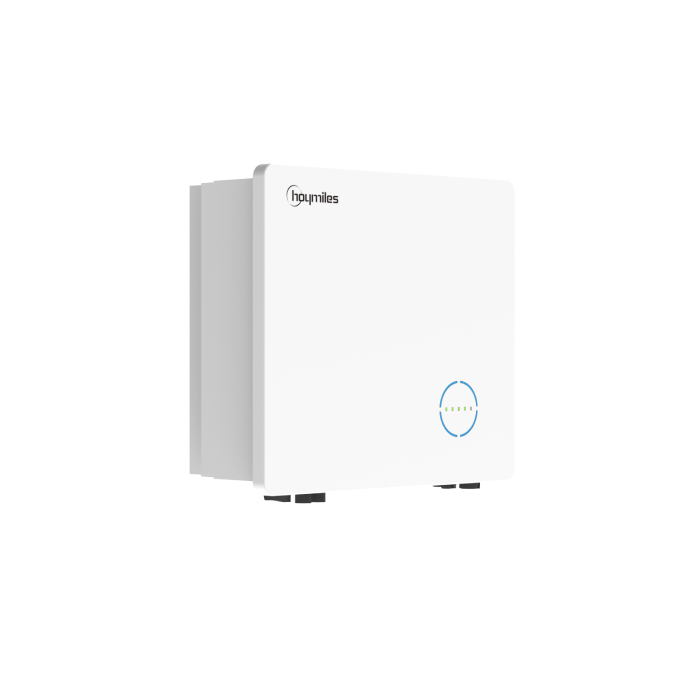

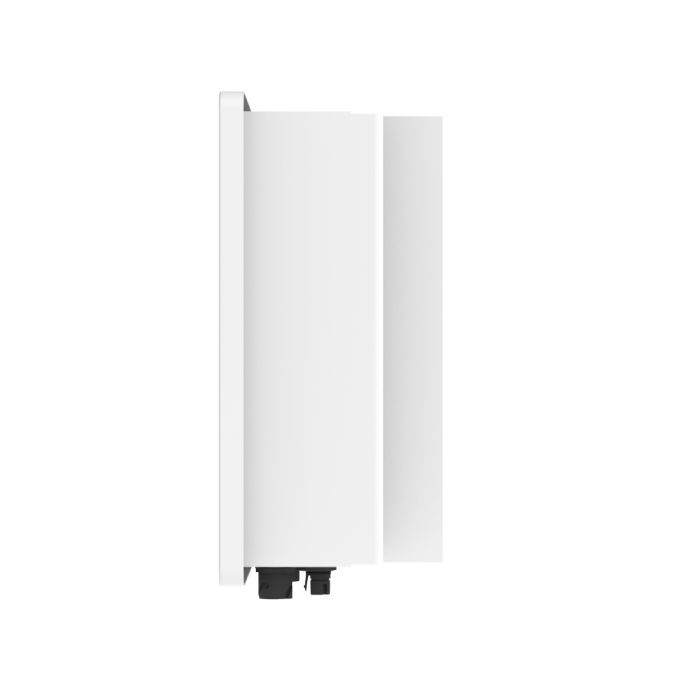

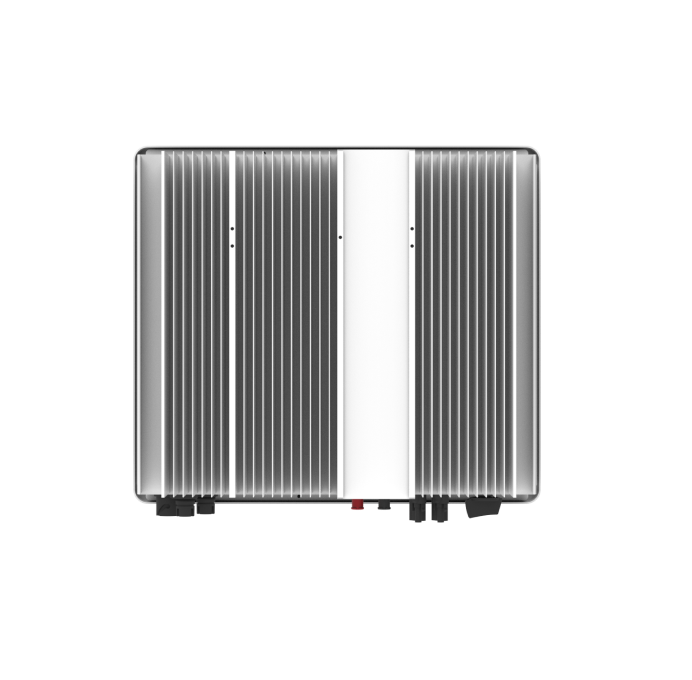

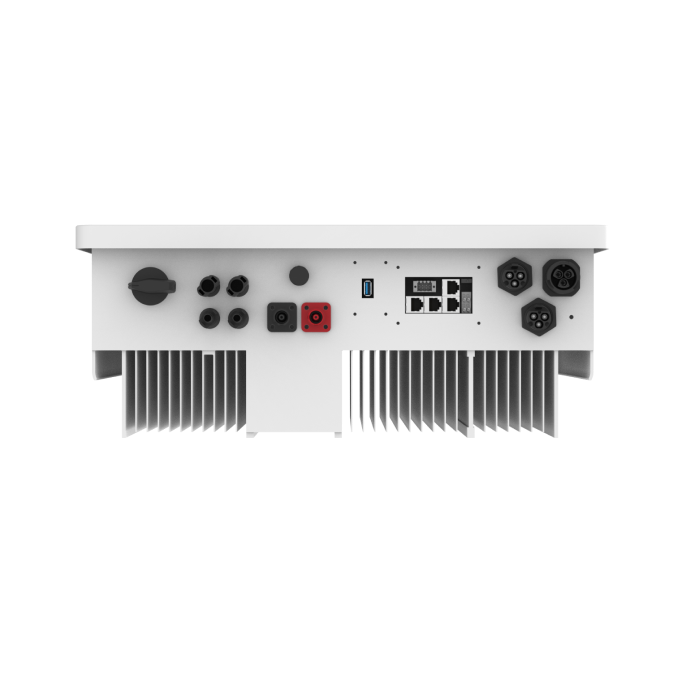

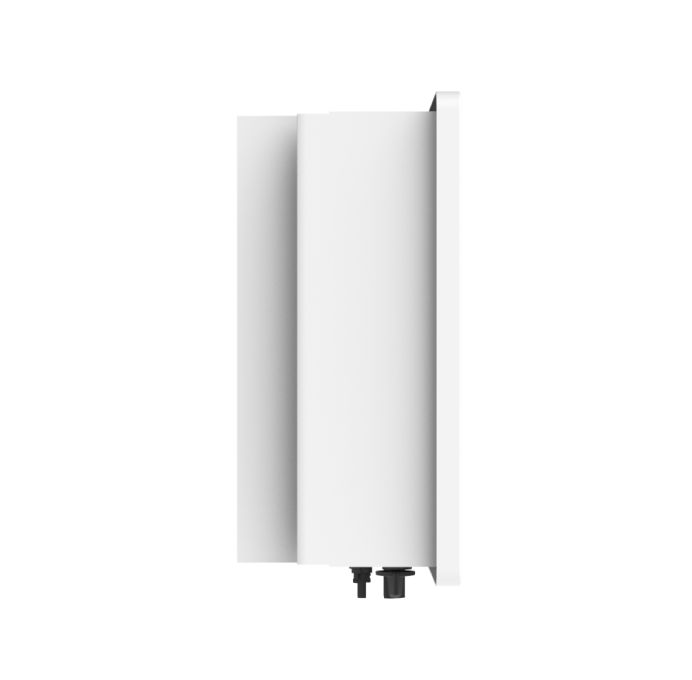

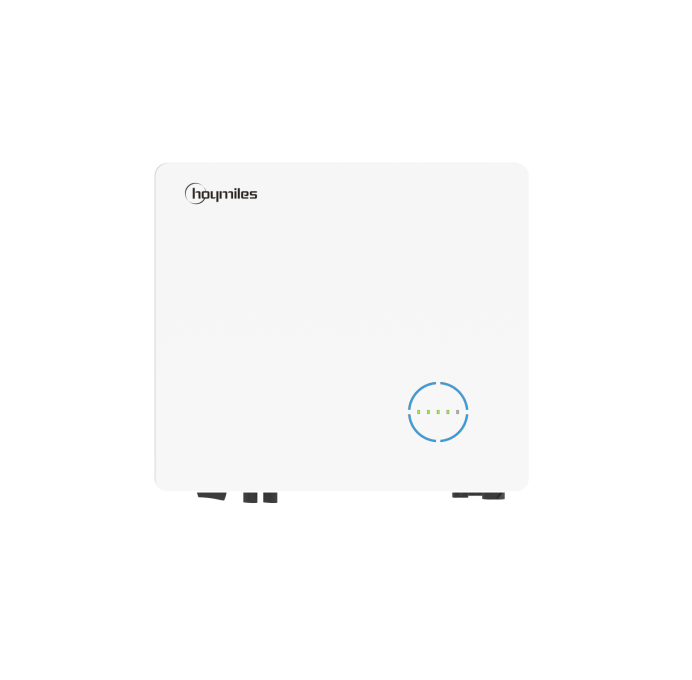

The HYS-LV Series is a high-performance single-phase hybrid inverter with excellent reliability, including power classes ranging from 3.0 kW to 6.0 kW.
The intelligent EMS function supports self-consumption mode, economical mode, and backup mode for multi-scenario applications.
Monitoring management through S-Miles Cloud allows users to remotely diagnose and track system's performance over time, maximizing the total solar power production and battery utilization.
-
Features
-
Tech Specs
Features
-
-
Intelligent export limitation.
-
Double MPPT tracker, up to 14A MPPT current.
-
DC/AC ratio up to 150%.
-
Ultralight for easy installation and space-saving.
-
Compatible with multiple batteries, providing users with more choices.
-
UPS level switching time <10 ms.
-
-
-
Built-in dry contact flexibly set to earth fault alarm, load control or generator control.
-
Max. 10 parallel inverters.
-
Tech Specs
-
3.0kW
-
3.6kW
-
4.6kW
-
5.0kW
-
6.0kW
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):75/75
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :14
-
（On-grid）Max. output apparent power (VA):3000
-
（On-grid）Rated AC output voltage/Range (V):230, 161-276
-
（Off-grid）Max. output apparent power (VA):6000, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):90/90
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :14/14
-
（On-grid）Max. output apparent power (VA):3680
-
（On-grid）Rated AC output voltage/Range (V):230, 161-276
-
（Off-grid）Max. output apparent power (VA):7360, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):100/100
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :14/14
-
（On-grid）Max. output apparent power (VA):4600
-
（On-grid）Rated AC output voltage/Range (V):230, 161-276
-
（Off-grid）Max. output apparent power (VA):9200, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):100/100
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :14/14
-
（On-grid）Max. output apparent power (VA):5000
-
（On-grid）Rated AC output voltage/Range (V):230, 161-276
-
（Off-grid）Max. output apparent power (VA):10000, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):100/100
-
MPPT voltage range (V): :125-500
-
Max. input current (A): :14/14
-
MPPT number/Max. input strings number：:6000
-
（On-grid）Max. output apparent power (VA):10000, 10s
-
（On-grid）Rated AC output voltage/Range (V):95.0%
-
