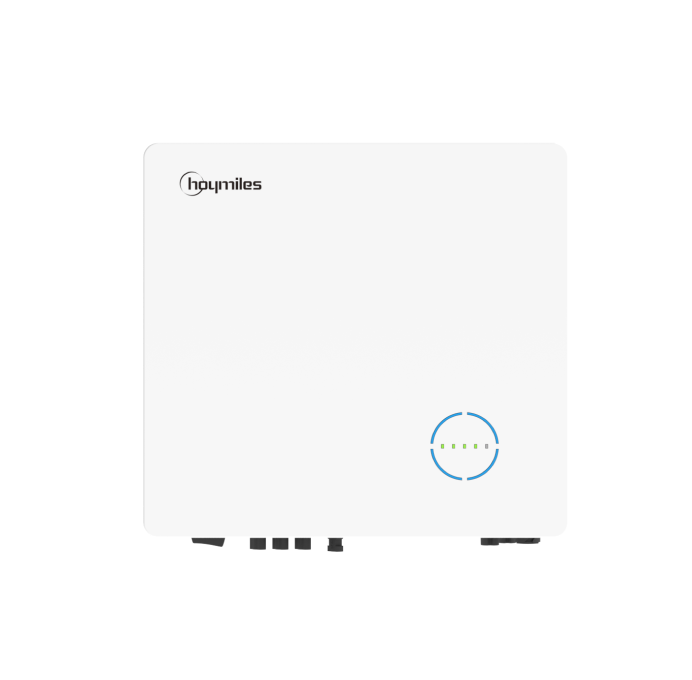

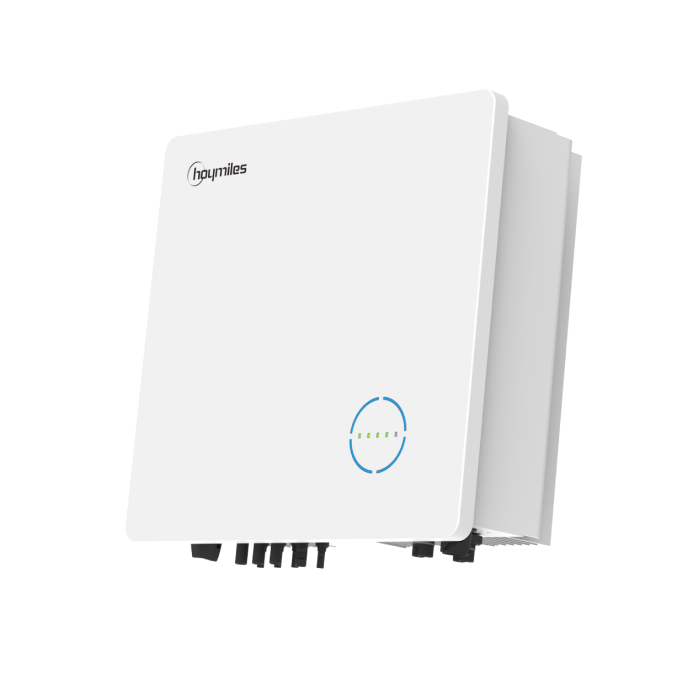

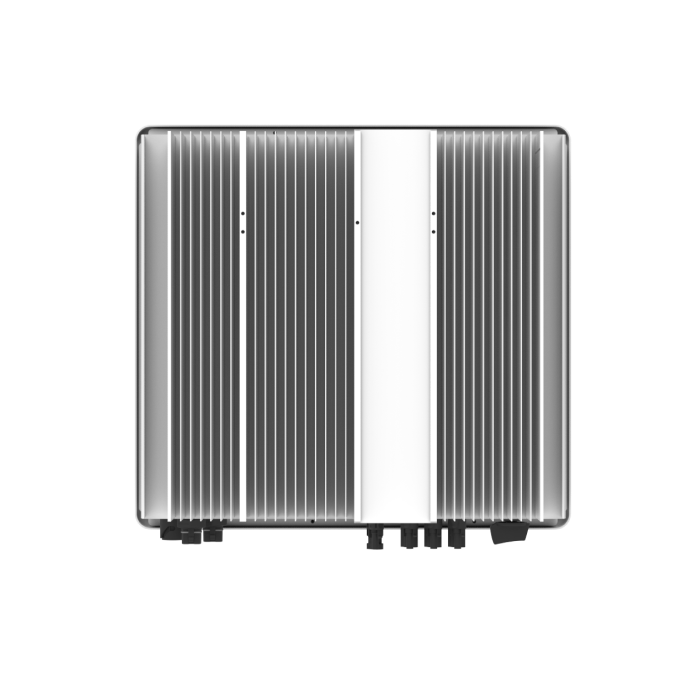

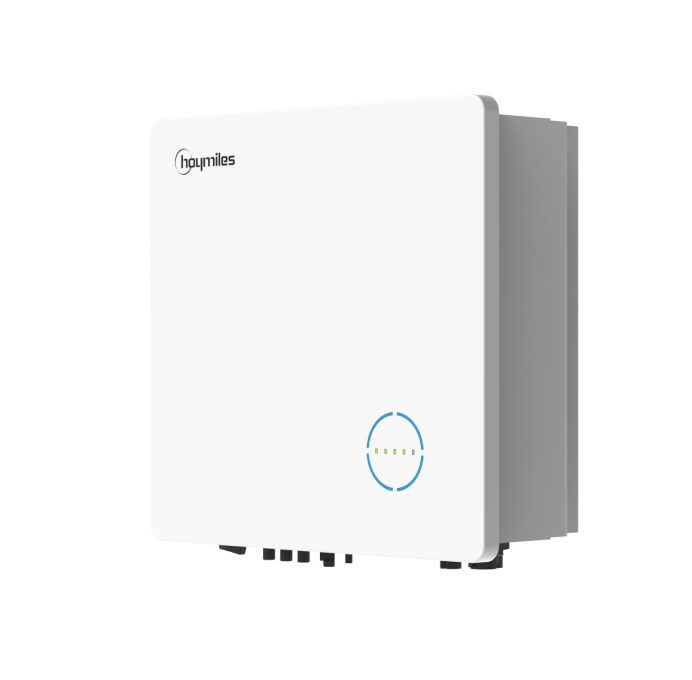

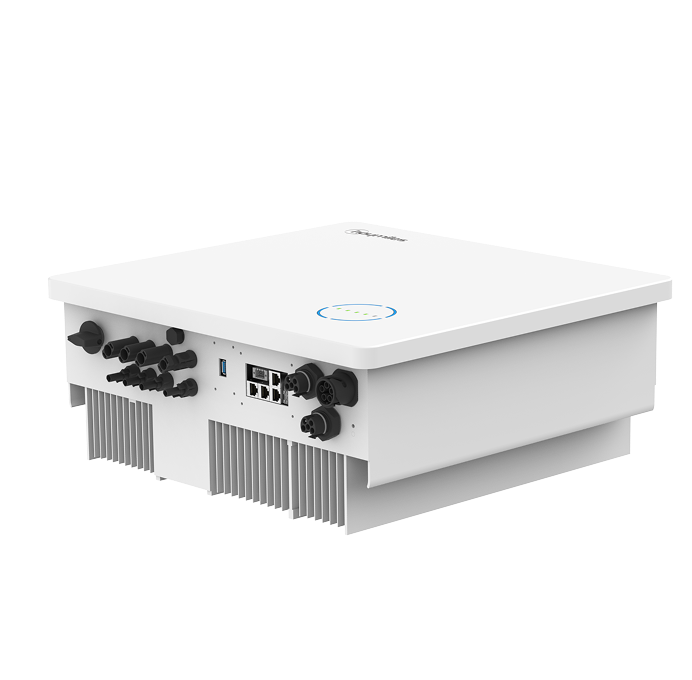

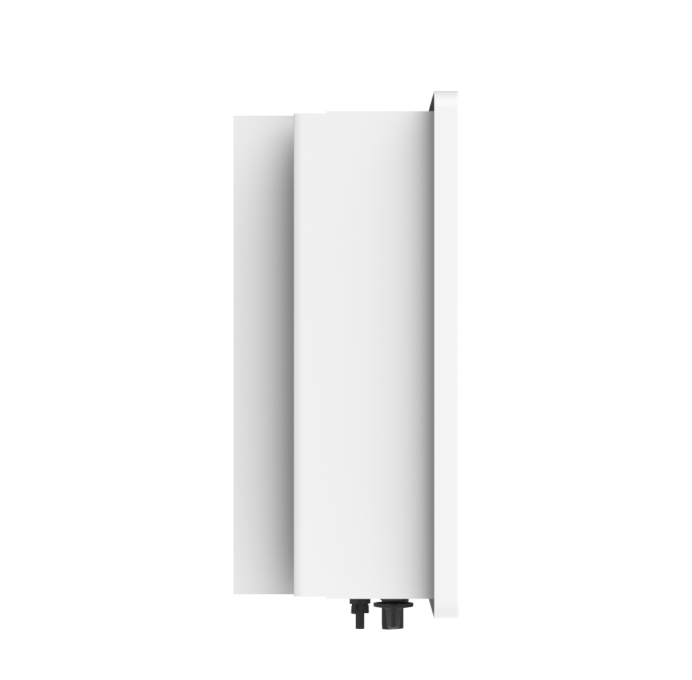

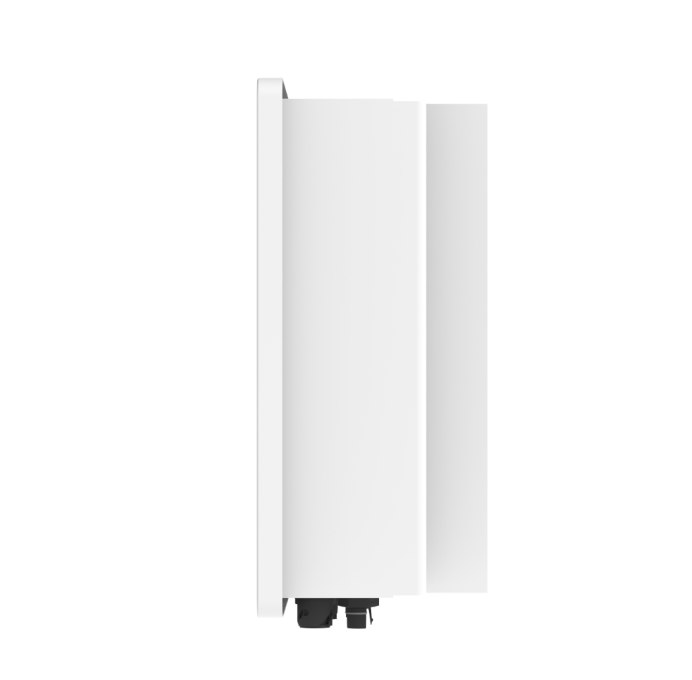

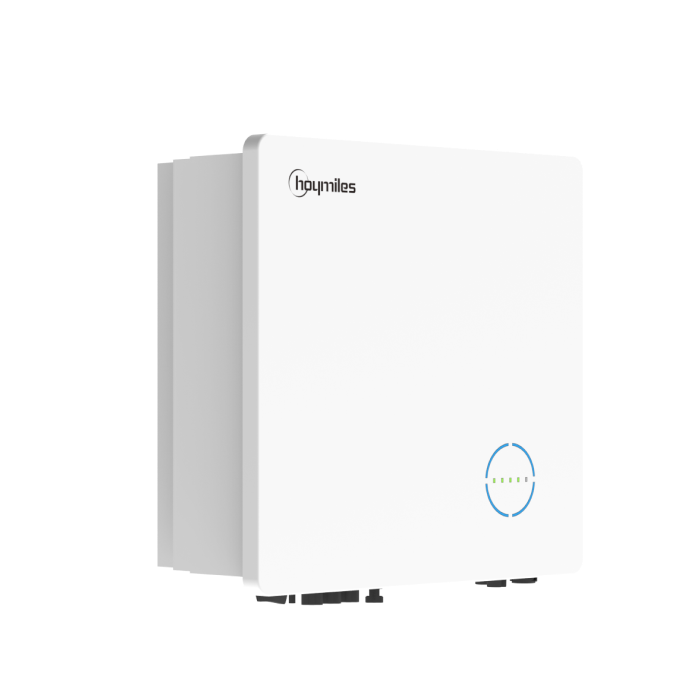

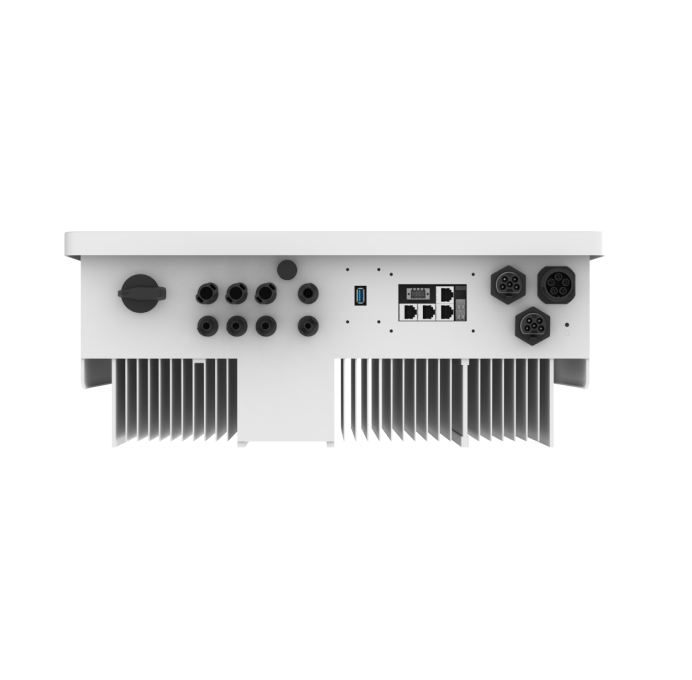

HYT-(5-12)HV-EUG1
The HYT-HV Series is a high-performance three-phase hybrid inverter with excellent reliability, including a power class from 5kW to 12kW.
The intelligent EMS function supports self-consumption mode, economic mode, and backup mode for multi-scenario applications.
Monitoring management through S-Miles Cloud allows users to remotely diagnose and track the individual system’s performance over time, offering superior energy production.
-
Features
-
Tech Specs
Features
-
-
Max. Efficiency 98%, European Efficiency 97.5%.
-
Double MPPT tracker, up to 14A MPPT current.
-
DC/AC ratio up to 150%.
-
Built-in dry contact flexibly monitors earth fault alarm and provides load control or generator control.
-
Ultralight for easy installation and space-saving.
-
Support both DC-coupled and AC-coupled system.
-
-
-
Remote monitoring through S-Miles Cloud.
-
EMS integrated with self-consumption, economic mode, backup mode for multi-scenario application.
-
Tech Specs
-
5.0kW
-
6.0kW
-
8.0kW
-
10.0kW
-
12.0kW
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):5000/5000
-
MPPT voltage range (V): :200-950
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:14/14
-
（On-grid）Max. output apparent power (VA):5500
-
（Off-grid）Max. output apparent power (VA):10000, 10s
-
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):6000/6000
-
MPPT voltage range (V): :200-950
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:14/14
-
（On-grid）Max. output apparent power (VA):6600
-
（Off-grid）Max. output apparent power (VA):12000, 10s
-
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):8000/8000
-
MPPT voltage range (V): :200-950
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:14/14
-
（On-grid）Max. output apparent power (VA):8800
-
（Off-grid）Max. output apparent power (VA):16000, 10s
-
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):10000/10000
-
MPPT voltage range (V): :200-950
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:14/28
-
（On-grid）Max. output apparent power (VA):11000
-
（Off-grid）Max. output apparent power (VA):16000, 10s
-
-
-
Battery voltage range (V):170-600
-
Max. charge/discharge current (A):10000/10000
-
MPPT voltage range (V): :200-950
-
Max. input current (A): :32/32
-
MPPT number/Max. input strings number：:14/28
-
（On-grid）Max. output apparent power (VA):12000
-
（Off-grid）Max. output apparent power (VA):16000, 10s
-
