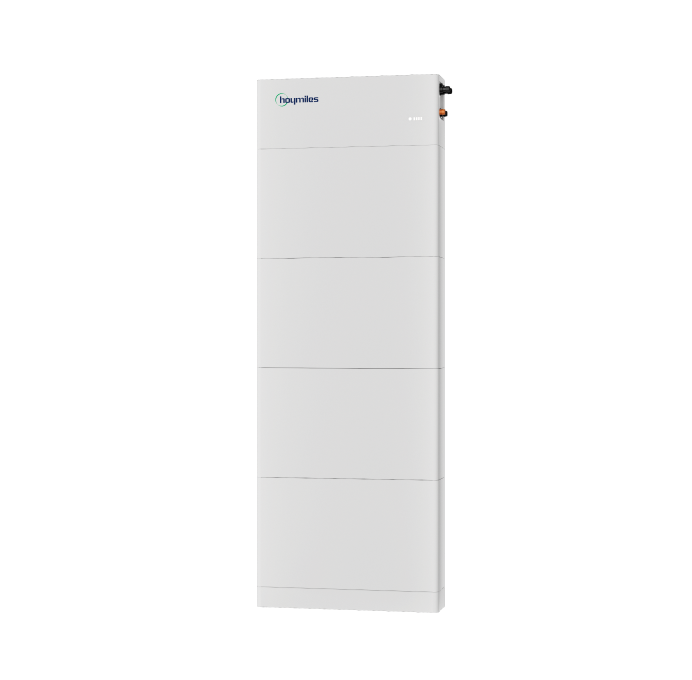

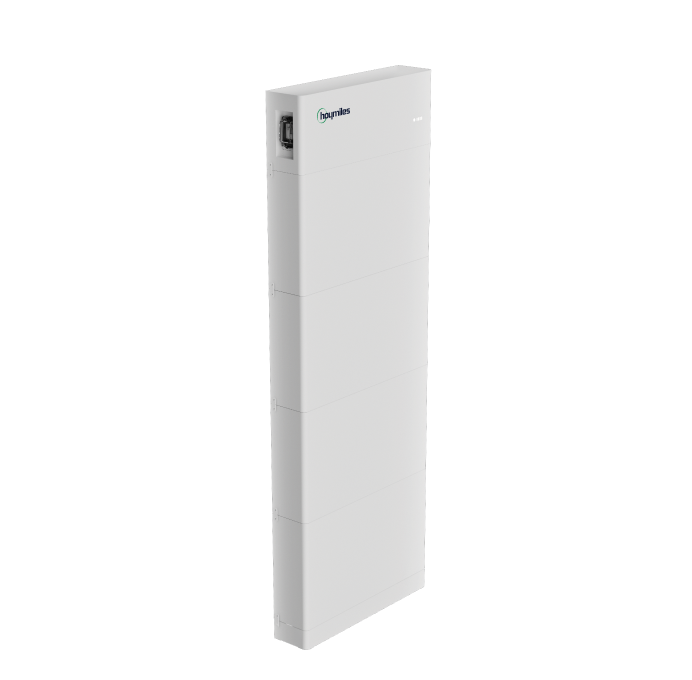

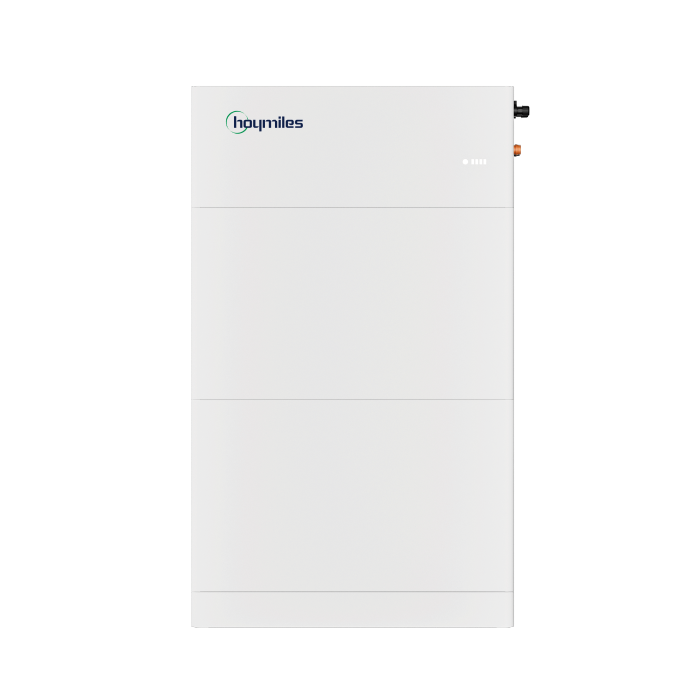

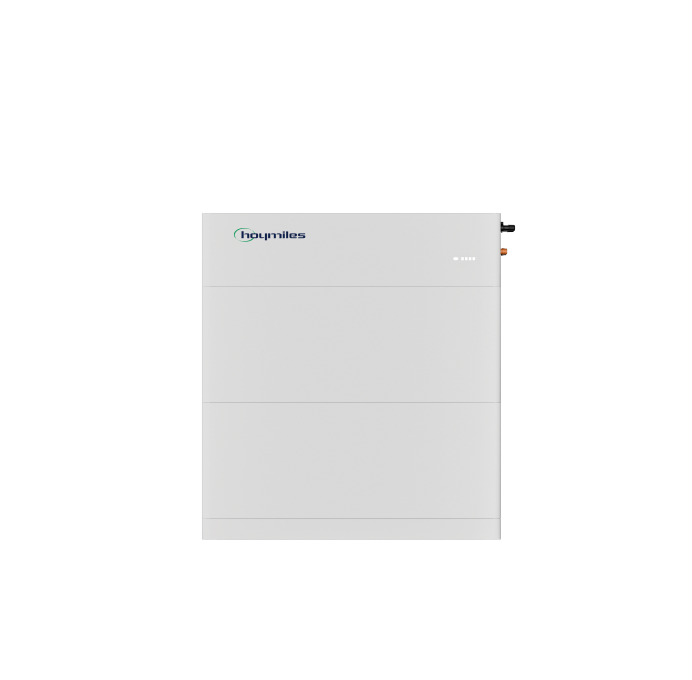

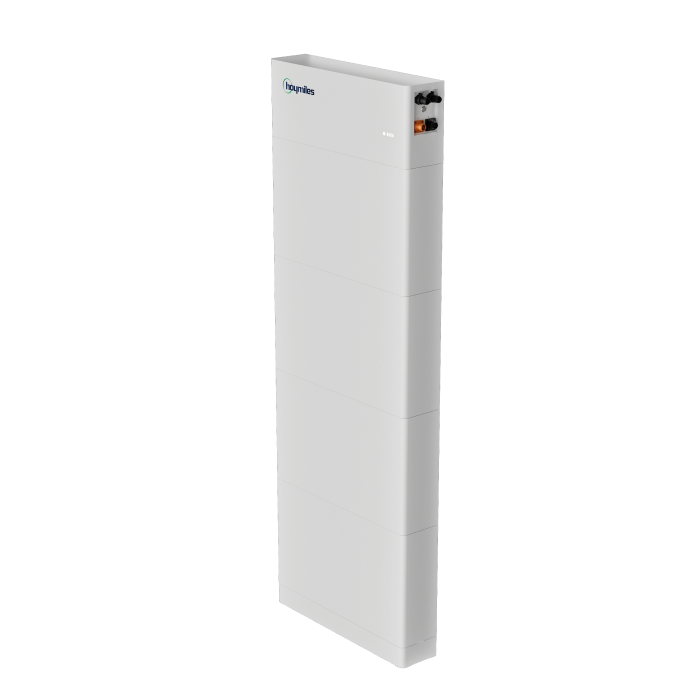

LB-5S/10S/15S/20S-G2

The LB-(5-20)S-G2 series is a type of deep cycle and high capacity LFP battery with improved safety, long lifespan, and optimized user experience.

It is designed with an IP66 rating for more flexible and easier installation.

It has superior performance with a capacity ranging from 5.12 kWh to 20.48 kWh for a single tower and a maximum of 102.4 kWh for 5 towers in parallel, which can meet residential electricity demand.

Download Spec Sheet

1/4

Learn More

Features
Tech Specs

Features

- LFP with improved safety design.
- Suitable for indoor/outdoor installation with IP66 design.
- Quick connector design saves installation time.
- Stackable design without wiring.
- Flexible capacity options from 5.12 kWh to 20.48 kWh.
- Module level fire protection.

Tech Specs

- Battery type:

  LiFePO4
- Total energy (kWh):

  20.48
- Max. continuous charging/discharging current (A):

  200
- Voltage range (V):

  44.8-58.4
- Max. charge/discharge power (kW):

  10.24
- Peak charge/discharge power (kW):

  15.36 (10s)
- Battery type:

  LiFePO4
- Total energy (kWh):

  15.36
- Max. continuous charging/discharging current (A):

  150
- Voltage range (V):

  44.8-58.4
- Max. charge/discharge power (kW):

  7.68
- Peak charge/discharge power (kW):

  11.52 (10s)
- Battery type:

  LiFePO4
- Total energy (kWh):

  10.24
- Max. continuous charging/discharging current (A):

  100
- Voltage range (V):

  44.8-58.4
- Max. charge/discharge power (kW):

  5.12
- Peak charge/discharge power (kW):

  7.68 (10s)
- Battery type:

  LiFePO4
- Total energy (kWh):

  5.12
- Max. continuous charging/discharging current (A):

  50
- Voltage range (V):

  44.8-58.4
- Max. charge/discharge power (kW):

  2.56
- Peak charge/discharge power (kW):

  3.84 (10s)
