LB-5D-G2
The LB-5D-G2 is a type of deep cycle and high capacity LFP battery with improved safety, long lifespan, and optimized user experience.
It is flexible to install with wall mounting and floor standing options.
It has superior performance with a capacity of 5.12 kWh for a single unit and a maximum of 81.92 kWh for 16 batteries in parallel, which can meet the residential electricity demand.
-
Features
-
Tech Specs
Features
-
-
LFP with improved safety design.
-
A recommended depth of discharge (DOD) of 90% allows for more usable energy.
-

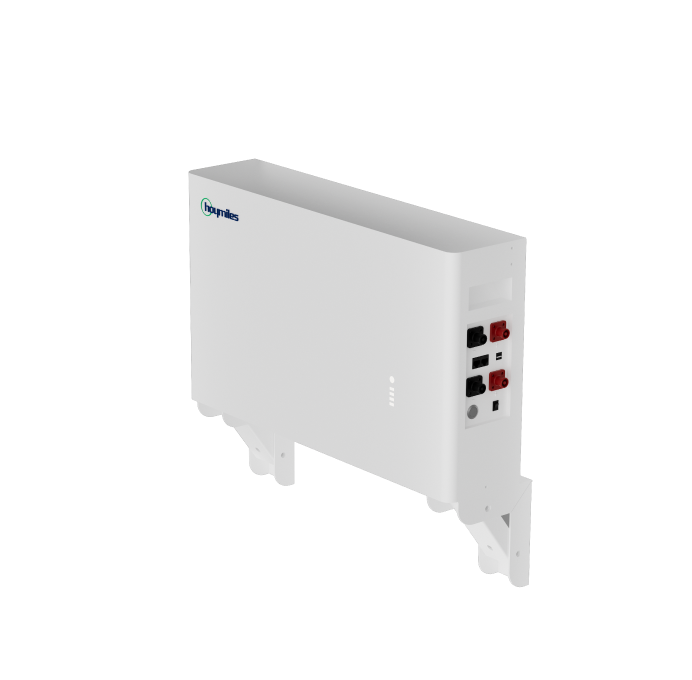

Quick connector design for easy installation.
-

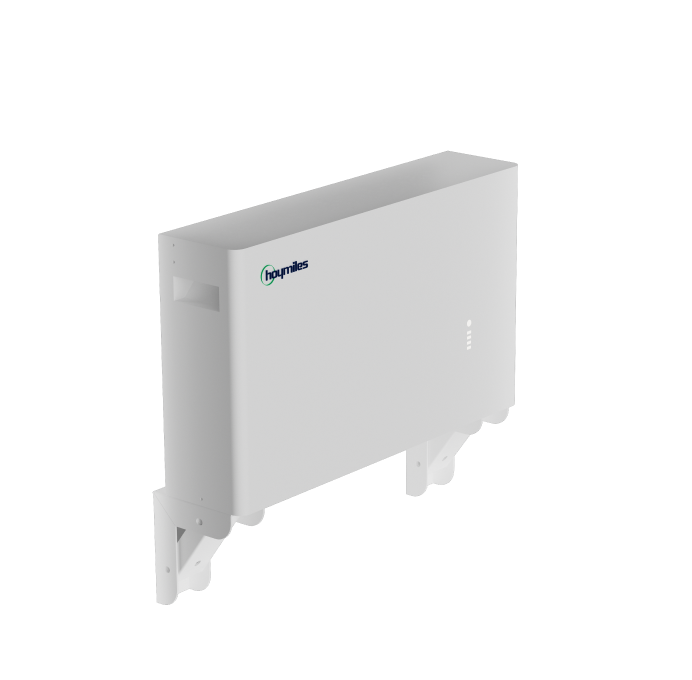

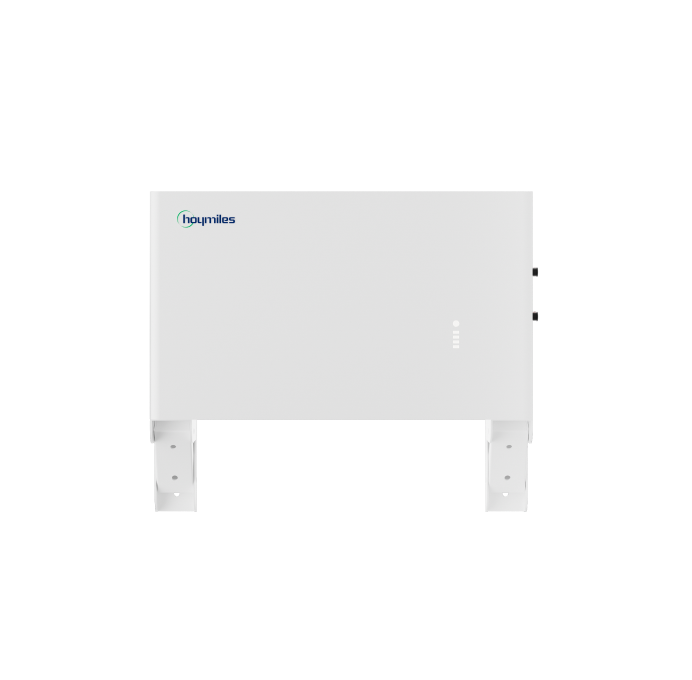

Support wall mounting and floor standing installation.
-

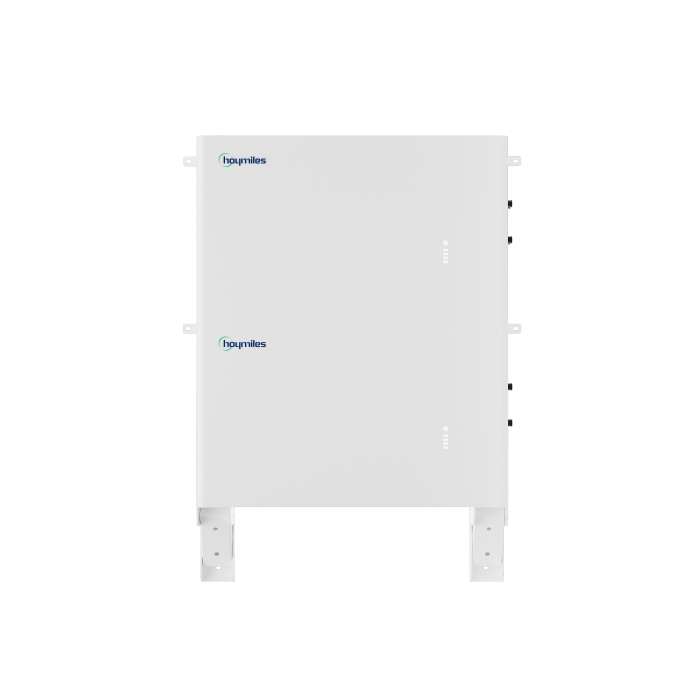

Flexible capacity options from 5.12 kWh to 81.92 kWh.
-
Intelligent BMS with multiple protection functions.
-


Tech Specs
-
LB-5D-G2
-
-
Battery type:LiFePO4
-
Total energy (kWh):5.12
-
Max. continuous charging/discharging current (A):50
-
Voltage range (V):44.8-58.4
-
Communication:CAN/RS485
-
Max. parallel:16
-
