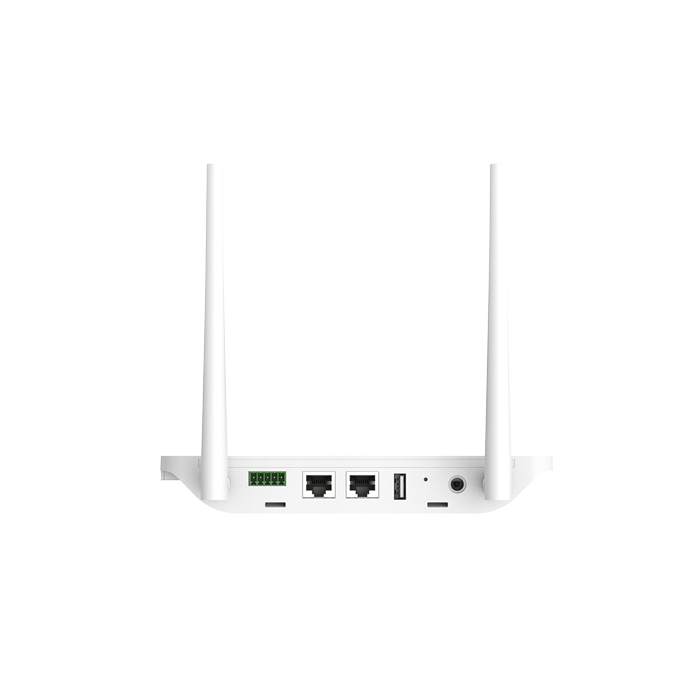

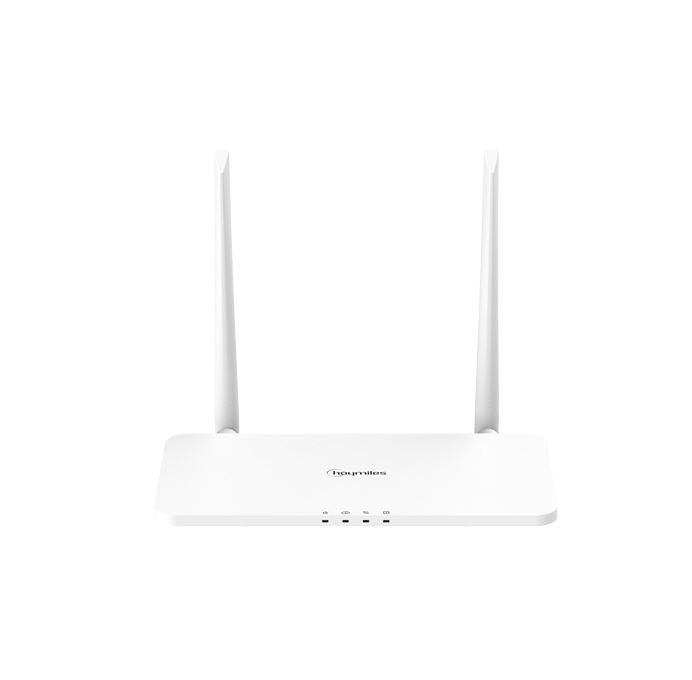

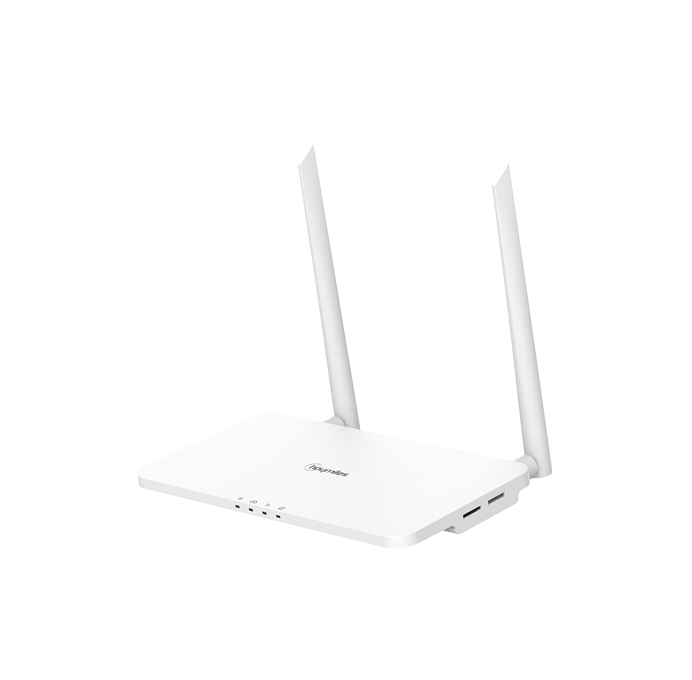

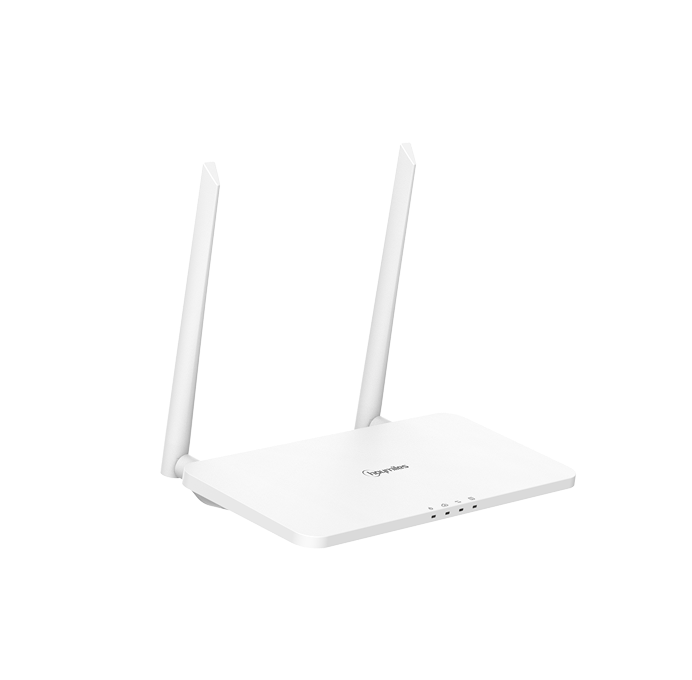

Hoymiles DTU-Pro-S
Hoymiles gateway DTU-Pro-S is a data transfer unit that collects information and data from a solar PV microinverter using a Sub-1G wireless solution and sends them to S-Miles Cloud, Hoymiles’ Monitoring Platform, using different communication options such as Ethernet, Wi-Fi or 4G.
Hoymiles provides Wi-Fi version DTU-Pro-S and 4G version DTU-Pro-S. They both support remoting O&M and monitoring solar systems. You can find quick installation guides on our page.
With DTU-Pro-S, users can easily read module-level data and alarms, and achieve remote operation and maintenance of the PV system at any time, from anywhere on S-Miles Cloud.
-
Features
-
Tech Specs
Features
-
-
Sub-1G wireless solution enables stable communication with HMS, HMT series of microinverter.
-
More communication options with Ethernet, Wi-Fi or 4G.
-
More communication options with Ethernet, Wi-Fi or 4G.
-
Module-level monitoring and data storage.
-
Local configuration with S-Miles Toolkit.
-
Support remote O&M including remote upgrading, parameter setting.
-
-
-
Smart zero export control and power export limiting.
-
PV generation and load consumption monitoring.
-


Tech Specs
-
WIFI
-
4G
-
-
Signal:Sub-1G
-
Maximum distance (open space):400 m
-
Monitoring data limit from solar panels:99
-
Ethernet (Communication to S-Miles Cloud):RJ45 × 1, 100Mbps
-
Wireless (Communication to S-Miles Cloud):Wi-Fi:802.11b/g/n
-
Installation method:Wall mounting
-
Microinverter mode:HMS series
-
-
-
Signal:Sub-1G
-
Maximum distance (open space):400 m
-
Monitoring data limit from solar panels:99
-
Ethernet (Communication to S-Miles Cloud):RJ45 × 1, 100Mbps
-
Wireless (Communication to S-Miles Cloud):4G:TDD-LTE, FDD-LTE 3G:SCDMA 2G:GSM/GPRS
-
Installation method:Desktop mounting
-
Microinverter mode:HMT series
-
