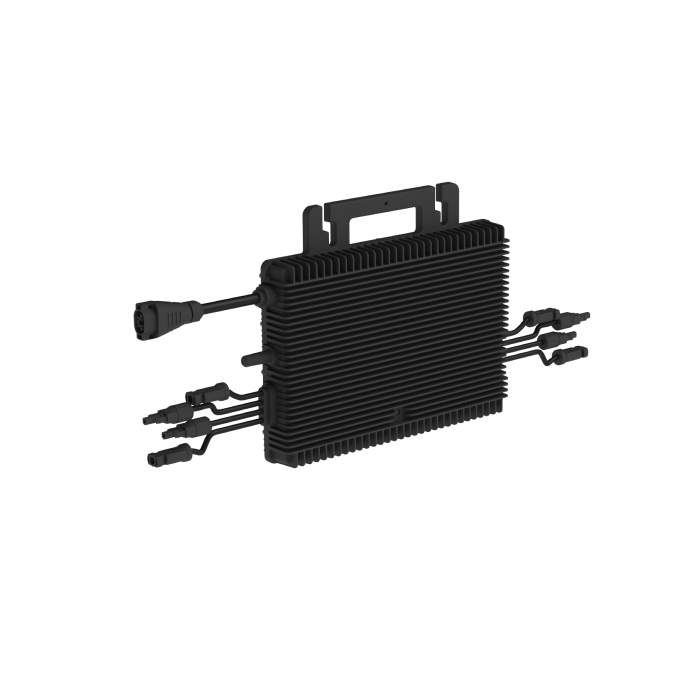

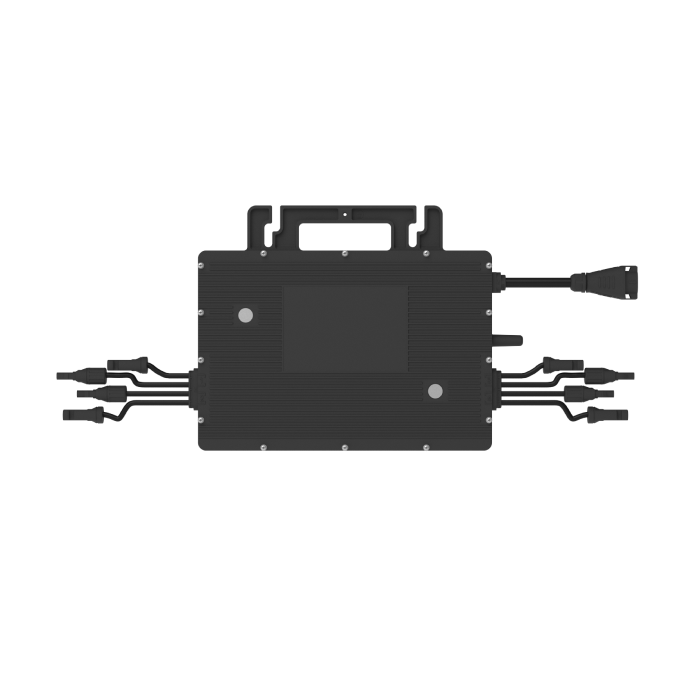

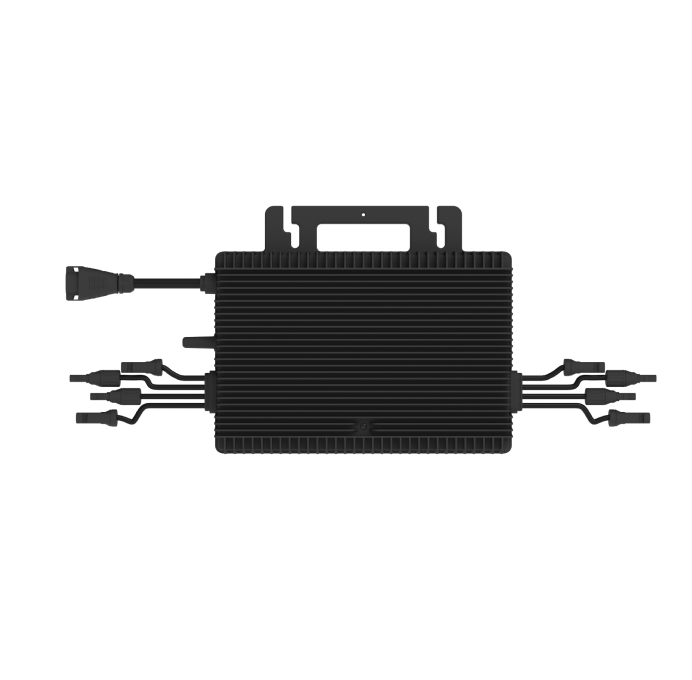

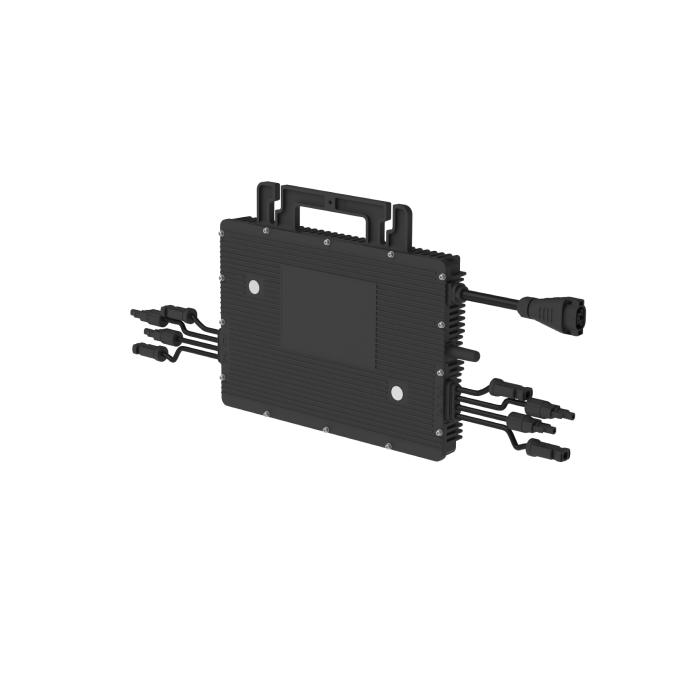

HMT-1600&1800&2000-4T

Hoymiles new generation microinverter HMT-2000 series is designed to accommodate the high-powered PV modules, with maximum output power up to 2000 VA and maximum DC input current up to 16 A.

The innovative 4-input design enables faster installation and lower cost, and makes HMT-2000 series a very cost-effective choice.

The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU. Smart platform S-Miles Cloud makes it possible to module-level monitoring and remote O&M.

Download Spec Sheet

1/4

Features
Tech Specs

Features

- Three-phase output, more suitable for commercial and industrial applications.
- With output power up to 2000 VA, compatible with 182 mm/210 mm PV module.
- Grid protection relay integrated.
- 4-in-1 design enables faster installation and comes with a lower cost.
- Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer.
- Sub-1G wireless solution allows stable communication in commercial and industrial settings.

Tech Specs

1600W
1800W
2000W
1600W

- Commonly used module power (W):

  320 to 540+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  4 × 14
- Number of MPPTs:

  2
- Rated output power (VA):

  1600
- Nominal output voltage/range (V)* :

  230/400, 3W+N+PE
- CEC peak efficiency:

  96.50%
- Commonly used module power (W):

  360 to 600+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  4 × 15
- Number of MPPTs:

  2
- Rated output power (VA):

  1800
- Nominal output voltage/range (V)* :

  230/400, 3W+N+PE
- CEC peak efficiency:

  96.50%
- Commonly used module power (W):

  400 to 670+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  4 × 16
- Number of MPPTs:

  2
- Rated output power (VA):

  2000
- Nominal output voltage/range (V)* :

  230/400, 3W+N+PE
- CEC peak efficiency:

  96.50%
- Commonly used module power (W):

  320 to 540+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  4 × 14
- Number of MPPTs:

  2
- Rated output power (VA):

  1600
- Nominal output voltage/range (V)* :

  230/400, 3W+N+PE
- CEC peak efficiency:

  96.50%
