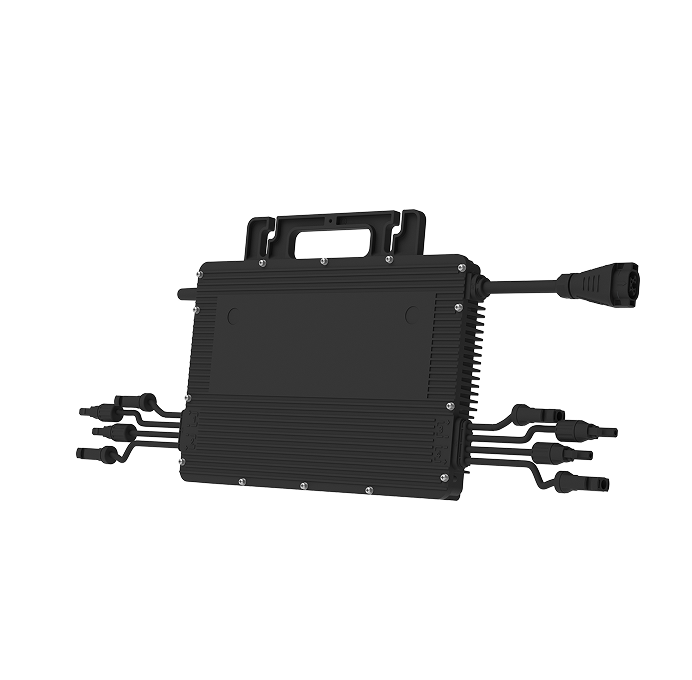

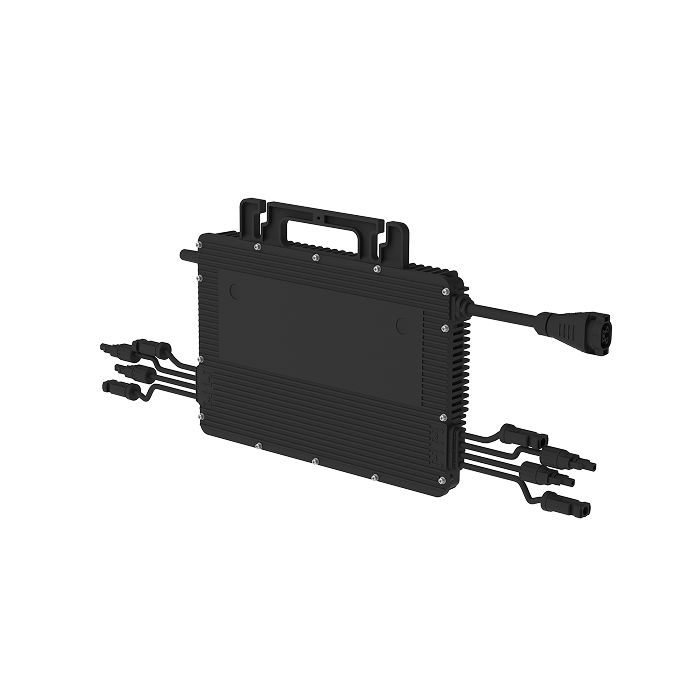

HMS-1600&1800&2000-4T

With the output power up to 2000 VA, Hoymiles new microinverter HMS-2000 series rank among the highest for 4-in-1 microinverters.

Each microinverter can connect up to 4 panels, with independent MPPT and monitoring maximizing the power production of your installation.

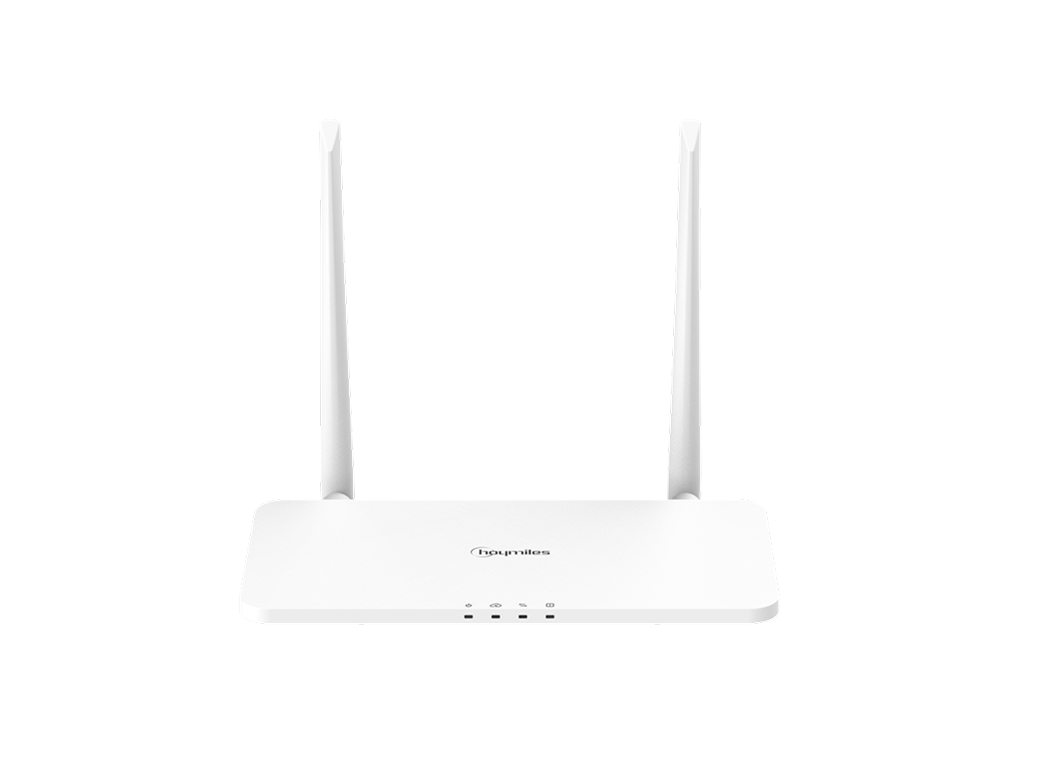

The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.


1/4
  • Features
  • Tech Specs

Features

Tech Specs

  • 1600W
  • 1800W
  • 2000W
    • Commonly used module power (W):
      320 to 540+
    • Maximum input voltage (V):
      65
    • Maximum input current (A):
      4 × 12.5
    • Number of MPPTs:
      4
    • Rated output power (VA):
      1600
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.70%
    • Commonly used module power (W):
      360 to 600+
    • Maximum input voltage (V):
      65
    • Maximum input current (A):
      4 × 13.3
    • Number of MPPTs:
      4
    • Rated output power (VA):
      1800
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.50%
    • Commonly used module power (W):
      400 to 670+
    • Maximum input voltage (V):
      65
    • Maximum input current (A):
      4 × 14
    • Number of MPPTs:
      4
    • Rated output power (VA):
      2000
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.50%
