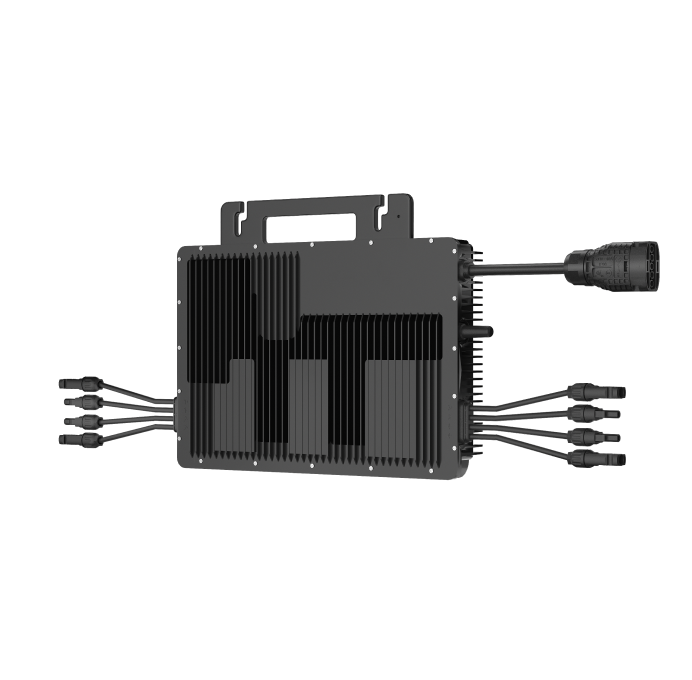

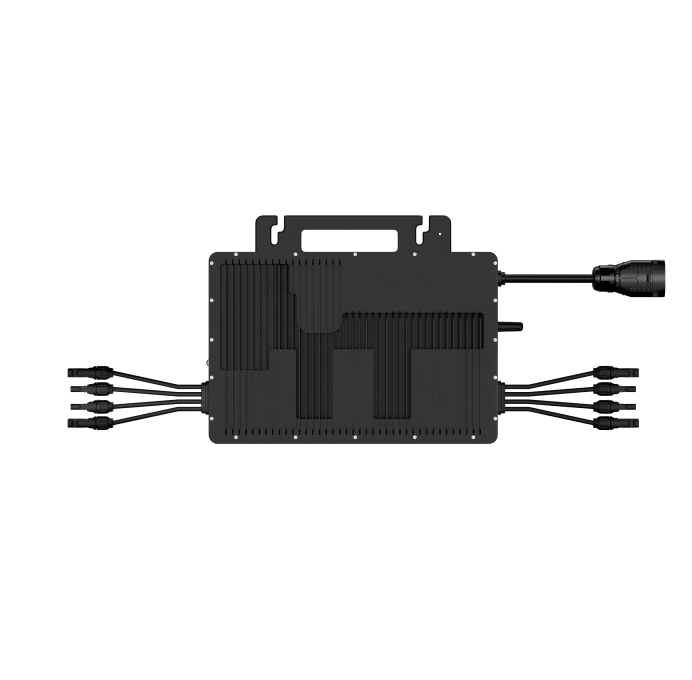

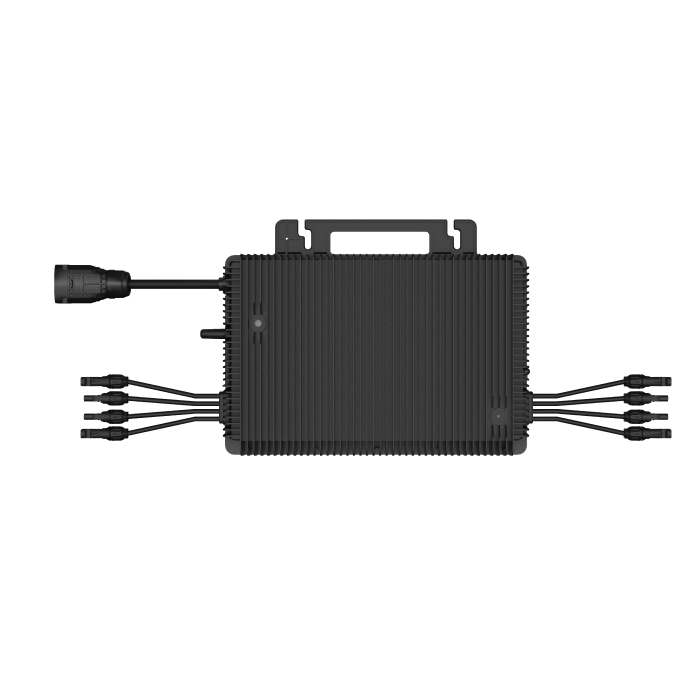

MIT-4000&4500&5000-8T
Hoymiles new generation microinverter MIT-5000-8T series is designed to accommodate eight high-powered PV modules, with output power up to 5000 VA and input current up to 20 A. Its four MPPTs maximize energy harvest, ensuring optimal performance.
The innovative 8-in-1 design significantly reduces system costs, making the MIT-5000-8T series a cost-effective choice.
The Sub-1G wireless solution ensures stable communication with Hoymiles gateway DTU, and enables module-level monitoring and remote O&M on Hoymiles Monitoring Platform S-Miles Cloud.
-
Features
-
Tech Specs
Features
-
-
Built-in Wi-Fi module enables quicker and easier installation and commissioning.
-
The industrial-grade Wi-Fi module brings higher microinverter reliability.
-
With output power up to 2000 VA, compatible with 182 mm/210 mm PV module.
-
With the top-tier brand battery cell, our device not only supports a long battery live with 6,000+ battery cycles, but also offers a Ten-year Warranty, standing the test of time.
-
Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer.
-
IP67 (NEMA 6) protection degree, adapt to outdoor use.
-
Tech Specs
-
4000W
-
5000W
-
6000W
-
4000W
-
-
Commonly used module power (W):400 to 650+
-
Maximum input voltage (V):140
-
Maximum input current (A):4 ×20
-
Number of MPPTs:4
-
Rated output power (VA):4000
-
Nominal output voltage/range (V)* :230/400, 3L+N+PE
-
CEC peak efficiency:97.40%
-
-
-
Commonly used module power (W):560 to 700+
-
Maximum input voltage (V):140
-
Maximum input current (A):4 ×20
-
Number of MPPTs:4
-
Rated output power (VA):4500
-
Nominal output voltage/range (V)* :230/400, 3L+N+PE
-
CEC peak efficiency:97.40%
-
-
-
Commonly used module power (W):600 to 750+
-
Maximum input voltage (V):140
-
Maximum input current (A):4 ×20
-
Number of MPPTs:4
-
Rated output power (VA):5000
-
Nominal output voltage/range (V)* :230/400, 3L+N+PE
-
CEC peak efficiency:97.40%
-
-
-
Commonly used module power (W):400 to 650+
-
Maximum input voltage (V):140
-
Maximum input current (A):4 ×20
-
Number of MPPTs:4
-
Rated output power (VA):4000
-
Nominal output voltage/range (V)* :230/400, 3L+N+PE
-
CEC peak efficiency:97.40%
-
