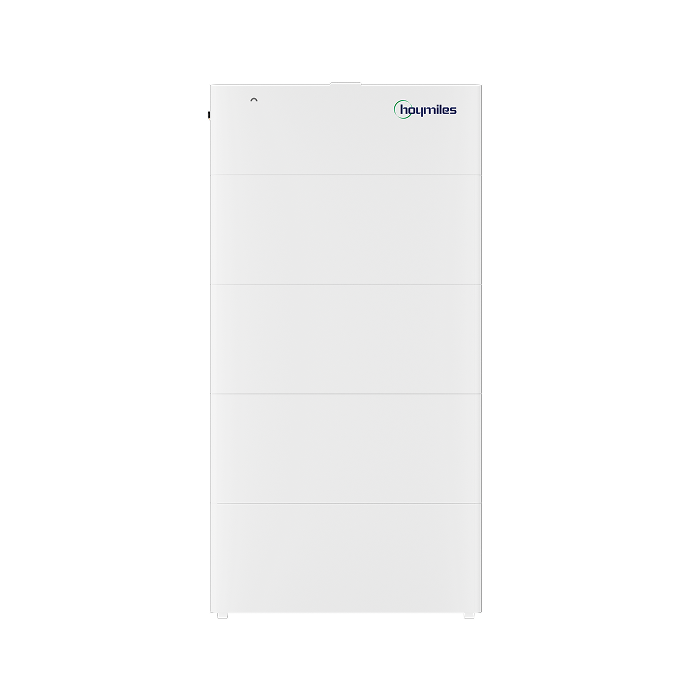

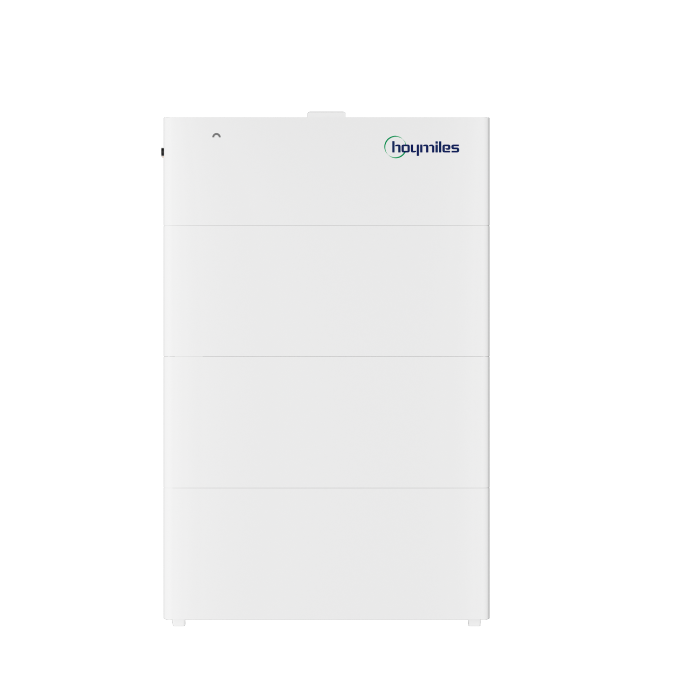

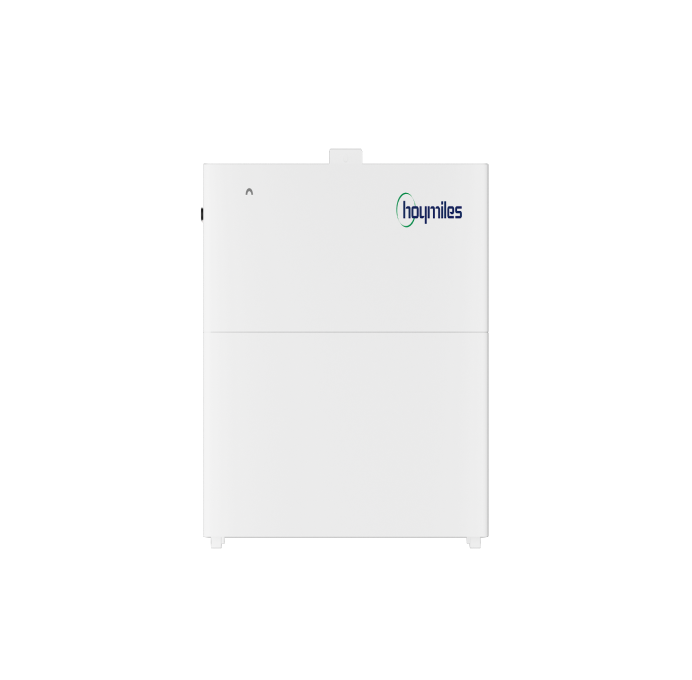

LB-5S/10S/15S/20S-G1

The LB-(5-20)S-G1 series is a type of deep cycle and high capacity LFP battery with improved safety, long lifespan, and optimized user experience.

It is designed with an IP65 rating for more flexible and easier installation.

It has superior performance with a capacity ranging from 5.12 kWh to 20.48 kWh for a single tower, which can meet residential electricity demand.


Contact Us
Download Spec Sheet
1/4
  • Features
  • Tech Specs

Features

    • LFP with improved safety design.

    • Suitable for indoor/outdoor installation with IP65 design.

    • Quick connector design saves installation time.

    • Stackable design without wiring.

    • Flexible capacity options from 5.12 kWh to 20.48 kWh.

    • Module level fire protection.

Tech Specs

  • 20S
  • 15S
  • 10S
  • 5S
    • Battery type:
      LiFePO4
    • Total energy (kWh):
      20.48
    • Max. continuous charging/discharging current (A):
      150
    • Voltage range (V):
      44.8-57.6
    • Max. charge/discharge power (kW):
      7.68
    • Battery type:
      LiFePO4
    • Total energy (kWh):
      15.36
    • Max. continuous charging/discharging current (A):
      150
    • Voltage range (V):
      44.8-57.6
    • Max. charge/discharge power (kW):
      7.68
    • Battery type:
      LiFePO4
    • Total energy (kWh):
      10.24
    • Max. continuous charging/discharging current (A):
      100
    • Voltage range (V):
      44.8-57.6
    • Max. charge/discharge power (kW):
      5.12
    • Battery type:
      LiFePO4
    • Total energy (kWh):
      5.12
    • Max. continuous charging/discharging current (A):
      50
    • Voltage range (V):
      44.8-57.6
    • Max. charge/discharge power (kW):
      2.56
