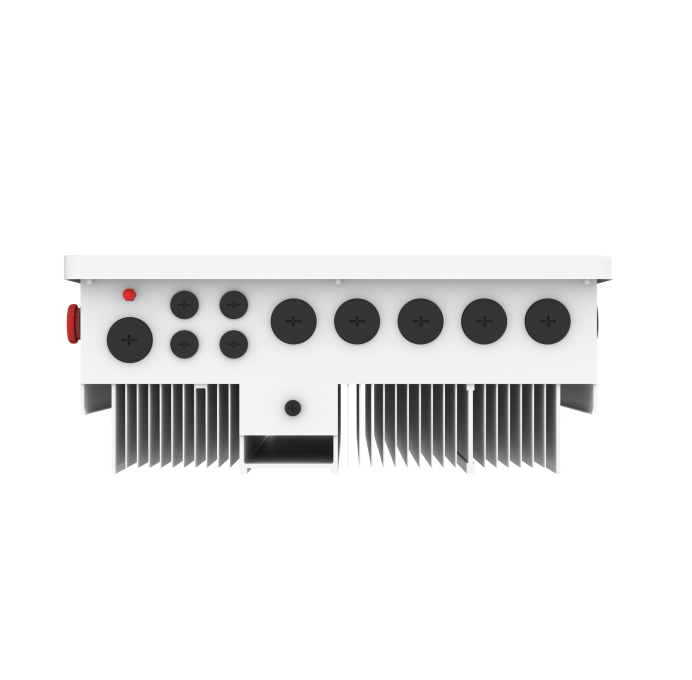

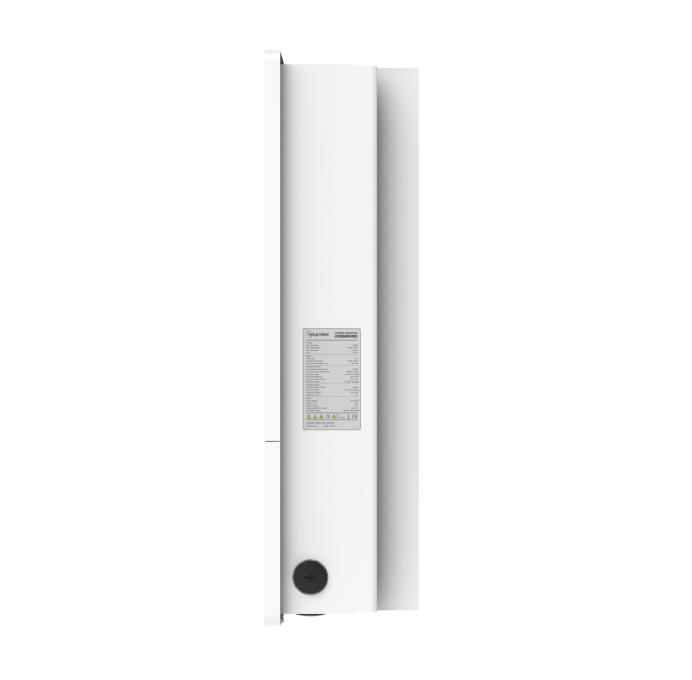

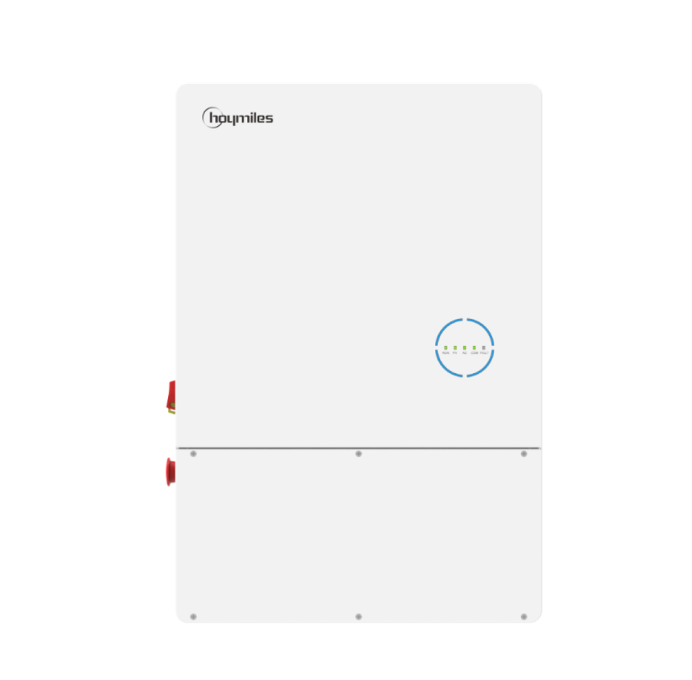

HYS-(3.8-11.5)LV-USG1 Series

The HYS-LV-US Series is a high-performance single-phase hybrid inverter with excellent reliability, including power classes ranging from 3.8 kW to 11.5 kW.The intelligent EMS function supports self-consumption mode, economic mode, and backup mode for multi-scenario applications.

Monitoring management through S-Miles Cloud allows users to remotely diagnose and track individual systems’ performance over time, maximizing the total solar power production and battery utilization.


Contact Us
Download Spec Sheet
1/4
  • Features
  • Tech Specs

Features

    • Max. Efficiency 97.6%, CEC Efficiency 97.0%.

    • Double MPPT tracker, up to 32A MPPT current.

    • DC/AC ratio up to 150%.

    • Ultralight for easy installation and space-saving.

    • Support 120/240V backup power without external autotransformer.

    • Seamless backup power for whole home or critical loads.

    • Built-in dry contact flexibly set to earth fault alarm, load control or generator contro.

    • Integrated arc fault protection and rapid shutdown function.

Tech Specs

  • 3.8kW
  • 4.8kW
  • 6.0kW
  • 7.6kW
  • 9.6kW
  • 11.5kW
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      75/75
    • MPPT voltage range (V): :
      125-500
    • Max. input current (A): :
      16/16
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      3840
    • （Off-grid）Max. output apparent power (VA):
      7680, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      90/90
    • MPPT voltage range (V): :
      125-500
    • Max. input current (A): :
      16/16
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      4800
    • （Off-grid）Max. output apparent power (VA):
      9600, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      100/100
    • MPPT voltage range (V): :
      125-500
    • Max. input current (A): :
      16/16
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      4600
    • （Off-grid）Max. output apparent power (VA):
      9600, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      100/100
    • MPPT voltage range (V): :
      125-500
    • Max. input current (A): :
      32/32
    • MPPT number/Max. input strings number：:
      2/4
    • （On-grid）Max. output apparent power (VA):
      7680
    • （Off-grid）Max. output apparent power (VA):
      15360, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      100/100
    • MPPT voltage range (V): :
      125-500
    • Max. input current (A): :
      32/32
    • MPPT number/Max. input strings number：:
      2/4
    • （On-grid）Max. output apparent power (VA):
      9600
    • （Off-grid）Max. output apparent power (VA):
      19200, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      100/100
    • MPPT voltage range (V): :
      125-500
    • Max. input current (A): :
      32/32
    • MPPT number/Max. input strings number：:
      2/4
    • （On-grid）Max. output apparent power (VA):
      11520
    • （Off-grid）Max. output apparent power (VA):
      19200, 10s
