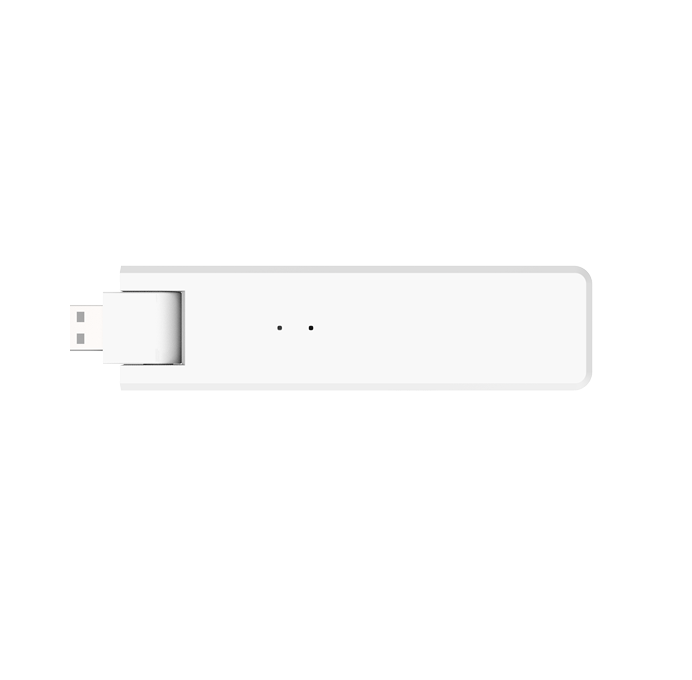

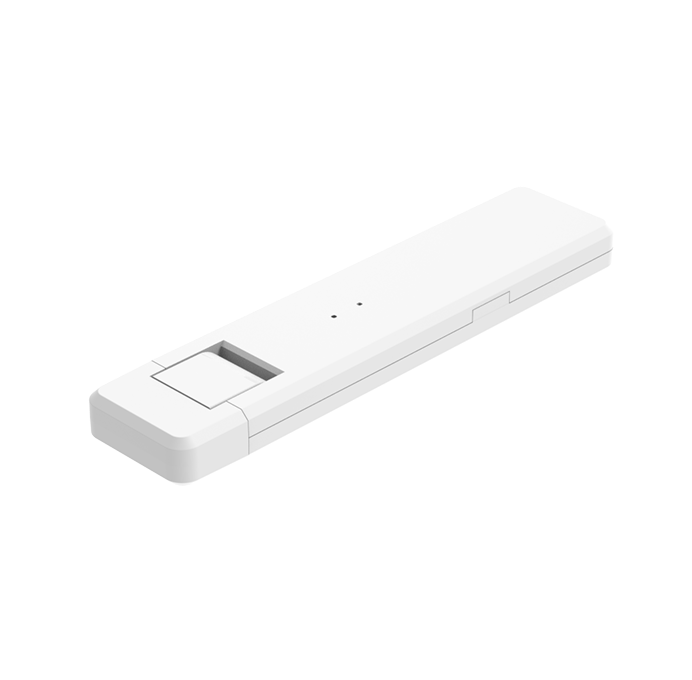

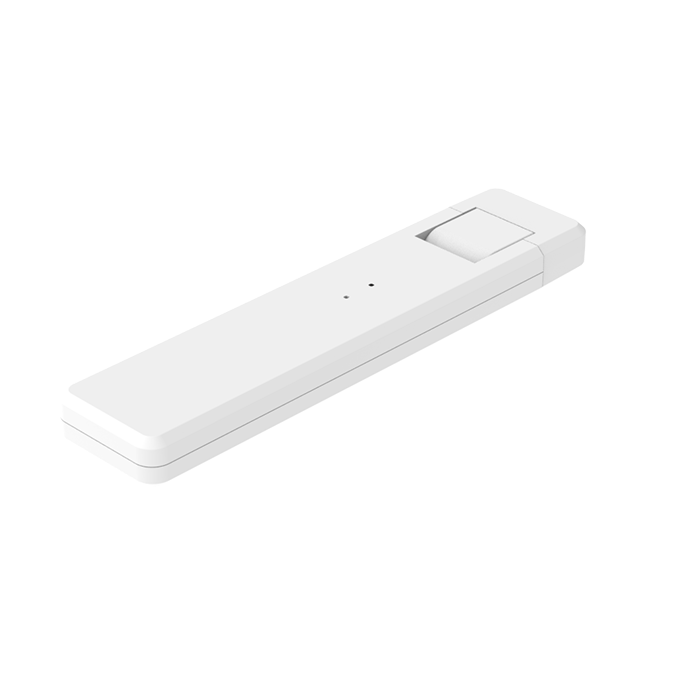

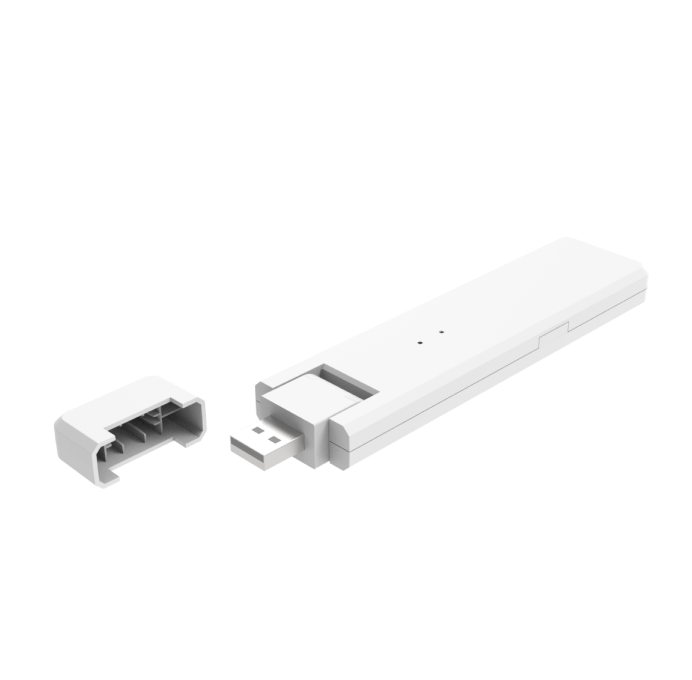

Hoymiles DTU-Lite-S

Hoymiles gateway DTU-Lite-S is a data transfer unit that collects information and data of PV microinverters via Sub-1G wireless solution and sends them to S-Miles Cloud, Hoymiles Monitoring Platform, using Wi-Fi communication.

With a small size and easy installation, DTU-Lite-S is suitable for residential PV systems. Users can easily read module-level data and alarms, and realize remote operation and maintenance of the microinverter system at any time and any place on S-Miles Cloud.

The versatility of the Hoymiles DTU-Lite-S extends beyond mere data aggregation, empowering users with the freedom to remotely manage their microinverter systems from anywhere in the world.

1/4
  • Features
  • Tech Specs

Features

Tech Specs

  • DTU-Lite-S
    • Signal (to Cloud):
      802.11b/g/n
    • Signal(to Microinverter):
      Sub-1G
    • Maximum distance (open space):
      400 m
    • Monitoring data limit from solar panels:
      99
    • Installation method:
      Direct plugin
    • Microinverter mode:
      HMS series, HMT series
