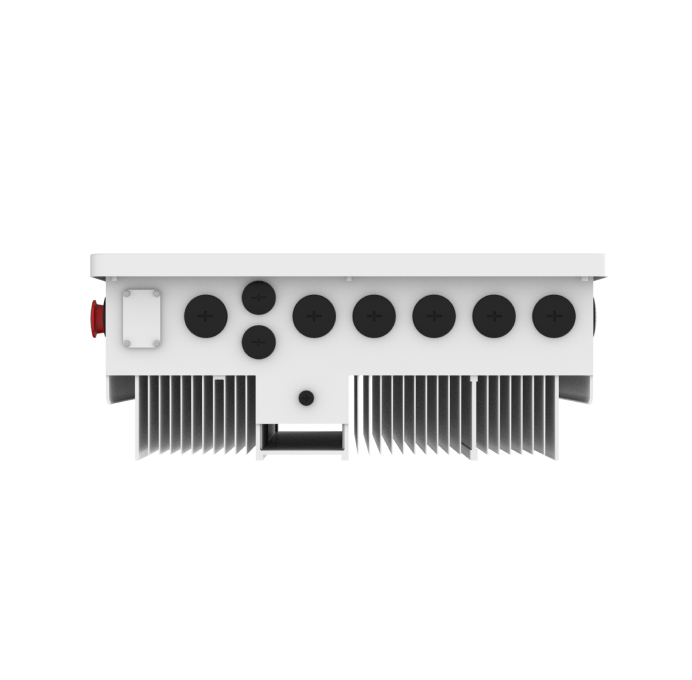

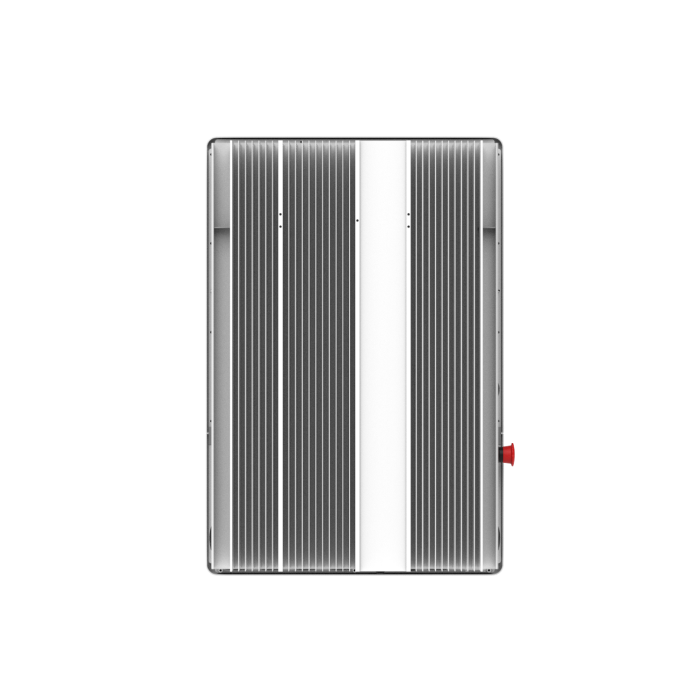

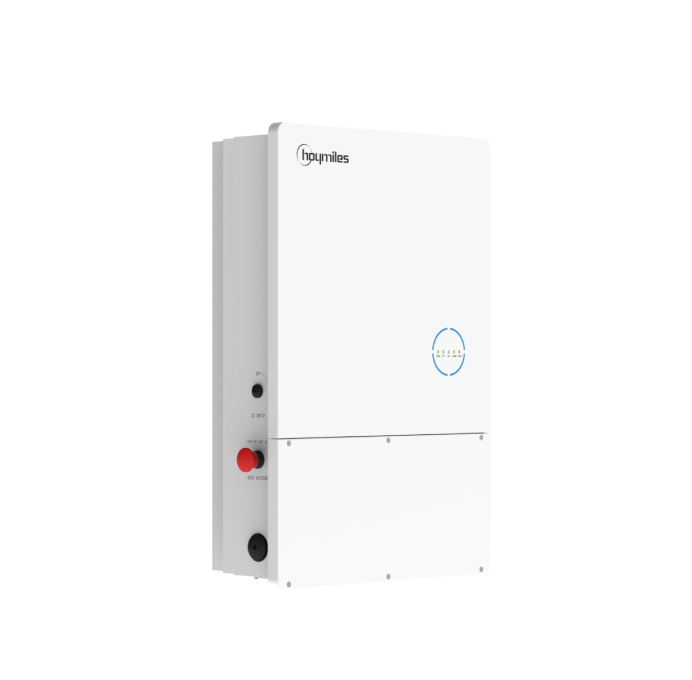

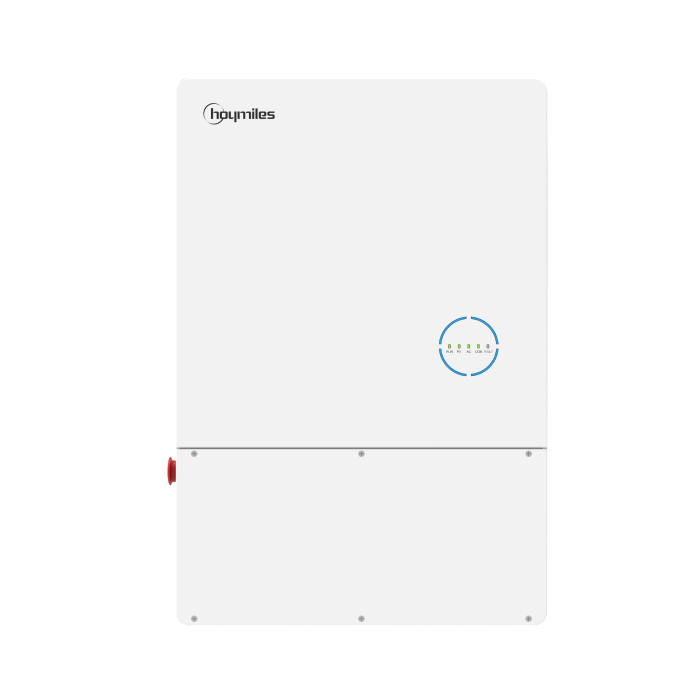

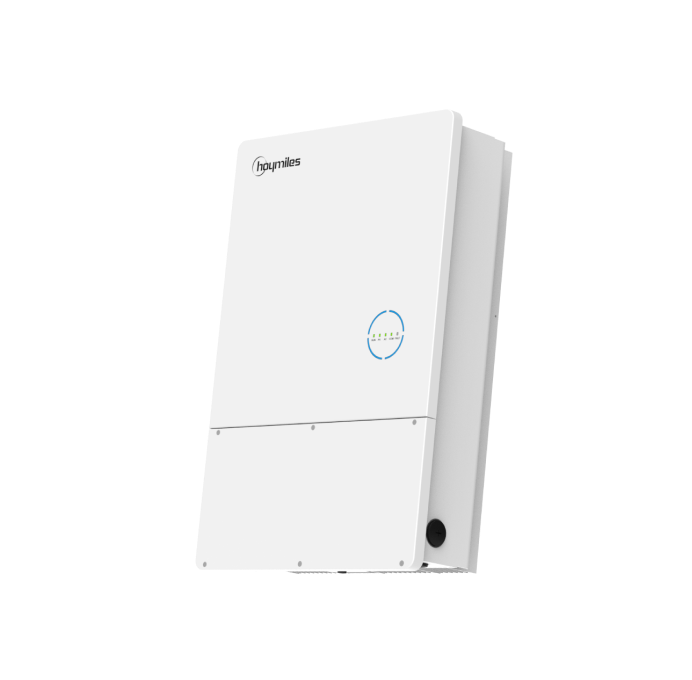

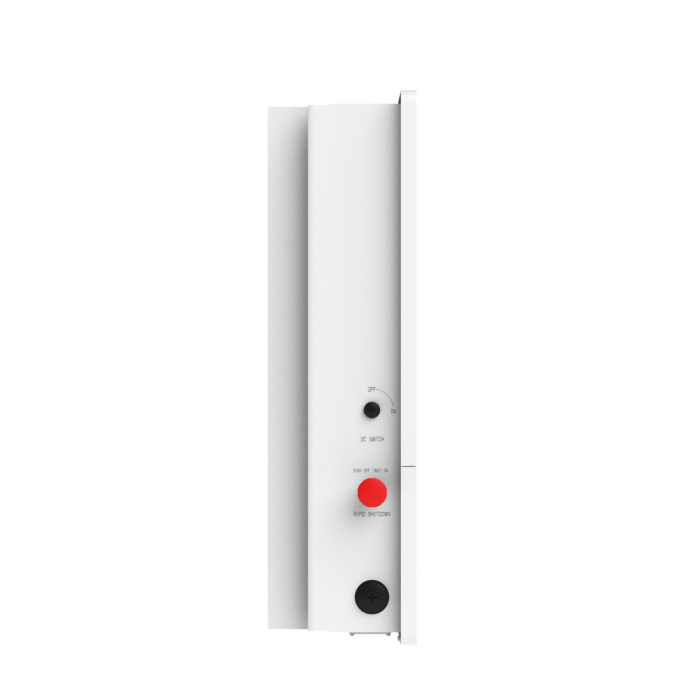

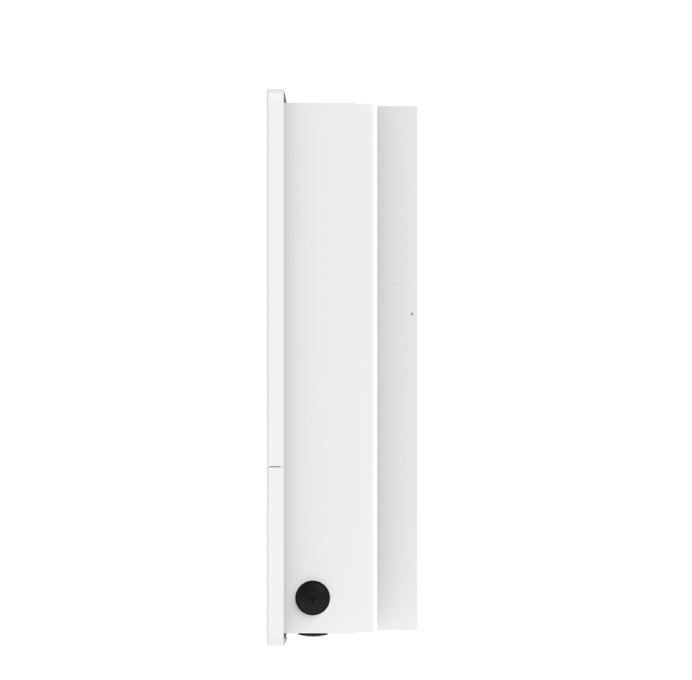

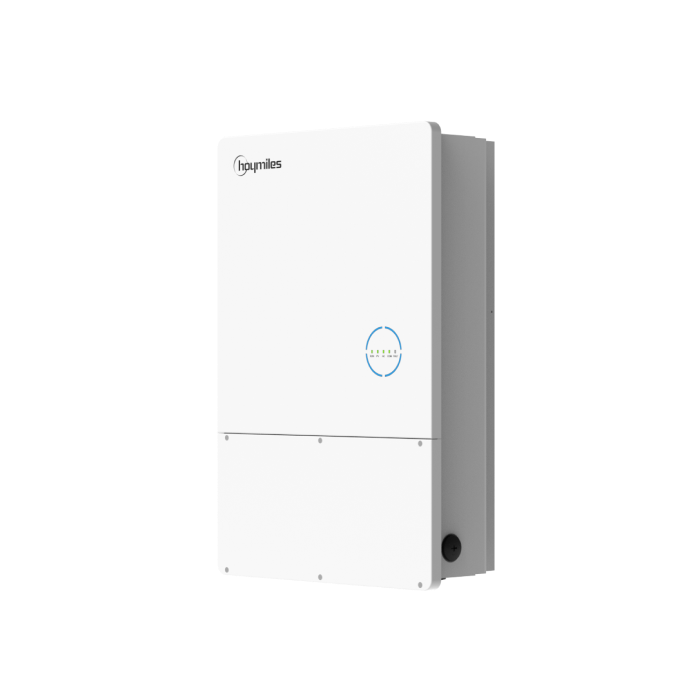

HAS-(3.8-11.5)LV-USG1 Series
The HAS-LV-USG1 Series is for retrofit application, including power classes ranging from 3.8 kW to 11.5 kW. It can be installed with existing PV inverters, forming an AC-coupled system.
The intelligent EMS function supports self-consumption mode, economical mode, and backup mode for multi-scenario applications.
Monitoring management through S-Miles Cloud allows users to remotely diagnose and track individual system’s performance over time, maximizing the total battery utilization.
-
Features
-
Tech Specs
Features
-
-
Max. battery discharge to AC efficiency 95.0%.
-
Compatible with various 48 V low voltage batteries.
-
Ultralight for easy installation and space-saving.
-
Split-phase backup output w/o bulky autotransformer.
-
Seamless backup power for whole home or critical loads.
-
Smart energy storage system operating modes.
-
-
-
Built-in dry contact flexibly set to earth fault alarm, load control, or generator control.
-
Remote monitoring through S-Miles Cloud.
-
Tech Specs
-
3.8kW
-
4.8kW
-
6.0kW
-
7.6kW
-
9.6kW
-
11.5kW
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):80/80
-
（On-grid）Max. output apparent power (VA):3840
-
（On-grid）Rated AC output voltage/Range (V):240, 211-264
-
（Off-grid）Max. output apparent power (VA):7680, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):100/100
-
（On-grid）Max. output apparent power (VA):4800
-
（On-grid）Rated AC output voltage/Range (V):240, 211-264
-
（Off-grid）Max. output apparent power (VA):9600, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):100/100
-
（On-grid）Max. output apparent power (VA):4600
-
（On-grid）Rated AC output voltage/Range (V):240, 211-264
-
（Off-grid）Max. output apparent power (VA):9600, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):160/160
-
（On-grid）Max. output apparent power (VA):7680
-
（On-grid）Rated AC output voltage/Range (V):240, 211-264
-
（Off-grid）Max. output apparent power (VA):15360, 10s
-
Max. battery discharge to AC efficiency:95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):200/200
-
MPPT voltage range (V): :9600
-
Max. input current (A): :240, 211-264
-
MPPT number/Max. input strings number：:19200, 10s
-
（On-grid）Max. output apparent power (VA):95.0%
-
-
-
Battery voltage range (V):40-60
-
Max. charge/discharge current (A):200/2
-
MPPT voltage range (V): :11520
-
Max. input current (A): :240, 211-264
-
MPPT number/Max. input strings number：:19200, 10s
-
（On-grid）Max. output apparent power (VA):95.0%
-
