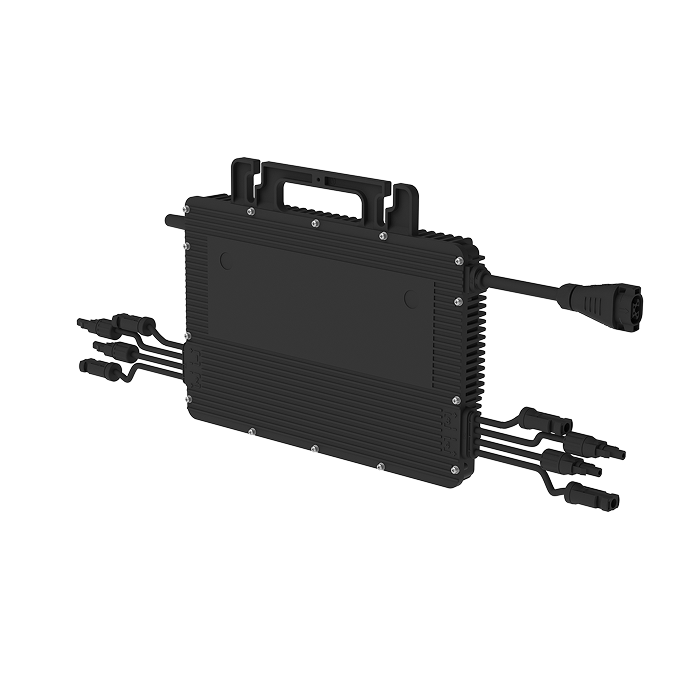

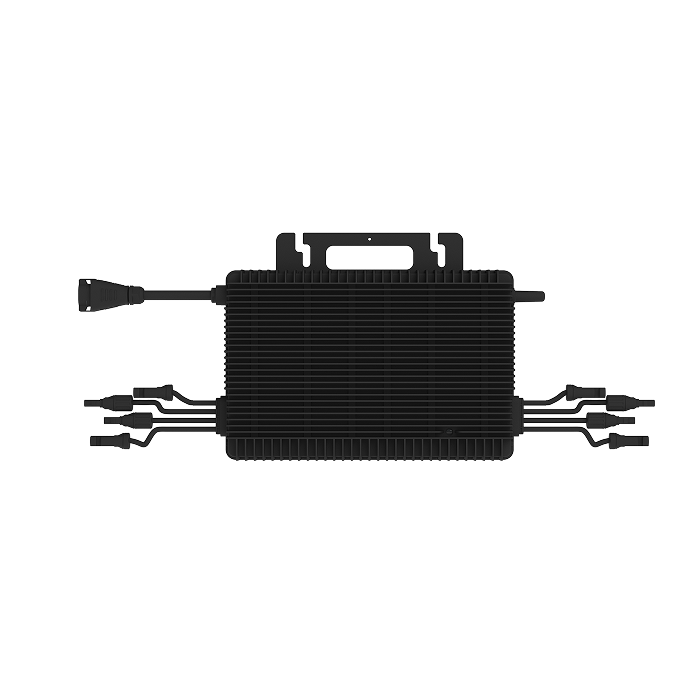

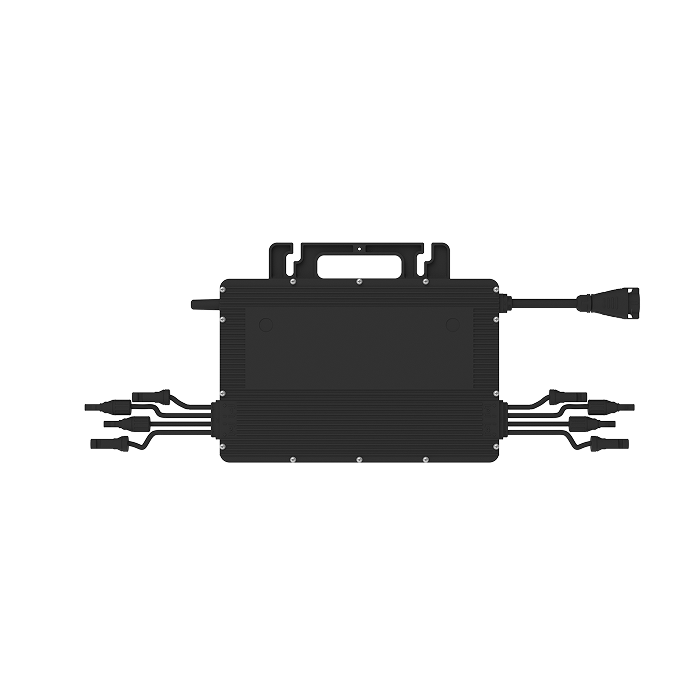

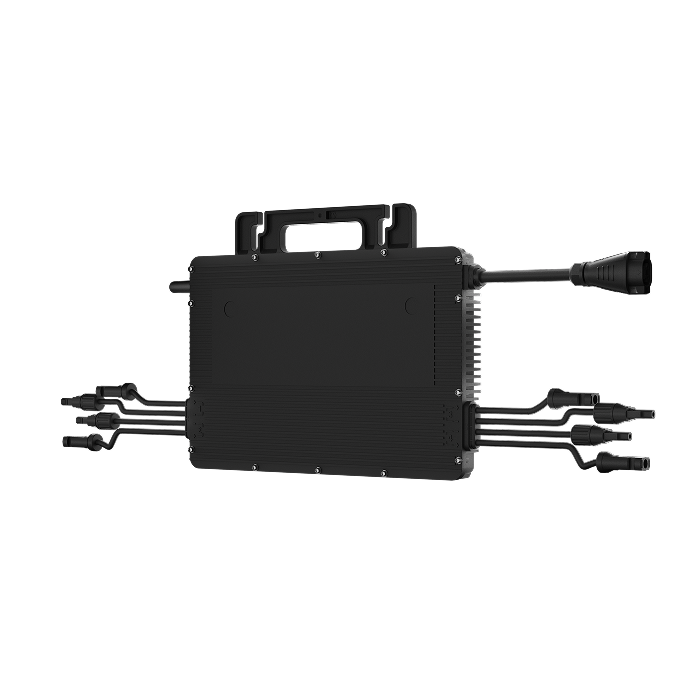

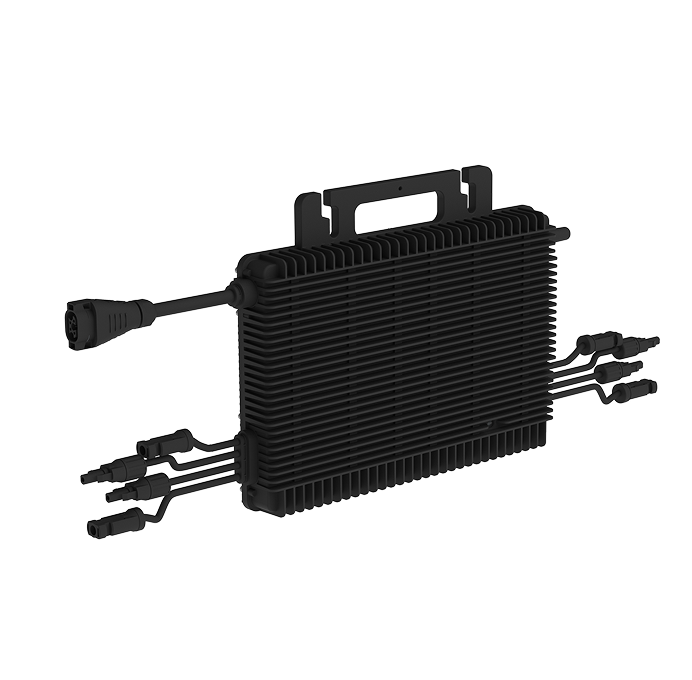

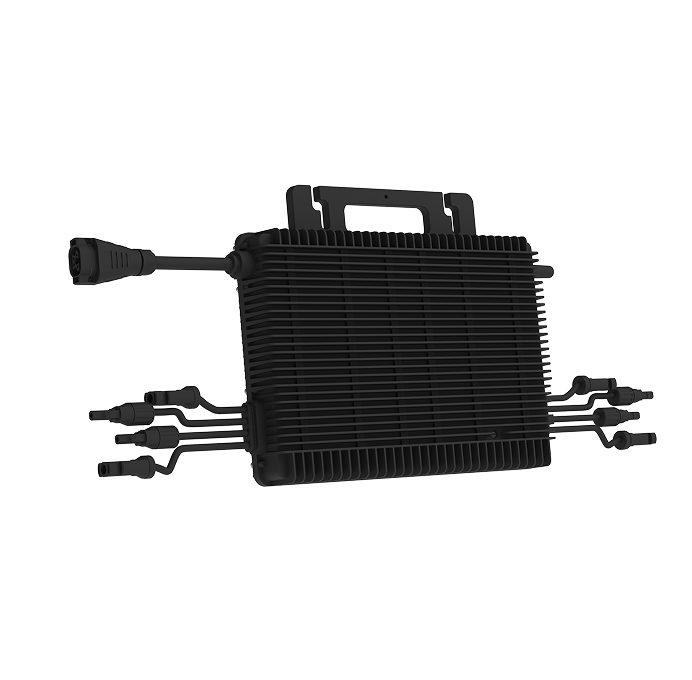

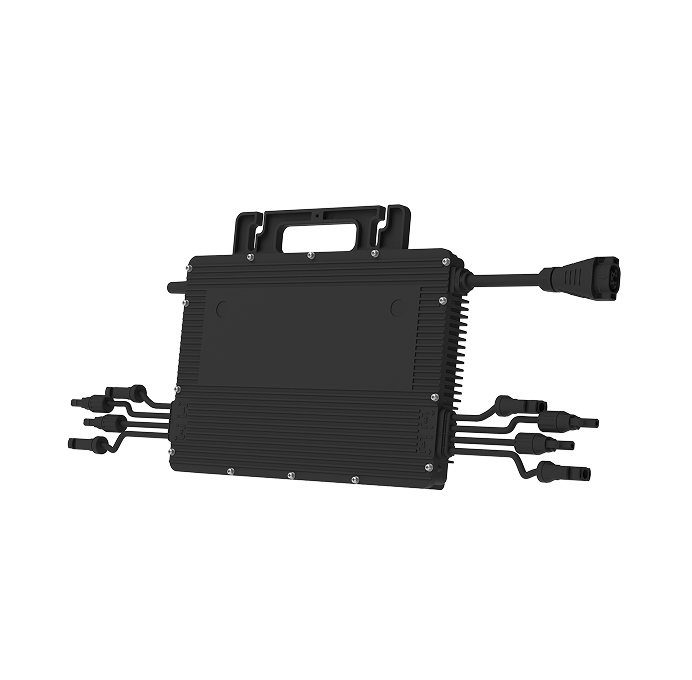

HMS-1600D/1800D/2000D-4T
Hoymiles 4-in-1 microinverter HMS-2000D-4T features 4 input channels, significantly lowering installation costs.
All of these models listed are connected to an intelligent monitoring system to track individual modules’ performance over time and offer superior energy production.
The new Sub-1G wireless solution enables more stable communication under various environmental conditions.
-
Features
-
Tech Specs
Features
-
-
High-powered microinverter with output power up to 2000 VA.
-
99.8% MPPT efficiency and module-level monitoring ensure greater energy harvest and easier maintenance.
-
Comply with UL 1741, IEC 61727, IEC 62116, IEC 61683, ect.
-
4-in-1 design maximizes efficiency and reduces costs.
-
4-in-1 design maximizes efficiency and reduces costs.
-
IP67 (NEMA 6) protection degree, adapt to outdoor use.
-
Tech Specs
-
1600W
-
1800W
-
2000W
-
1600W
-
-
Commonly used module power (W):320 to 540+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 14
-
Number of MPPTs:2
-
Rated output power (VA):1600
-
Nominal output voltage/range (V)* :220/180-275; 230/180-275; 240/180-275
-
CEC peak efficiency:96.70%
-
-
-
Commonly used module power (W):360 to 600+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 15
-
Number of MPPTs:2
-
Rated output power (VA):1800
-
Nominal output voltage/range (V)* :220/180-25; 230/180-275; 240/180-275
-
CEC peak efficiency:96.50%
-
-
-
Commonly used module power (W):400 to 670+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 16
-
Number of MPPTs:2
-
Rated output power (VA):2000
-
Nominal output voltage/range (V)* :220/180-275; 230/180-275; 240/180-275
-
CEC peak efficiency:96.50%
-
-
-
Commonly used module power (W):320 to 540+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 14
-
Number of MPPTs:2
-
Rated output power (VA):1600
-
Nominal output voltage/range (V)* :220/180-275; 230/180-275; 240/180-275
-
CEC peak efficiency:96.70%
-
