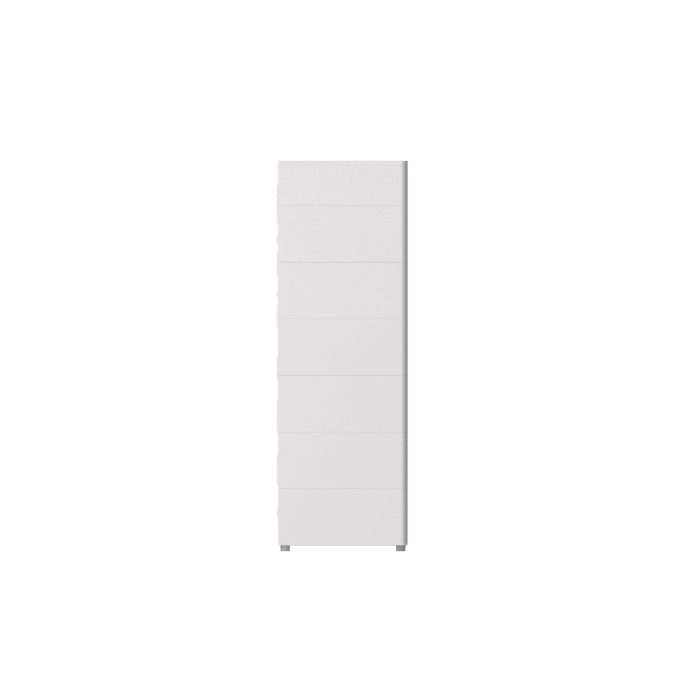

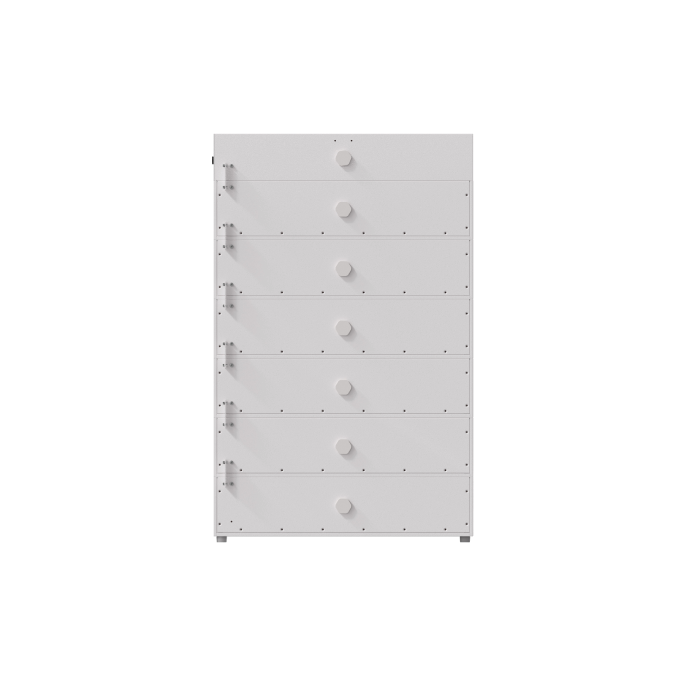

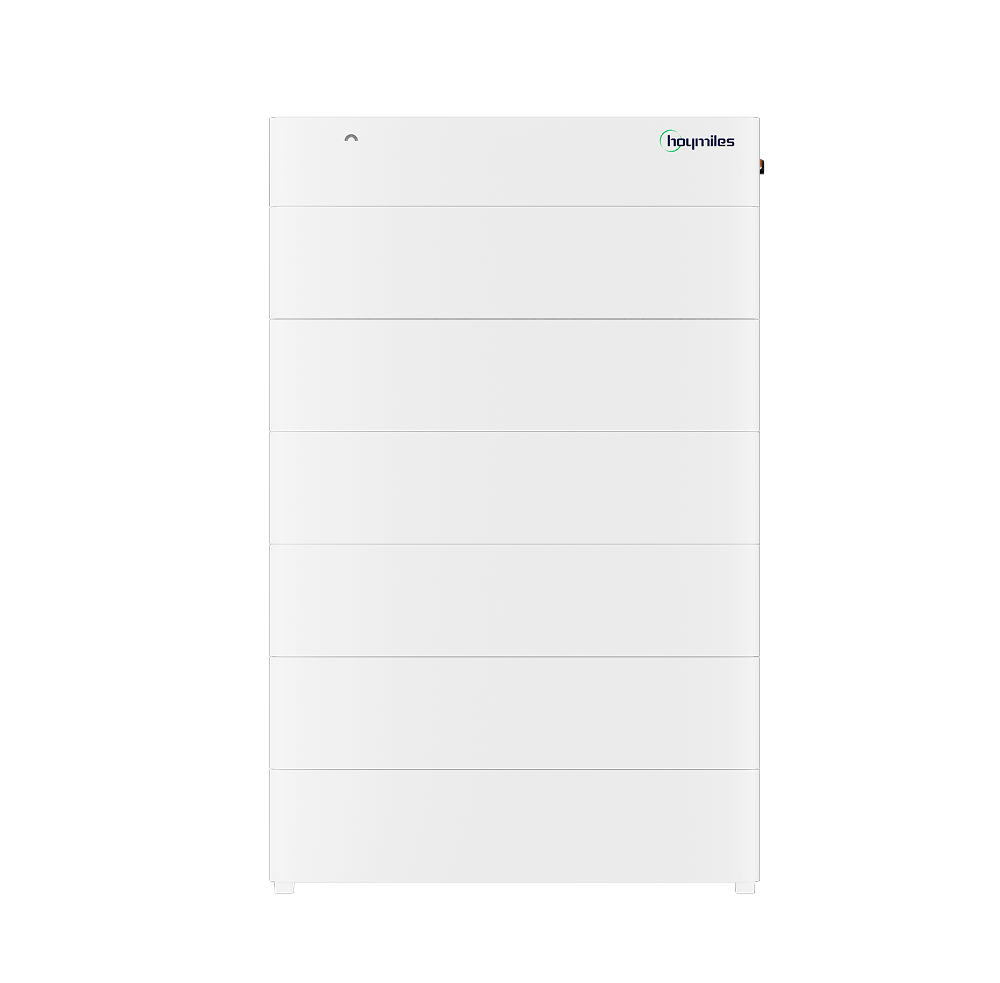

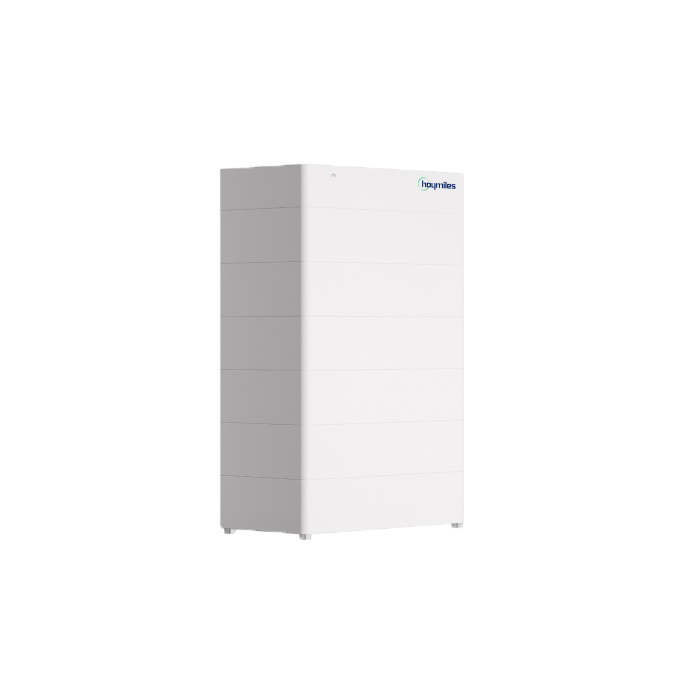

HB-10S/15S/19S/23S-G2
The HB-(10-23)S-G2 series is a type of deep cycle and high capacity LFP battery with improved safety, long lifespan, and optimized user experience.
It is designed with an IP65 rating for more flexible and easier installation.
It has superior performance with a capacity ranging from 11.52 kWh to 23.04 kWh for a single tower, which can meet residential electricity demand.
1/4
-
Features
-
Tech Specs
Features
-
-
LFP with improved safety design.
-
Suitable for indoor/outdoor installation with IP65 design.
-
Quick connector design saves installation time.
-
Stackable design without wiring.
-
Flexible capacity options from 11.52 kWh to 23.04 kWh.
-
Module level fire protection.
-
Tech Specs
-
23S
-
19S
-
15S
-
10S
-
-
Battery type:LiFePO4
-
Rated capacity (Ah):50
-
Number of modules:6
-
Total energy (kWh):23.04
-
Voltage range (V):403.2-518.4
-
Max. charge/discharge power (kW):11.52
-
Peak charge/discharge power (kW):23.04 (5s)
-
-
-
Battery type:LiFePO4
-
Rated capacity (Ah):50
-
Number of modules:5
-
Total energy (kWh):19.2
-
Voltage range (V):336-432
-
Max. charge/discharge power (kW):9.6
-
Peak charge/discharge power (kW):19.2 (5s)
-
-
-
Battery type:LiFePO4
-
Rated capacity (Ah):50
-
Number of modules:4
-
Total energy (kWh):15.36
-
Voltage range (V):268.8-345.6
-
Max. charge/discharge power (kW):7.68
-
Peak charge/discharge power (kW):15.36 (5s)
-
-
-
Battery type:LiFePO4
-
Rated capacity (Ah):50
-
Number of modules:3
-
Total energy (kWh):11.52
-
Voltage range (V):201.6-259.2
-
Max. charge/discharge power (kW):5.76
-
Peak charge/discharge power (kW):11.52 (5s)
-
