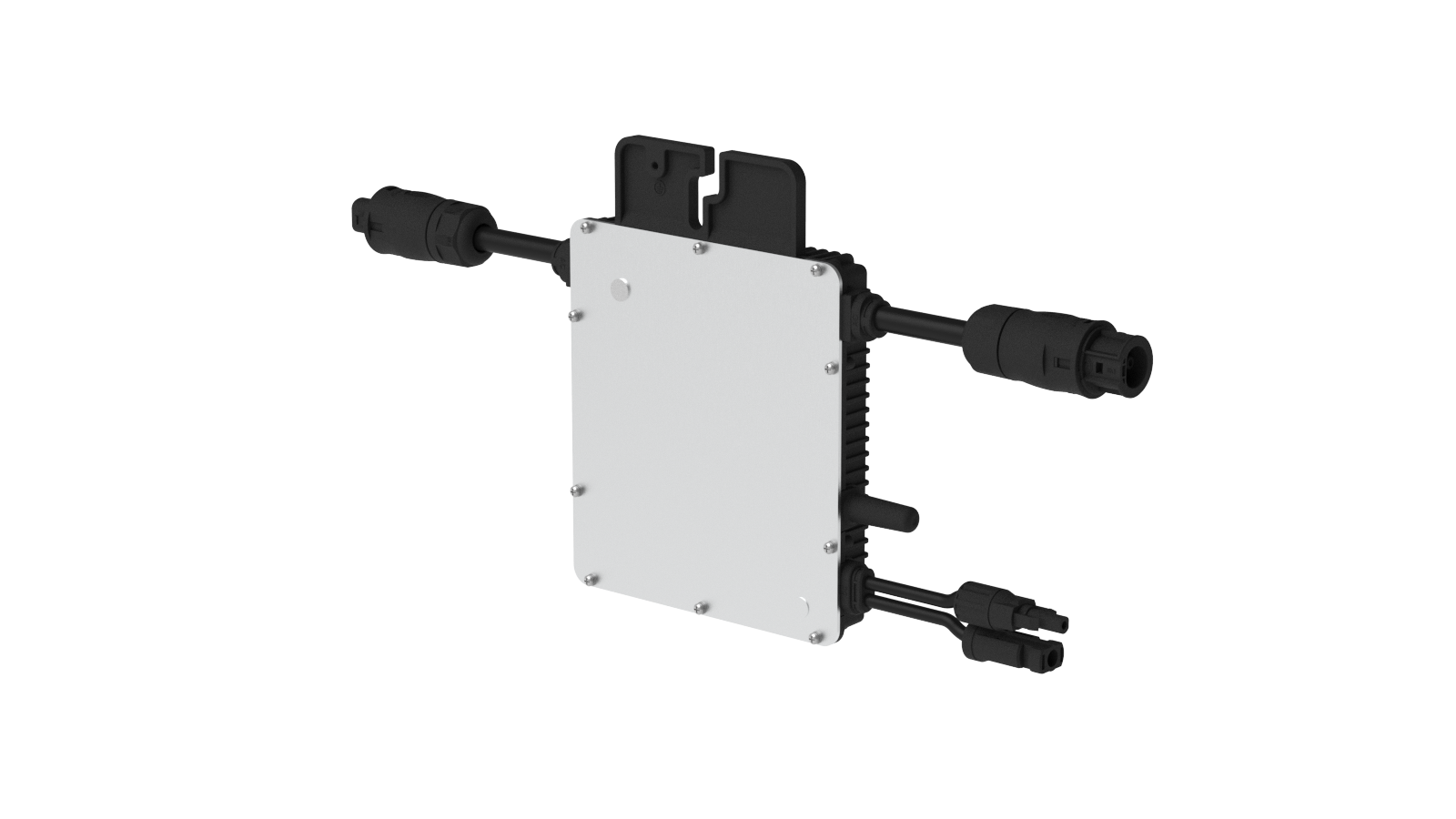

Hoymiles 1-in-1 microinverter is one of the most flexible solar solutions, which can be connected to one PV module and used in various settings.
All of these three models are equipped with reactive power control and can meet the requirements of EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc. They’re also designed with external antenna for stronger communication with Hoymiles gateway DTU.
Hoymiles 1-in-1 microinverter is one of the most flexible solar solutions, which can be connected to one PV module and used in various settings.
All of these three models are equipped with reactive power control and can meet the requirements of EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc. They’re also designed with external antenna for stronger communication with Hoymiles gateway DTU.Both models listed are equipped with reactive power control and are compliant with IEEE 1547, UL 1741 and CA Rule21.
Dimensions: 182 × 164 × 29.5mm | Max. input voltage: 60V |
Rated output power: 300VA | Number of modules connected: 1 |
Commonly used module power: 240W to 405W+ | MPPT voltage range: 16V–60V |
Max. input current: 11.5A | Number of MPPTs: 1 |
Dimensions: 182 × 164 × 29.5mm | Max. input voltage: 60V |
Rated output power: 350VA | Number of modules connected: 1 |
Commonly used module power: 280W to 470W+ | MPPT voltage range: 16V–60V |
Max. input current: 11.5A | Number of MPPTs: 1 |
Dimensions: 182 × 164 × 29.5mm | Max. input voltage: 60V |
Rated output power: 400VA | Number of modules connected: 1 |
Commonly used module power: 320W to 540W+ | MPPT voltage range: 16V–60V |
Max. input current: 12.5A | Number of MPPTs: 1 |
● Easy installation, just plug and play
● With Reactive Power Control, compliant with VDE-AR-N 4105: 2018 & EN 50549-1: 2019
● External antenna for stronger communication with DTU
● High reliability, IP67 (NEMA 6) enclosure, 6000 V surge protection
● AC Connector – M
● AC Connector Cap – F
● AC Connector Cap – M
● AC End Cable-M/F
● AC Extension Cable
● DC Extension Cable
● 25 Years Extendable
● EN 50549-1: 2019
● VFR 2019
● IEC/EN 62109-1/-2
● IEC/EN 61000-6-1/-2/-3/-4
● IEC/EN 61000-3-2/-3
DTU-Pro, DTU-W100/G100, DTU-Wlite
