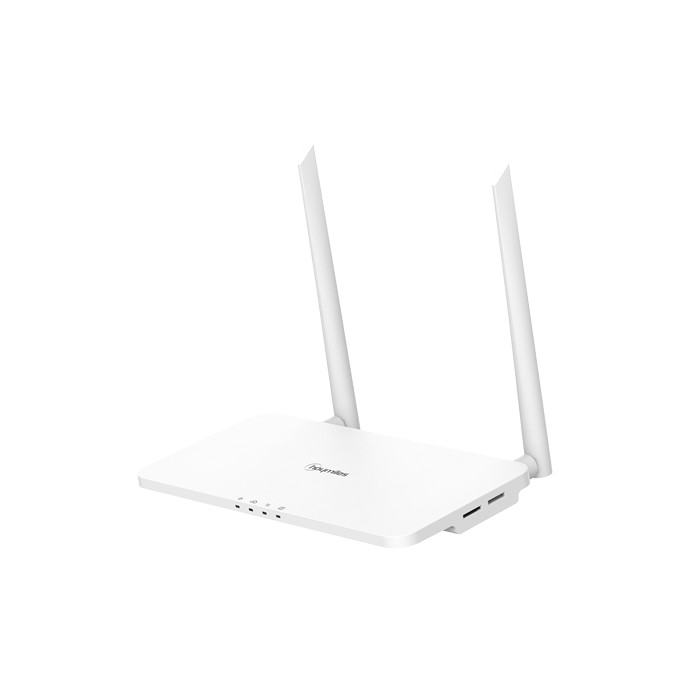

DTU-Pro-S 数据采集器

DTU-Pro-S 是禾迈针对光伏系统开发的数据采集器,使用 Sub-1G 无线解决方案收集微型逆变器的各项信息与数据,并通过以太网、Wi-Fi 或 4G 将数据发送至禾迈监控平台 S-Miles Cloud。

通过 DTU-Pro-S,您可在 S-Miles Cloud 上查看组件级数据和故障告警,随时随地对光伏系统进行远程操作和维护。

DTU-Pro-S 与 HMS、HMT、MiS、MiT 系列微型逆变器搭配使用。

1/4
  • 优势
  • 技术规格

优势

技术规格

  • WIFI
  • 4G
    • Signal:
      Sub-1G
    • Maximum distance (open space):
      400 m
    • Monitoring data limit from solar panels:
      99
    • Ethernet (Communication to S-Miles Cloud):
      RJ45 × 1, 100Mbps
    • Wireless (Communication to S-Miles Cloud):
      Wi-Fi:802.11b/g/n
    • 安装方式:
      Wall mounting
    • Microinverter mode:
      HMS series
    • Signal:
      Sub-1G
    • Maximum distance (open space):
      400 m
    • Monitoring data limit from solar panels:
      99
    • Ethernet (Communication to S-Miles Cloud):
      RJ45 × 1, 100Mbps
    • Wireless (Communication to S-Miles Cloud):
      4G:TDD-LTE, FDD-LTE 3G:SCDMA 2G:GSM/GPRS
    • 安装方式:
      Desktop mounting
    • Microinverter mode:
      HMT series
