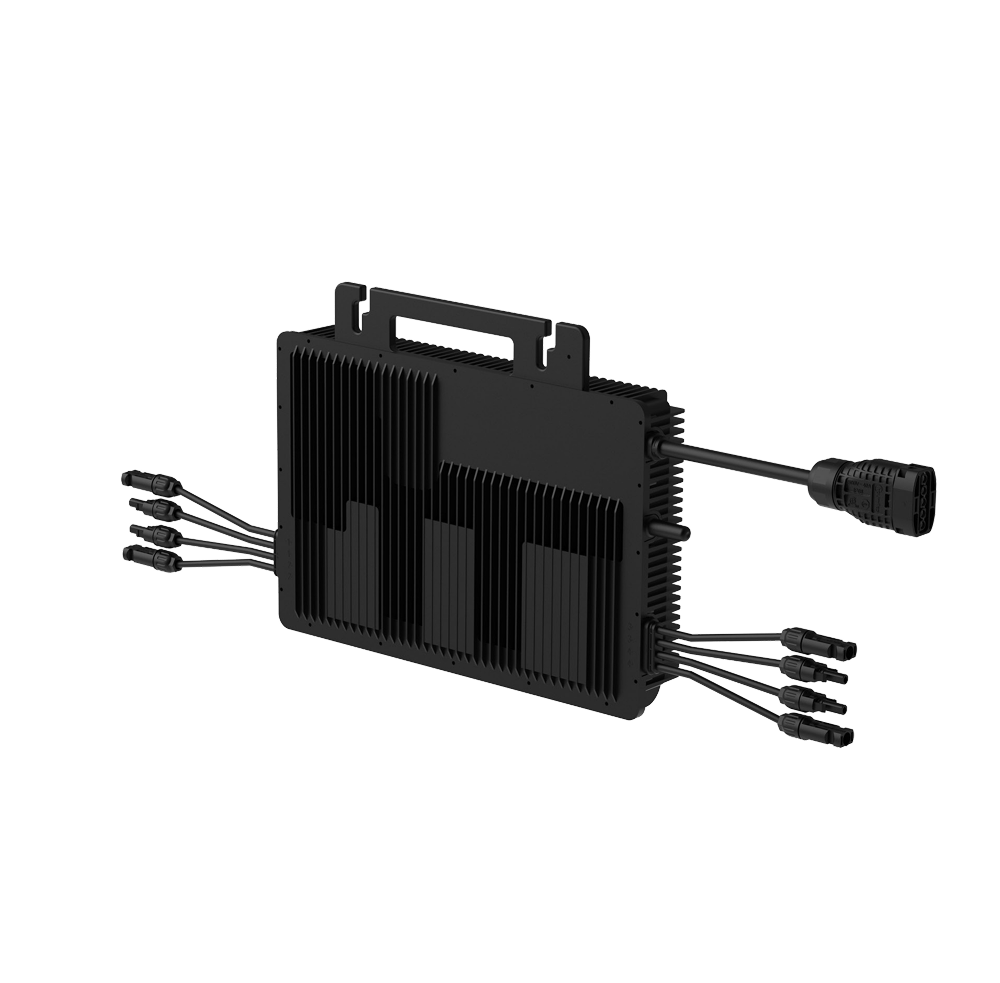

MIT-4000/4500/5000-8E

The MIT-5000-8E series represents Hoymiles' next-generation three-phase microinverters, delivering an impressive output power of up to 5000W and an input current rating of 20A, making them ideally compatible with high-power photovoltaic modules.

Featuring an innovative one-inverter-eight-module design, each unit can connect eight PV modules while incorporating dual MPPT trackers1. This configuration significantly reduces system costs and enhances power generation efficiency.

The series employs a 2.4G wireless communication solution that ensures stable connectivity with Hoymiles' intelligent monitoring platform, S-Miles Cloud. This enables module-level monitoring and remote operation and maintenance capabilities.

1/4

Features
Tech Specs

Features

- Three-Phase Output – better suited for commercial and industrial applications
- Output Power up to 5000W, Input Current up to 20A – ideal compatibility with 182 and 210 cell modules
- Four Independent MPPT Trackers – increases power generation from PV modules
- Low Input Voltage – significantly reduces arc-fault and electrical shock risks, enhancing rooftop plant safety
- 1-to-8 Design – works with Flex-T5 Cable system for time-saving installation, reduced costs and improved efficiency
- 2.4G Wireless Communication – ensures stable connectivity and simplifies operation and maintenance

Tech Specs

MIT-4000-8E
MIT-4500-8E
MIT-5000-8E

- Commonly used module power (W):

  400~650+
- Maximum input voltage (V):

  140
- Maximum input current (A):

  4 × 20
- Number of MPPTs:

  4
- Rated output power (VA):

  4000
- Nominal output voltage/range (V)* :

  230/400, 3L+N+PE
- CEC peak efficiency:

  97.40%
- Commonly used module power (W):

  560~700+
- Maximum input voltage (V):

  140
- Maximum input current (A):

  4 × 20
- Number of MPPTs:

  4
- Rated output power (VA):

  4500
- Nominal output voltage/range (V)* :

  230/400, 3L+N+PE
- CEC peak efficiency:

  97.40%
- Commonly used module power (W):

  600~750+
- Maximum input voltage (V):

  140
- Maximum input current (A):

  4 × 20
- Number of MPPTs:

  4
- Rated output power (VA):

  5000
- Nominal output voltage/range (V)* :

  230/400, 3L+N+PE
- CEC peak efficiency:

  97.40%
