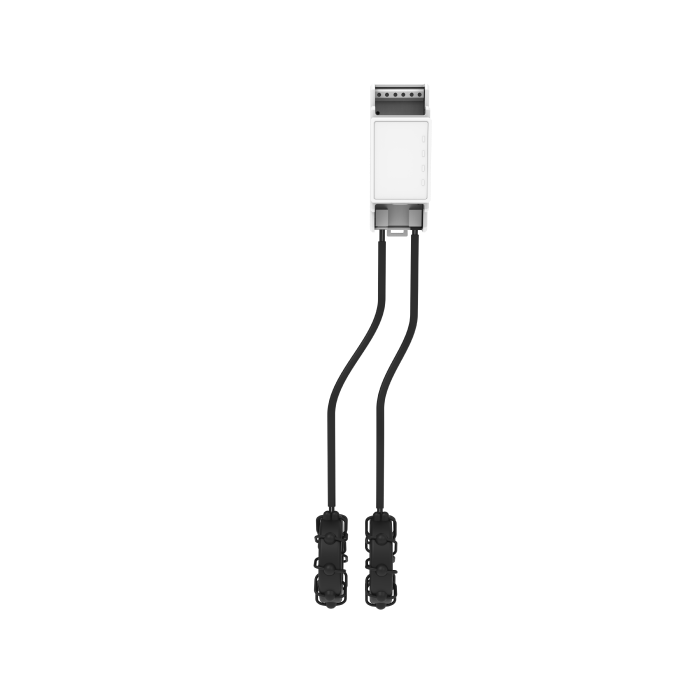

Hoymiles transmitter HT-G20
As part of Hoymiles Rapid Shutdown solution, Hoymiles Transmitter HT-G20 works with HRSD for module-level rapid shutdown.
When powered on, the HT-G20 uses PLC technology to continuously send a “permission to operate”signal to HRSD, enabling the PV system to start producing power.
In case of emergency, the PV system would enter module-level rapid shutdown mode by simply disconnecting the AC power of the Transmitter or using an external initiator.
1/4
-
Features
-
Tech Specs
Features
-
-
Module-level rapid shutdown with Hoymiles HRSD.
-
Achieves rapid shutdown through Transmitter power-off or external initiation.
-
Advanced crosstalk prevention solution.
-
Complied with NEC 2017&NEC 2020 690.12 requirements.
-
Equipped with single/dual Core.
-
Tech Specs
-
Hoymiles transmitter HT-G20
-
-
Transmitter input voltage:12 V DC (+/-2%)
-
Transmitter input current:0.06 A
-
Communication type:PLC
-
Max. cable length between inverter input (+) and input (-）:800 m (2624.67 ft.)
-
Mounting type:DIN35 rail
-
