Hoymiles transmitter HT-G20-Kit

As part of Hoymiles Rapid Shutdown solution, the HT-G20-Kit is designed to work with HRSD for rapid shutdown at the module level.

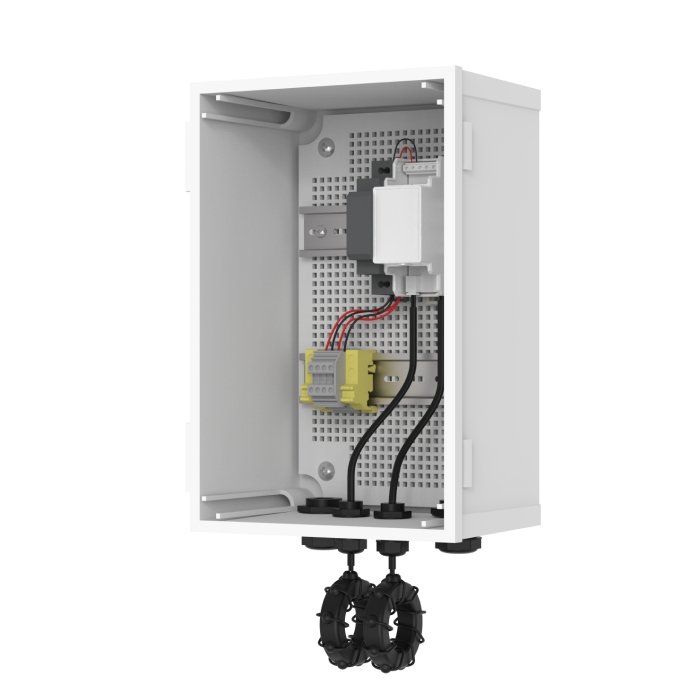

The kit comprises one HT-G20 (available in single or dual Core), one single-phase power supply, and an outdoor enclosure.

When powered on, the HT-G20 uses PLC technology to continuously send a “permission to operate” signal to HRSD, enabling the PV system to start producing power.

In case of emergency, the PV system would enter module-level rapid shutdown mode by simply disconnecting the AC power of the Transmitter or using an external initiator.

Download Spec Sheet

1/4

Features
Tech Specs

Features

- Module-level rapid shutdown with Hoymiles HRSD.
- Achieves rapid shutdown through Transmitter power-of or external initiation.
- Advanced crosstalk prevention solution.
- Weatherproof outdoor enclosure.
- Complied with NEC 2017&NEC 2020 690.12 requirements.
- Equipped with single-phase power supply.

Tech Specs

Hoymiles transmitter HT-G20-Kit

- Transmitter input voltage:

  12 V DC (+/-2%)
- Transmitter input current:

  1A
- Communication type:

  PLC
- Max. cable length between inverter input (+) and input (-）:

  800 m (2624.67 ft.)
- Mounting type:

  Wall-mounted
