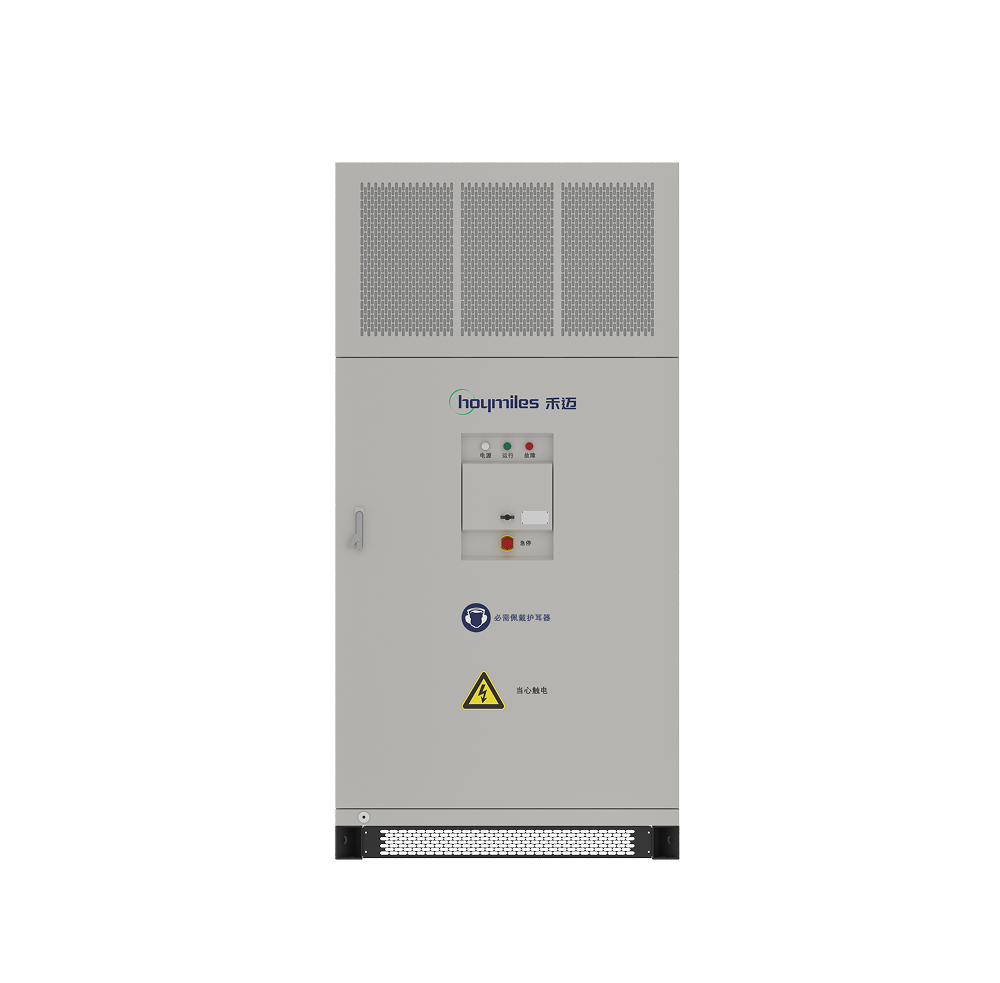

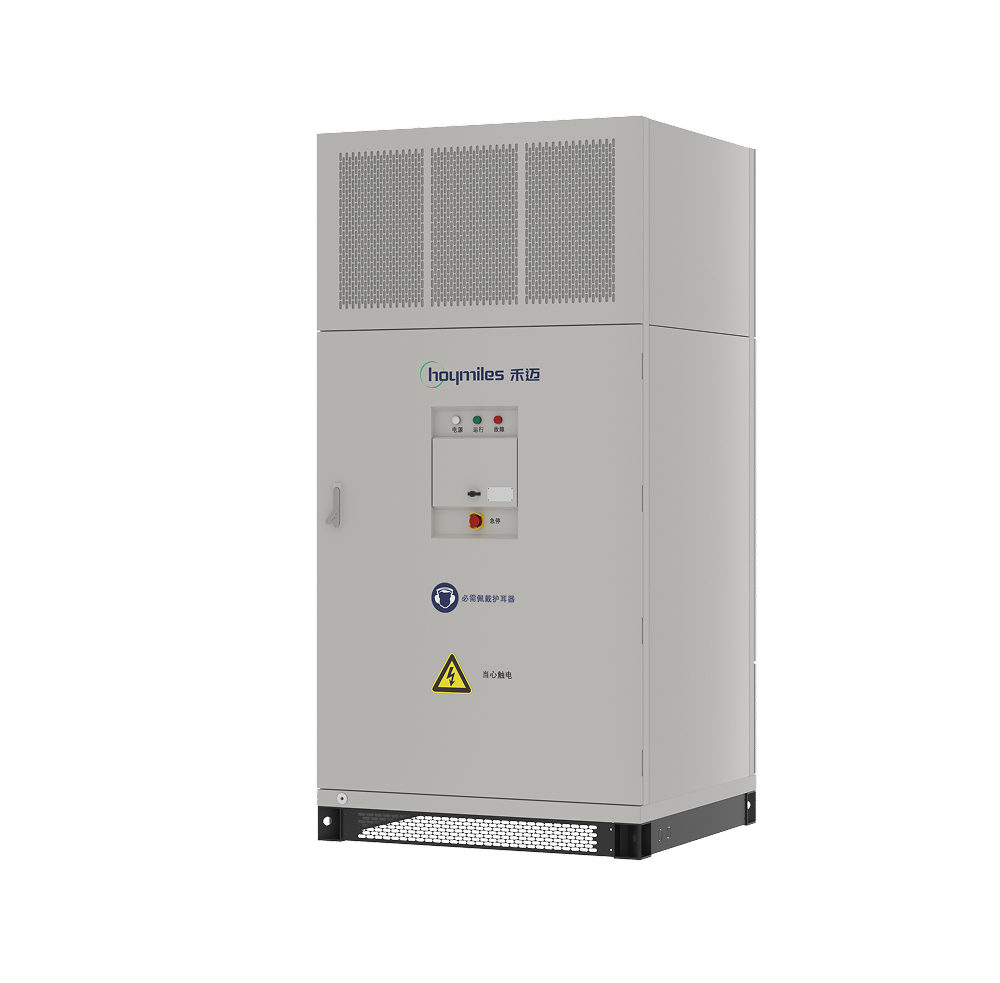

HPCS2500
HPCS2500, a newly launched high - power conversion system by Hoymiles along with the HPCS1250N-HPCS1725 products, provides customers with a more comprehensive energy storage system solution. This PCS is based on the ANPC topology, peak efficiency > 99%; The power density of HPCS2500 is the top in the industry, floor space <1.5m2; Intelligent liquid cooling; no derating up to 45 °C; Full power operation at DC 1500V; IP65 and C5 anti-corrosion, adapting to many complex and harsh scenarios.
1/4
-
Features
-
Tech Specs
Features
-
-
Compact construction, efficient conversion.
-
Multi-scene applications.
-
High compatibility, quick adjustment.
-
Comprehensive protection, safe and reliable.
-
Tech Specs
-
HPCS2500
-
-
DC voltage range:1000 to 1500V
-
Protection degree:IP65, C5
-
Rated output power @50℃ (AC side, on-grid):2500kVA
-
Grid type:3P3W
-
Cooling method:Intelligent liquid cooling
-
Operating temperature:-35 to +60℃
-
Altitude:≤5000m
-
Peak efficiency:>99%
-
