HIM2500&2750&3150&3450kVA

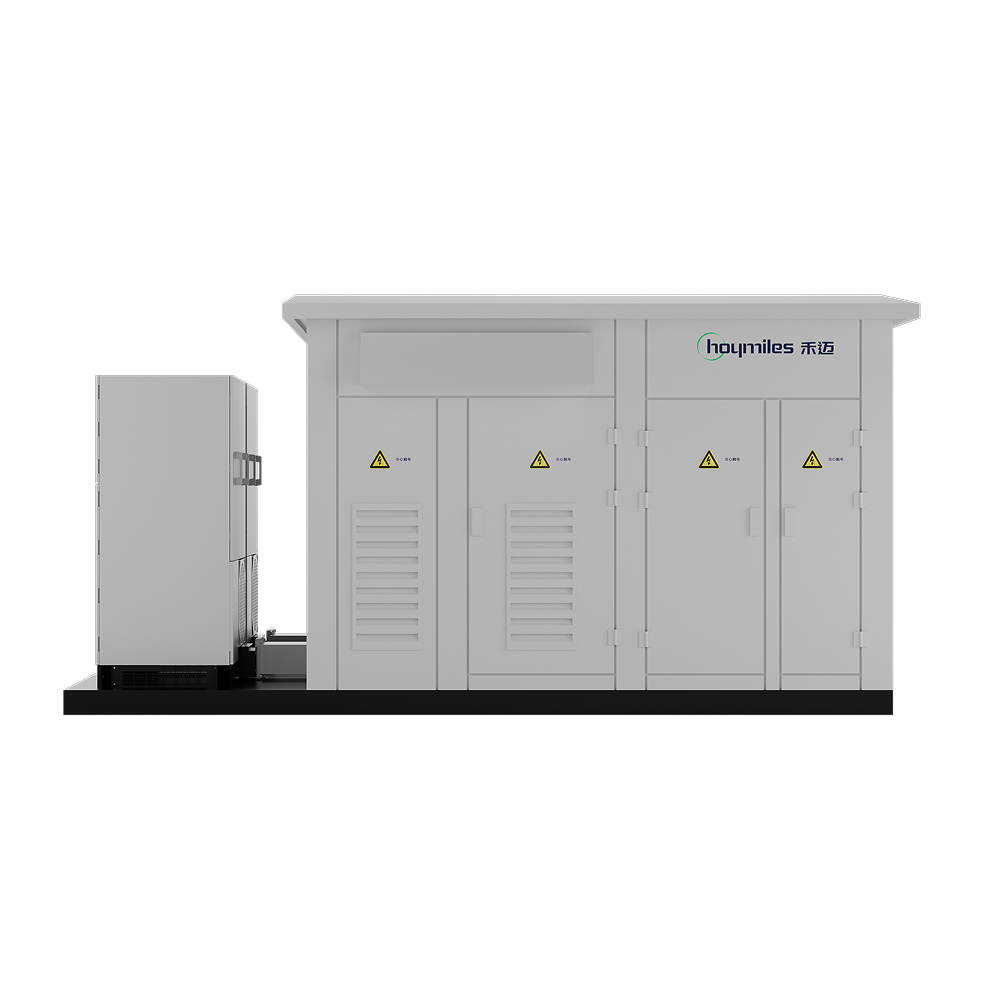

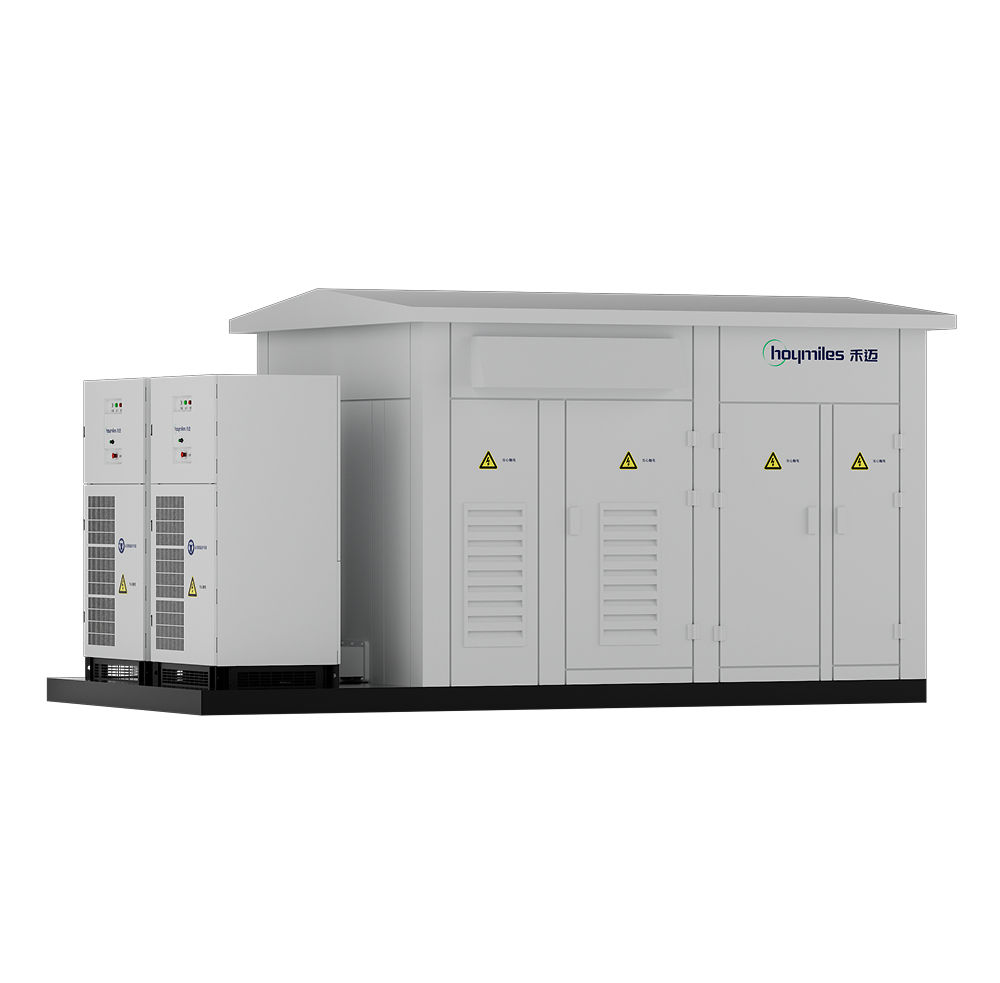

HIM2500&2750&3150&3450MV series PCS-MV station integrates PCS, transformers, BCP, BSP, FFS and SS system,these devices are unified through EMU or local controllers.Standardized communication interfaces and protocols; Supports AC 10kV or 35kV access to the grid; Easy transportation and installation due to integrated and skid-mounted design.
1/4
-
Features
-
Tech Specs
Features
-
-
Compact construction, efficient conversion.
-
Multi-scene applications.
-
Grid friendly, stable support.
-
Tech Specs
-
HIM2500&2750&3150&3450kVA
-
-
Rated output power @50℃ (AC side, on-grid):1000 to 1500V, 800 to 1500V, 915 to 1500V, 1000 to 1500V
-
IP rating:2500kVA, 2750kVA, 3150kVA, 3450kVA
-
Grid type:IP54 (PCS :IP65)
-
Cooling method:3P3W
-
Operating temperature:Intelligent liquid cooling
-
Altitude:-35 to +60℃ ( > 50℃, derating operation)
-
PCS peak efficiency:≤5000m ( > 3000m, derating operation)
-
:>99%
-
