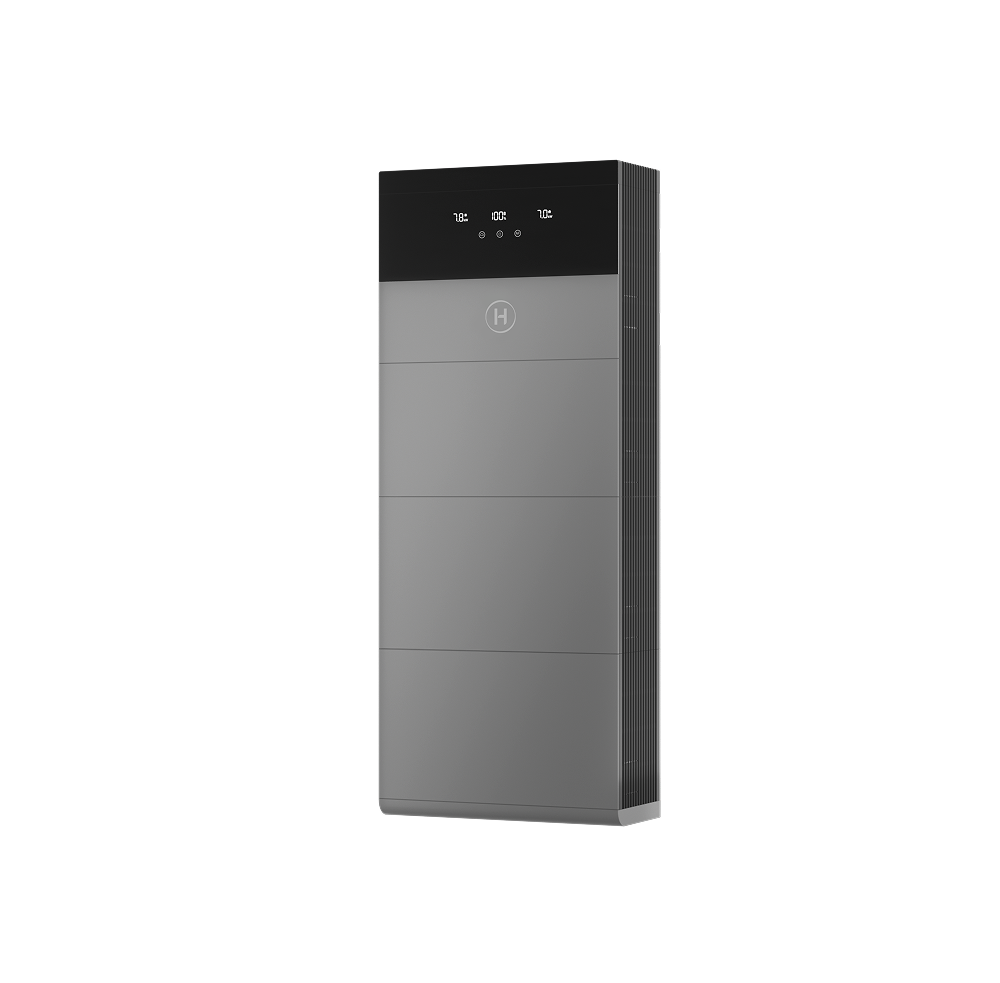

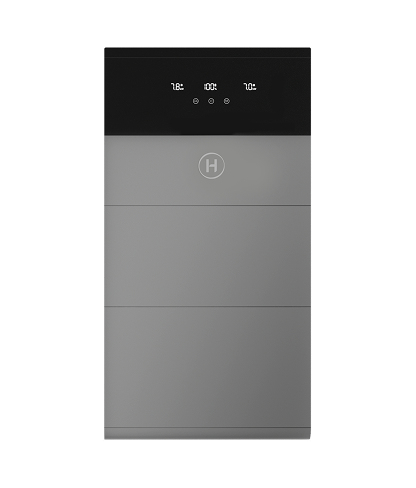

HiOne-(8-20)T-G3
Hoymiles launches a series of all-in-one energy storage inverters designed for residential and small C&I PV ESS systems. The hybrid inverter, battery, EMS are integrated into one unit to provide users with a comprehensive PV ESS solution.
It has multiple working modes, supports parallel operation, and can connect to a heat pump, generator, etc., making it available in different application scenarios. It is highly reliable and can help users efficiently and independently use energy.
-
Features
-
Tech Specs
Features
-
-
Supports three-phase unbalanced output, ensuring stable operation under complex load conditions
-
Up to 200% DC/AC oversizing to significantly boost power generation efficiency
-
Four independent 20 A MPPTs, perfectly compatible with high-power modules and multi-orientation rooftops
-
Rugged IP66 enclosure design ensures performance in harsh environments
-
Enables up to 150% off-grid peak output, allowing effortless startup of inductive loads
-
Built-in intelligent EMS automatically optimizes energy storage and consumption strategies
-
Tech Specs
-
HiOne-8T-G3
-
HiOne-10T-G3
-
HiOne-12T-G3
-
HiOne-16T-G3
-
HiOne-20T-G3
-
-
Recommended max. PV power (W):16000
-
Max. input current(A):20/20/20
-
MPPT number/Max. input strings number:3/3
-
Max. on-grid output apparent power (VA):8800
-
Max. off-grid output apparent power (VA):12000, 10s
-
Grid form:3L/N/PE
-
-
-
Recommended max. PV power (W):20000
-
Max. input current(A):20/20/20
-
MPPT number/Max. input strings number:3/3
-
Max. on-grid output apparent power (VA):11000
-
Max. off-grid output apparent power (VA):15000, 10s
-
Grid form:3L/N/PE
-
-
-
Recommended max. PV power (W):24000
-
Max. input current(A):20/20/20/20
-
MPPT number/Max. input strings number:4/4
-
Max. on-grid output apparent power (VA):13200
-
Max. off-grid output apparent power (VA):18000, 10s
-
Grid form:3L/N/PE
-
-
-
Recommended max. PV power (W):32000
-
Max. input current(A):20/20/20/20
-
MPPT number/Max. input strings number:4/4
-
Max. on-grid output apparent power (VA):17600
-
Max. off-grid output apparent power (VA):24000, 10s
-
Grid form:3L/N/PE
-
-
-
Recommended max. PV power (W):40000
-
Max. input current(A):20/20/20/20
-
MPPT number/Max. input strings number:4/4
-
Max. on-grid output apparent power (VA):22000
-
Max. off-grid output apparent power (VA):30000, 10s
-
Grid form:3L/N/PE
-
