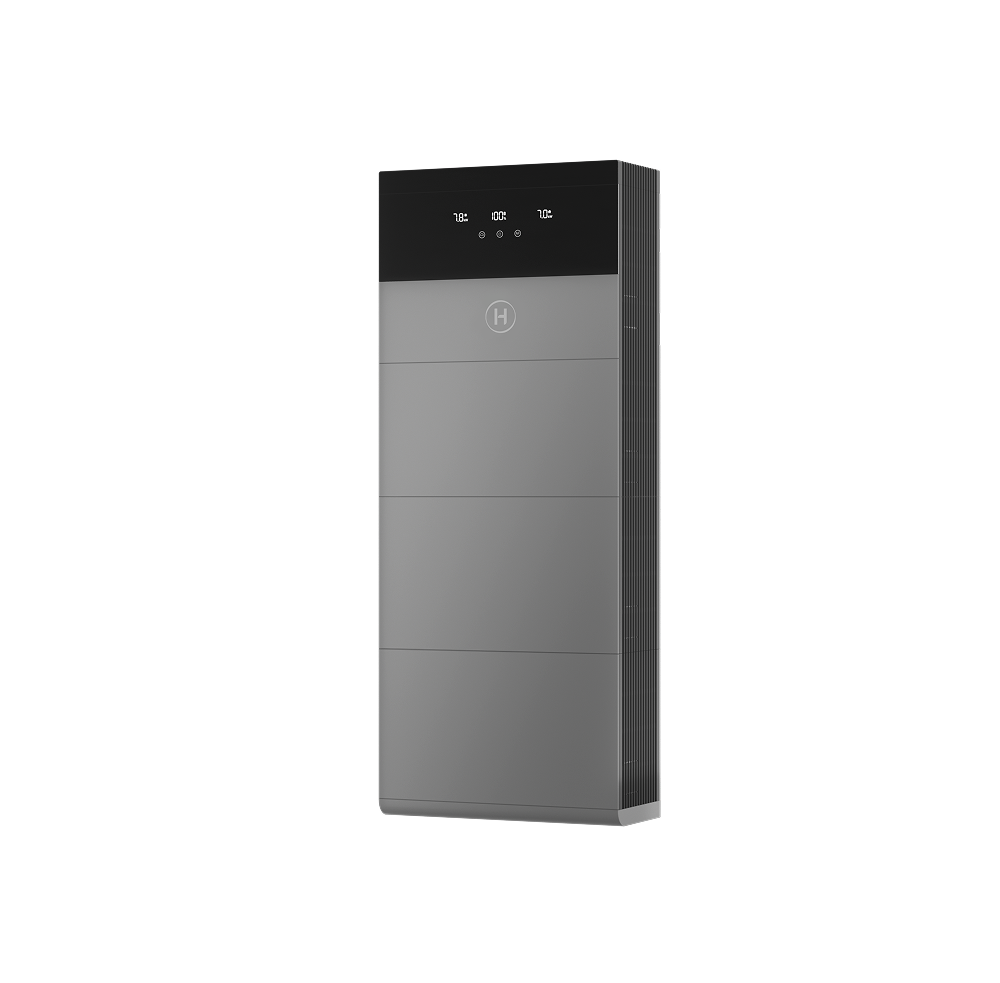

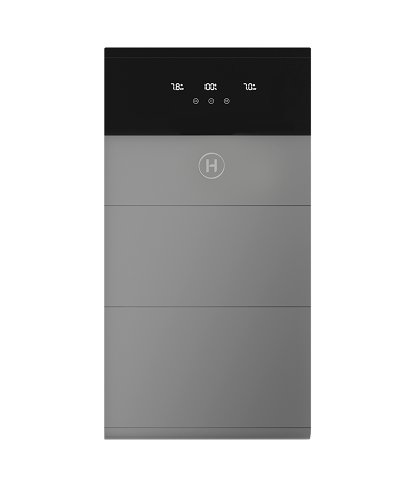

HiOne-(3.6-12)S-G3

Hoymiles launches a series of all-in-one energy storage inverters designed for residential and small C&I PV ESS systems. The hybrid inverter, battery, EMS are integrated into one unit to provide users with a comprehensive PV ESS solution.

It has multiple working modes, supports parallel operation, and can connect to a heat pump, generator, etc., making it available in different application scenarios. It is highly reliable and can help users efficiently and independently use energy.

Read More
Contact Us
Download Brochure
1/4
Learn More
  • Features
  • Tech Specs

Features

    • Up to 200% DC/AC oversizing to significantly boost power generation efficiency

    • Four independent 18 A MPPTs, perfectly compatible with high-power modules and multi-orientation rooftops

    • Rugged IP66 enclosure design ensures performance in harsh environments

    • Enables up to 150% off-grid peak output, allowing effortless startup of inductive loads

    • Built-in intelligent EMS automatically optimizes energy storage and consumption strategies

    • Integrated AFCI (Arc Fault Circuit Interrupter) actively detects arcs to prevent fire hazards

Tech Specs

  • HiOne-3.6S-G3
  • HiOne-4.6S-G3
  • HiOne-5S-G3
  • HiOne-6S-G3
  • HiOne-8S-G3
  • HiOne-10S-G3
  • HiOne-12S-G3
    • Max. charge/discharge current (A):
      9.4/9.9
    • Recommended max. PV power (W):
      7200
    • Max. input current(A):
      18/18/18
    • MPPT number/Max. input strings number:
      3/3
    • Max. on-grid output apparent power (VA):
      3680
    • Max. off-grid output apparent power (VA):
      5520, 10s
    • Grid form:
      L/N/PE，220/230/240
    • Max. charge/discharge current (A):
      11.8/12.4
    • Recommended max. PV power (W):
      9200
    • Max. input current(A):
      18/18/18
    • MPPT number/Max. input strings number:
      3/3
    • Max. on-grid output apparent power (VA):
      4600
    • Max. off-grid output apparent power (VA):
      6900, 10s
    • Grid form:
      L/N/PE，220/230/240
    • Max. charge/discharge current (A):
      12.8/13.5
    • Recommended max. PV power (W):
      10000
    • Max. input current(A):
      18/18/18
    • MPPT number/Max. input strings number:
      3/3
    • Max. on-grid output apparent power (VA):
      5000
    • Max. off-grid output apparent power (VA):
      7500, 10s
    • Grid form:
      L/N/PE，220/230/240
    • Max. charge/discharge current (A):
      15.4/16.2
    • Recommended max. PV power (W):
      12000
    • Max. input current(A):
      18/18/18
    • MPPT number/Max. input strings number:
      3/3
    • Max. on-grid output apparent power (VA):
      6000
    • Max. off-grid output apparent power (VA):
      9000, 10s
    • Grid form:
      L/N/PE，220/230/240
    • Max. charge/discharge current (A):
      20.5/21.5
    • Recommended max. PV power (W):
      16000
    • Max. input current(A):
      18/18/18/18
    • MPPT number/Max. input strings number:
      4/4
    • Max. on-grid output apparent power (VA):
      8000
    • Max. off-grid output apparent power (VA):
      12000, 10s
    • Grid form:
      L/N/PE，220/230/240
    • Max. charge/discharge current (A):
      25.6/26.9
    • Recommended max. PV power (W):
      20000
    • Max. input current(A):
      18/18/18/18
    • MPPT number/Max. input strings number:
      4/4
    • Max. on-grid output apparent power (VA):
      10000
    • Max. off-grid output apparent power (VA):
      15000, 10s
    • Grid form:
      L/N/PE，220/230/240
    • Max. charge/discharge current (A):
      30.0/30.0
    • Recommended max. PV power (W):
      24000
    • Max. input current(A):
      18/18/18/18
    • MPPT number/Max. input strings number:
      4/4
    • Max. on-grid output apparent power (VA):
      12000
    • Max. off-grid output apparent power (VA):
      18000, 10s
    • Grid form:
      L/N/PE，220/230/240
