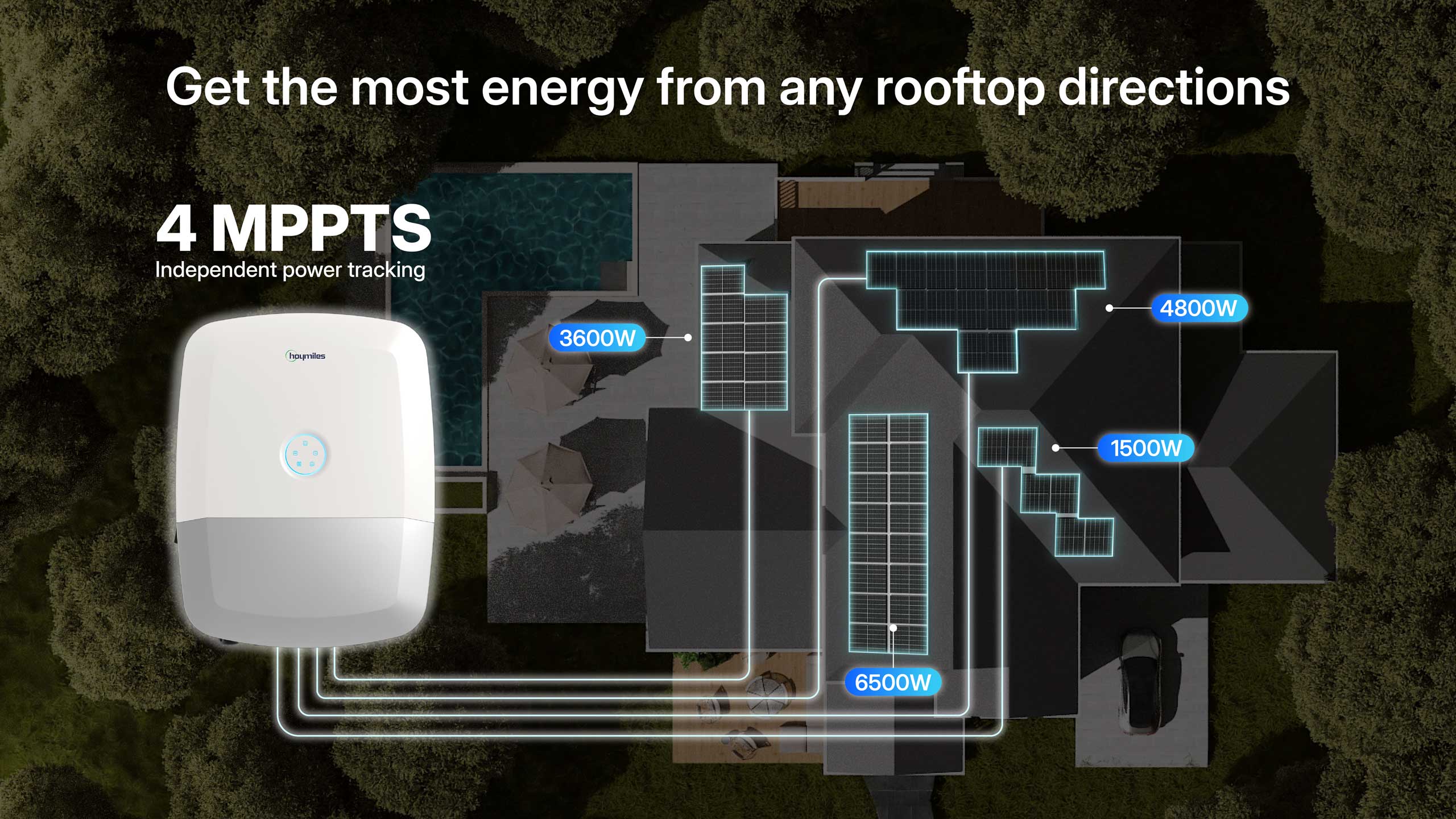

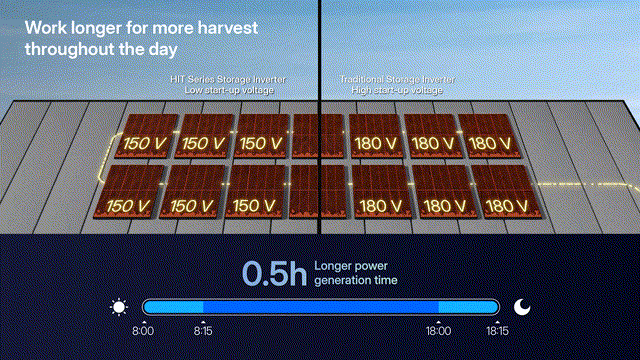

Higher Revenue
-

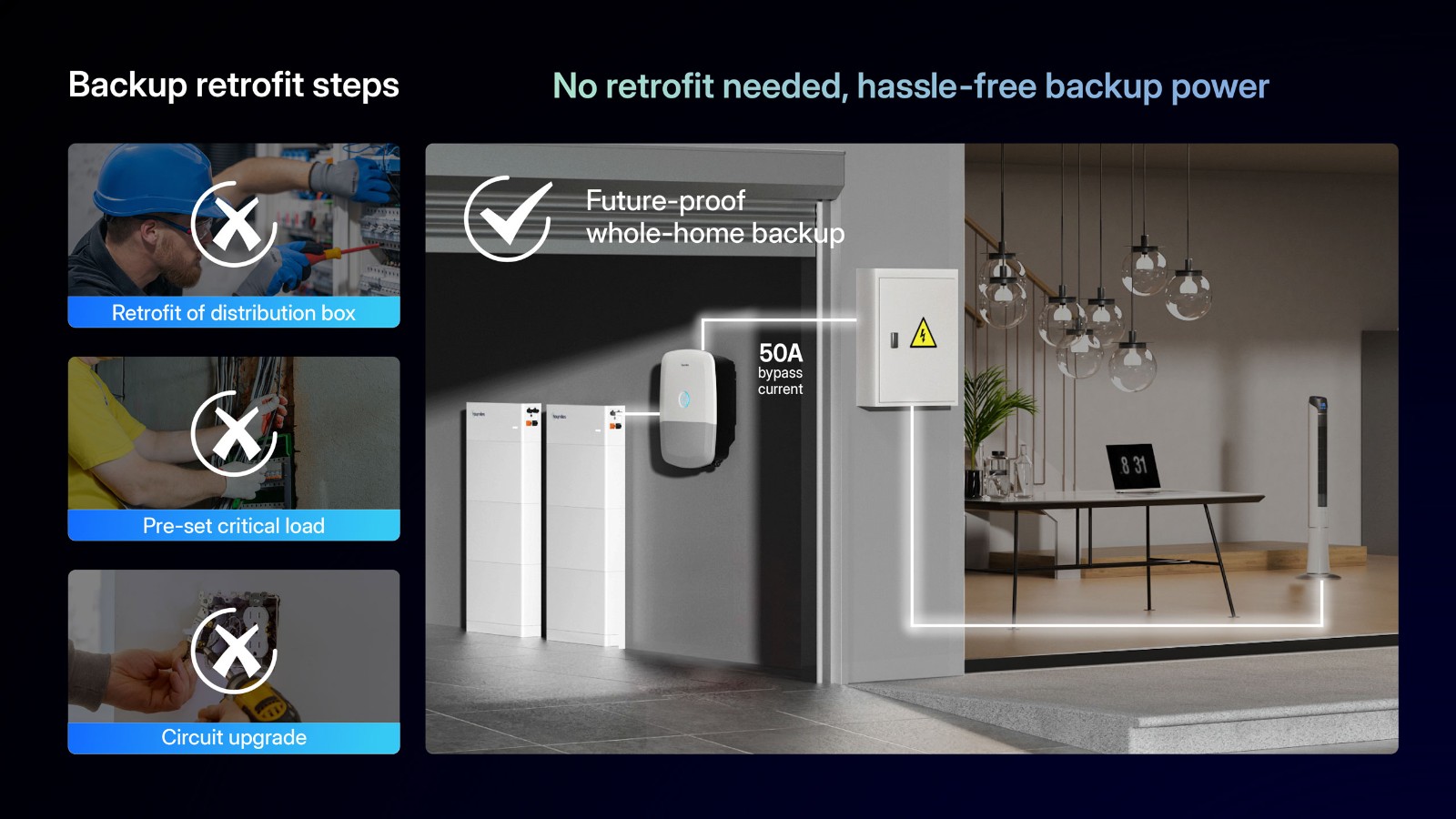

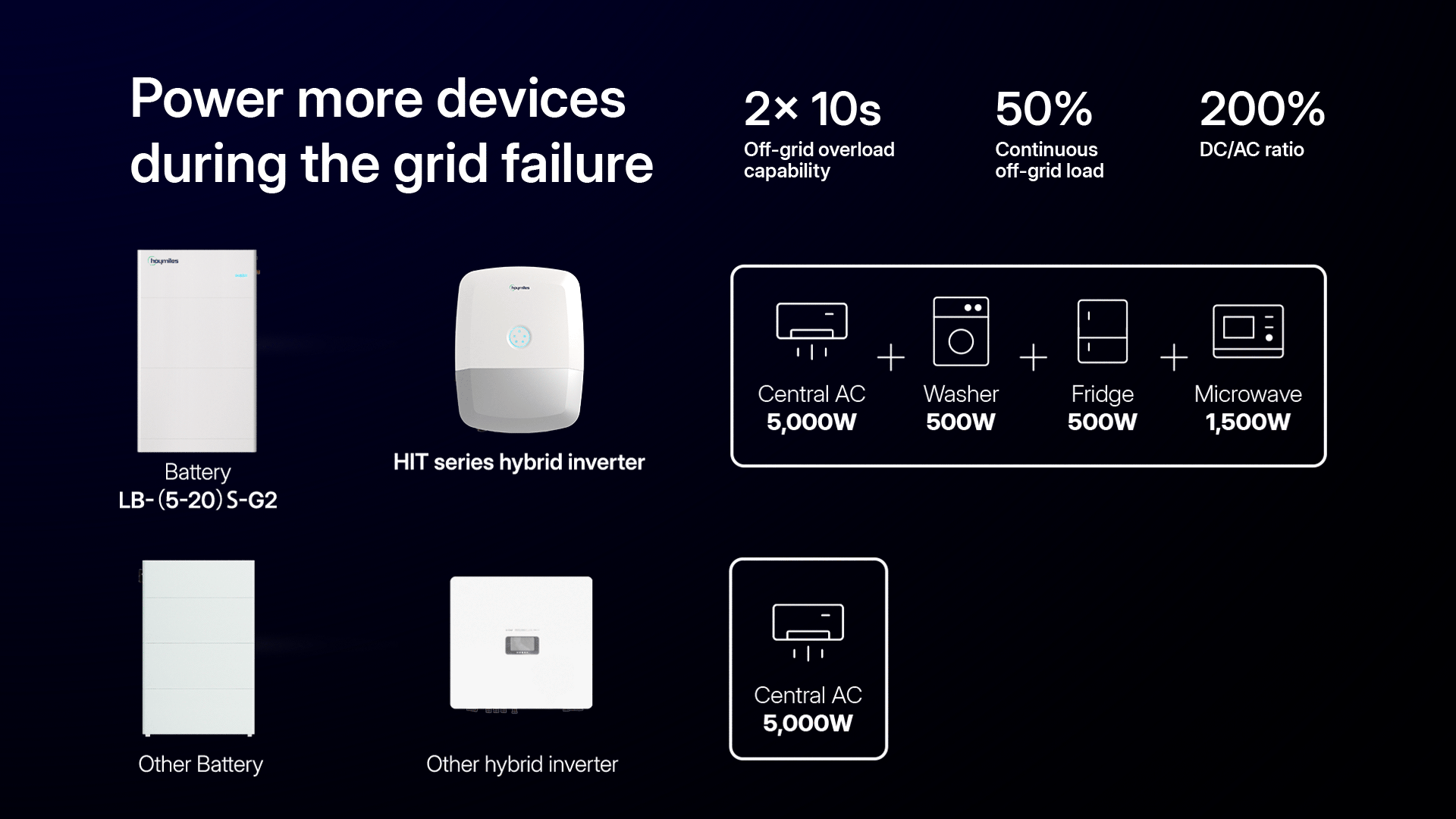

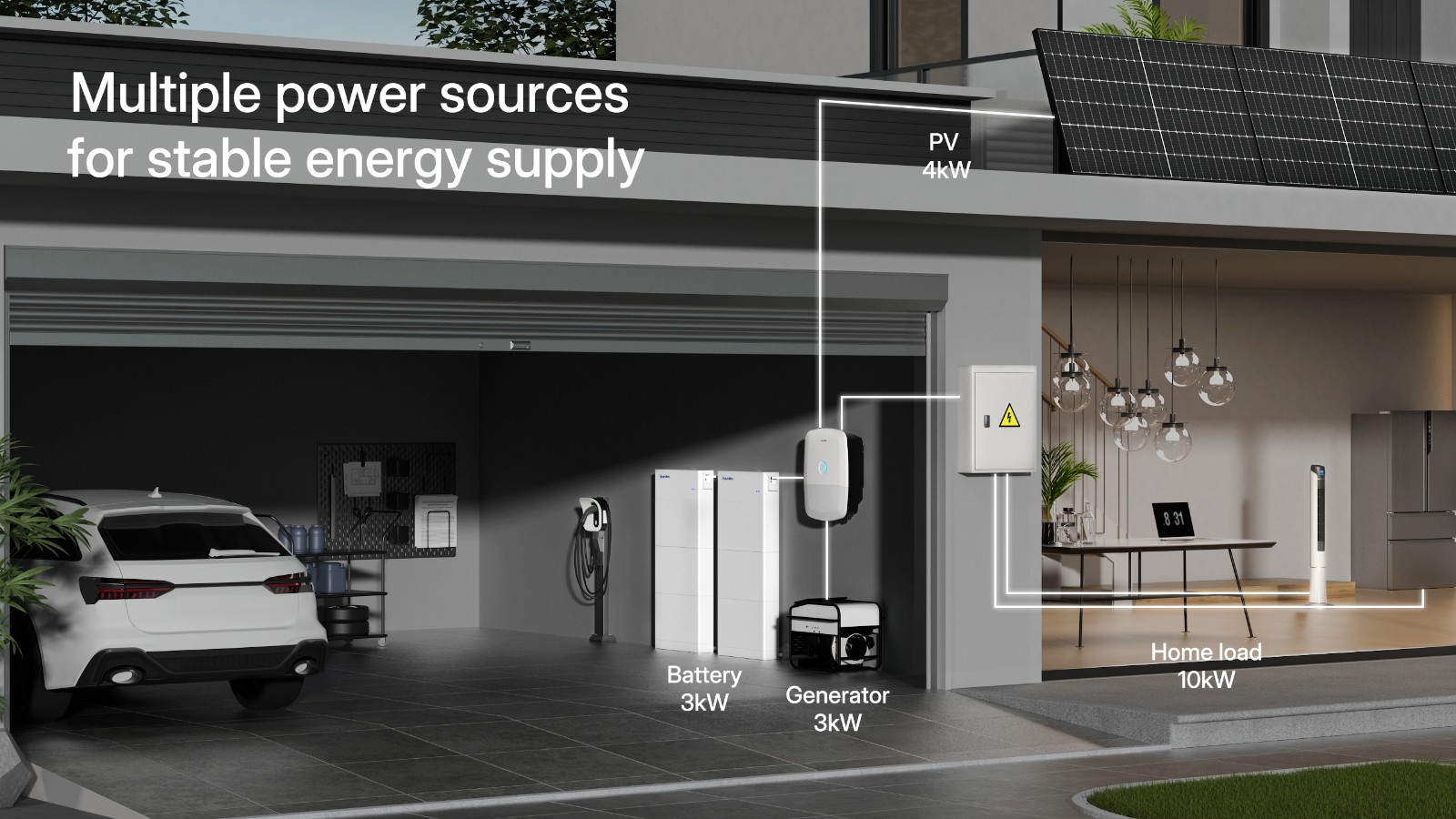

Stable Power Supply
-

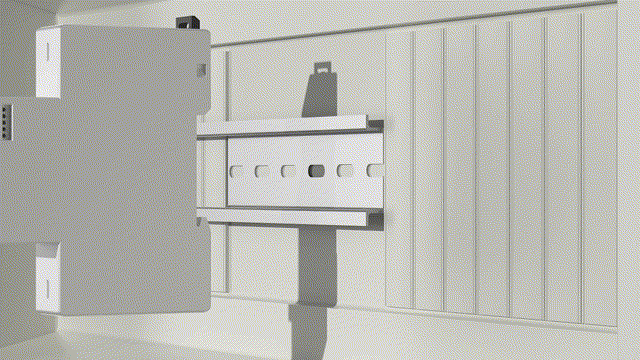

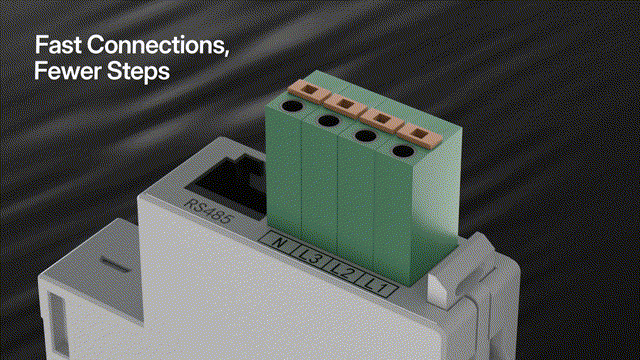

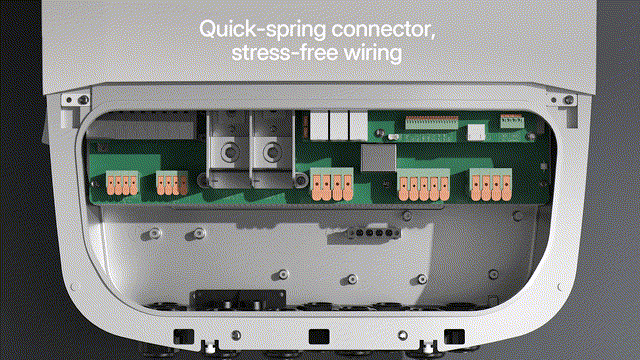

Hassle-Free Installation
-

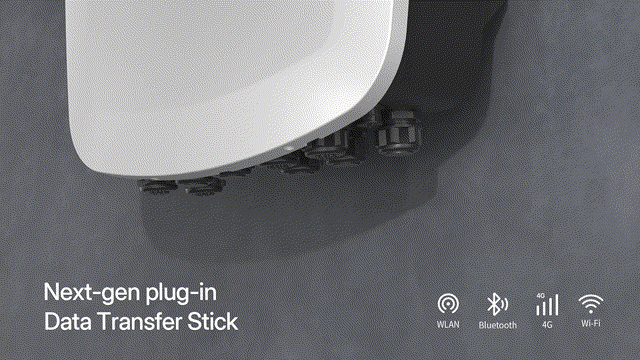

Smart Management
Stay on top of how everything is going on
-

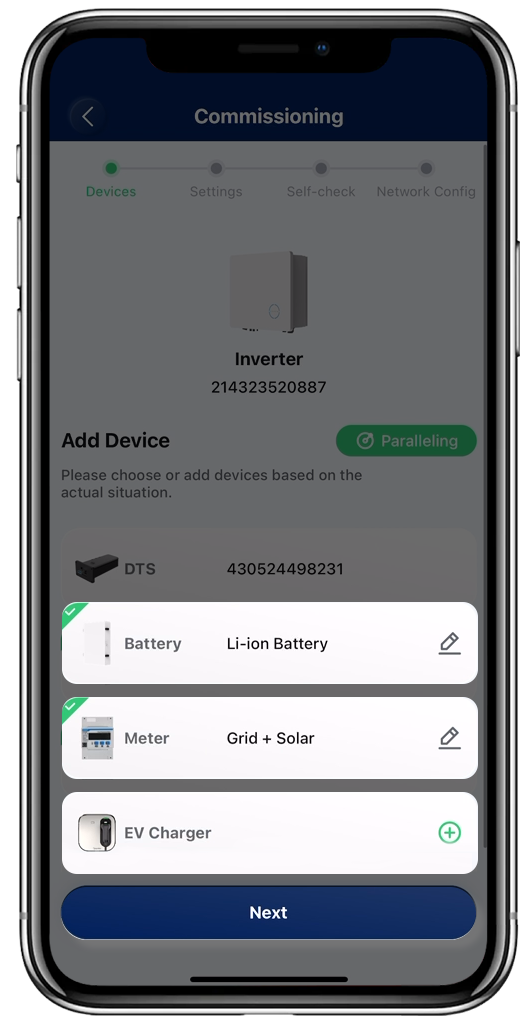

Step 1: Auto-detect devices
-

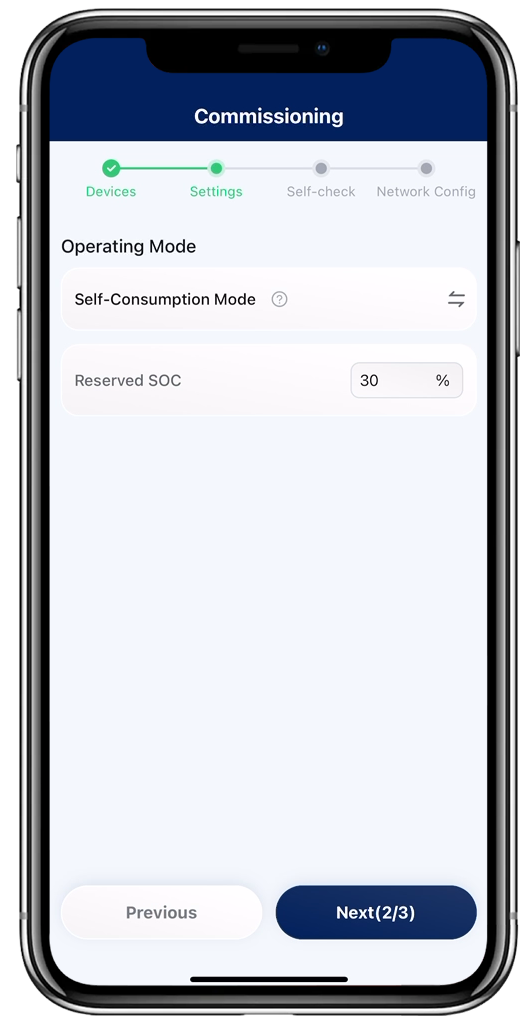

Step 2: Set key features
-

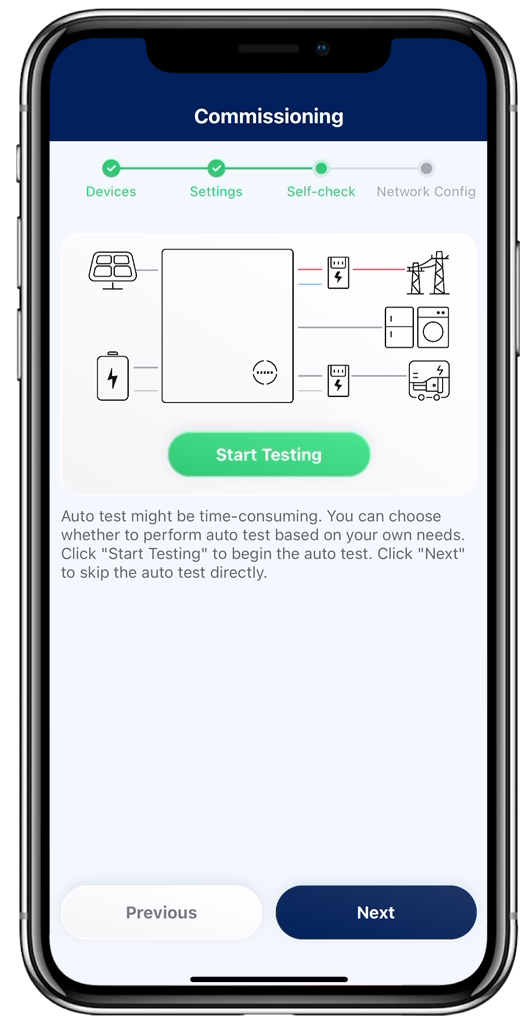

Step 3: Auto testing
-

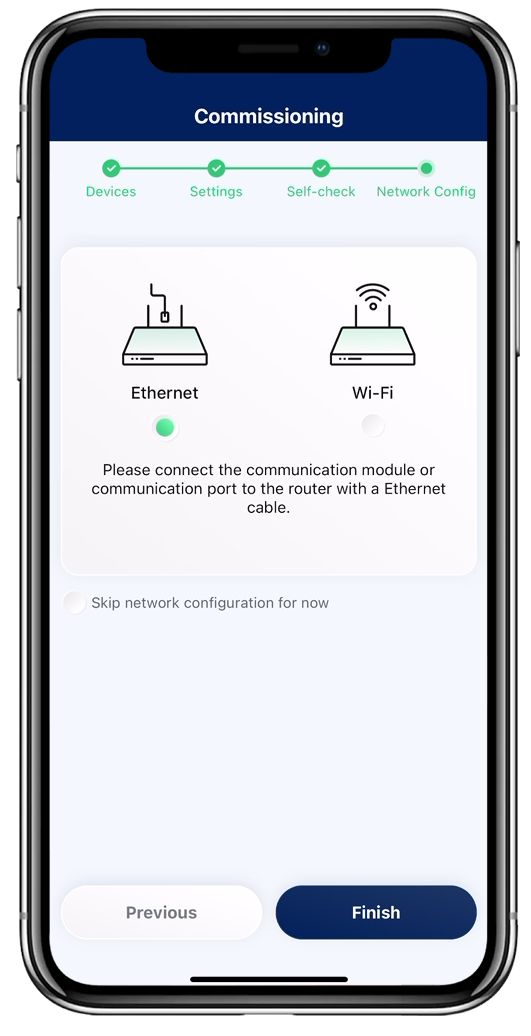

Step 4: Network configuration
-
Step 1: Auto-detect devices
-
Step 2: Set key features
-
Step 3: Auto testing
-
Step 4: Network configuration

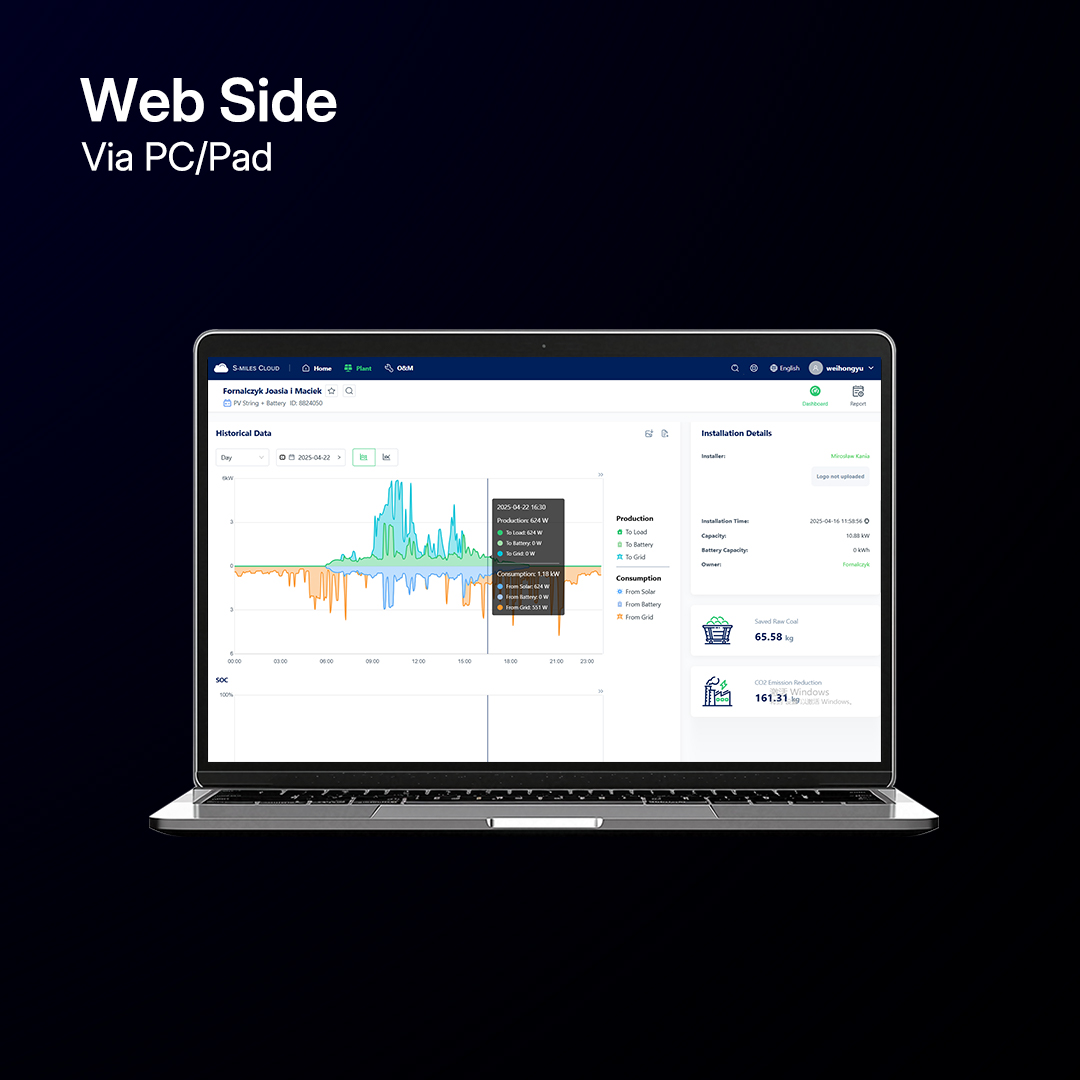

Stay on top of how everything is going on
Real-time monitoring
Multi-device access
Remote diagnostics

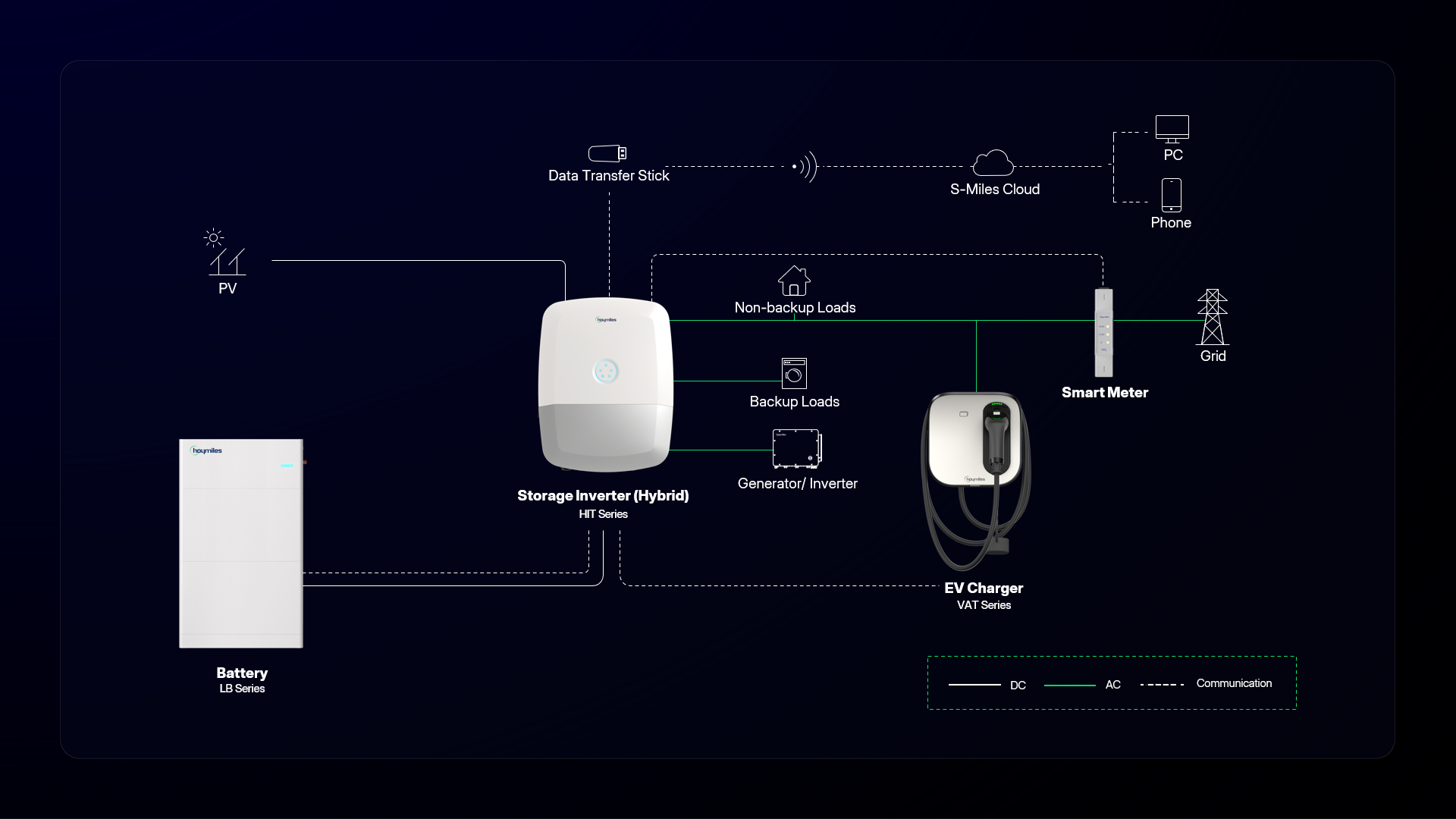

Three-phase low-voltage system solution
-
AC-coupled
-

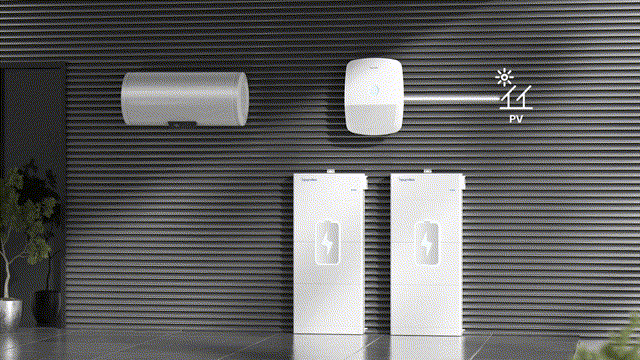

Hybrid
The system is compatible with any grid-tied inverter (PV inverter or microinverter). With the addition of hybrid inverters, existing PV systems can be upgraded to energy storage systems (ESS), enabling greater self-consumption and backup power.
The independent energy storage inverter allows grid-tied inverters (string or microinverters) to be connected to the GEN port. In off-grid mode, the grid-tied inverter can continue operating with controlled output power, provided its capacity does not exceed the energy storage inverter’s rated power.
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 5,500 – 22,000 VA |
Weight: 41 kg | Rated output power: 5,000 – 20,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 120 A / 120 A – 350 A / 350 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm |
Weight: 41 kg |
Battery voltage range: 40 V – 60 V |
Max. charge/discharge current: 120 A / 120 A – 350 A / 350 A |
Max. output apparent power (on-grid): 5,500 – 22,000 VA |
Rated output power: 5,000 – 20,000 W |
Max. battery discharge to AC efficiency: 95.7% |
Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 5,500 VA |
Weight: 41 kg | Rated output power: 5,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 120 A / 120 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 6,600 VA |
Weight: 41 kg | Rated output power: 6,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 150 A / 150 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 8,800 VA |
Weight: 41 kg | Rated output power: 8,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 190 A / 190 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 11,000 VA |
Weight: 41 kg | Rated output power: 10,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 210 A / 210 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 13,200 VA |
Weight: 41 kg | Rated output power: 12,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 250 A / 250 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 16,500 VA |
Weight: 41 kg | Rated output power: 15,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 300 A / 300 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 18,700 VA |
Weight: 41 kg | Rated output power: 17,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 350 A / 350 A | Protection degree: IP66 |
Dimensions: 539 × 696 × 232 mm | Max. output apparent power (on-grid): 22,000 VA |
Weight: 41 kg | Rated output power: 20,000 W |
Battery voltage range: 40 V – 60 V | Max. battery discharge to AC efficiency: 95.7% |
Max. charge/discharge current: 350 A / 350 A | Protection degree: IP66 |
Storage Inverter | HIT-(5-20)L-G3
Turns solar energy into electricity for your home, stores extra power in batteries for backup, and keeps you connected on and off the grid.
Battery | LB-(5-20)D-G2
Detached low-voltage battery that anyone can afford. It ensures seamless power backup and optimized energy usage for homes and businesses.
AC EV Charger | VAS, VAT-7&11&22-G2
Safely charges electric cars using solar energy your system generates. electricity. Set charging schedules and save from 260€/year.

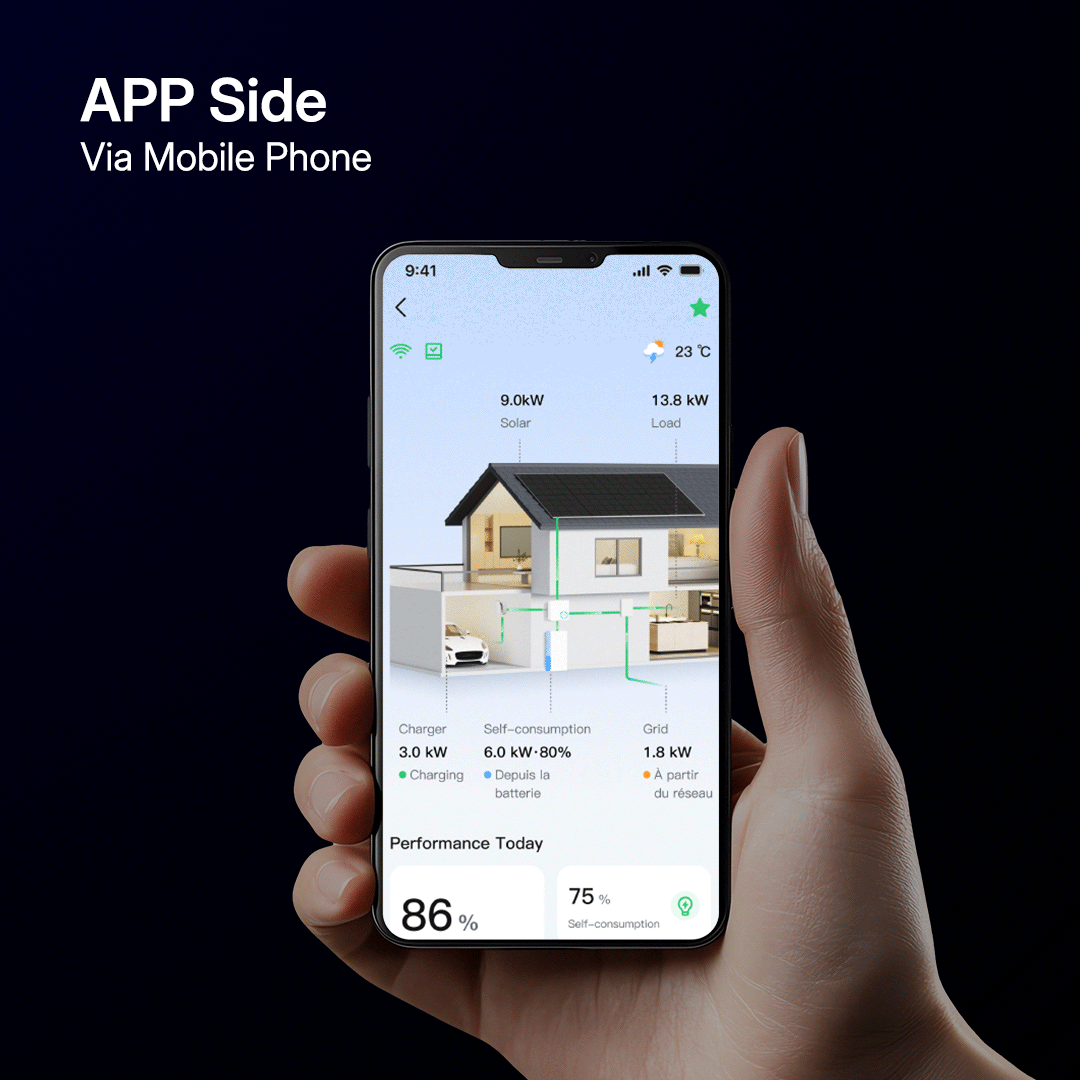

Monitoring App | S-Miles Cloud
Real-time data monitoring across your entire solar power system. Stay informed about performance, energy production, and system condition at every moment.
