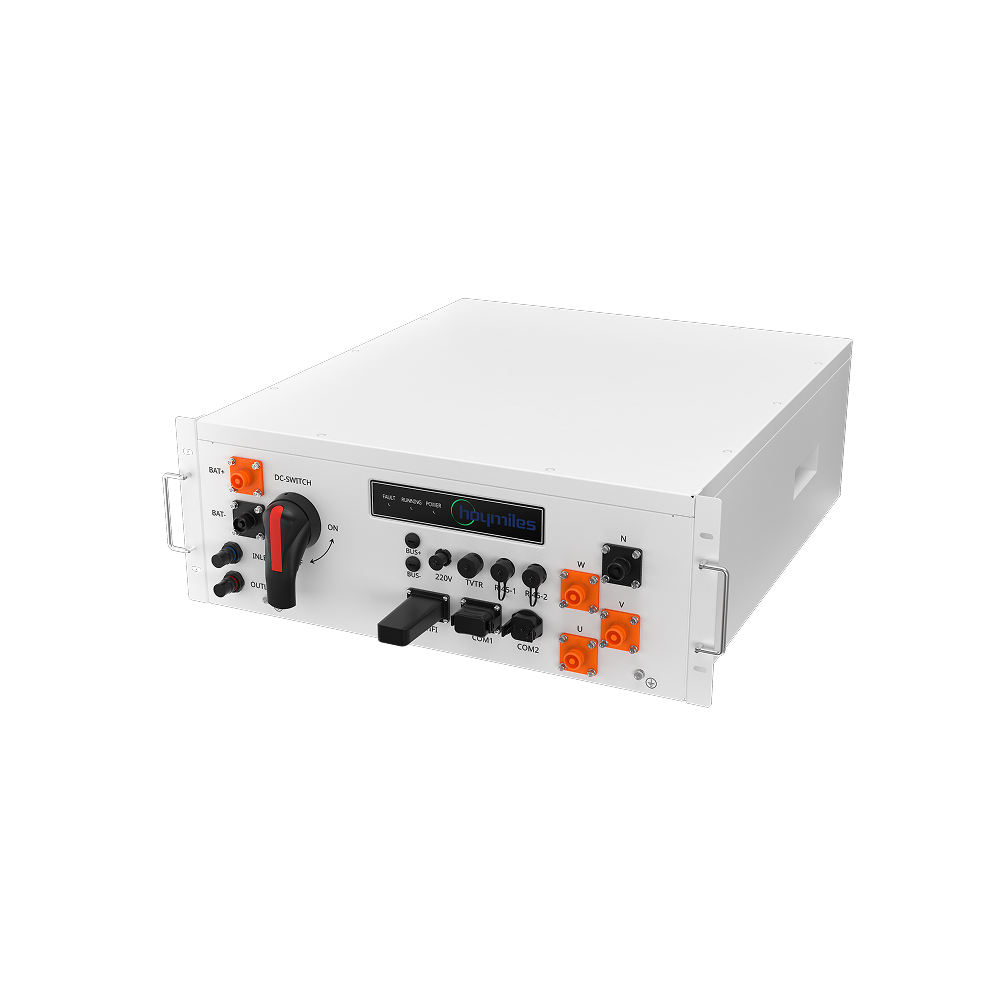

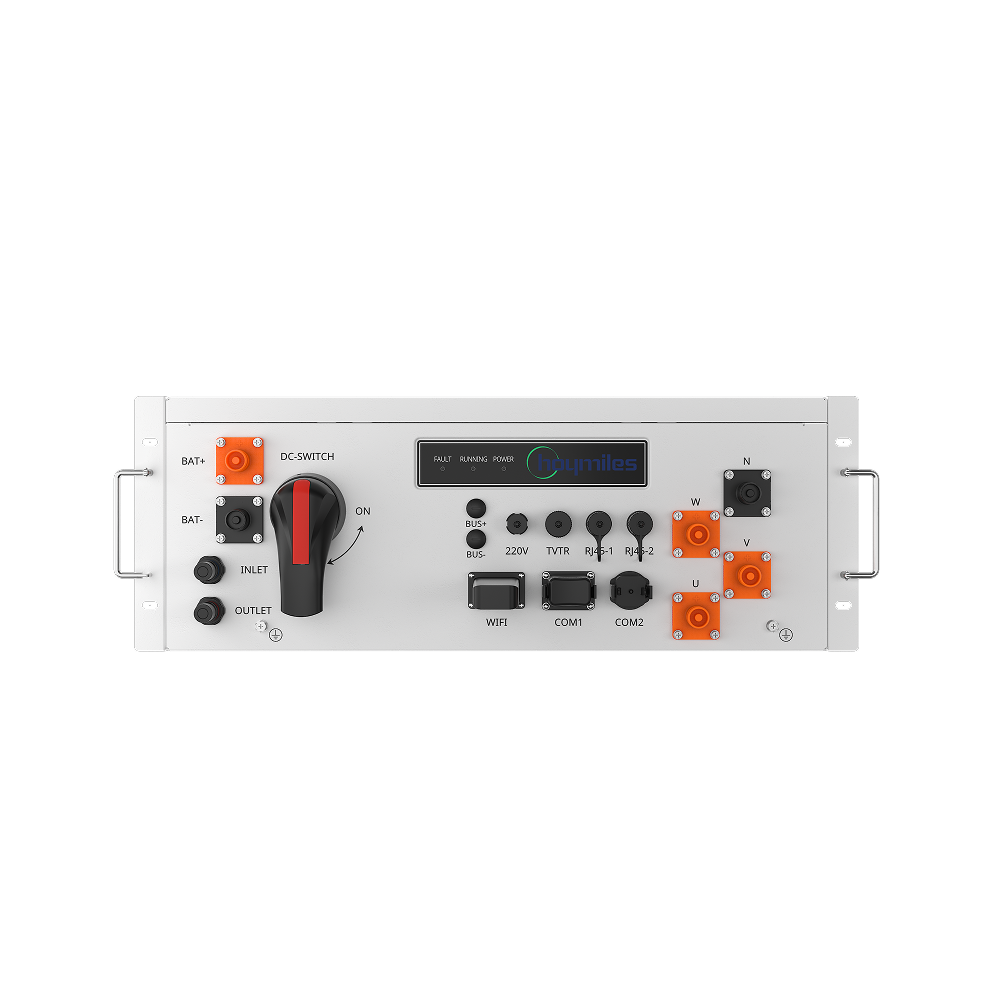

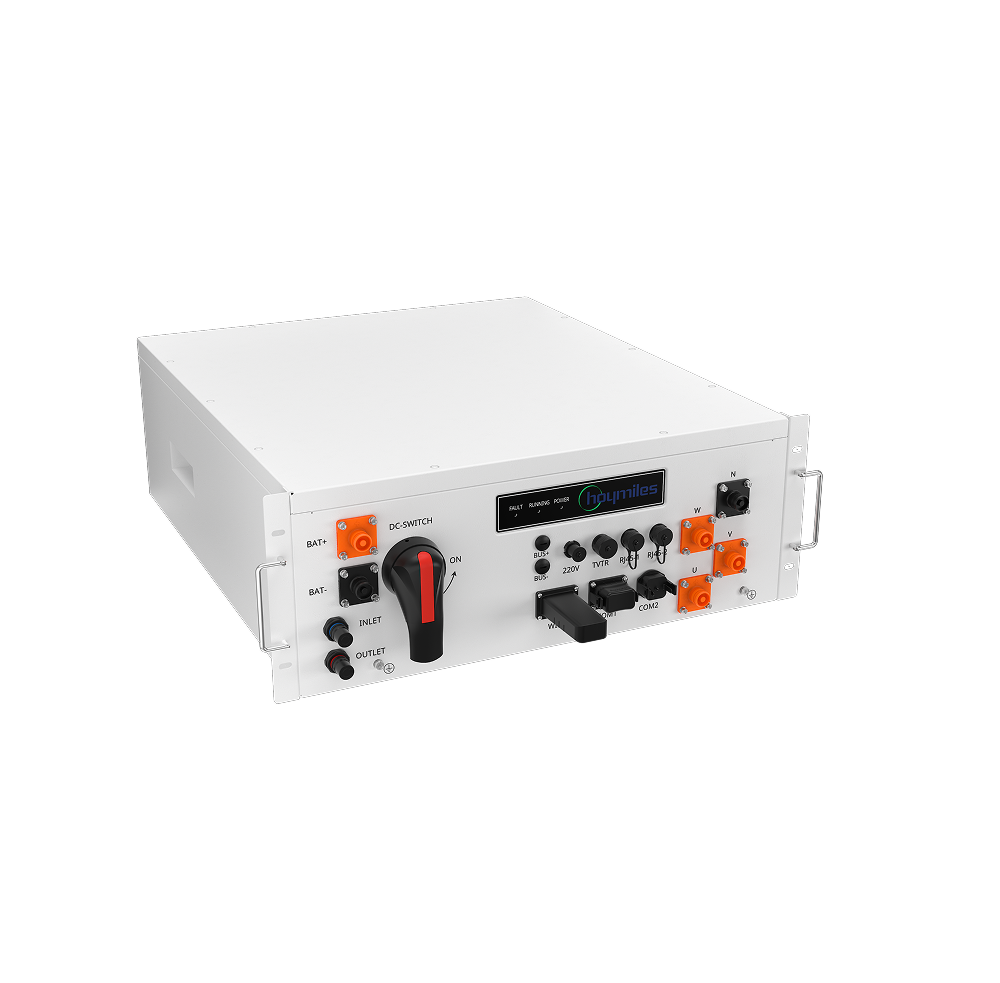

HPCS125

HPCS125储能变流器是禾迈推出的基于三电平拓 扑结构的储能变流器,最高效率>99%,同时该 产品采用智能液冷设计 ,其功率密度更优,体积更 小,50℃环温不降额,整机采用 IP65防护等级, 适应高盐、高湿、高温差、高蒸发量等多种复杂 恶劣工作环境。

1/4
  • 优势
  • 技术规格

优势

技术规格

  • HPCS125
    • DC voltage range:
      580 to 1000 V
    • Rated AC voltage (on & off grid):
      400 V
    • Maximum continuous AC-side current:
      214.8A (@45℃)
    • Protection degree:
      IP65
    • Cooling mode:
      Intelligent liquid cooling
    • Max. Efficiency (AC side, off-grid):
      >99%
    • Dimensions (W × H × D):
      650×250×750mm
    • Weight:
      75 kg
