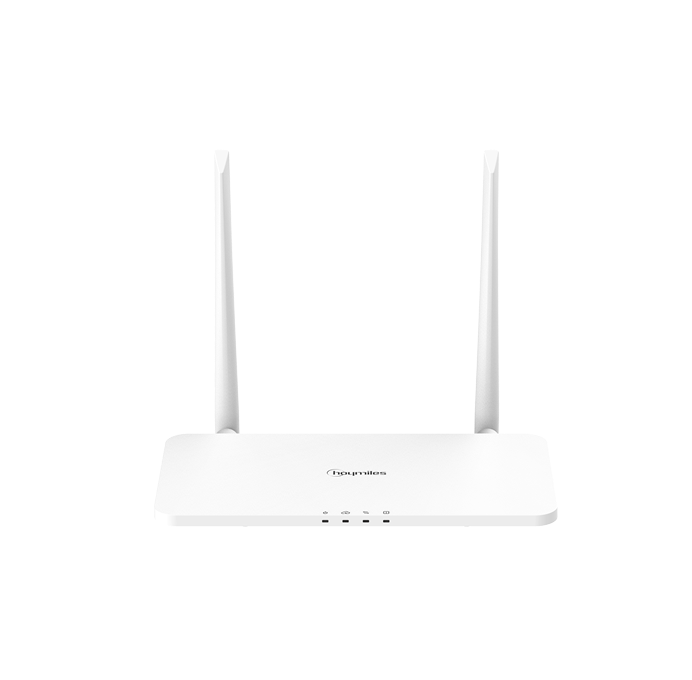

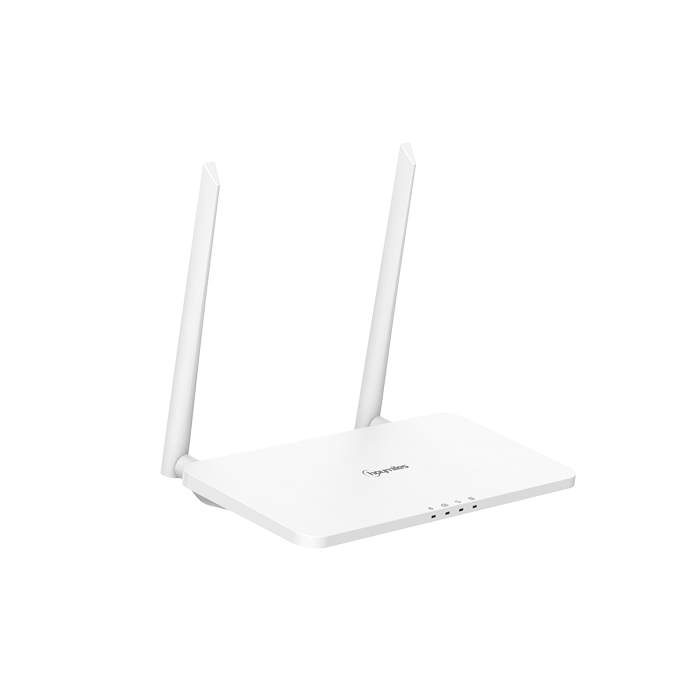

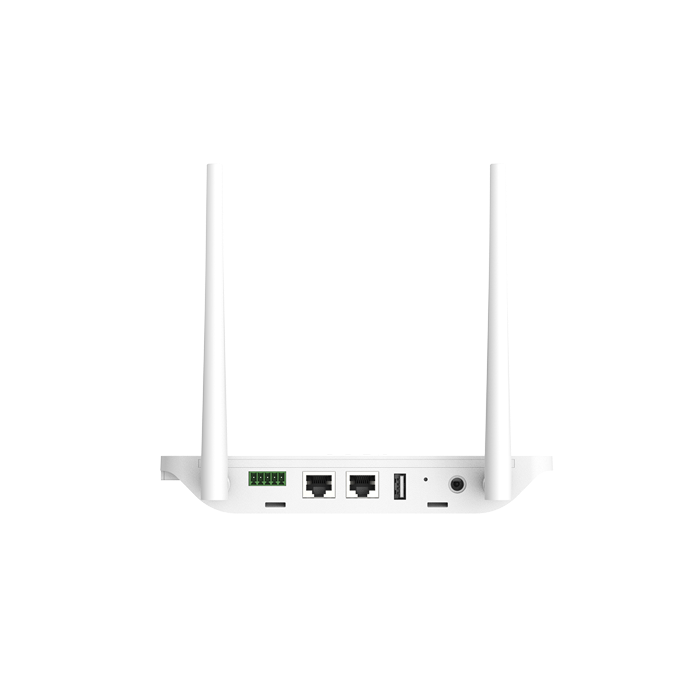

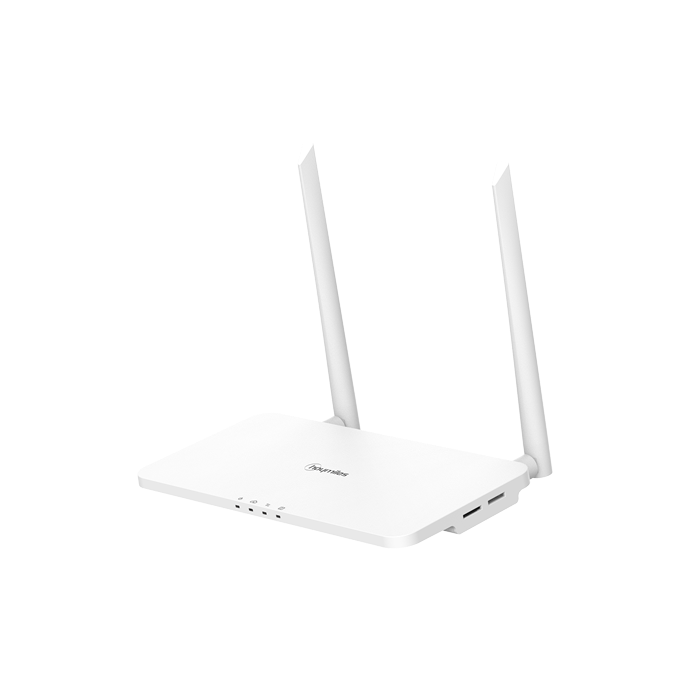

DTU-Pro 数据采集器

DTU-Pro 是禾迈数据采集器产品,其使用 2.4G 无线解决方案收集 现场微型逆变器的信息和数据,并通过以太网、Wi-Fi 或 GPRS 三 种通信方式发送数据到禾迈监控平台 S-Miles Cloud。

通过 DTU-Pro,用户可以方便获取组件级数据和告警,在 S-Miles Cloud 数据平台上随时随地实现光伏系统的远程操作和维护。

DTU-Pro 与 HM/MI 系列微型逆变器搭配使用。

1/4
  • 优势
  • 技术规格

优势

技术规格

  • GPRS
  • WIFI
  • 4G
    • Signal:
      2.4GHz Proprietary RF (Nordic)
    • Maximum distance (open space):
      200 m
    • Monitoring data limit from solar panels:
      99
    • Ethernet (Communication to S-Miles Cloud):
      RJ45 × 1, 100Mbps
    • Wireless (Communication to S-Miles Cloud):
      2G:GSM/GPRS
    • 安装方式:
      Desktop mounting
    • Microinverter mode:
      HM series, MI series
    • Signal:
      2.4GHz Proprietary RF (Nordic)
    • Maximum distance (open space):
      200 m
    • Monitoring data limit from solar panels:
      99
    • Ethernet (Communication to S-Miles Cloud):
      RJ45 × 1, 100Mbps
    • Wireless (Communication to S-Miles Cloud):
      Wi-Fi:802.11b/g/n
    • 安装方式:
      Wall mounting
    • Microinverter mode:
      HM series, MI series
    • Signal:
      2.4GHz Proprietary RF (Nordic)
    • Maximum distance (open space):
      200 m
    • Monitoring data limit from solar panels:
      99
    • Ethernet (Communication to S-Miles Cloud):
      RJ45 × 1, 100Mbps
    • Wireless (Communication to S-Miles Cloud):
      4G:TDD-LTE, FDD-LTE 3G:SCDMA 2G:GSM/GPRS
    • 安装方式:
      Desktop mounting
    • Microinverter mode:
      HM series, MI series
