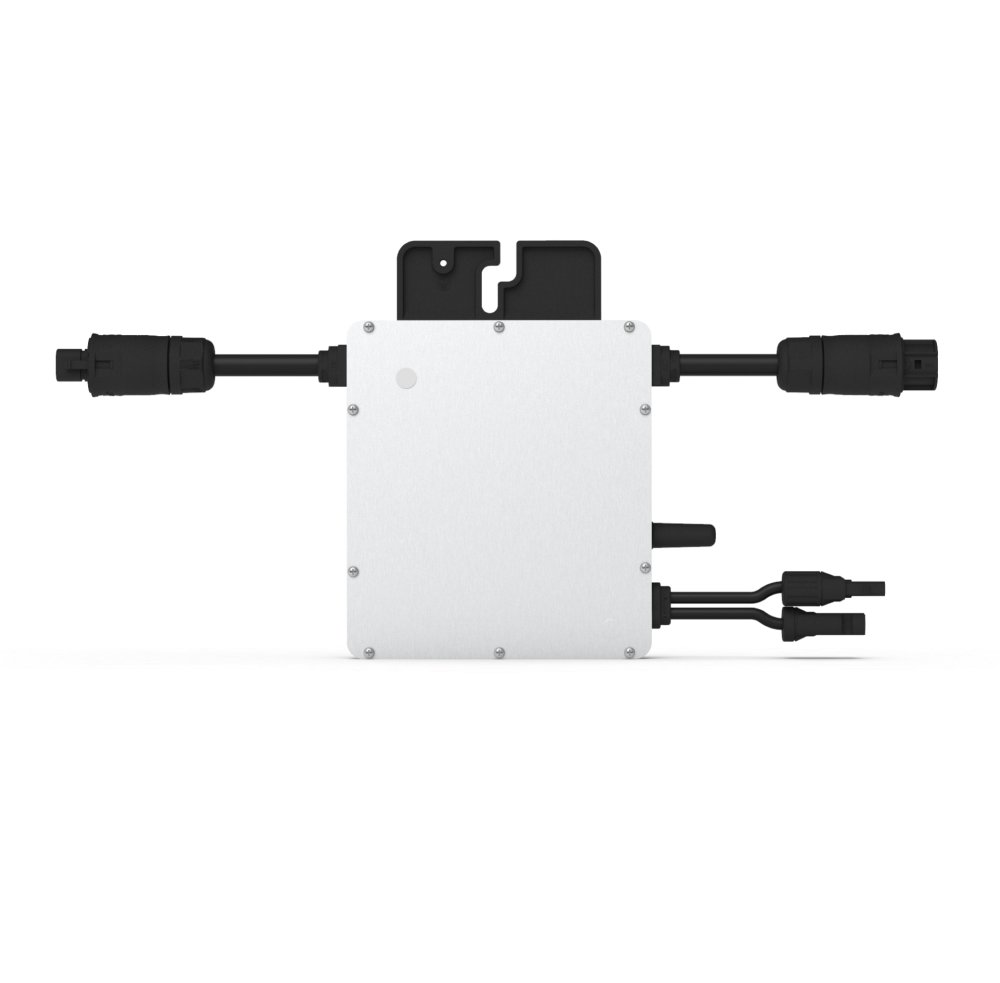

HM-300&350&400N
Hoymiles 1-in-1 microinverter, which can be connected to one panel and used in various applications, is one of the most flexible solar solutions. With the maximum DC voltage of 60 V, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218.
All of the three models listed are equipped with reactive power control and are compliant with IEEE 1547, UL 1741, and CA Rule 21.
1/4
-
Features
-
Tech Specs
Features
-
-
Easy installation, just plug and play.
-
With Reactive Power Control, compliant with CA Rule 21.
-
Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown.
-
External antenna for stronger communication with DTU.
-
High reliability: NEMA 6 (IP67) enclosure, 6000 V surge protection.
-
Tech Specs
-
300N
-
350N
-
400N
-
-
Commonly used module power (W):240 to 405+
-
Maximum input voltage (V):60
-
Maximum input current (A):11.5
-
Number of MPPTs:1
-
Nominal output voltage/range (V)* :240/211-264; 208/183-228
-
CEC peak efficiency:96.7%
-
-
-
Commonly used module power (W):280 to 470+
-
Maximum input voltage (V):60
-
Maximum input current (A):11.5
-
Number of MPPTs:1
-
Nominal output voltage/range (V)* :240/211-264; 208/183-228
-
CEC peak efficiency:96.7%
-
-
-
Commonly used module power (W):320 to 540+
-
Maximum input voltage (V):60
-
Maximum input current (A):12.5
-
Number of MPPTs:1
-
Nominal output voltage/range (V)* :240/211-264; 208/183-228
-
CEC peak efficiency:96.7%
-
