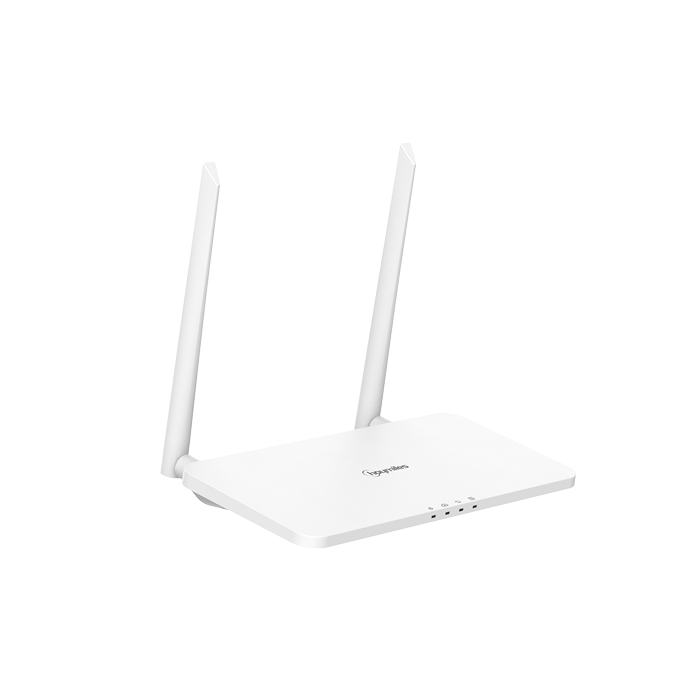

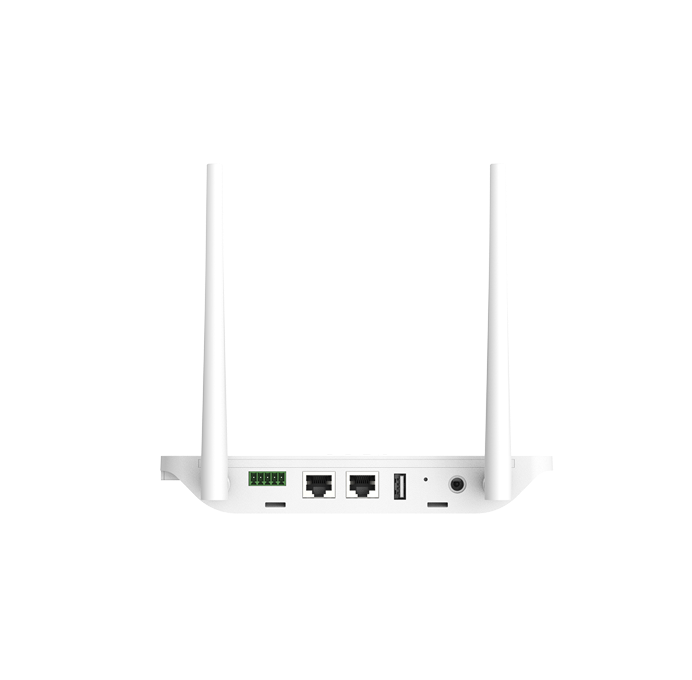

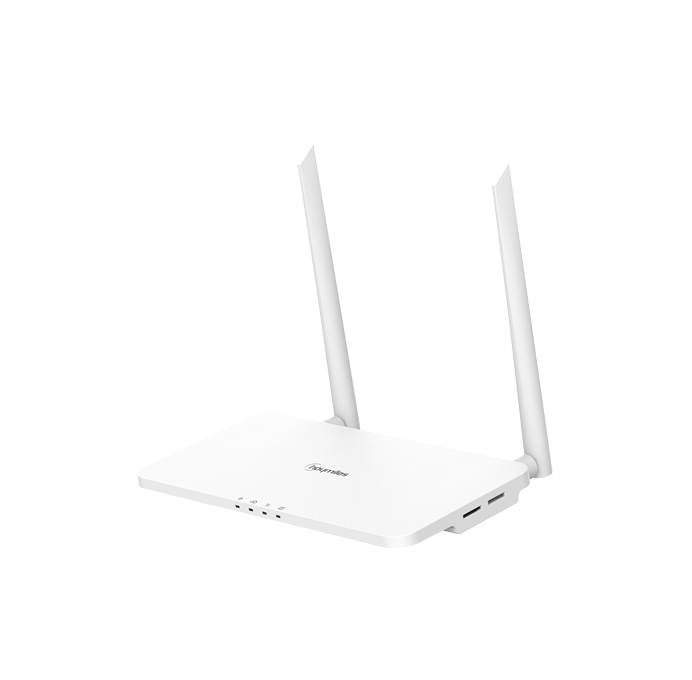

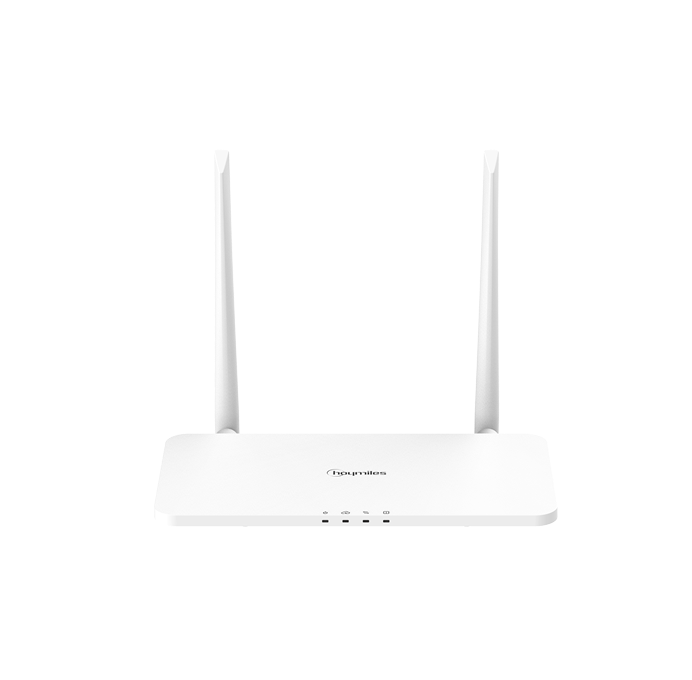

DTU-Pro-C
Hoymiles gateway DTU-Pro-C is a data transfer unit that collects information and data of PV microinverter using 2.4G wireless solution and sends them to S-Miles Cloud, Hoymiles monitoring System, using different communication options such as Ethernet or 4G.
With DTU-Pro-C, you can easily read module-level data and alarms, realize remote operation and maintenance of the PV system at any time, from anywhere on S-Miles Cloud.
-
Features
-
Tech Specs
Features
-
-
Reliable and Flexible: Stable communication with HM, MI series of microinverter. More communication options with S-Miles Cloud, using Ethernet or 4G. Support of RS485, Ethernet to communicate with peripherals.
-
Simple and Efficient O&M: Module-level monitoring and data storage. Local configuration with S-Miles Toolkit. Support remote O&M, including remote upgrading, parameter setting.
-
Smart: Smart zero export control and power export limiting. PV generation and load consumption monitoring.
-
Tech Specs
-
4G Version
-
-
Signal:2.4 GHz Proprietary RF (Nordic)
-
Maximum distance (open space):200 m
-
Monitoring data limit from solar panels:99
-
Ethernet (Communication to S-Miles Cloud):RJ45 × 1, 100Mbps
-
Wireless (Communication to S-Miles Cloud):4G: TDD-LTE, FDD-LTE; 3G: SCDMA; 2G: GSM/GPRS
-
Installation method:Wall mounting / Desktop mounting
-
Microinverter mode:HM series
-
