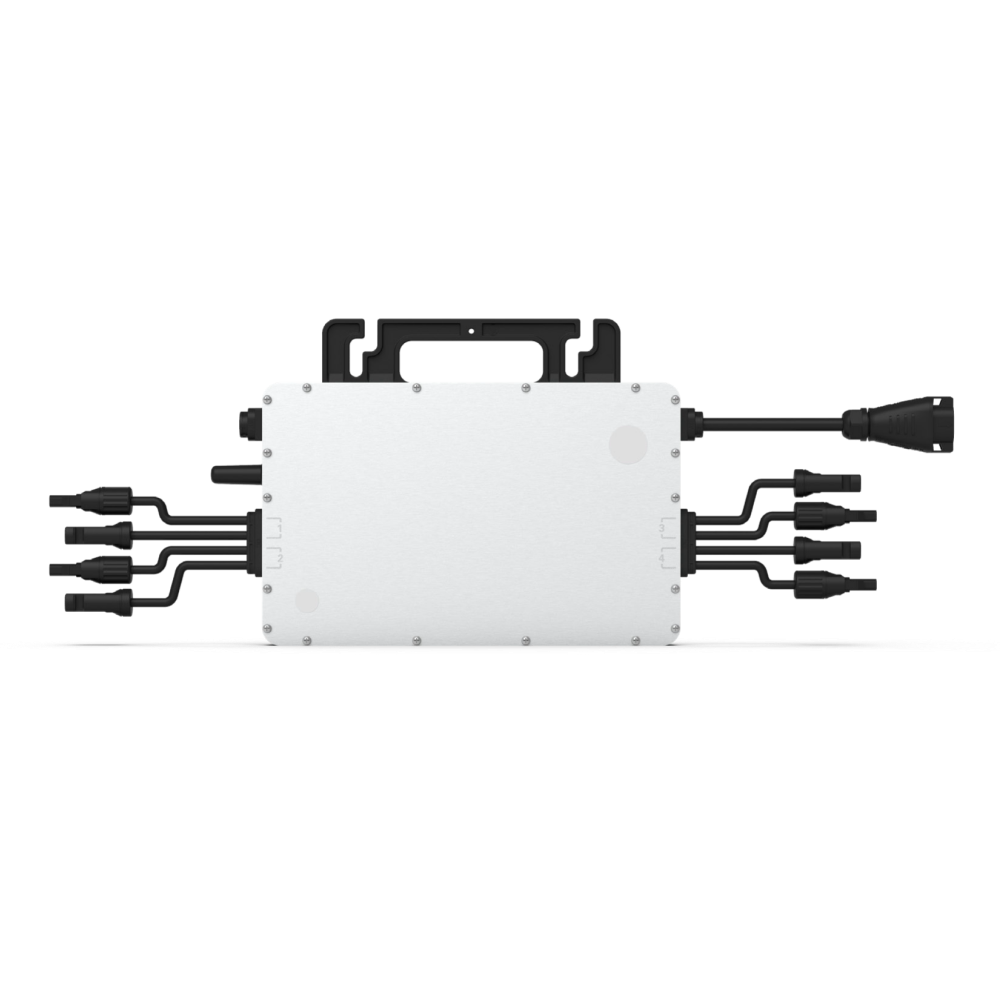

HM-1200&1500NT
Hoymiles 4-in-1 microinverter is one of the most cost-effective module-level solar solutions, as it can support up to 4 panels at once and maximize the PV production of your installation. With a maximum DC voltage of 60 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218.
Both models listed are equipped with reactive power control and can meet the requirements of IEEE 1547, UL 1741 and CA Rule21.
-
Features
-
Tech Specs
Features
-
-
Easy installation, just plug and play.
-
With Reactive Power Control, compliant with CA Rule 21.
-
Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown.
-
External antenna for stronger communication with DTU.
-
High reliability, NEMA 6 (IP67) enclosure, 6000 V surge protection.
-
Tech Specs
-
1200NT
-
1500NT
-
-
Commonly used module power (W):240 to 405+
-
Maximum input voltage (V):60
-
Maximum input current (A):4 × 11.5
-
Number of MPPTs:2
-
Rated output power (VA):1200
-
Nominal output voltage/range (V)* :240/211-264; 208/183-228
-
CEC peak efficiency:96.7%
-
-
-
Commonly used module power (W):300 to 505+
-
Maximum input voltage (V):60
-
Maximum input current (A):4 × 11.5
-
Number of MPPTs:2
-
Rated output power (VA):1500
-
Nominal output voltage/range (V)* :240/211-264; 208/183-228
-
CEC peak efficiency:96.7%
-
