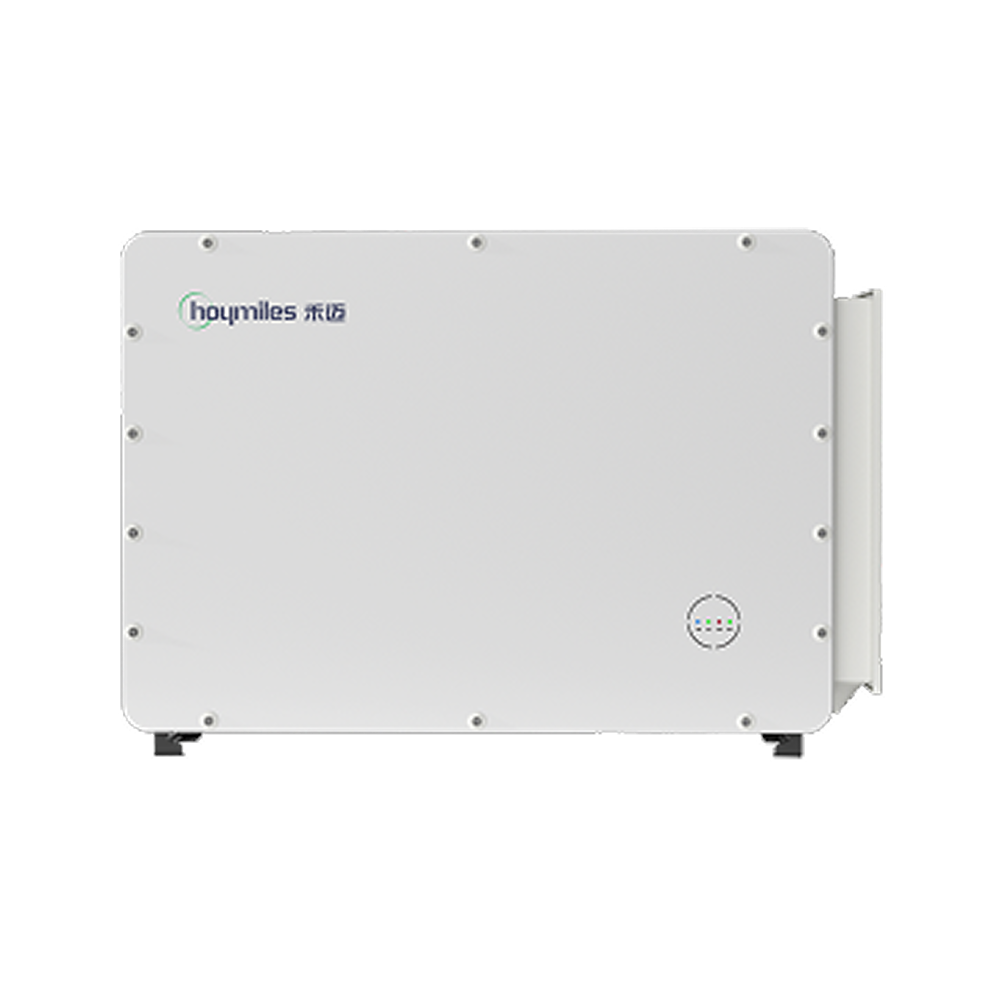

String Inverter HINV350HX-G2

1500V high power density PV inverter is suitable for many complex and harsh scenarios. Advanced topology and software control ensure the high efficiency, reliability, and stability of product operation. Innovative grid-connected algorithms andbroadband PLC technology enable fast response to grid dispatching and effectively support the grid.

1/4

Features
Tech Specs

Features

- Optimized BOS design supports 7MW/8.8MW arrays, and compatible with 182mm&210mm various modules.
- European Efficiency 98.8%, Max Efficiency 99.04%. 350kW @35℃，320kW @40℃. High DC /AC ratio up to 1.8.
- Integrated DC Smart Disconnect Switch Ensures DC-side Safety. Availability >99.99%.
- Fast Response of Reactive & Active Power Control. Low/ High Voltage Ride Through (L/HVRT), Frequency Ride Through (FRT). SCR ≥0.99 Without Reactive Power Derating.

Tech Specs

HINV350HX-G2

- MPPT voltage range:

  500 - 1500 V
- Max. AC Output Power:

  352 kW
- Max. PV Input Current per MPPT:

  75 A
- Max. efficiency:

  99.05%
- Number of MPPT:

  6
- EU efficiency:

  98.8%
- Ingress Protection Rating:

  IP66
