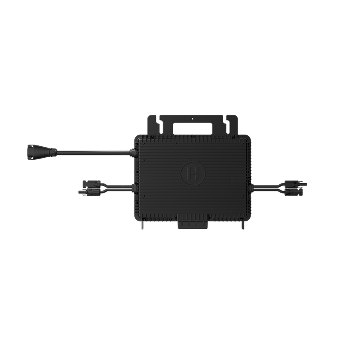

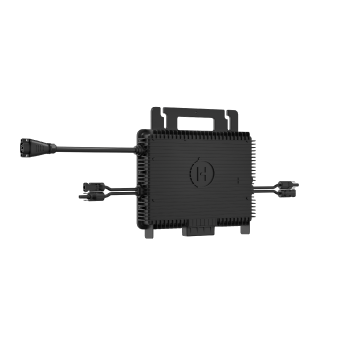

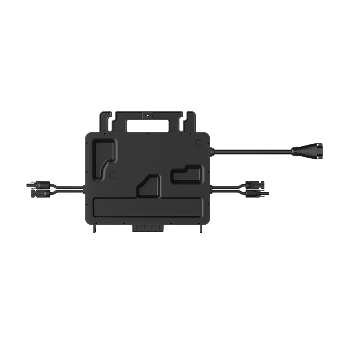

MIS-2250/2500/2750-W Pro
The Hoymiles MIS-2750-W Pro series microinverter is designed for high-powered PV modules, delivering an output power of up to 2750 VA to significantly boost system power generation efficiency. It supports hassle-free plug-and-play installation, and the included 600 mm (23.62 inches) DC cable eliminates the need for extensions, greatly saving your costs and installation time. Additionally, its built-in Wi-Fi & Bluetooth module enables direct and reliable communication with the S-Miles Cloud.
Read More
1/4
-
Features
-
Tech Specs
Features
-
-
Enhanced Performance and Increased Returns
-
Comprehensive Reliabilit
-
Easy & Cost-Effective Installation
-
Robust and Responsive Support Services
-
Tech Specs
-
MIS-2250-W Pro
-
MIS-2500-W Pro
-
MIS-2750-W Pro
-
-
Commonly used module power (W):450 to 750+
-
Maximum input voltage (V):120
-
Maximum input current (A):20
-
Number of MPPTs:2
-
Rated output power (VA):2250
-
Nominal output voltage/range (V)* :220 / 180 to 275, 230 / 180 to 275
-
Peak efficiency:97.5%
-
-
-
Commonly used module power (W):500 to 840+
-
Maximum input voltage (V):120
-
Maximum input current (A):20
-
Number of MPPTs:2
-
Rated output power (VA):2500
-
Nominal output voltage/range (V)* :220 / 180 to 275, 230 / 180 to 275
-
Peak efficiency:97.5%
-
-
-
Commonly used module power (W):550 to 928+
-
Maximum input voltage (V):120
-
Maximum input current (A):20
-
Number of MPPTs:2
-
Rated output power (VA):2750
-
Nominal output voltage/range (V)* :220 / 180 to 275, 230 / 180 to 275
-
Peak efficiency:97.5%
-
