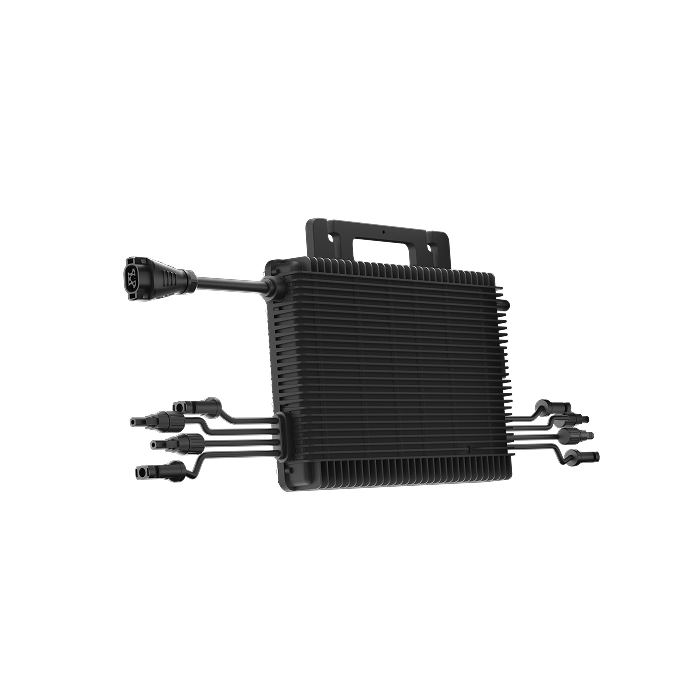

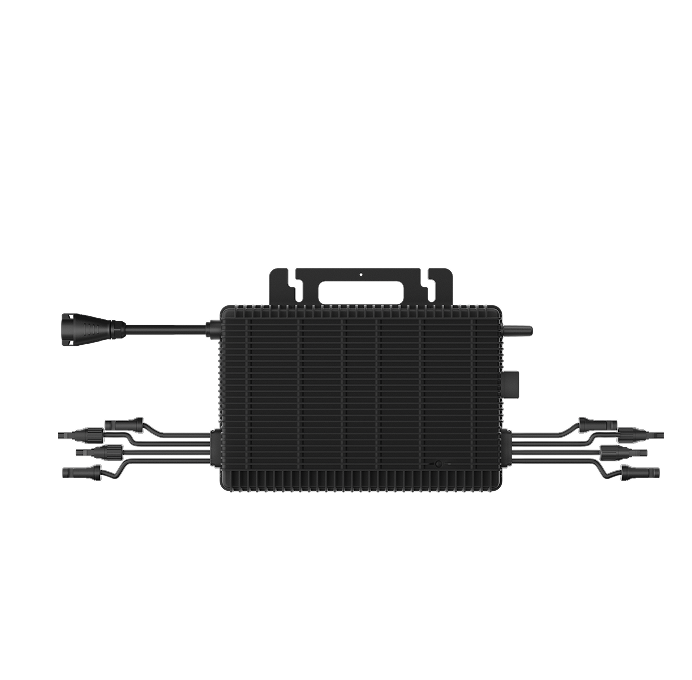

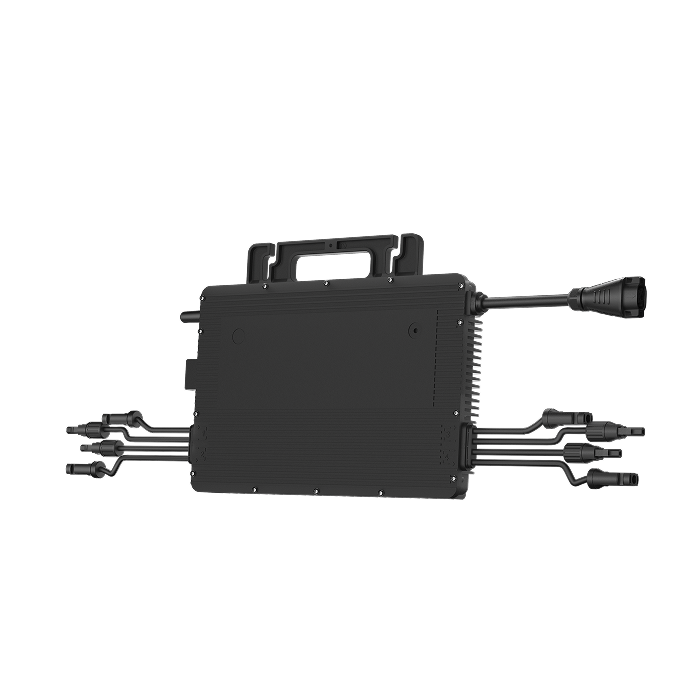

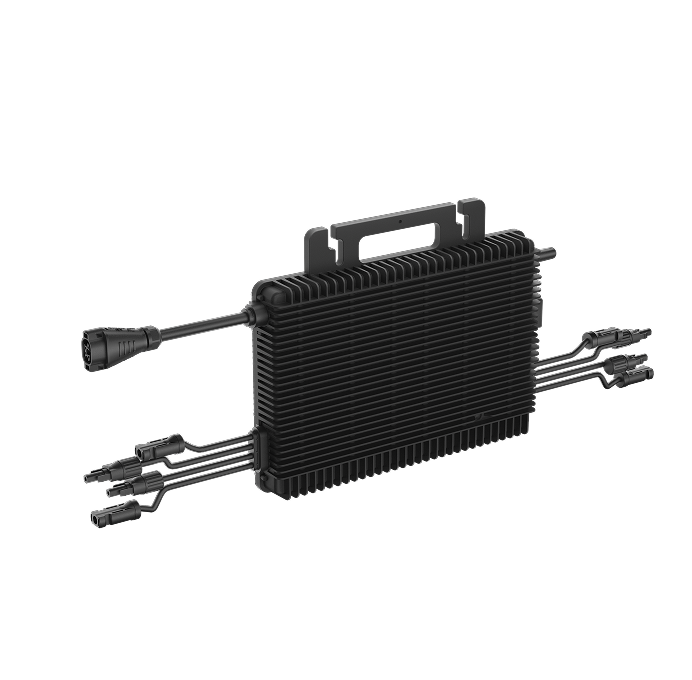

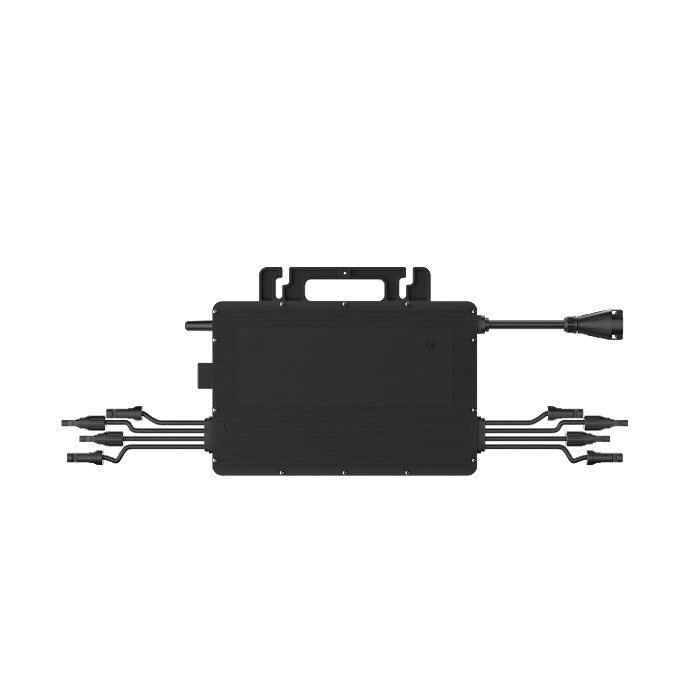

HMS-1600DW/1800DW/2000DW-4T (Wi-Fi integrated)
Hoymiles new generation microinverter HMS-2000DW series is designed to accommodate high-powered PV modules, with maximum output power up to 2000 VA and maximum DC input current up to 16 A.
The innovative 4-input design enables faster installation and lower cost, and makes the HMS-2000DW series a very costeffective choice.
The integrated Wi-Fi module enables more convenient communications and simpler configurations between the microinverter and smart platform S-Miles Cloud.
-
Features
-
Tech Specs
Features
-
-
Built-in Wi-Fi module enables quicker and easier installation and commissioning.
-
The industrial-grade Wi-Fi module brings higher microinverter reliability.
-
With output power up to 2000 VA, compatible with 182 mm/210 mm PV module.
-
With the top-tier brand battery cell, our device not only supports a long battery live with 6,000+ battery cycles, but also offers a Ten-year Warranty, standing the test of time.
-
Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer.
-
IP67 (NEMA 6) protection degree, adapt to outdoor use.
-
Tech Specs
-
1600W
-
1800W
-
2000W
-
1600W
-
-
Commonly used module power (W):320 to 540+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 14
-
Number of MPPTs:2
-
Rated output power (VA):1600
-
Nominal output voltage/range (V)* :180-275
-
CEC peak efficiency:96.70%
-
-
-
Commonly used module power (W):360 to 600+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 15
-
Number of MPPTs:2
-
Rated output power (VA):1800
-
Nominal output voltage/range (V)* :180-275
-
CEC peak efficiency:96.50%
-
-
-
Commonly used module power (W):400 to 670+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 16
-
Number of MPPTs:2
-
Rated output power (VA):2000
-
Nominal output voltage/range (V)* :180-275
-
CEC peak efficiency:96.50%
-
-
-
Commonly used module power (W):320 to 540+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 14
-
Number of MPPTs:2
-
Rated output power (VA):1600
-
Nominal output voltage/range (V)* :180-275
-
CEC peak efficiency:96.70%
-
