HIS-(3-6)L-G3

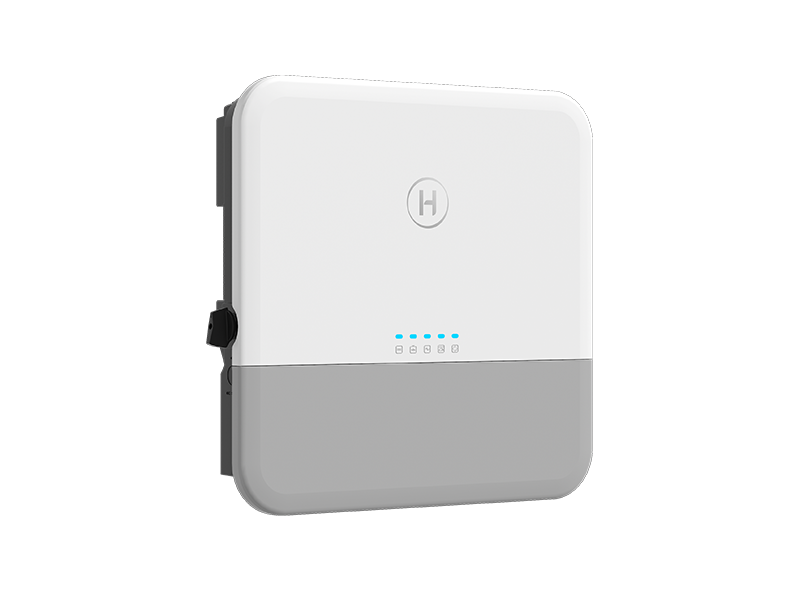

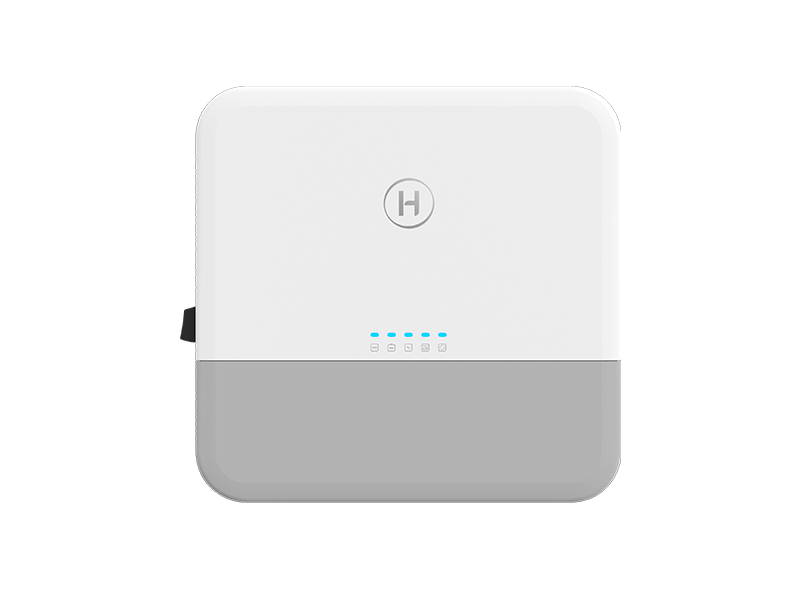

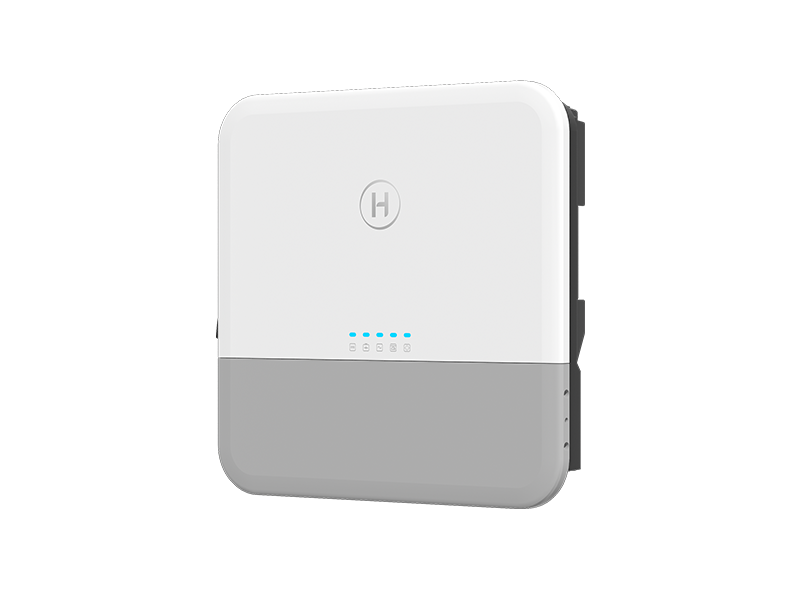

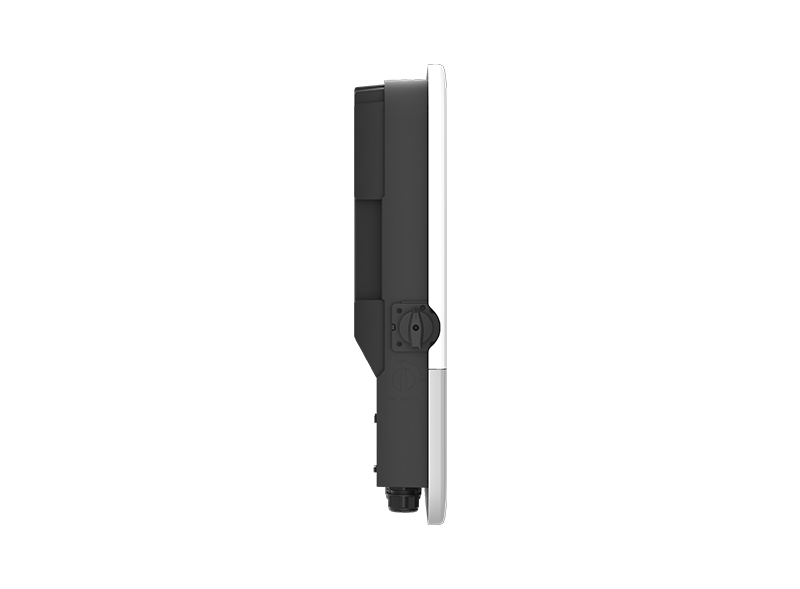

The HIS-(3-6)L-G3 series is a high-performance single-phase hybrid inverter with excellent reliability, including power classes ranging from 3 kW to 6 kW.

The intelligent EMS function supports self-consumption mode, economy mode, backup mode, peak shaving mode, and time of use mode for multi-scenario applications.

Monitoring management through S-Miles Cloud allows users to remotely diagnose and track system performance over time, maximizing the total solar power production and battery utilization.

Read More
Contact Us
Download Spec Sheet
1/4
  • Features
  • Tech Specs

Features

    • Easy installation and space-saving with ultrathin and ultralight design.

    • Double MPPT tracker, up to 18 A MPPT current.

    • UPS-level 0 ms switching time.

    • Support multiple intelligent working modes, including Peak Shaving and 8×24h Time of Use.

    • Integrated AI energy management with generator, heat pump, and smart load.

    • Max. 10 inverters in parallel for on-grid and off-grid system extension.

Tech Specs

  • HIS-3L-G3
  • HIS-3.6L-G3
  • HIS-4.6L-G3
  • HIS-5L-G3
  • HIS-6L-G3
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      75/75
    • MPPT voltage range (V): :
      90-500
    • Max. input current (A): :
      18/18
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      3300
    • （Off-grid）Max. output apparent power (VA):
      6000, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      90/90
    • MPPT voltage range (V): :
      90-500
    • Max. input current (A): :
      18/18
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      3680
    • （Off-grid）Max. output apparent power (VA):
      7360, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      115/115
    • MPPT voltage range (V): :
      90-500
    • Max. input current (A): :
      18/18
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      4600
    • （Off-grid）Max. output apparent power (VA):
      9200, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      120/120
    • MPPT voltage range (V): :
      90-500
    • Max. input current (A): :
      18/18
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      5500
    • （Off-grid）Max. output apparent power (VA):
      10000, 10s
    • Battery voltage range (V):
      40-60
    • Max. charge/discharge current (A):
      135/135
    • MPPT voltage range (V): :
      90-500
    • Max. input current (A): :
      18/18
    • MPPT number/Max. input strings number：:
      2/2
    • （On-grid）Max. output apparent power (VA):
      6600
    • （Off-grid）Max. output apparent power (VA):
      12000, 10s
