HiFlow Series

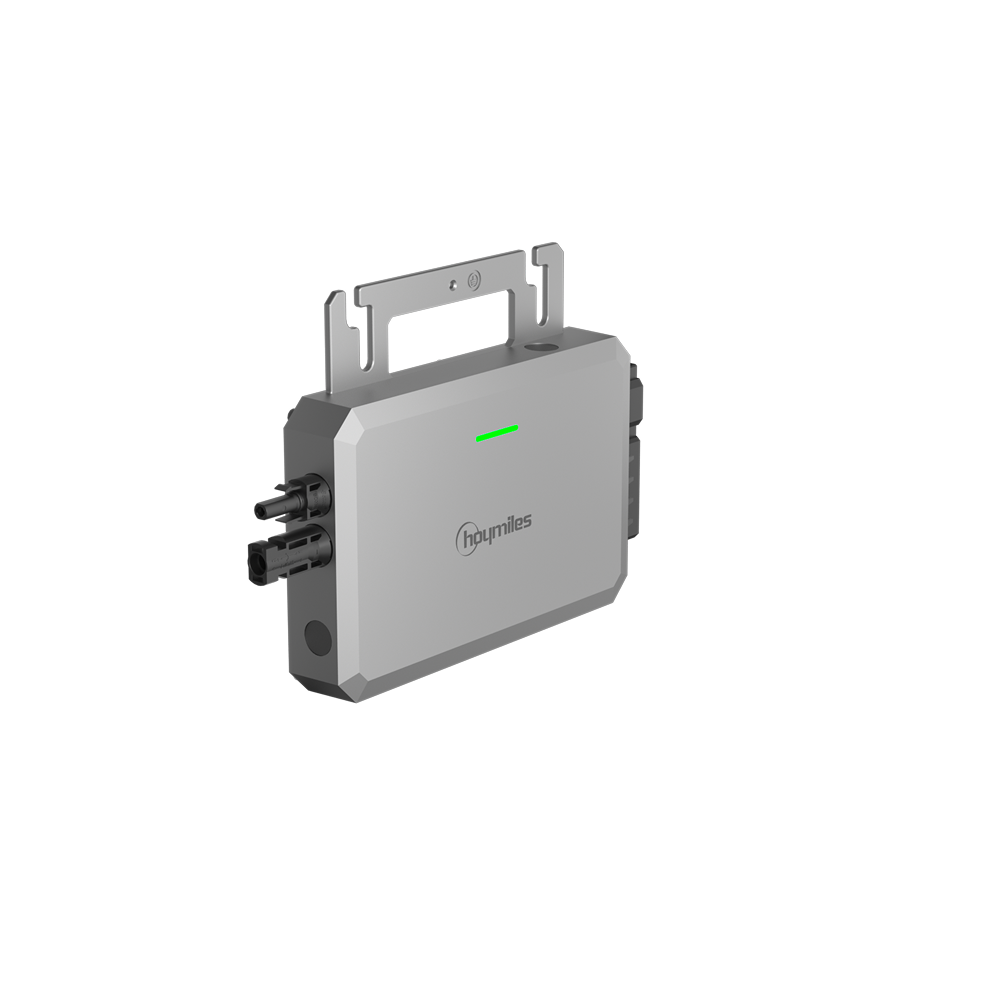

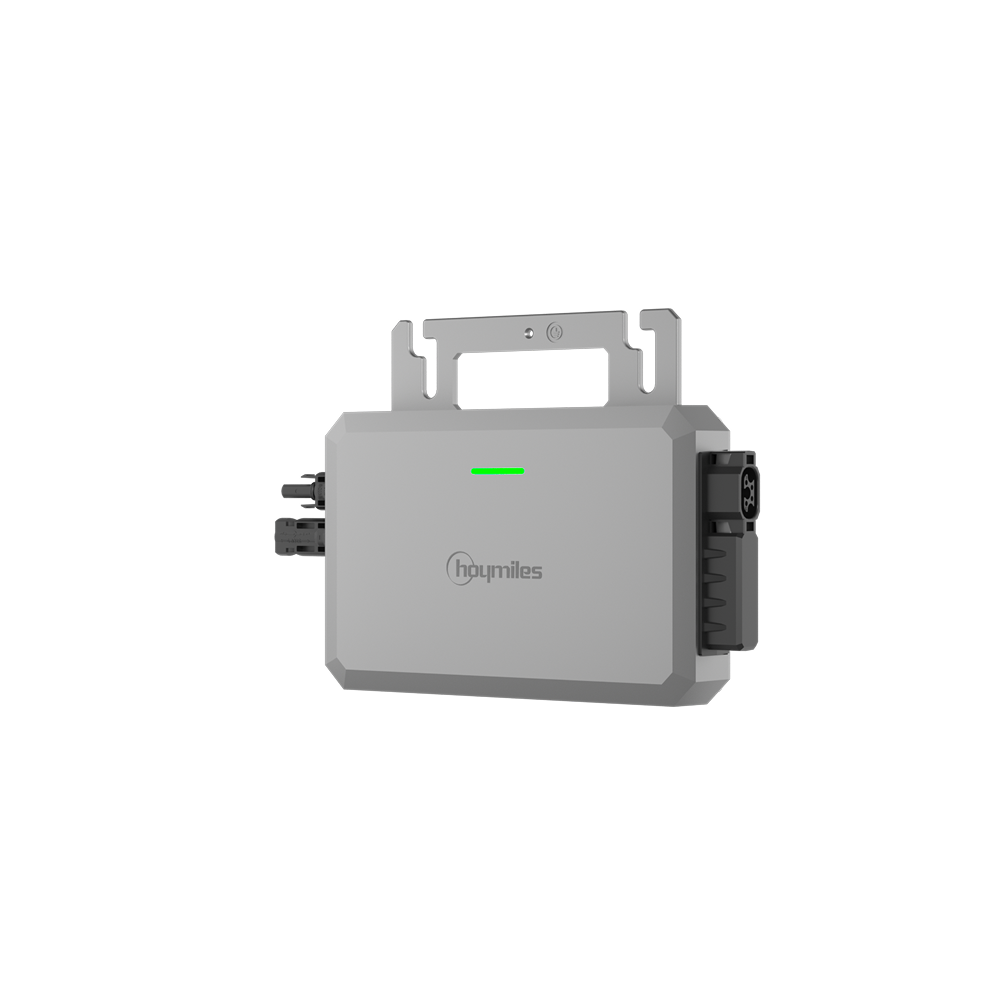

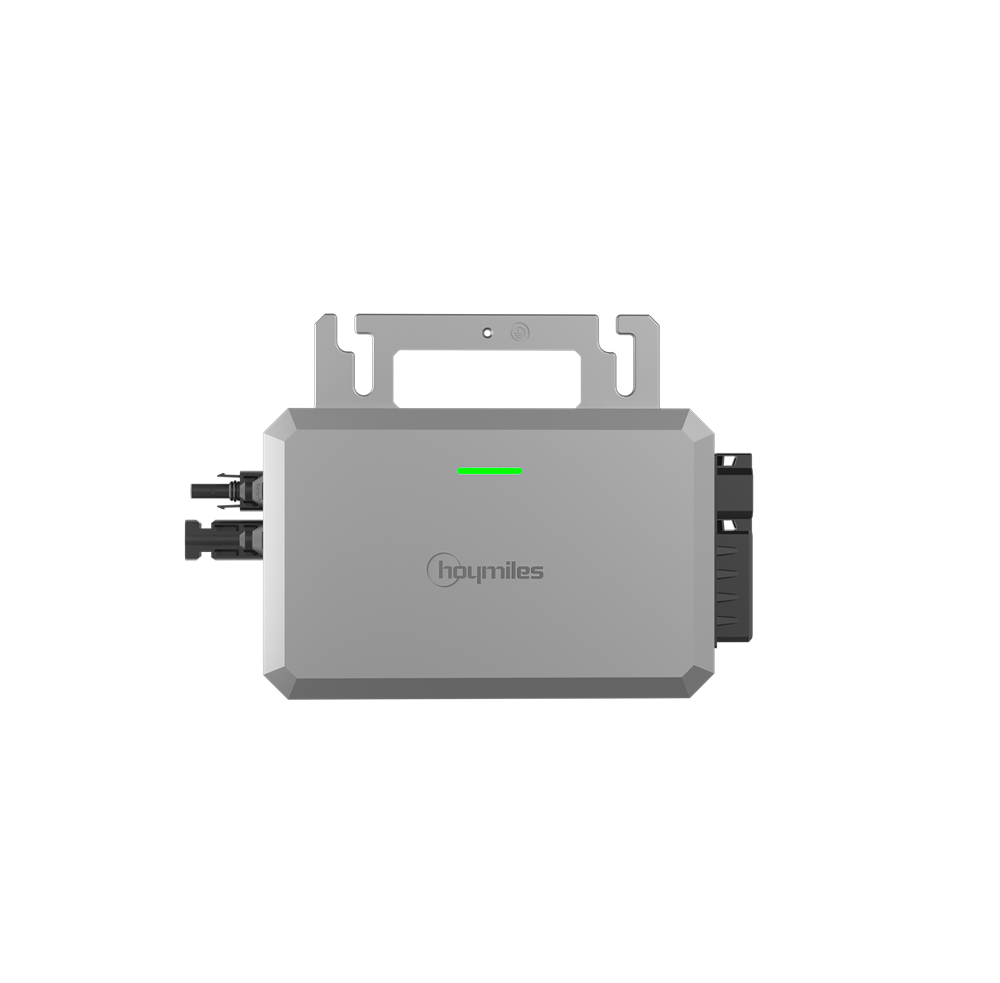

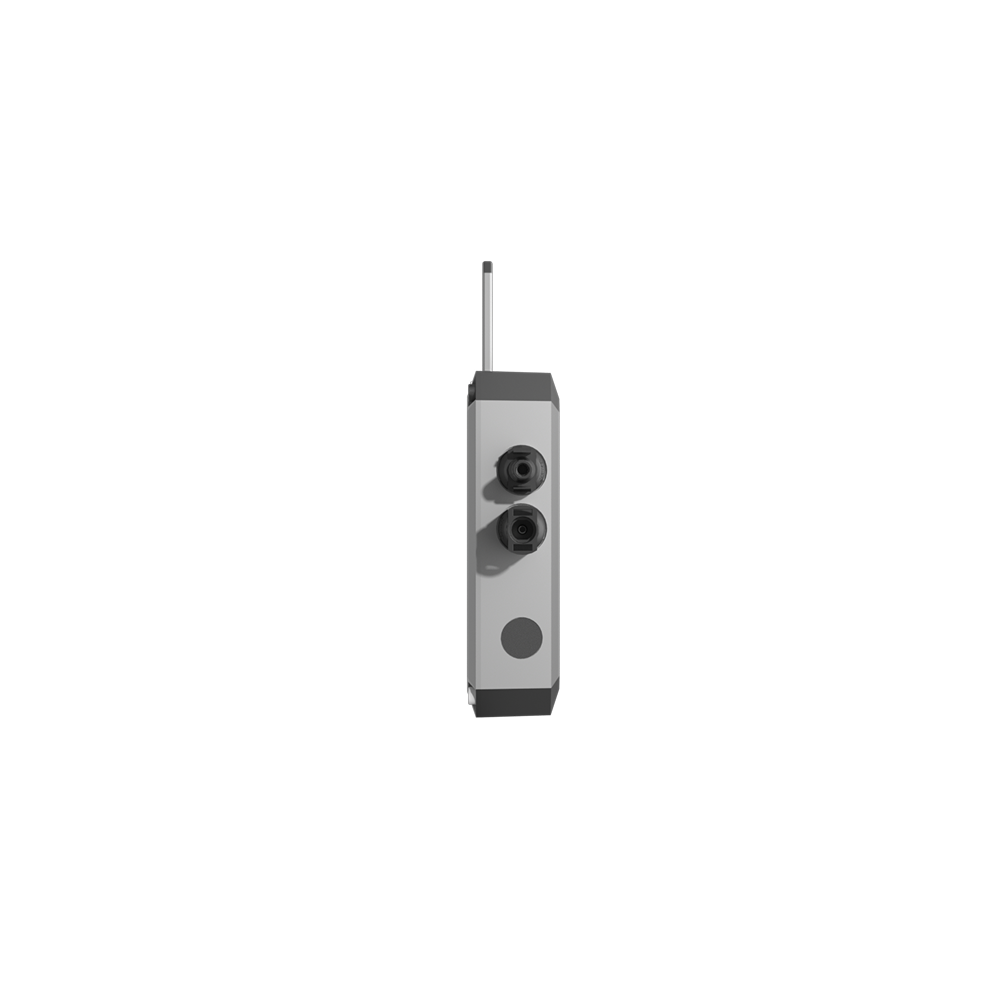

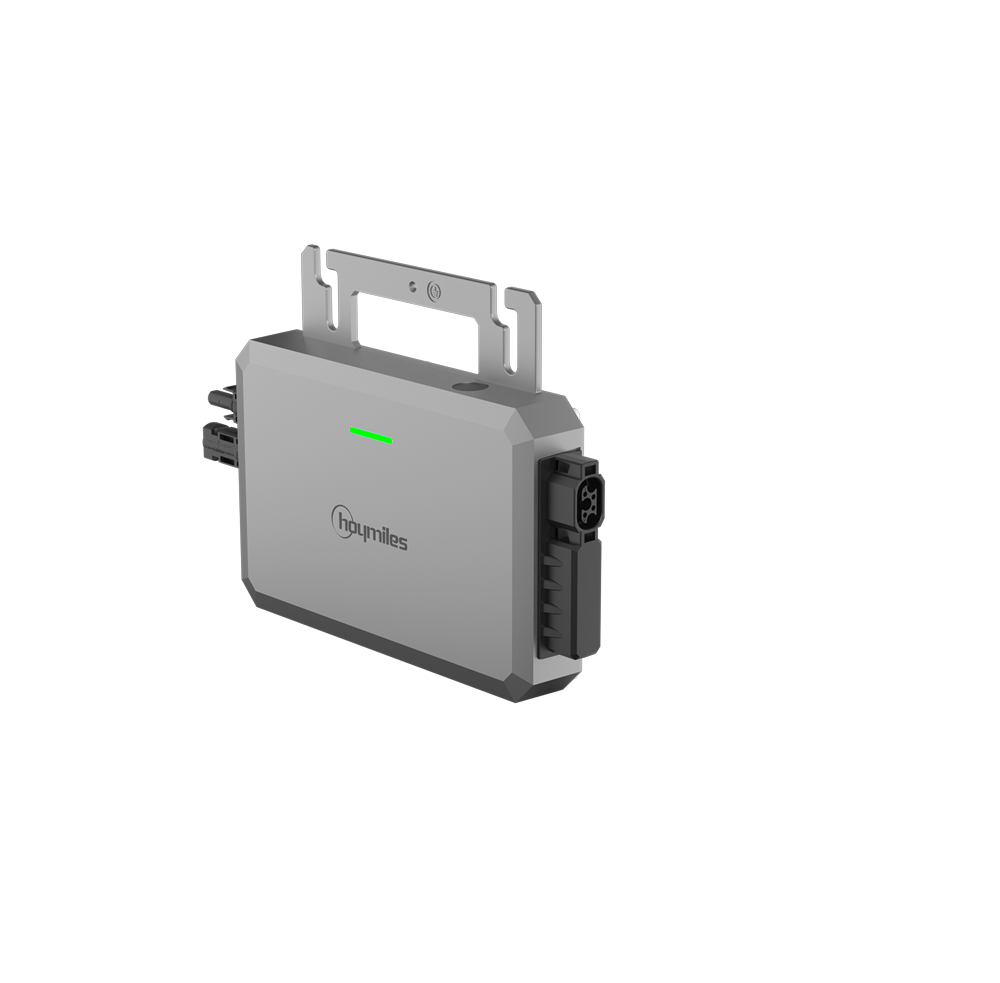

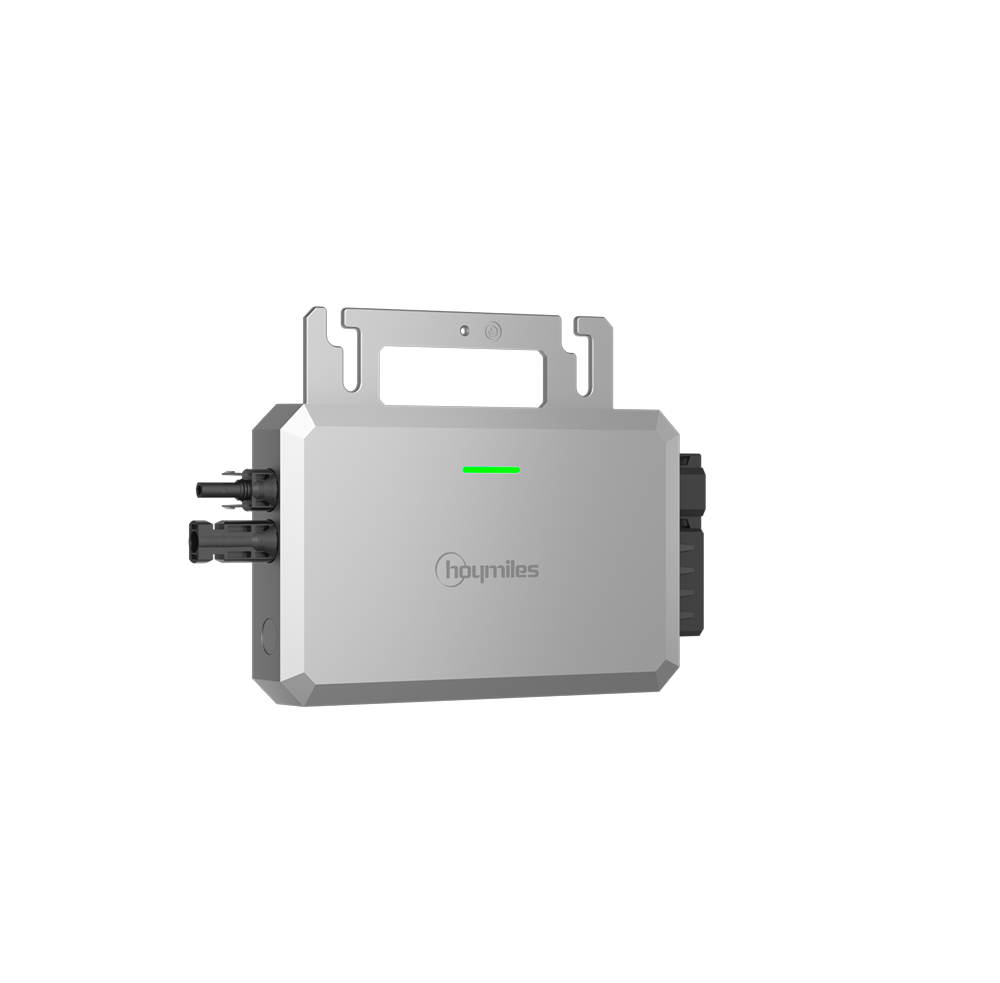

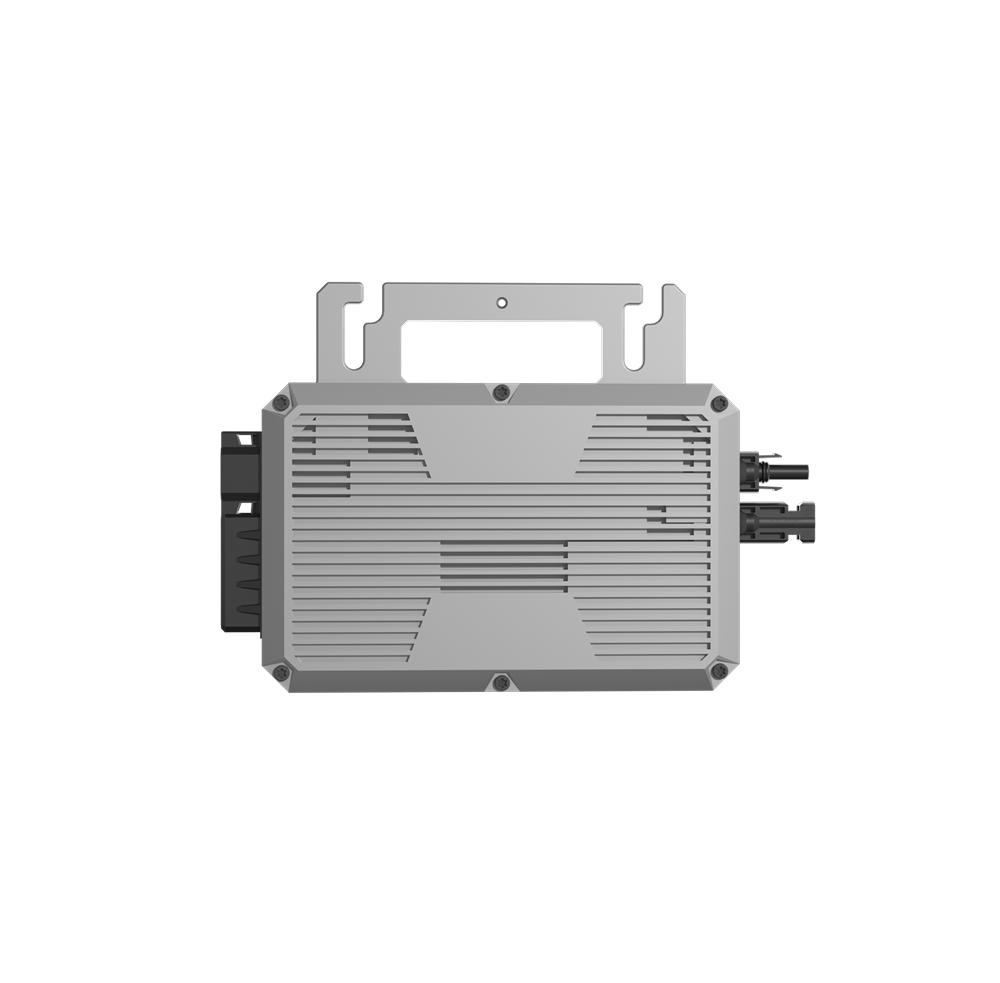

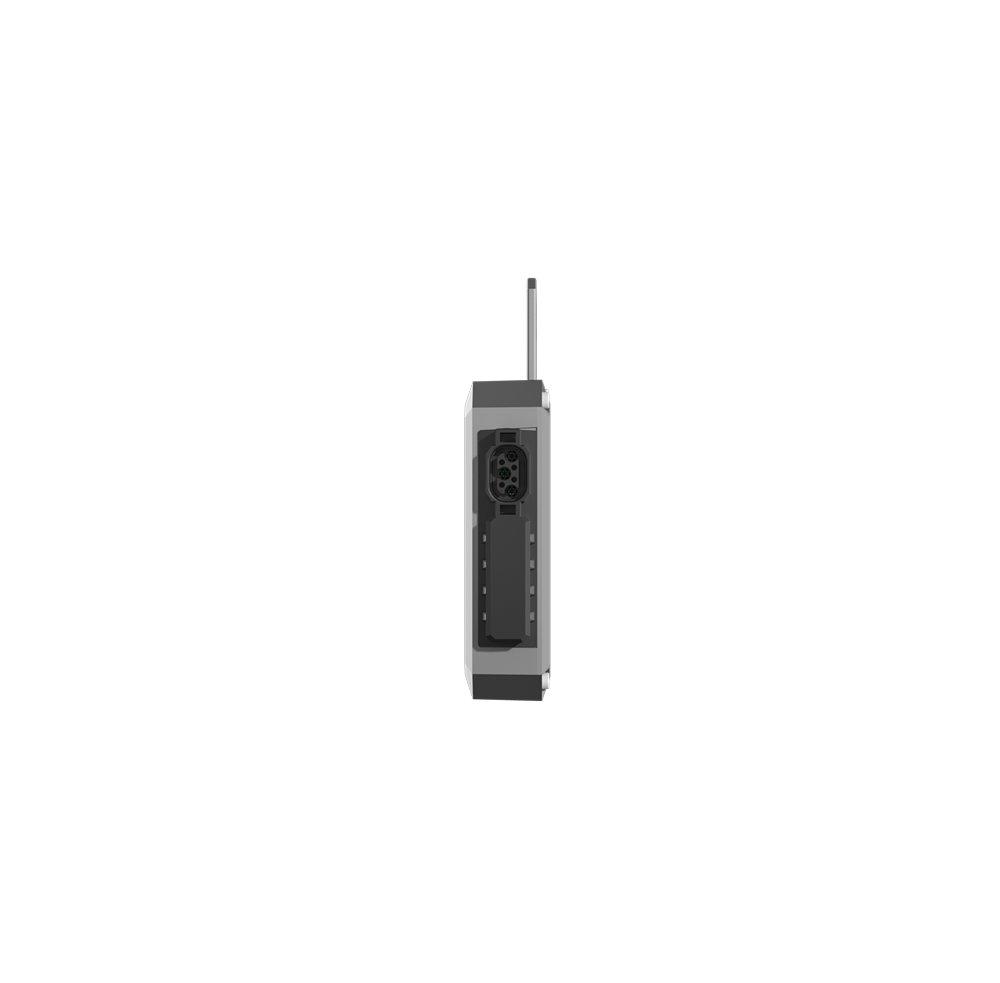

The HF-800-WB microinverter provides a cost-effective solution for residential PV systems. It is lighter, smaller, but has a maximum output of 800 VA.

With the built-in Wi-Fi & Bluetooth module, it can communicate directly and reliably with the S-Miles Cloud, eliminating the need for an extra DTU.

It features hassle-free plug-and-play installation, taking just minutes to set up. Moreover, the new S-Miles Home App enables effortless customization of your smart home solar system.

Download Spec Sheet

1/4

Learn More

Features
Tech Specs

Features

- Easy Installation and Configuration: Plug & play connection, eliminating complex wiring; Built-in Wi-Fi & Bluetooth module, supporting device management without App registration.
- High Yields: Peak efficiency 97%, fully utilizing energy; MPPT efficiency 99.8%, ensuring efficient power generation.
- High Reliability: IP 67 rating, -40 °C to 65 °C operating temperature range, adapting to various harsh environments; 12-year long warranty perio.
- High Safety: Compliant with GDPR and RED-EN 18031 for enhanced data security; Instant voltage cut-off to 34 V within 1 second.

Tech Specs

HF-800-WB

- Commonly used module power (W):

  320 to 520+
- Maximum input voltage (V):

  100
- Maximum input current (A):

  16
- Number of MPPTs:

  1
- Rated output power (VA):

  800
- Nominal output voltage/range (V)* :

  230/184 to 276
- Peak efficiency:

  97.00%
