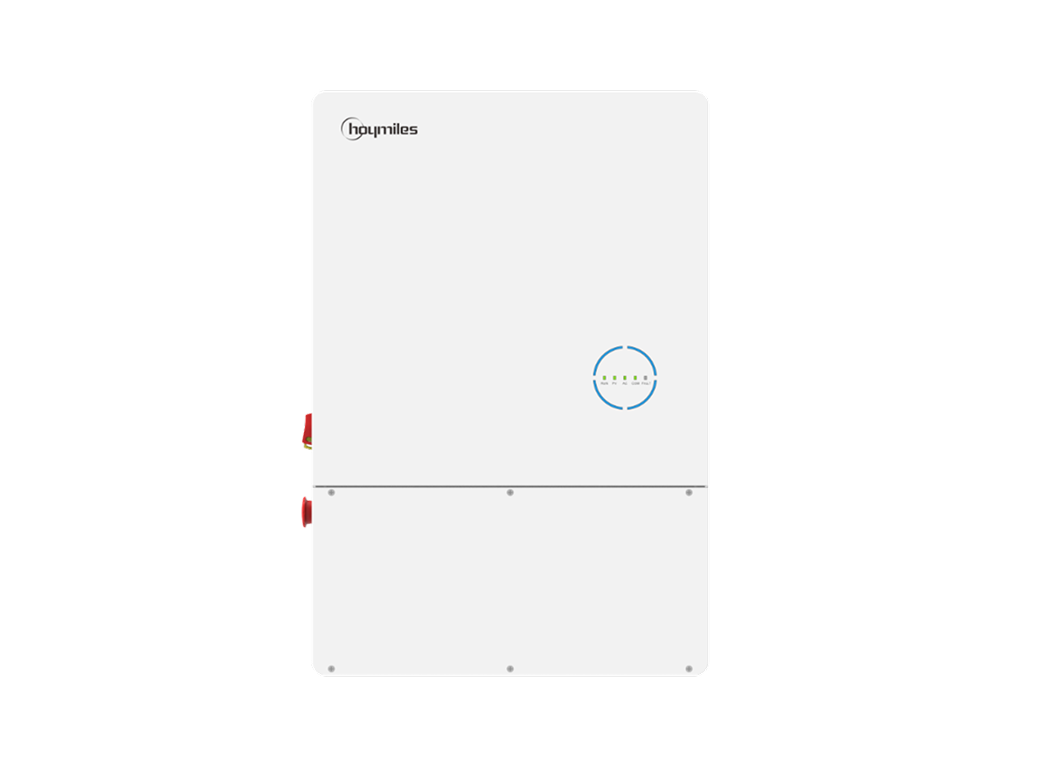

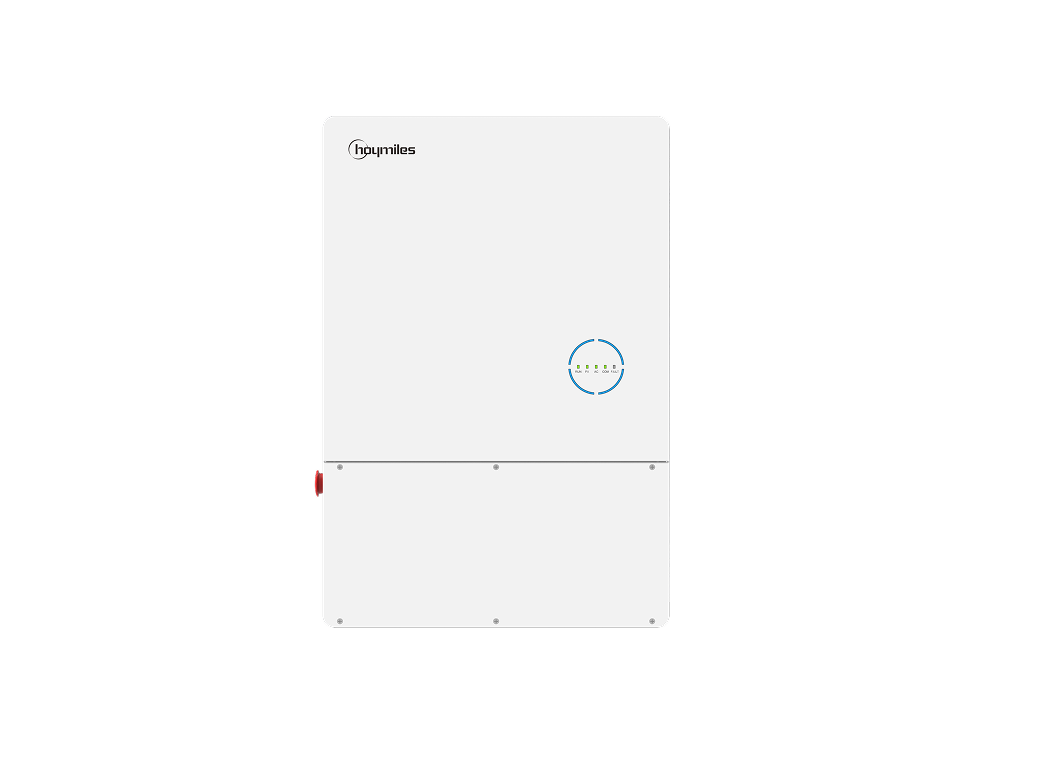

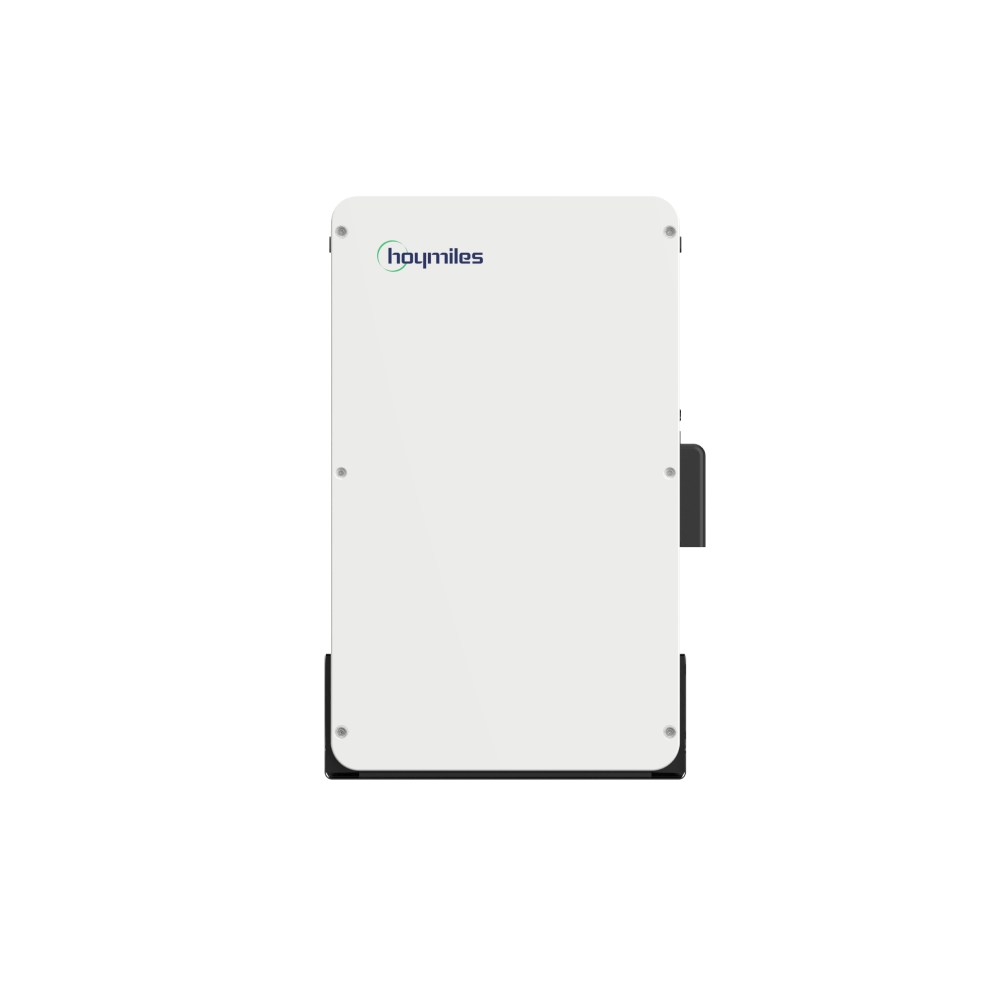

LB-10D-USG2
The LB-10D-USG2 is a deep cycle high capacity LFP battery with improved safety, long lifespan, and optimized user experience.
It is designed with a Type 4X rating for more flexible and easier installation, with wall-mounted and floor-standing installation options.
It has superior performance with up to 10.24 kWh for a single unit and a maximum of 102.4 kWh in parallel.
-
Features
-
Tech Specs
Features
-
-
Support wall-mounted or floor-standing installation.
-
Type 4X design is suitable for indoor/outdoor installation.
-
A maximum capacity of 102.4 kWh in parallel.
-
Quick connector design saves installation time.
-
Tech Specs
-
10D-USG2
-
-
Battery type:LiFePO₄
-
Total energy (kWh):10.24 kWh
-
Rated capacity (Ah):200 Ah
-
Voltage range (V):44.8 V-57.6 V
-
Max. charge/discharge power (kW):7.68 kW/7.68 kW, 10 mins
-
Communication:CAN
-
Max. parallel:Max. 10 sets in parallel, 102.4 kWh
-
