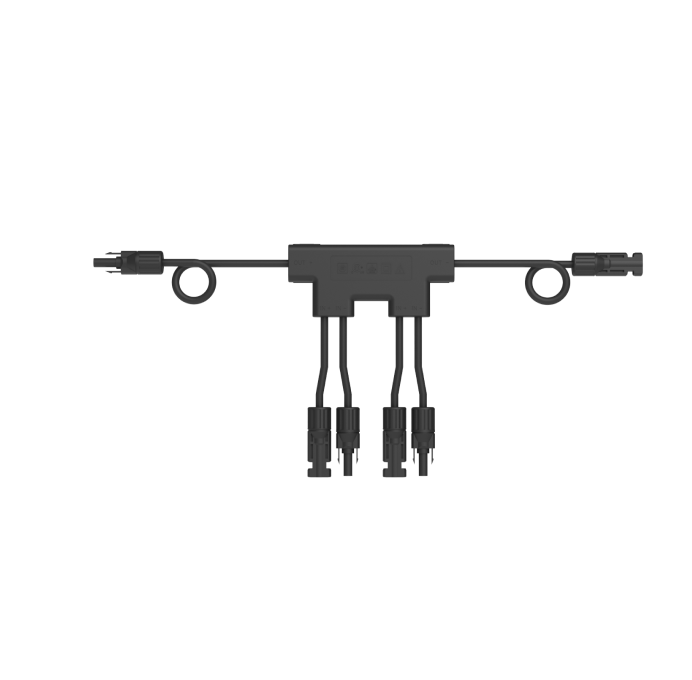

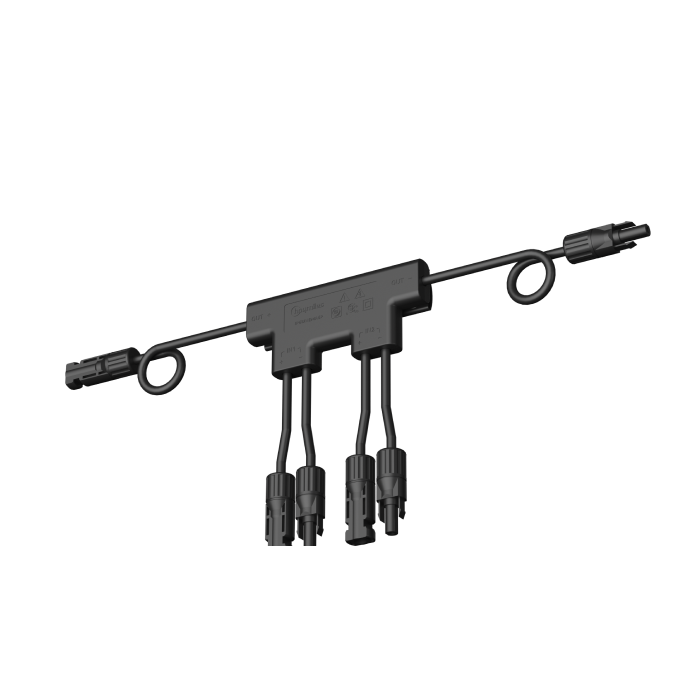

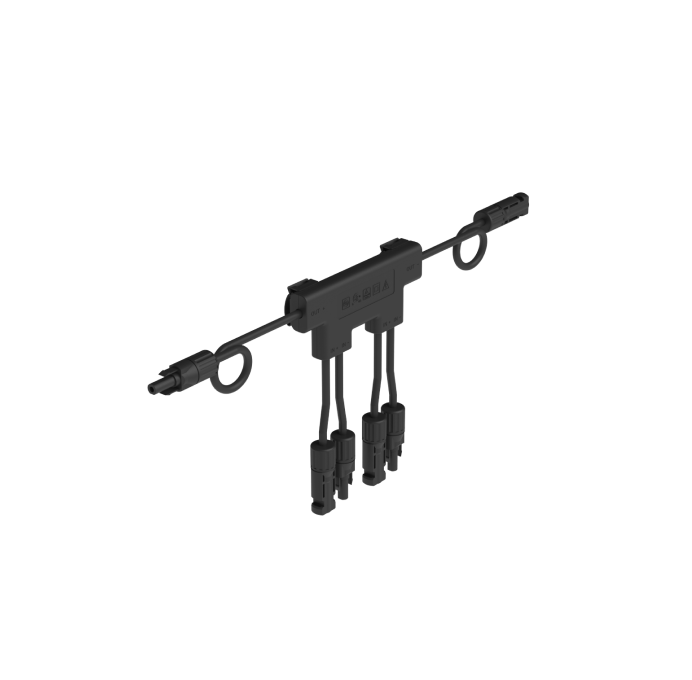

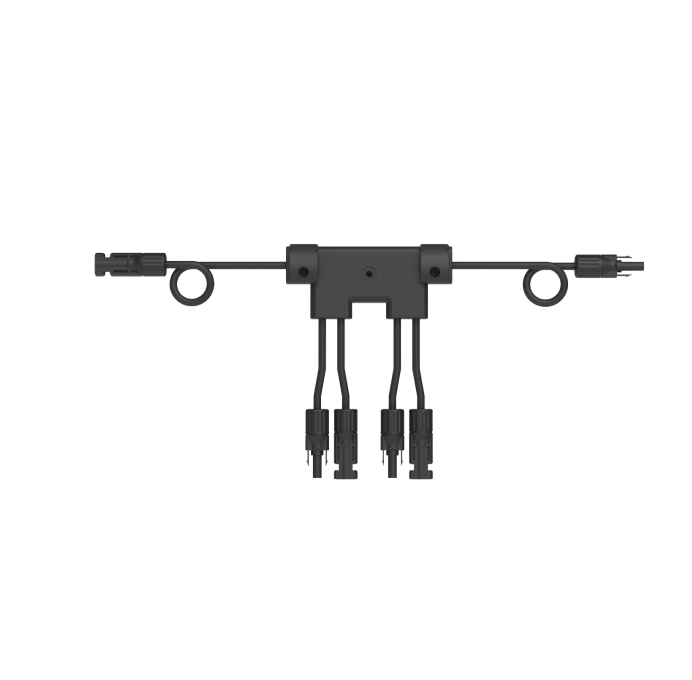

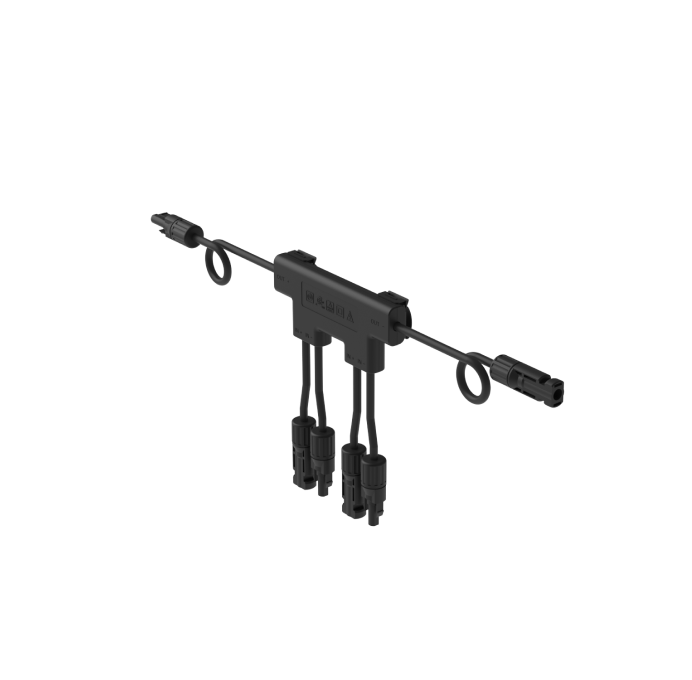

Hoymiles rapid shutdown HRSD-2C

As part of Hoymiles rapid shutdown solution for PV system, HRSD-2C can be connected with two modules. It meets NEC 2017, NEC 2020,UL 1741 and SunSpec Rapid Shutdown requirements, guaranteeing PV system safety.

When installed with and receiving a "permission to operate" signal from Hoymiles Transmitter, HRSD starts proper operation of PV system. In case of emergency, PV system would enter module-level rapid shutdown mode by simply disconnecting the AC power of Transmitter or using an external initiator.

Download Spec Sheet

1/4

Features
Tech Specs

Features

- Module-level rapid shutdown
- Plug & play, no configuration required
- Two inputs
- Lower power consumption and wider operating voltage range
- Realize rapid shutdown with Transmitter
- Much lower than arc noise. No risk of triggering AFCI

Tech Specs

HRSD-2C-B
HRSD-2C

- Input Voltage Range:

  8-65 V
- Output Voltage Range:

  16-130 V
- Maximum Current:

  20 A
- Maximum System Voltage:

  1000 V / 1100 V (1500 V optional)
- Communication Type:

  SunSpec PLC
- Shutdown Output Voltage:

  1 V
- Power Consumption:

  200 mW
- Input Voltage Range:

  8-80V
- Output Voltage Range:

  16-160 V
- Maximum Current:

  15 A
- Maximum System Voltage:

  1000 V / 1100 V (1500 V optional)
- Communication Type:

  SunSpec PLC
- Shutdown Output Voltage:

  1 V
- Power Consumption:

  200 mW
