HMT-1600&1800&2000-4T-208-NA

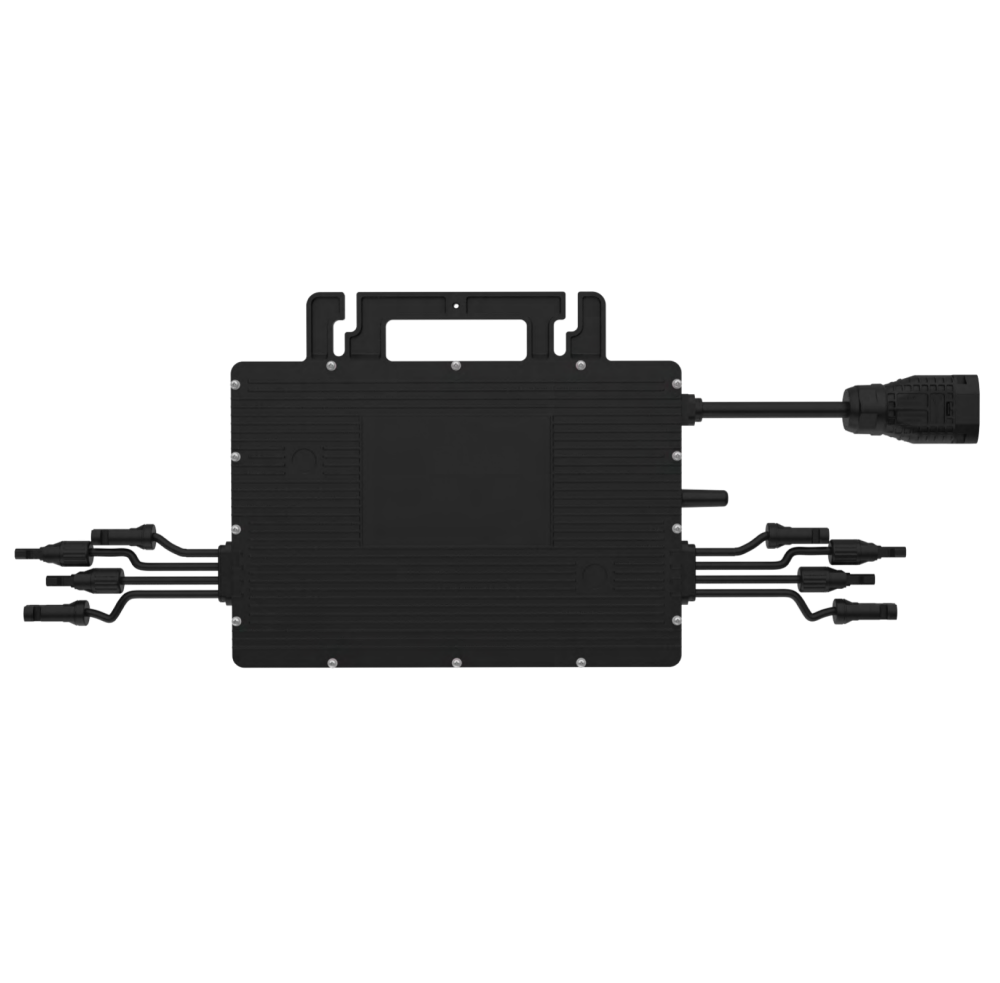

Hoymiles new generation microinverter HMT-2000-4T-208-NA series is designed to accommodate high-powered PV modules, with maximum output power up to 2000 VA and maximum DC input current up to 16 A.
The 4-input design enables faster installation and lower cost, making the HMT-2000-4T-208-NA series a very cost-effective choice.

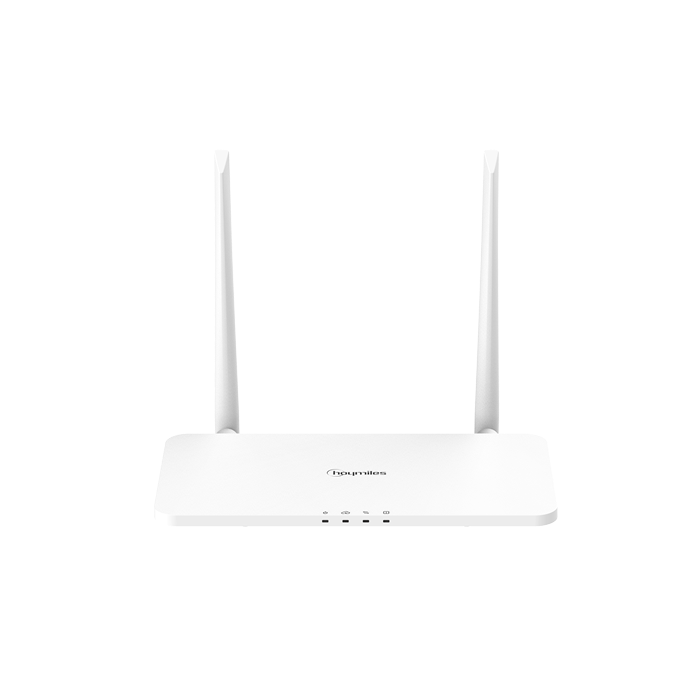

The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU. Smart platform S-Miles Cloud makes it possible for module-level monitoring and remote O&M.
-
Features
-
Tech Specs
Features
-
-
Three-phase output, more suitable for commercial and industrial applications.
-
With output power up to 2000 VA, compatible with 182 mm/210 mm PV module.
-
Designed for North American grids with a three-phase Delta network.
-
4-in-1 design enables faster installation and comes with a lower cost.
-
Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer.
-
Sub-1G wireless solution allows stable communication in commercial and industrial settings.
-
Tech Specs
-
1600-4T-208-NA
-
1800-4T-208-NA
-
2000-4T-208-NA
-
-
Commonly used module power (W):320 to 540+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 14
-
Number of MPPTs:2
-
Rated output power (VA):1600
-
Nominal output voltage/range (V)* :208
-
CEC peak efficiency:96.50%
-
-
-
Commonly used module power (W):360 to 600+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 15
-
Number of MPPTs:2
-
Rated output power (VA):1800
-
Nominal output voltage/range (V)* :208
-
CEC peak efficiency:96.50%
-
-
-
Commonly used module power (W):400 to 670+
-
Maximum input voltage (V):65
-
Maximum input current (A):4 × 16
-
Number of MPPTs:2
-
Rated output power (VA):2000
-
Nominal output voltage/range (V)* :208
-
CEC peak efficiency:96.50%
-
