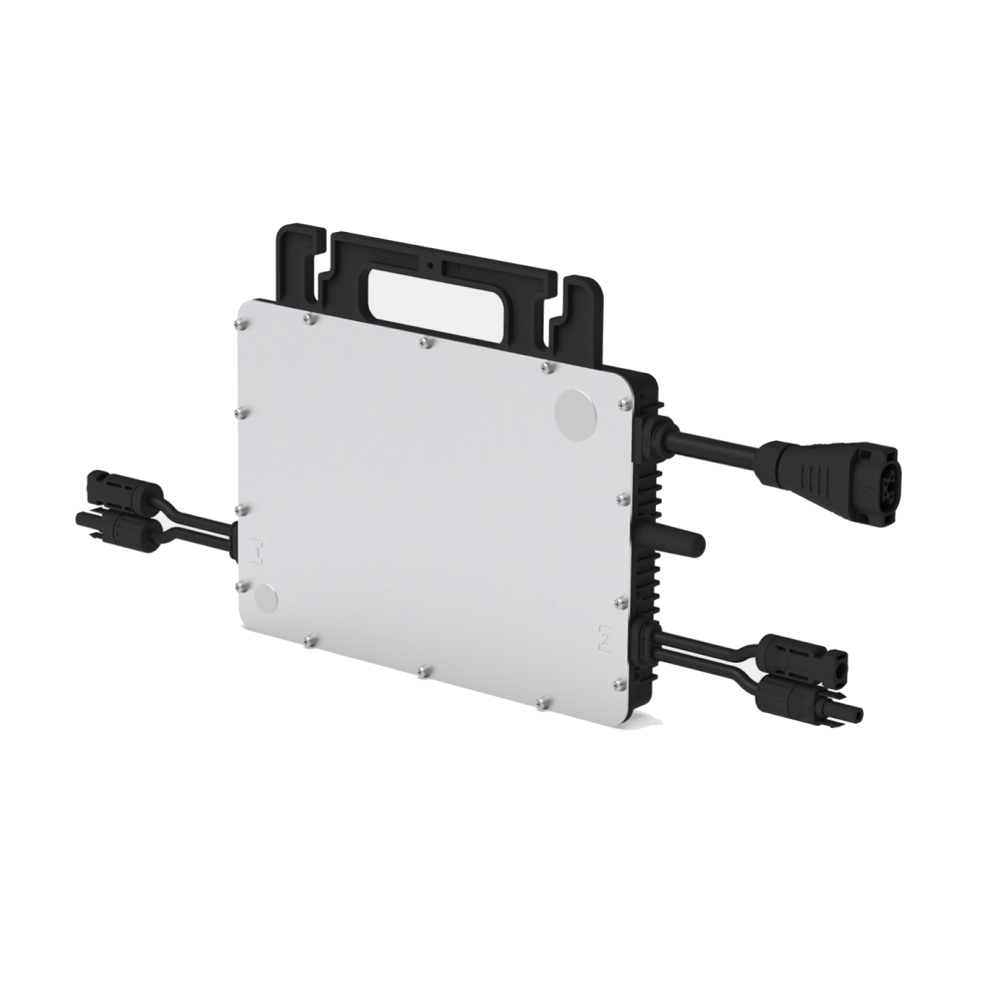

HMS-700&800&900&1000-2T-NA

Hoymiles new microinverter HMS-1000 series are suitable for high-powered solar panels, which rank among the highest for 2-in-1 microinverters.

Each microinverter can connect up to 2 panels, with independent MPPT and monitoring maximizing the power production of your installation. With a maximum DC voltage of 65 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218. The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.

Download Spec Sheet

1/4

Features
Tech Specs

Features

- High-powered microinverter for 2-in-1 series with superior performance.
- Safer for rooftop solar stations with PV rapid shutdown compliance.
- With Reactive Power Control, compliant with UL 1741, IEEE 1547, UL 1741 SB, etc.
- Independent MPPT and monitoring ensure greater energy harvest and easier maintenance.
- 2-in-1 design enables faster installation.
- Sub-1G wireless solution allows stable communication in commercial and industrial settings.

Tech Specs

700-2T-NA
800-2T-NA
950-2T-NA
1000-2T-NA

- Commonly used module power (W):

  280 to 470+
- Maximum input voltage (V):

  60
- Maximum input current (A):

  2 × 13
- Number of MPPTs:

  2
- Rated output power (VA):

  700
- Nominal output voltage/range (V)* :

  240/211–264; 208/183–228
- CEC peak efficiency:

  96.70%
- Commonly used module power (W):

  320 to 540+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  2 × 14
- Number of MPPTs:

  2
- Rated output power (VA):

  800
- Nominal output voltage/range (V)* :

  240/211–264; 208/183–228
- CEC peak efficiency:

  96.70%
- Commonly used module power (W):

  360 to 600+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  2 × 15
- Number of MPPTs:

  2
- Rated output power (VA):

  900
- Nominal output voltage/range (V)* :

  240/211–264; 208/183–228
- CEC peak efficiency:

  96.50%
- Commonly used module power (W):

  400 to 670+
- Maximum input voltage (V):

  65
- Maximum input current (A):

  2 × 16
- Number of MPPTs:

  2
- Rated output power (VA):

  1000
- Nominal output voltage/range (V)* :

  240/211–264; 208/183–228
- CEC peak efficiency:

  96.50%
