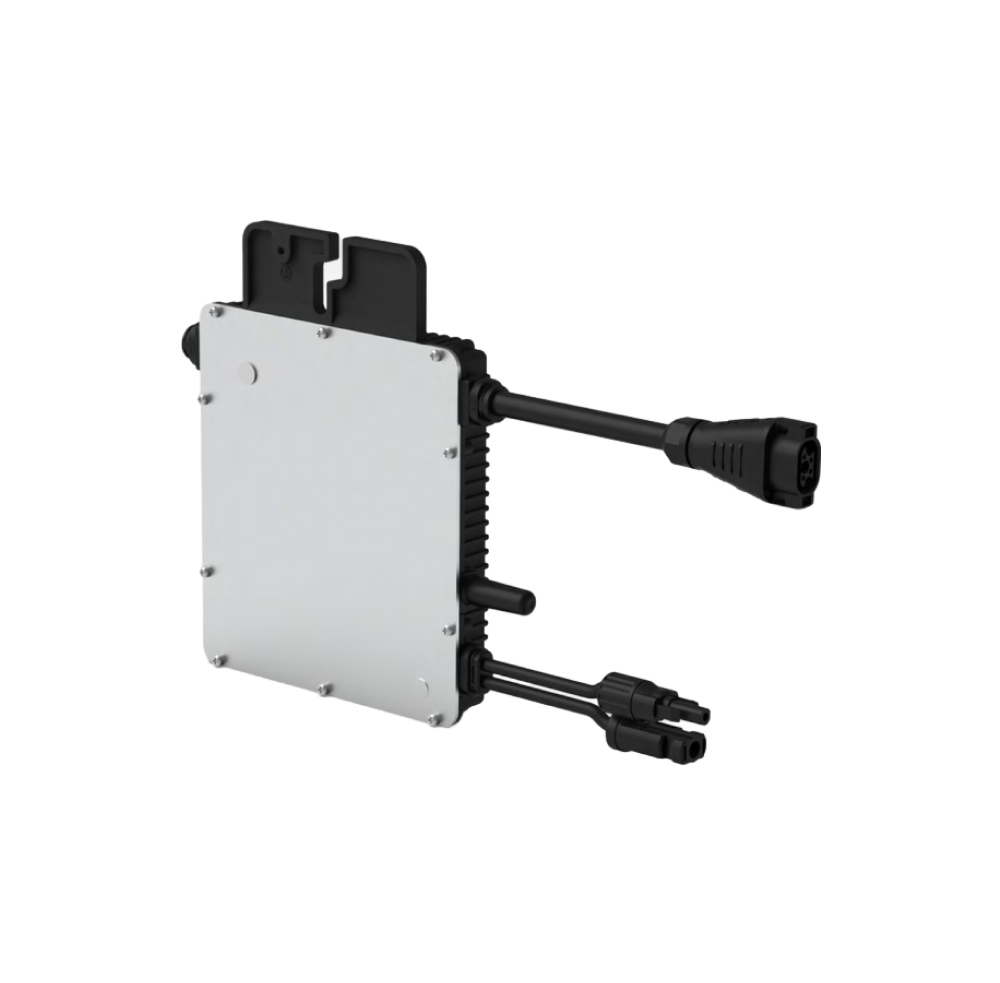

HMS-350&400&450&500-1T-NA
The Hoymiles HMS-500-1T series microinverters are designed for high-powered solar panels and are among the top-performing 1-in-1 microinverters on the market.
Each microinverter can be connected to one panel and used in various applications, making it one of the most flexible solar solutions. With a maximum DC voltage of 65 volts, the Hoymiles micro-inverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218. The Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.
-
Features
-
Tech Specs
Features
-
-
High-powered microinverter for 1-in-1 series with superior performance.
-
Safer for rooftop solar stations with PV rapid shutdown compliance.
-
With Reactive Power Control, compliant with UL 1741, IEEE 1547, UL 1741 SB, etc.
-
1-in-1 design enables most flexible applications.
-
Tech Specs
-
350-1T-NA
-
400-1T-NA
-
450-1T-NA
-
500-1T-NA
-
-
Commonly used module power (W):280 to 470+
-
Maximum input voltage (V):60
-
Maximum input current (A):13
-
Number of MPPTs:1
-
Rated output power (VA):350
-
Nominal output voltage/range (V)* :240/211–264; 208/183–228
-
CEC peak efficiency:96.70%
-
-
-
Commonly used module power (W):320 to 540+
-
Maximum input voltage (V):65
-
Maximum input current (A):14
-
Number of MPPTs:1
-
Rated output power (VA):400
-
Nominal output voltage/range (V)* :240/211–264; 208/183–228
-
CEC peak efficiency:96.70%
-
-
-
Commonly used module power (W):360 to 600+
-
Maximum input voltage (V):65
-
Maximum input current (A):15
-
Number of MPPTs:1
-
Rated output power (VA):450
-
Nominal output voltage/range (V)* :240/211–264; 208/183–228
-
CEC peak efficiency:96.50%
-
-
-
Commonly used module power (W):400 to 670+
-
Maximum input voltage (V):65
-
Maximum input current (A):16
-
Number of MPPTs:1
-
Rated output power (VA):500
-
Nominal output voltage/range (V)* :240/211–264; 208/183–228
-
CEC peak efficiency:96.50%
-
