DTS-G1

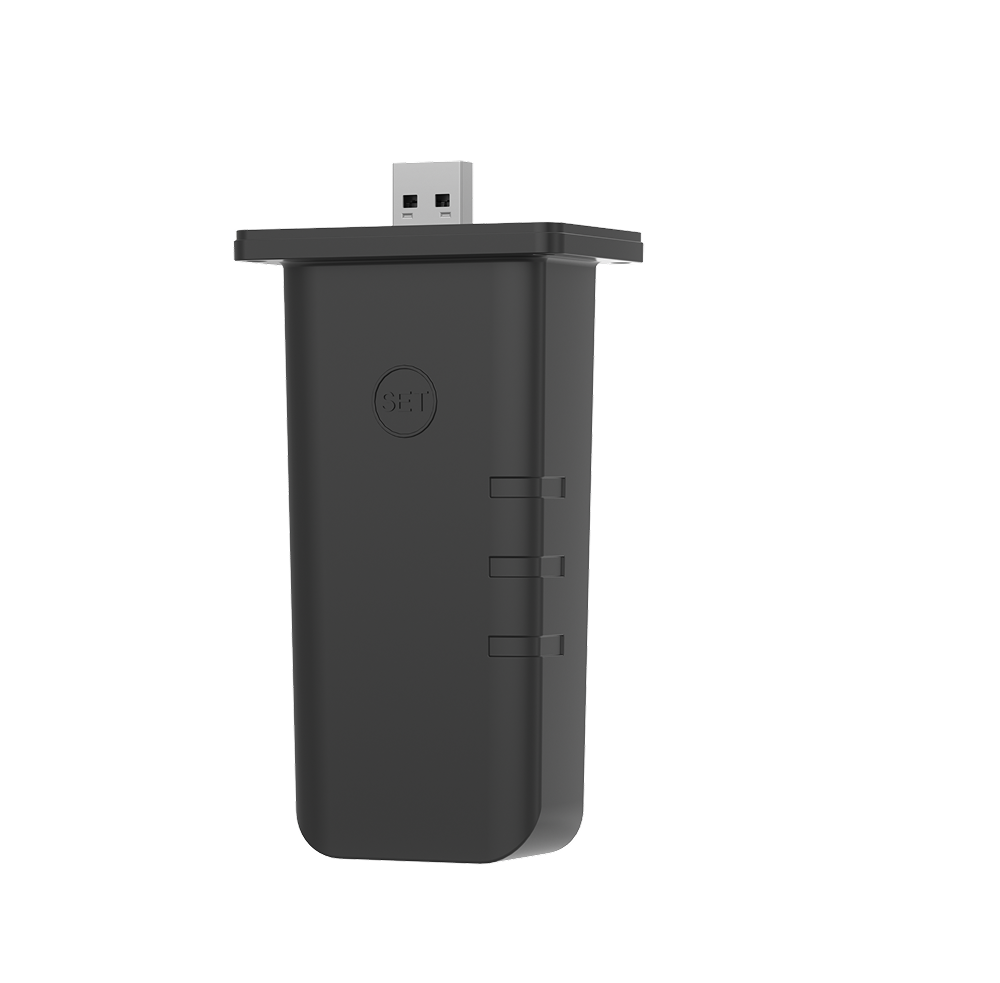

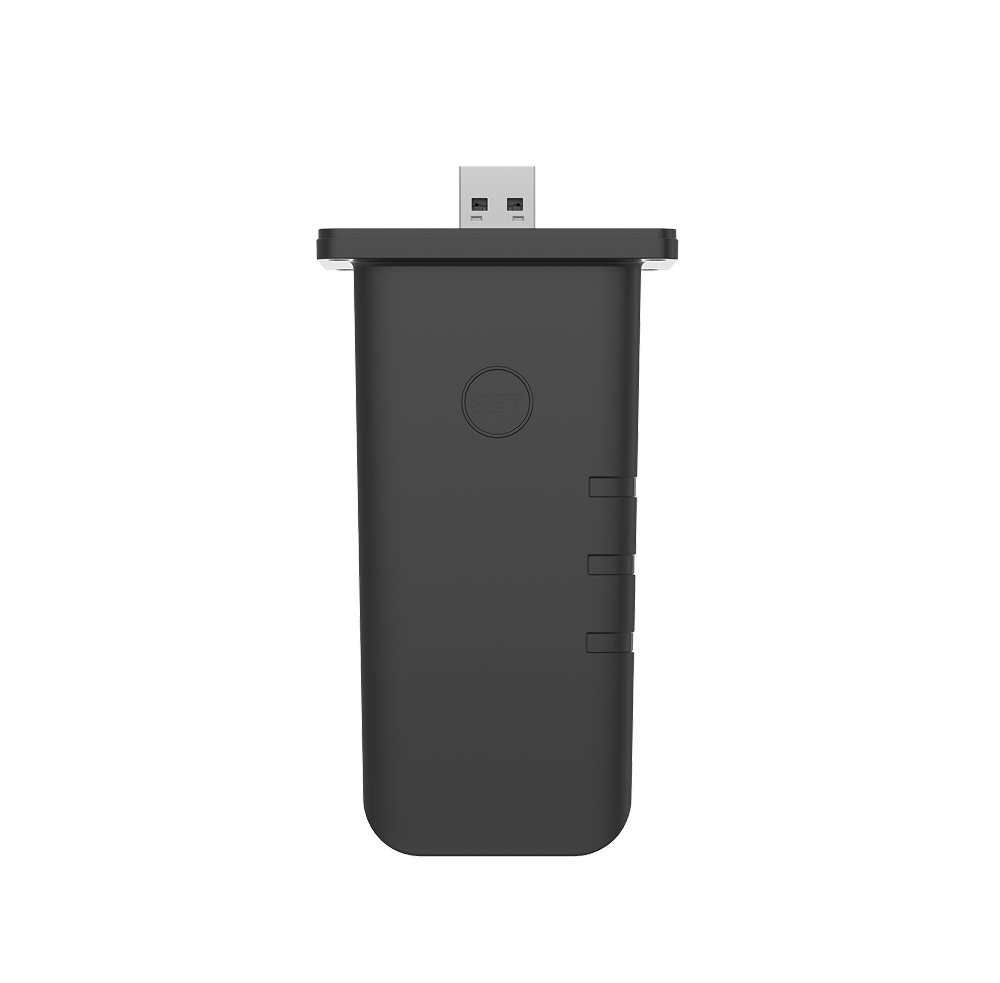

Hoymiles gateway DTS series are data transfer sticks that work between inverters and S-Miles Cloud platform via Wi-Fi, Ethernet or 4G communication. The DTS is designed as a suitable option for the energy storage system.
Hoymiles DTS is small and easy to install. It pairs with the S-Miles Cloud platform to enable real-time system data or alarm monitoring and allows remote operation and maintenance of the storage energy system from anywhere.
1/4
-
Features
-
Tech Specs
Features
-
-
Integrated to use, simply plug and play.
-
IP65 protection.
-
Stable and reliable data transmission.
-
Remote maintenance of energy storage system on S-Miles Cloud platform.
-
Tech Specs
-
DTS-Ethernet-G1
-
DTS-WIFI-G1
-
DTS-4G-G1
-
-
Installation method:Insert + Screw
-
Max. Inverter Supported:10
-
Sample Rate:15 minutes
-
Operating Temperature Range:-25℃ to 65℃ (-13℉ to 149℉)
-
Operating Voltage:DC 5 V
-
Power Consumption:≤ 5 W
-
-
-
Installation method:Insert + Screw
-
Max. Inverter Supported:10
-
Sample Rate:15 minutes
-
Operating Temperature Range:25℃ to 65℃ (-13℉ to 149℉)
-
Operating Voltage:DC 5 V
-
Power Consumption:≤ 5 W
-
-
-
Installation method:Insert + Screw
-
Max. Inverter Supported:10
-
Sample Rate:15 minutes
-
Operating Temperature Range:-25℃ to 65℃ (-13℉ to 149℉)
-
Operating Voltage:DC 5 V
-
Power Consumption:≤ 5 W
-
