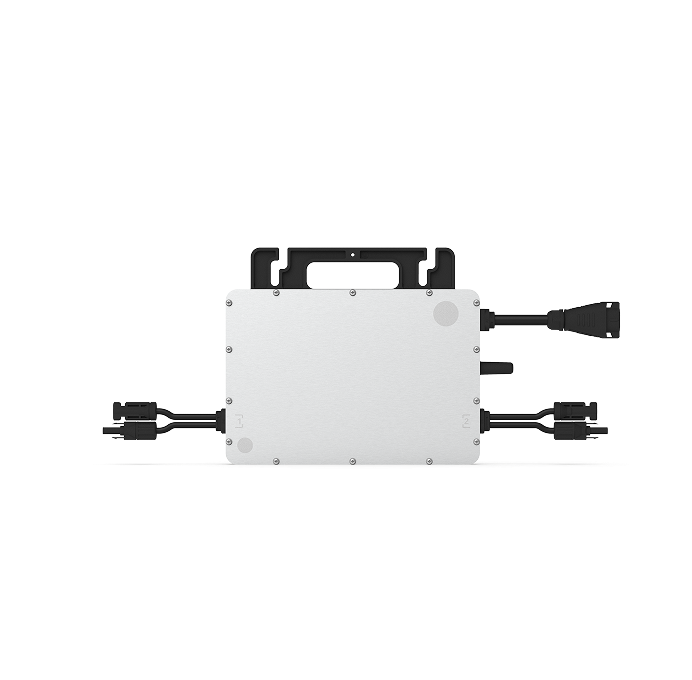

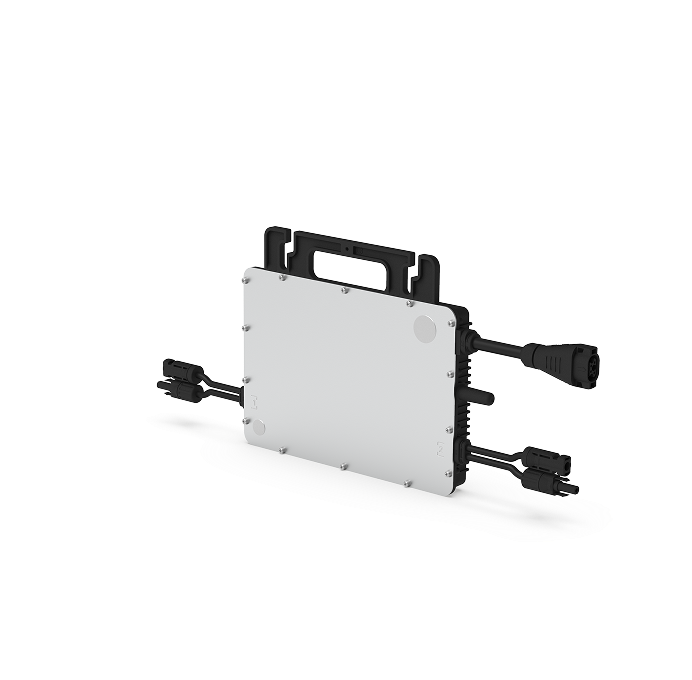

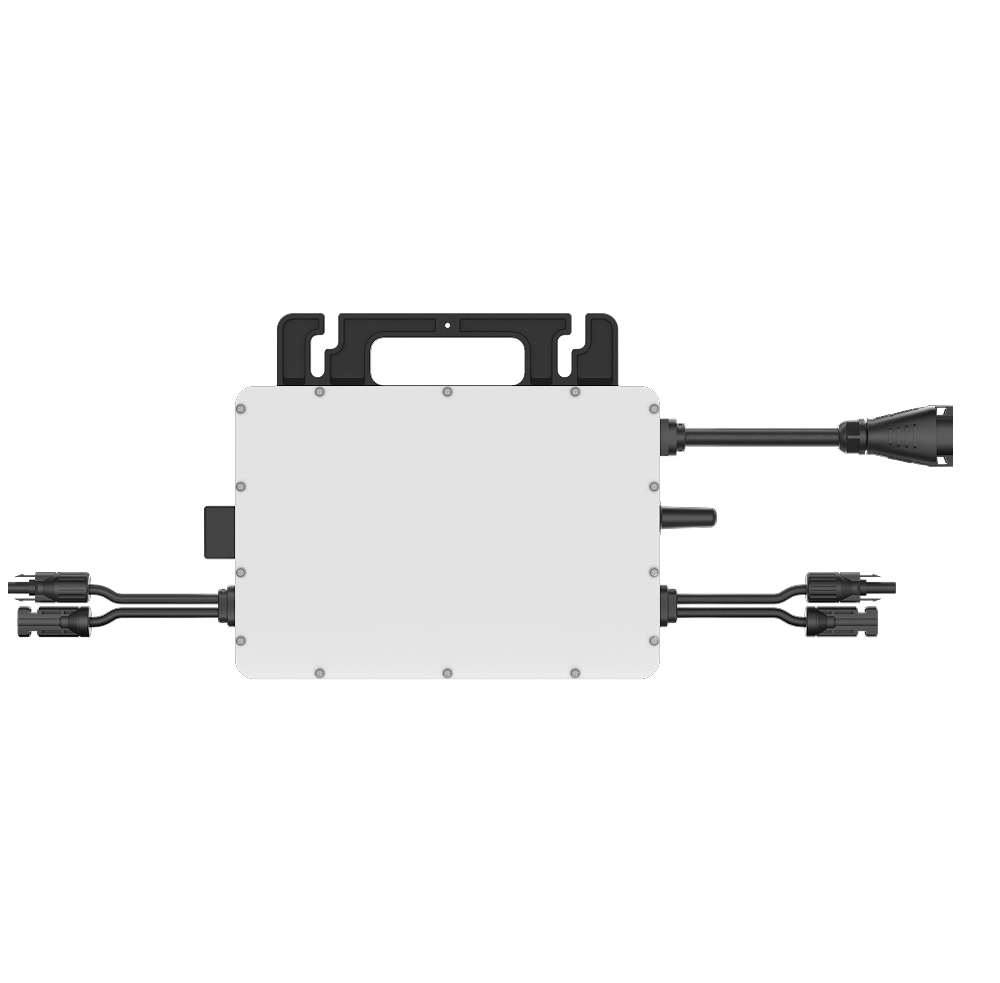

HMS-600&700&800&900&1000W-2T

Hoymiles HMS-1000W series microinverters are specifically designedfor mini PV systems,such as balcony systems, and feature an integrated industrial+ grade Wi-Fi module.

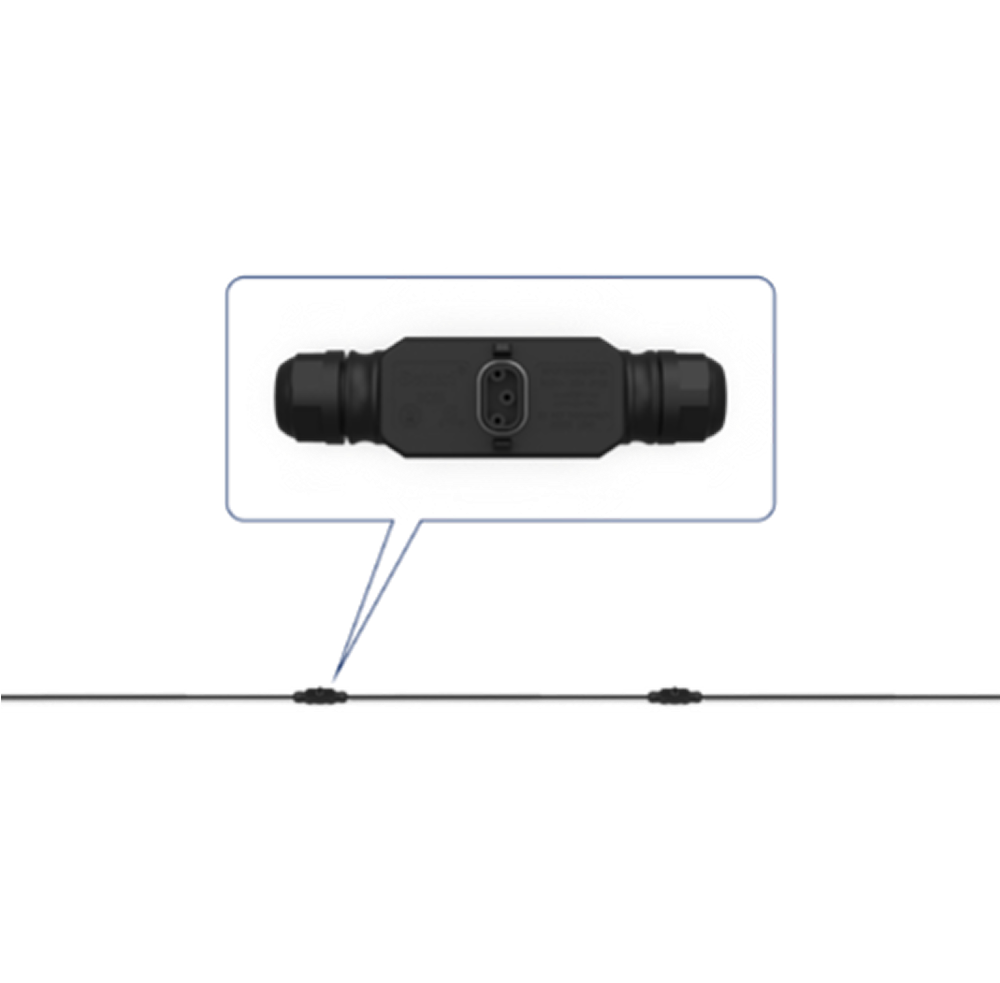

With the user-friendly HMS Plug and Play Cable, installation is effortless.

Users can connect the microinverter directly to a socket – no complex wiring is required. The HMS-1000W series microinverters simplify system monitoring. They enable seamless access to real-time production data by directly connecting smartphones to the microinverter. Remote monitoring also made possible through the S-Miles Cloud by creating PV plants.


Contact Us
Download Spec Sheet
1/4
Learn More
  • Features
  • Tech Specs

Features

    • Plug-and-play design for balcony solar systems.

    • Built-in industrial+ grade Wi-Fi module for high reliability.

    • Compatible with Micro Toolkit or S-Miles Cloud for monitoring and management.

    • Output power setting function to customize performance.

    • Enhanced safety with rapid shutdown compliance and isolated transformer.

    • High-powered microinverter with up to 1000 VA output.

Tech Specs

  • 800W
  • 600W
  • 700W
  • 900W
  • 1000W
    • Commonly used module power (W):
      320 to 540+
    • Maximum input voltage (V):
      65
    • Maximum input current (A):
      2 × 14
    • Number of MPPTs:
      2
    • Rated output power (VA):
      800
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.70%
    • Commonly used module power (W):
      240 to 405+
    • Maximum input voltage (V):
      60
    • Maximum input current (A):
      2 × 12
    • Number of MPPTs:
      2
    • Rated output power (VA):
      600
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.70%
    • Commonly used module power (W):
      280 to 470+
    • Maximum input voltage (V):
      60
    • Maximum input current (A):
      2 × 13
    • Number of MPPTs:
      2
    • Rated output power (VA):
      700
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.70%
    • Commonly used module power (W):
      360 to 600+
    • Maximum input voltage (V):
      65
    • Maximum input current (A):
      2 × 15
    • Number of MPPTs:
      2
    • Rated output power (VA):
      900
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.50%
    • Commonly used module power (W):
      400 to 670+
    • Maximum input voltage (V):
      65
    • Maximum input current (A):
      2 × 16
    • Number of MPPTs:
      2
    • Rated output power (VA):
      1000
    • Nominal output voltage/range (V)* :
      220/180-275; 230/180-275; 240/180-275
    • CEC peak efficiency:
      96.50%
